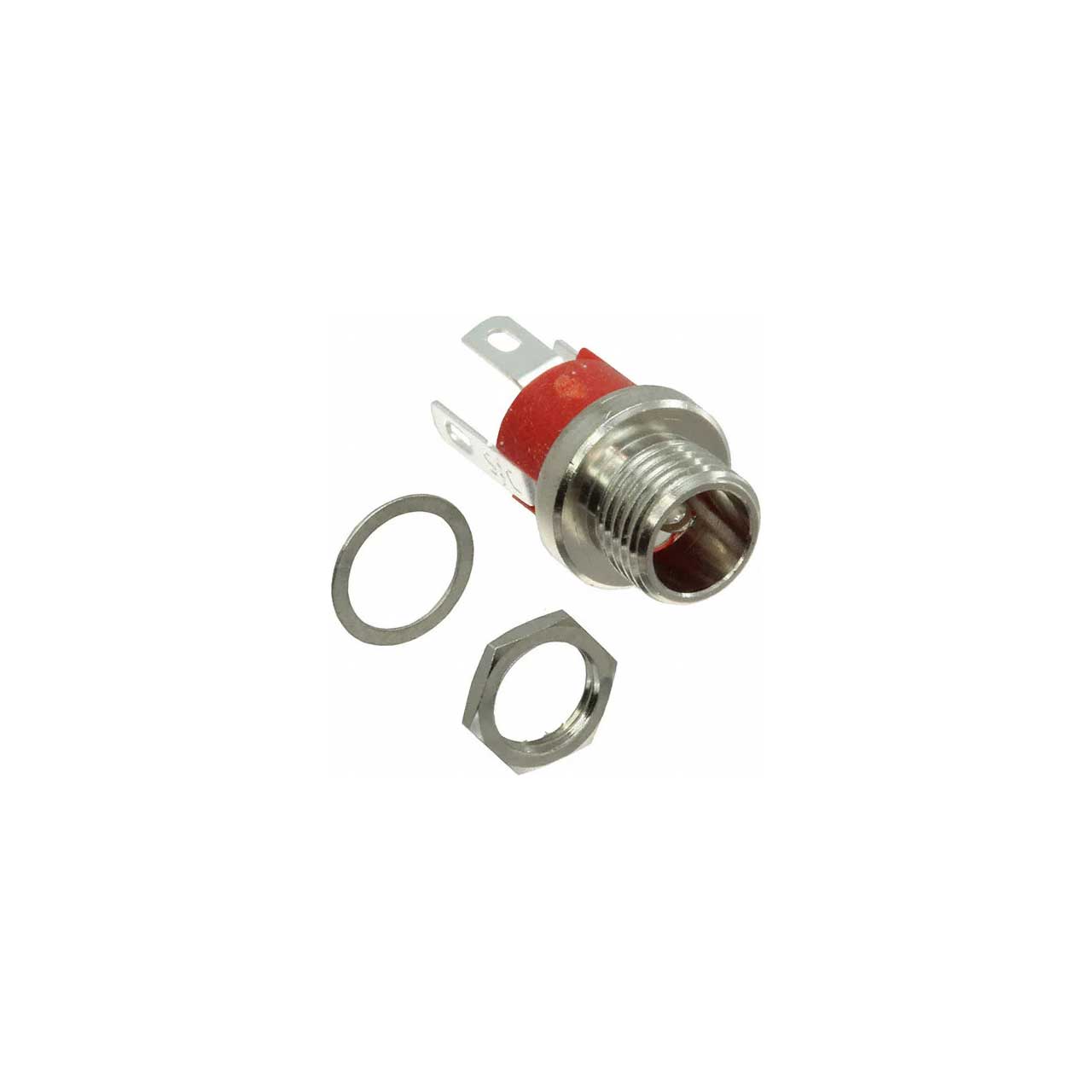

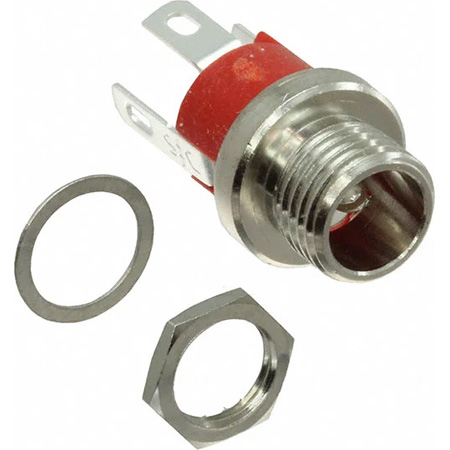

Switchcraft 721A DC Power Jack 2.1mm Pin - RoHS

ITEM #: SW-721A MFG #: 721A

Primary Image
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$6.83

Our Price:

$3.84

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

721A - Overview

Switchcraft's DC Power Jacks are the most trusted brand because of their unbeatable Made-In-USA quality. For expanded compatibility, they are now available with a 2.1mm center pin: the ideal mate for 2.1mm-style DC power plugs!

  • Specifications:

    • Categories: Connectors, Interconnects
    • Barrel: Power Connectors
    • Manufacturer: Switchcraft Inc.
    • Packaging: Bulk
    • Part Status: Active
    • Connector Type: Jack
    • Gender: Male
    • Industry Recognized Mating: Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
    • Actual Diameter: 0.083" (2.10mm ID), 0.217" (5.50mm OD)
    • Number of Positions/Contacts: 2 Conductors, 3 Contacts
    • Internal Switch(s): Single Switch, Normally Closed
    • Mounting Type: Panel Mount, Through Hole
    • Mounting Feature: Bulkhead - Front Side Nut
    • Termination: Solder Eyelet
    • Shielding: Unshielded
    • Features: Mounting Hardware, Thread Lock
    • Voltage: Rated 30VDC
    • Current Rating (Amps): 5A
    • Mating: Length/Depth 0.374" (9.50mm)
    • Contact Material: Plating Silver
    • Body Material: Copper Alloy
    • Operating Temperature: -40°C ~ 65°C
