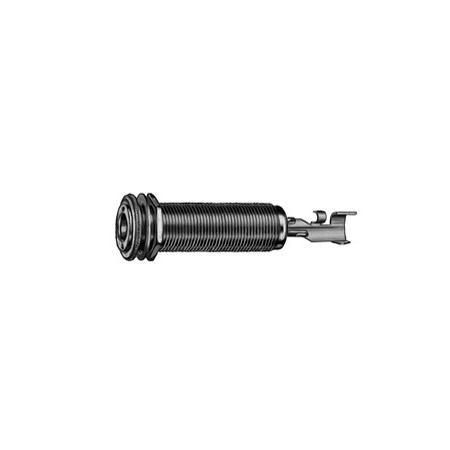

Switchcraft 152B 3 Conductor Double Open Circuit 1/4in Jack Nickel

ITEM #: SW152B MFG #: 152B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$10.00

Our Price:

$8.81

Availability: In Stock
iAvailability Description Popup


152B - Overview

Thick Panel Phone Jacks are standard 2- and 3-conductor phone jacks with extra long threaded bushing for mounting in panels/chassis up to 1.25 inches thick. Metal bushing virtually eliminates hum pick-up, and is ideal for electric guitar and speaker connections. Jacks mate with standard commercial phone plugs. See plug section for mating plugs. Jacks mount in a single .469 inch diameter hole. Rugged cable clamp protects connections from twisting and pulling stresses.

  • Features:

    • Mounting Bushing: Nickel-plated copper alloy with knurled flange.
    • Insulating Spacer: Rigid plastic.
    • Insulator/Spring Mount: Thermoplastic.
    • Springs: Copper alloy.
    • Terminals: Tip: Copper alloy.
    • Ring: (Number 152B only) copper alloy.
    • Sleeve: Steel, tin-plated.
    • Hardware: Supplied with one, Number P10531 nickel-plated, copper alloy hex nut, and one, Number P1476 nickel-plated copper alloy flat washer.


152B - Required Accessories
