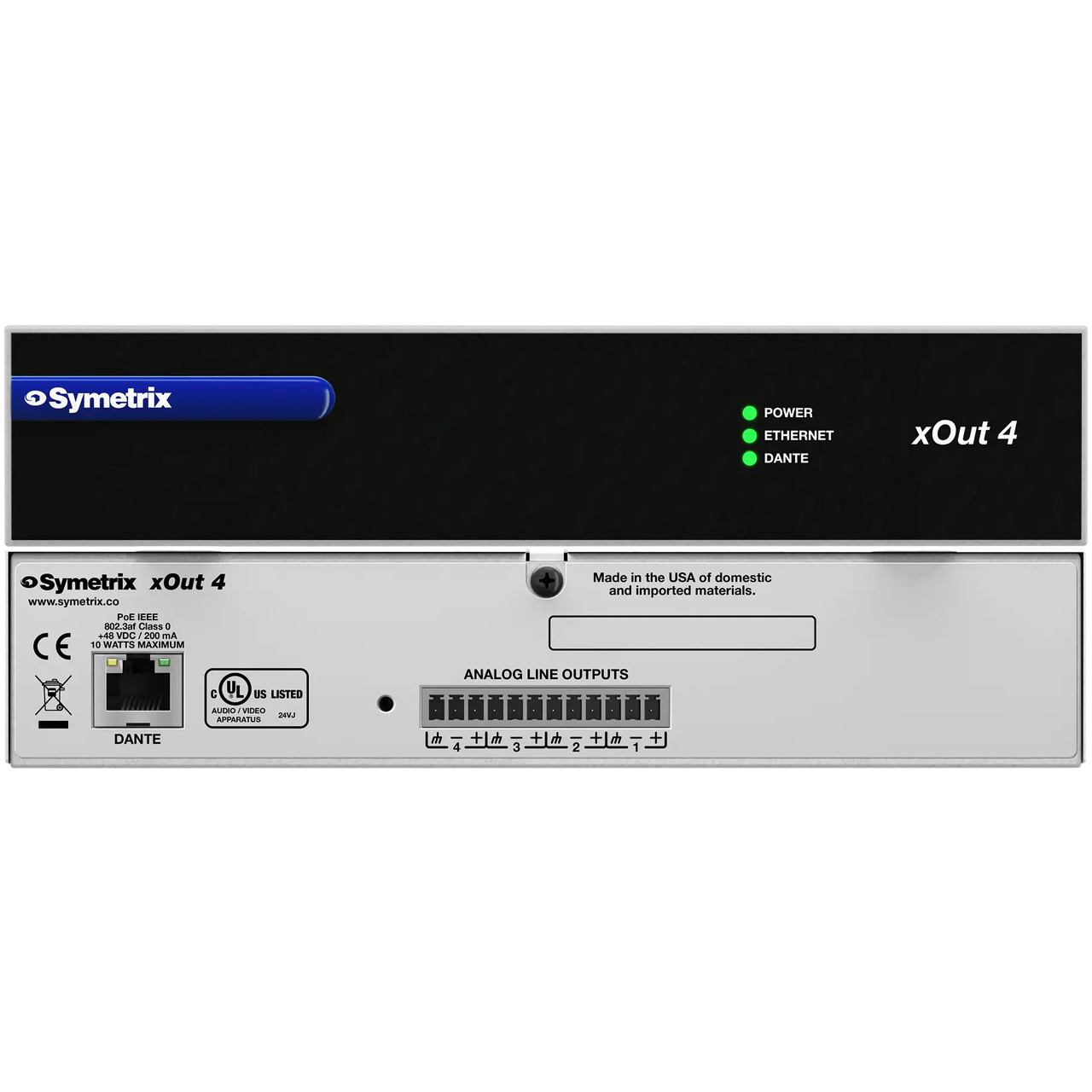

Symetrix 80-0112 xOUT xIO Audio Expanders with Dante - 4 LIne Out - 4x0 Dante - PoE - 1/2 Rack

80-0112 - Overview

• Features:

  • 1/2 Rack Form Factor
  • PoE - Injectors included
  • 4 analog outputs
  • Optional rack and surface mounting kits sold separately


• Specifications:

  • Analog Output
  • Frequency Response: 20 Hz - 20 kHz, ± 0.5 dB
  • Channel Separation: > 111 dB @ 1 kHz, +24 dBu
  • Connectors: 3.5 mm Phoenix® connectors
  • Number of outputs: Four (4) balanced line level
  • Nominal output level: +4 dBu with 20 dB of headroom
  • Maximum output level: +24 dBu (+22.8 dBu into a 2k Ohm minimum load)
  • Output impedance: 300 Ohms balanced, 150 Ohms unbalanced
  • Dynamic range: > 118 dB, A-weighted
  • THD + Noise: < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain
  • Latency: 0.60 mS

    System
  • Sampling Rate: 48 kHz, ± 100 ppm
  • Dante Cable: Standard CAT6, maximum device-to-device length = 100 meters

    Mechanical
  • Space Required: Half rack unit (WDH: 8.2 in. x 9 in. x 1.72 in. Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
  • Electrical: PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz)
  • Ventilation: Maximum recommended ambient operating temperature is 86 F.
  • Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS.
  • Shipping Weight: 4.4 lbs


• Item Includes:

  • 1x Power cable
  • 1x 15 watt, 100-250 VAC input, 48 VDC ouput, PoE injector
  • 1x 4 or 8 detachable 3.5 mm Phoenix connectors
  • 1x 3' CAT5e RJ45 cable
