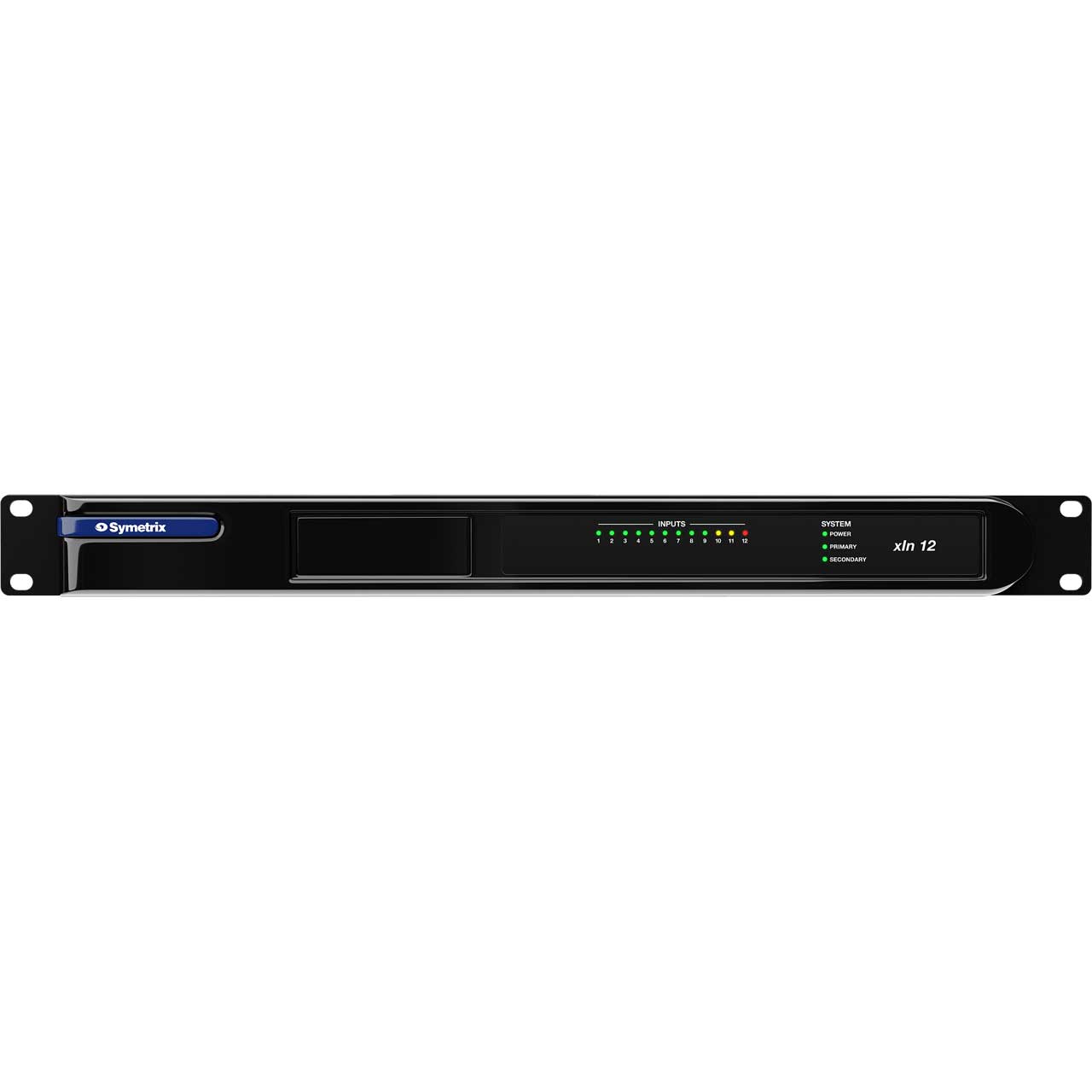

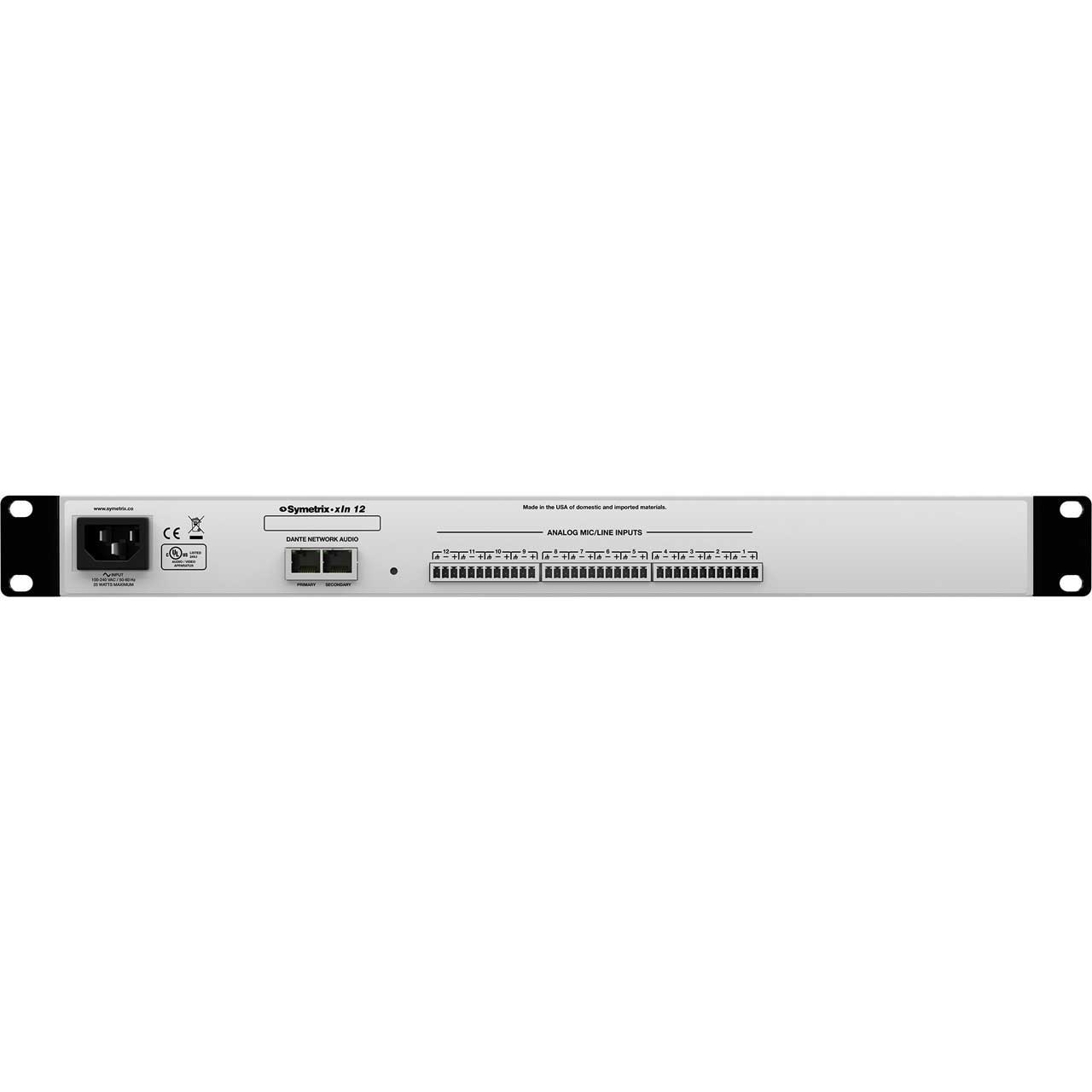

Symetrix xIN 12 1RU Dante I/O Endpoint for Radius NX/Edge/PrismDSPs with xIO - 12 Mic/Line In

80-0086 - Overview

• Features:

  • Built-in network swtiches. Direct conneciton to Radius, Prism, and Edge DSPs
  • Internal Power Supply
  • 12 analog mic/line inputs


• Specifications:

  • Electrical
  • Sampling rate: 48 kHz, ± 100 ppm.
  • Frequency response (A/D): 20 Hz - 20 kHz, ± 0.5 dB
  • Channel separation (A/D): > 111 dB @ 1 kHz, +24 dBu
  • Dante cable: Standard CAT6, maximum device to device length = 100 meters
  • Connectors: 3.81 mm terminal blocks
  • Number of inputs: Twelve (12) switchable balanced mic or line level
  • Nominal input level: +4 dBu with 20 dB of headroom
  • Maximum input level: +23 dBu.
  • Mic pre-amp gain: 0, 11.8, 24, 44 or 54 dB switchable
  • Mic pre-amp EIN: < -127 dB with 150 Ohm source impedance
  • CMRR: > 76 dB @ 1 kHz, unity gain
  • Input impedance: 8k Ohms balanced, 4k Ohms unbalanced
  • Phantom power (per input): +48 VDC @ 10 mA maximum
  • Dynamic range: > 116 dB, A-weighted.
  • THD + Noise: < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
  • Latency: 0.28 mS.

    Mechanical
  • Space Required: 1U (WDH: 18.91 in x 9.5 in x 1.72 in
  • Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum universal input.
  • No line voltage switching required.
  • Ventilation: Maximum recommended ambient operating temperature is 86 F.
  • Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS.


• Item Includes:

  • 1x Power cable
  • 12x Detachable 3.81 mm terminal block connectors


• Warranty:

  • 5 years
