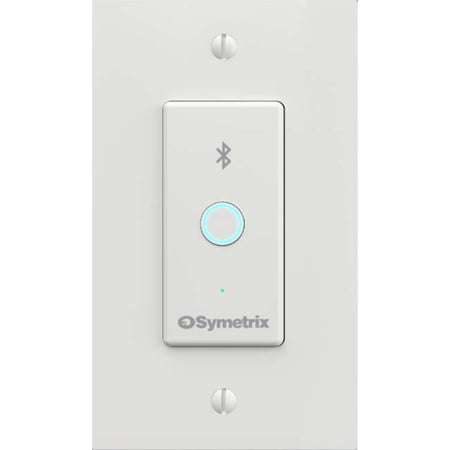

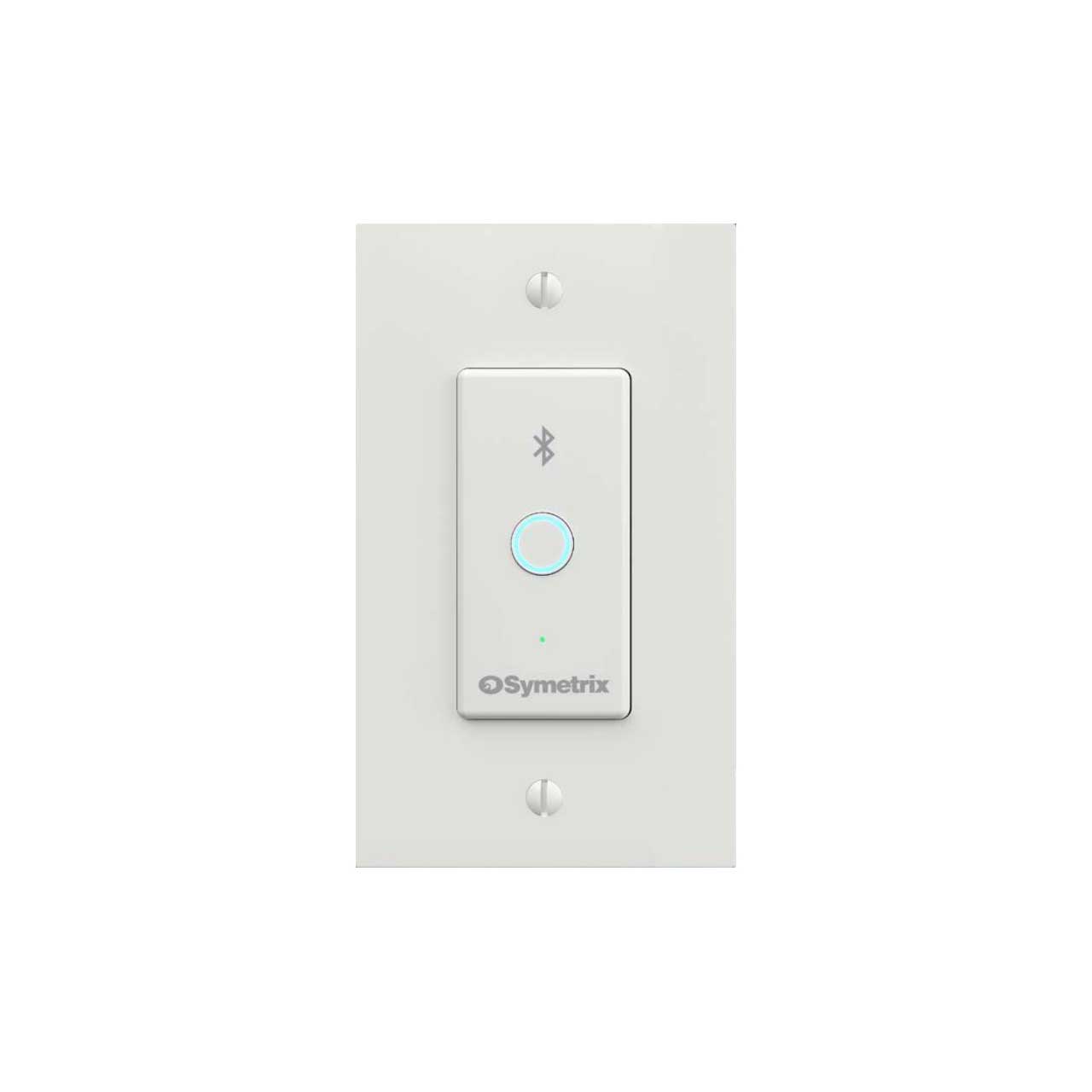

Symetrix xIO BLUETOOTH 4x4 Dante I/O Endpoint - Bluetooth Media In/Bluetooth Phone/PoE - Decora Single Gang - White

ITEM #: SYX-XIO-BT-WE MFG #: 80-0185

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Symetrix
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$639.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

80-0185 - Overview

The Symetrix xIO Bluetooth family of PoE-powered Dante endpoints are the perfect addition to any Symetrix Composer based installation needing flexible wall mounted connectivity with world-class audio performance.

Tthe xIO Bluetooth family has a clean, sleek design and is compatible with standard Decora faceplates. The family consists of two models: the xIO Bluetooth for those needing simple convenient Bluetooth IO in a single gang form factor, and the xIO Bluetooth RCA-3.5 which adds additional flexibility in the form of stereo RCA and 3.5 analog IO for the connection of user supplied devices. Using a modern, full-featured Bluetooth 5.0 chipset, the xIO Bluetooth family offers extended range, a stable connection, and world-class audio quality.

Perfect for Conferencing, Hospitality, Education, or House of Worship use, all aspects of the device can be controlled using Symetrix remotes, SymVue touchscreens panels, or user devices. And complete configuration is fast and efficient from within Symetrix Composer software.

xIO Bluetooth and xIO Bluetooth RCA-3.5 require Symetrix Composer software for configuration and a Symetrix Dante DSP for operation.

  • Features:

    • Single gang Bluetooth 5.0 PoE Dante endpoint
    • Selectable Bluetooth modes: Media only, Phone only, Both
    • PIN code Bluetooth security
    • Selectable single or multiple memorized Bluetooth pairings
    • LED blackout mode
    • Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
    • Perfect for Hospitality, Education, House of Worship, Conferencing, or Residential use
    • Available in US or EU single gang form factors and black or white finishes
    • Supports standard single gang Decora faceplates


  • Specifications:

    • Specifications
    • Form Factor: 1-gang US wall mount
    • Display: Blue LED: Pairing Status
    • Green LED: Device Status
    • Button: Pairing control
    • Compatibility: Symetrix Composer™ - managed products
    • Ethernet Cable: Standard CAT5e or CAT6, maximum deviceto-device length = 100 meters
    • Maximum Devices Per System: 128 devices per site file

      Mechanical Data
    • Space Required: 1-gang US or EU Wall Box
    • WHD: 5.62 in x 4.5 in x 1.2 in
    • Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections
    • Electrical: PoE IEEE 802.3af Class 0, 15 Watts maximum. No line voltage switching required.
    • Ventilation: Maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light.
    • Shipping Weight: 1.00 lbs
    • Certifications and Compliance: Safety: UL/CSA/EN 62368-1, EMC, FCC 15.107:2021, FCC 15.109:2021, ICES003:2020

      Environmental
    • RoHS: CE Radio Equipment Directive (RED): EN 300 328 V2.2.2:2019, EN 301 489-1 v2.2.3:2019, EN 301 489-17 v3.2.4:2020, EN 55035, EN 55032


  • Item Includes:

    • 1x xIO Bluetooth
    • 1x Single gang White Decora® wall plate (as applicable)
    • 2x #6-32 x 5/8" screws
    • 2x M3 x 0.5 x 30mm slotted screws (as applicable)
