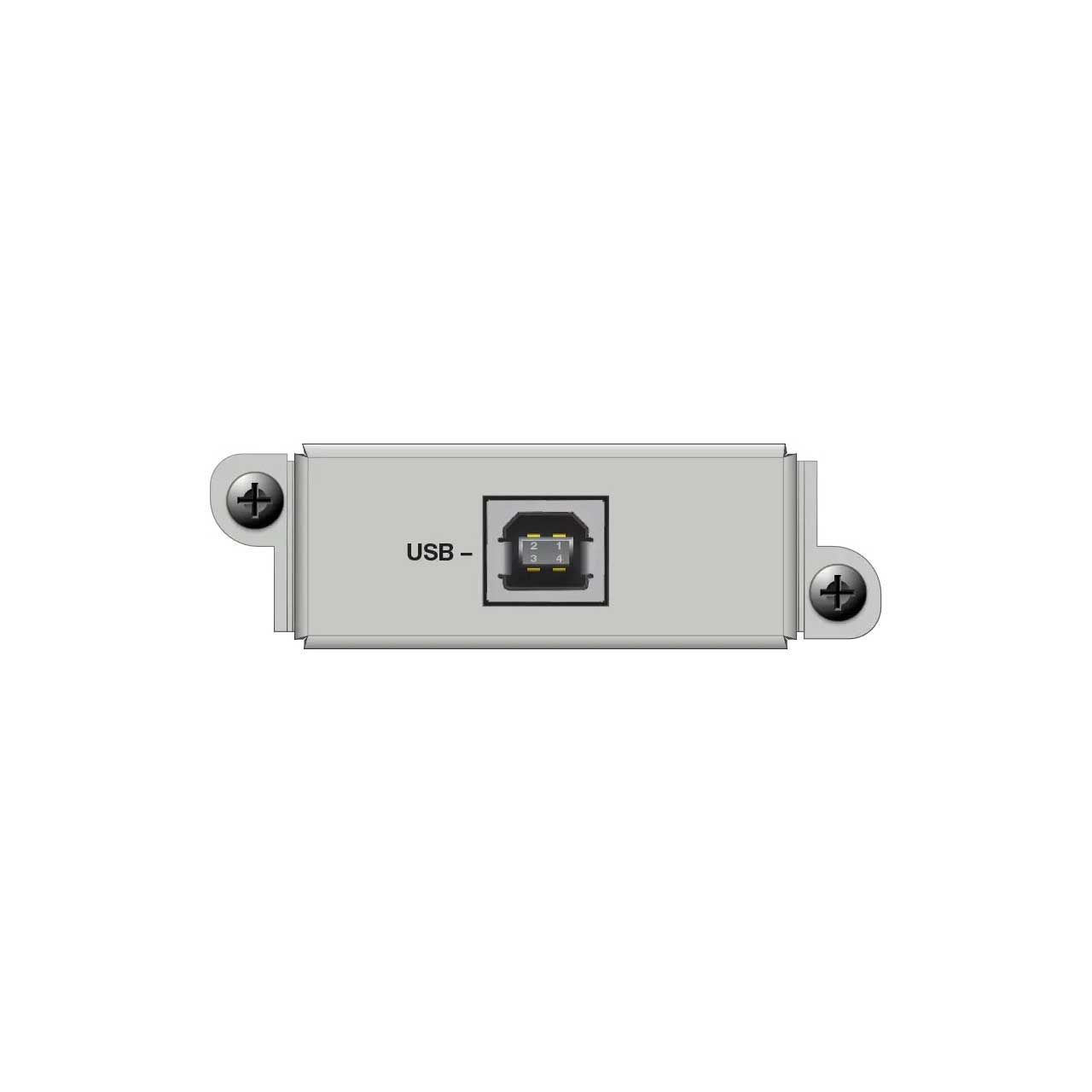

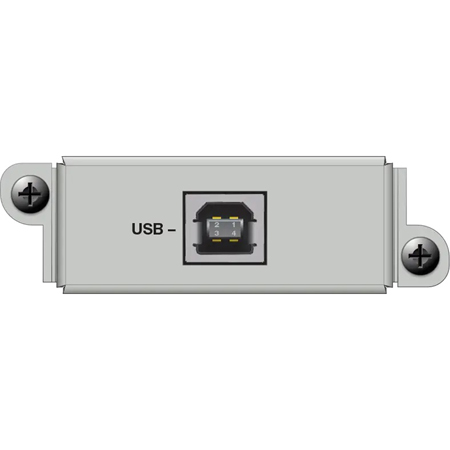

Symetrix 80-0132 USB Audio Card I/O Card for Edge/Radius NX - 1 USB B - 8x8 Media / 2x2 Media / 1x1 Speakerphone

80-0132 - Overview

• Features:

  • Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
  • Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2x2 and 8x8 line I/O mode for multitrack recording and playback.
  • Speakerphone and 2x2 line modes are class 1 USB (driverless) for quick and problem free plug-and-play connectivity and provide the ability to utilize a soft codec's AEC or disable it in favor of Symetrix' award-winning AEC.
  • 8x8 line I/O mode utilizes Class 2 USB. Windows ASIO drivers are included.
  • A high-retention Type B USB connection provides a robust and standard direct connection between the DSP and computer.


• Specifications:

  • USB
  • Interface: 2.0
  • Class: Audio Device Class 1.0 and 2.0
  • Mode: Speakerphone (disable Computer AEC) 1x1, Speakerphone (allow Computer AEC) 1x1, Line 2x2, or Line 8x8
  • Connector: One (1) high-retention Type B female

    Performance
  • Sample Rate: Internally 48 kHz. Externally, 48 KHz in legacy modes (speakerphones, 2x2), 16 KHz to 96 KHz in 8x8 mode.
  • Bit Depth: 16-bit in legacy modes (speakerphones, 2x2), 16 or 24-bit in 8x8 mode
  • Environmental: Environmental specifications same as hosting unit

    User Control
  • Inputs: Gain, Invert, Mute, Meter, Channel Name
  • USB Status: Connected, Streaming (Active)
  • Outputs: Gain, Mute, Meter, Channel Name


• Item Includes:

  • Symetrix I/O card, card bracket, 2 black 4-40 Phillips head screws,
  • 3 stainless steel 4-40 Phillis head screws, a quick start guide


• Warranty:

  • 5 years
