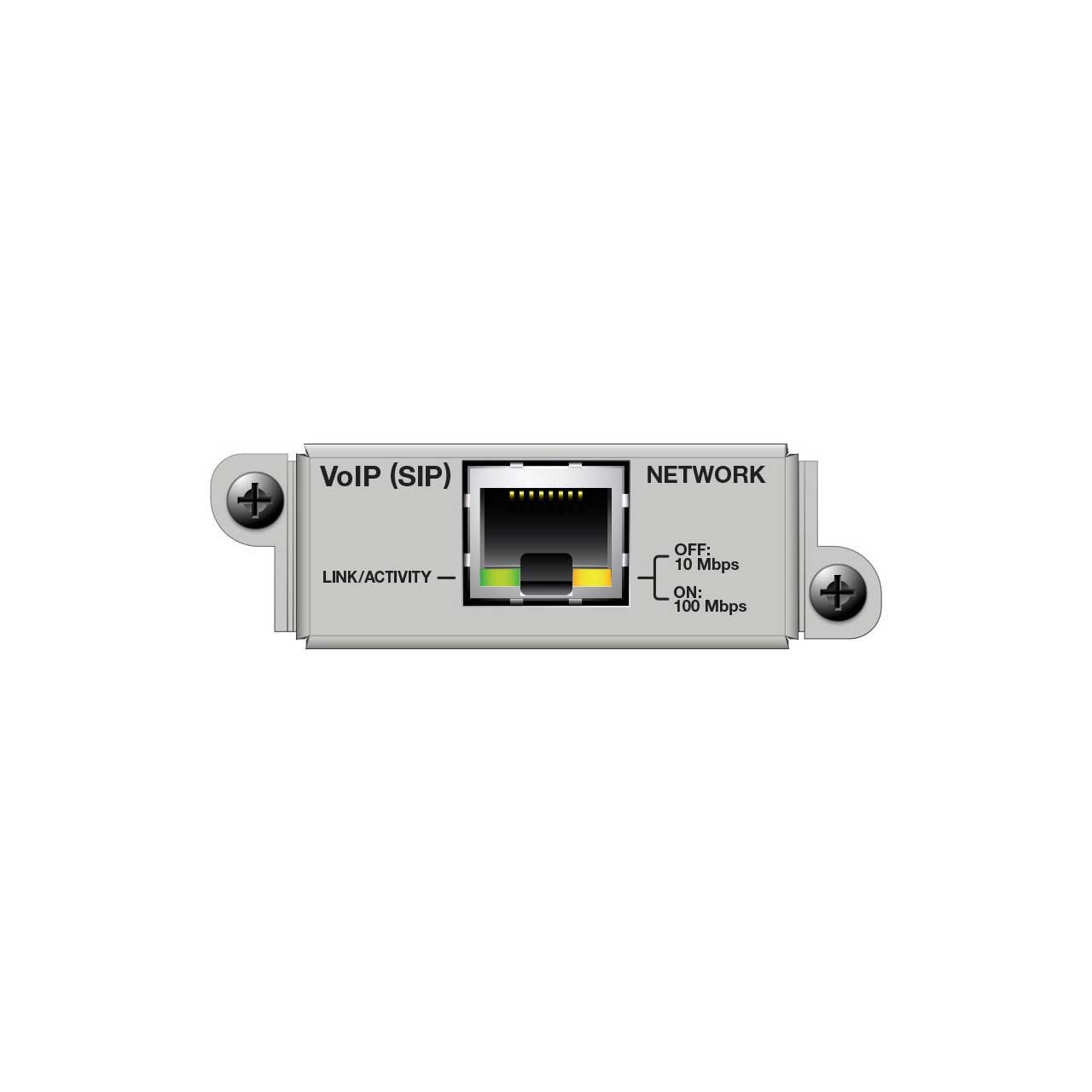

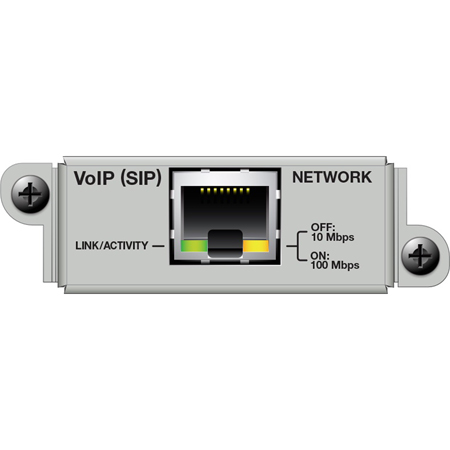

Symetrix 80-0065 - 2 Line VoIP Interface Card - Radius & Edge Expansion Card - 1 Ethernet Port - 2 Line Voice over IP

80-0065 - Overview

• Features:

  • Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
  • A diversity of applications - well suited for conferencing, paging, remote monitoring, and broadcast.
  • Best-in-class deployment and administration - easy to deploy and manage. The intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
  • Market-leading open standards interoperability - designed for enhanced interoperability while leveraging and complementing existing IT investments, the card delivers high-definition voice quality and a superior unified communications experience.
  • Multiple Control Options - SymVue application builder and extensive third-party control support allow for intuitive end-user operation while reducing the amount of time needed to develop application specific user interfaces. An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.


• Specifications:

  • Connector: RJ45
  • Ethernet Cable: Standard CAT5, maximum device to device length = 100 meters
  • Ethernet Interface: 10/100 Base-T


• Item Includes:

  • 1x Symetrix I/O card
  • 1x card bracket
  • 2x black 4-40 Phillips head screws
  • 3x stainless steel 4-40
  • 1x Phillis head screws
  • 1x quick start guide.


• Warranty:

  • 5 years
