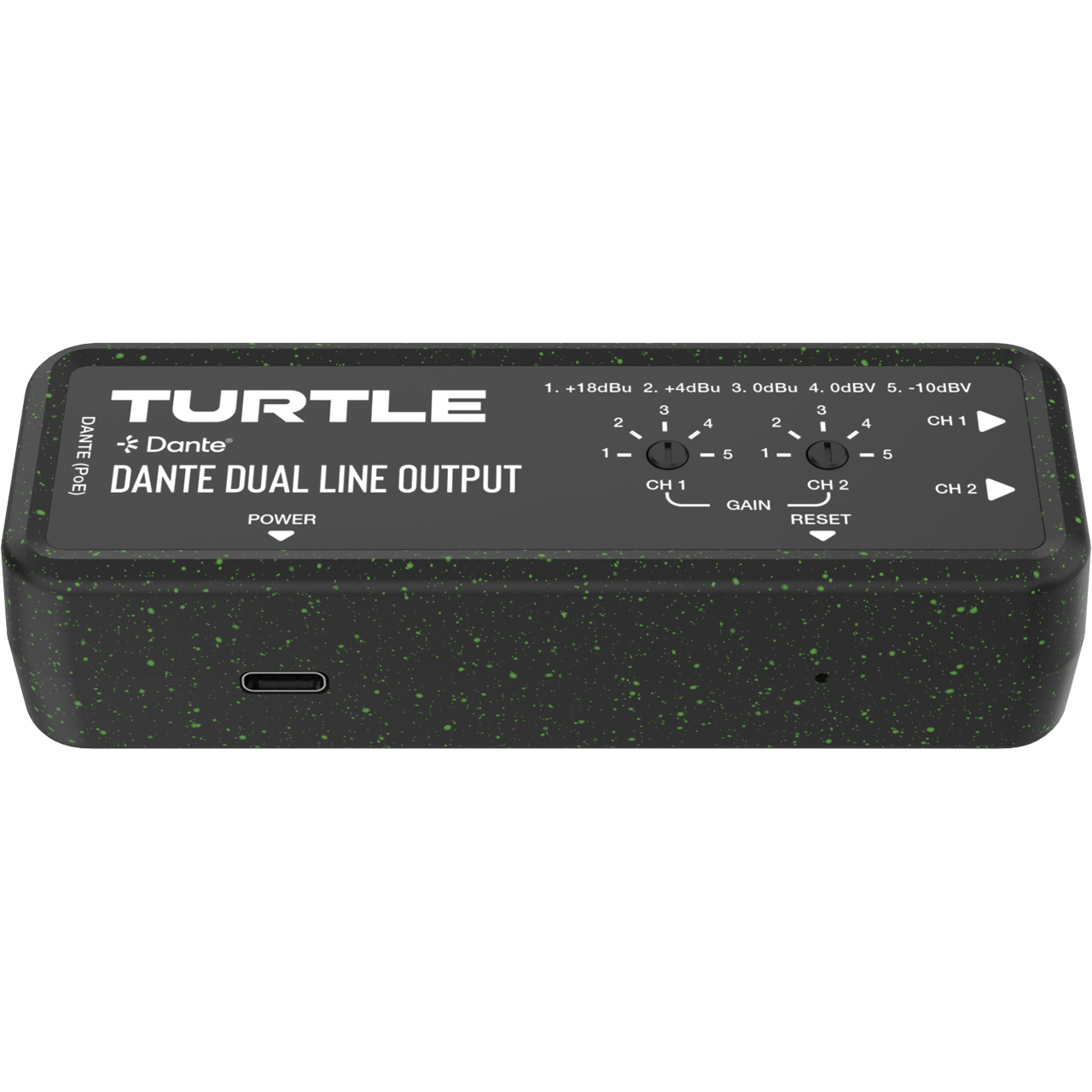

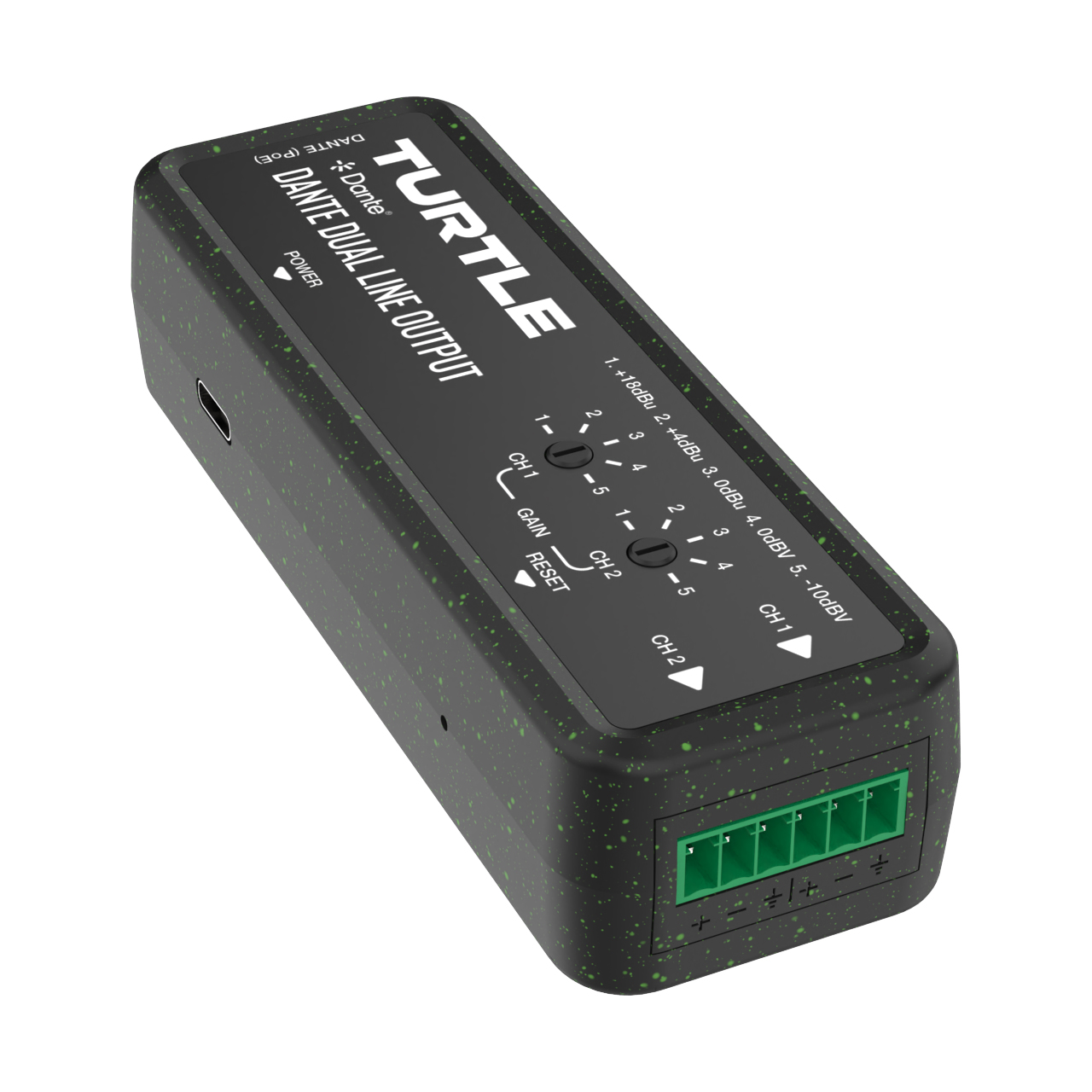

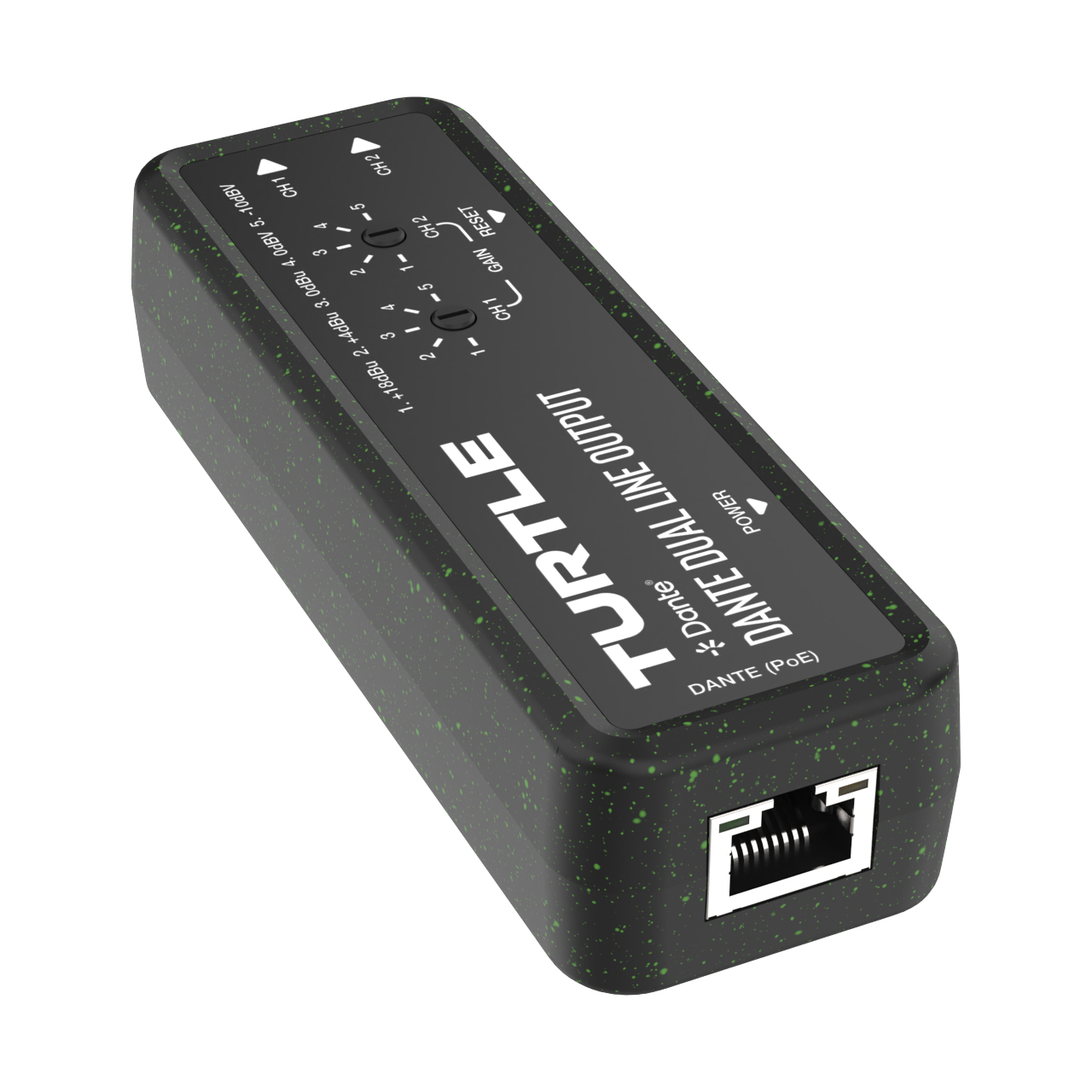

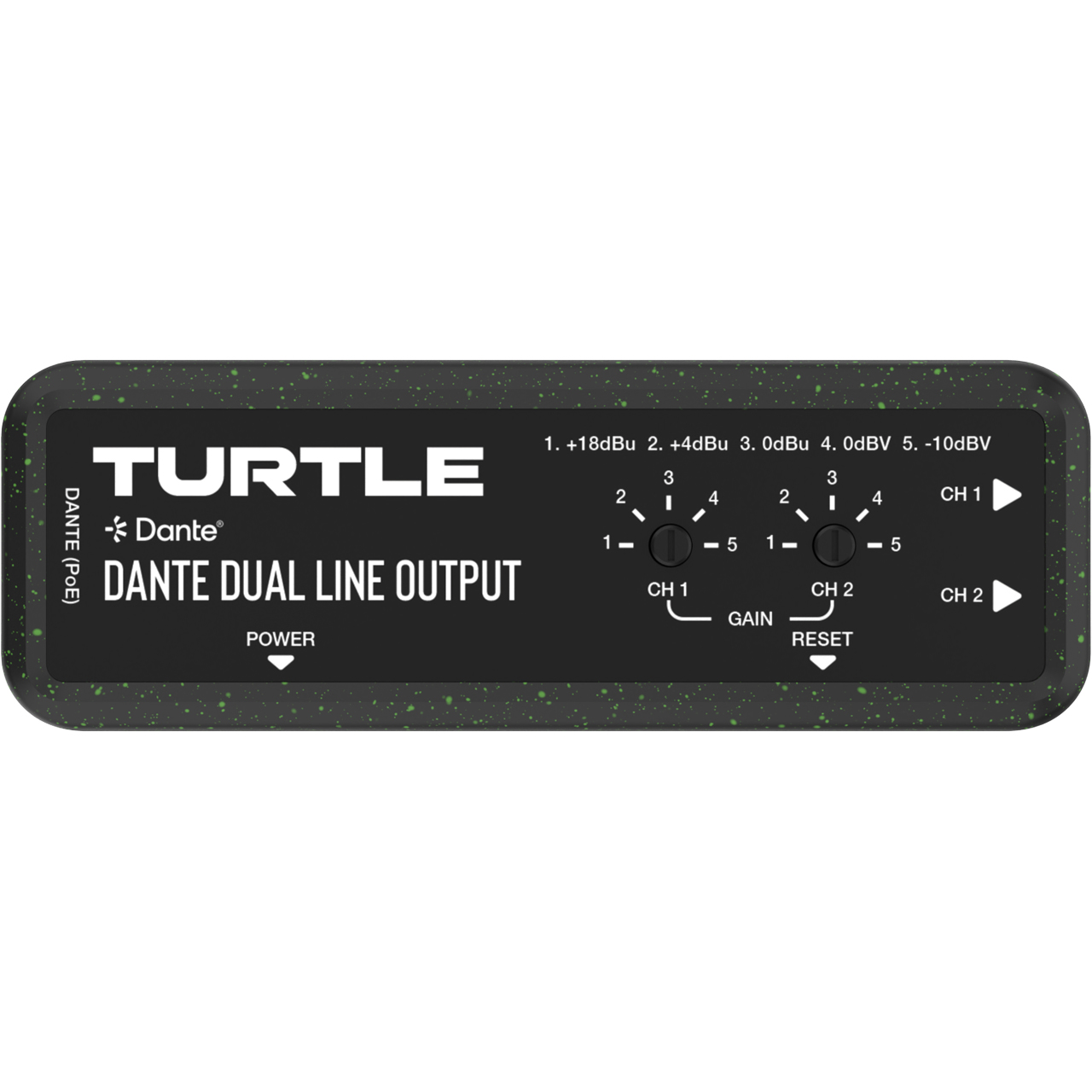

Turtle TAV-D2LDE Dante Dual Channel Analog Line Output Adapter with Gain Controls - TAA Compliant

ITEM #: TAV-D2LDE MFG #: TAVD2LDE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$149.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TAVD2LDE - Overview

Unlock the power of pristine digital audio with the Turtle AV Dante 2CH Line Output Adapter. Built on the cutting-edge Dante Ultimo 2x2 solution, this adapter converts crystal-clear Dante digital audio into two-channel balanced or unbalanced analog audio.

With 5-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. Additionally, the adapter is powered via USB-C or PoE, ensuring flexible and convenient power options. Perfect for professional-grade audio integrations that demand the best

Dante Ultimo
In networked audio, precision is essential, and Dante by Audinate delivers with unmatched synchronization and ultra-low latency performance. Leveraging advanced Precision Time Protocol (PTP), Dante ensures every audio packet arrives at exactly the right moment, maintaining audio quality and eliminating jitter, even in complex networks. Turtle AV adapters, powered by the genuine Dante Ultimo chipset, provide seamless compatibility and full interoperability with any Dante-compatible device, ensuring flawless, professional-grade sound for all installations, from live performances to intricate broadcast environments.

100% Dante Software Compatible
Turtle AV Dante Adapters are fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications.

Audio Conversion
This adapter converts Dante 2CH digital audio into two-channel analog XLR audio, supporting both balanced and unbalanced outputs. It offers a versatile Dante audio sampling rate of 44.1, 48, 88.2, and 96KHz at 24-bit, ensuring high-quality sound. The configurable Dante audio delay can be set to 1, 2, or 5 milliseconds, while the analog audio output features 5 levels of sensitivity adjustment, ranging from +18dBu to -10dBv.

AES67 Lives Here Too
Dante Adapters support AES67 and Dante. Toggle between Dante and AES67 within Dante Controller.

Sustainable, Earth-Friendly Design
Crafted with a commitment to sustainability, this adapter is made from 90% recycled plastic, including 5% Ocean Bound Plastic. The materials have been carefully selected to ensure there is no compromise to the ruggedness or durability. The packaging also contains no plastics or petrochemicals, and the box is made from 100% recycled cardboard and printed with soy-based ink. Turtle AV encourages you to just throw the packaging into the recycling to close the circle.

  • Features:

    • Dante 2CH digital audio to two-channel analog audio
    • Balanced/unbalanced analog audio output
    • Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
    • Configurable Dante audio delay with support for 1, 2, or 5 milliseconds
    • Analog audio output with support for 5-level gain adjustment
    • PoE and USB-C power options
    • TAA compliant
    • Made from 90% recycled plastic, including 5% Ocean Bound Plastic

  • Specifications:

      Technical
    • Input: Dante 2CH digital audio
    • Output: Two-channel balanced/unbalanced analog audio
    • Control: Dante Controller
    • Network Bandwidth: 100M
    • Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)
    • Audio Formats:
      - DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit]
      - LINE OUT [Analog audio output, Balanced/unbalanced 2CH, Max output level +18dBu]
    • Audio Parameters:
      - Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced
      - Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio
      - Frequency Response: 20Hz to 20kHz (-/+0.5dB)
      - Dynamic Range: >100dB@0dBu, 1kHzA-weighted
      - Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
      - Audio THD+N: < 0.01% at +4dBu, 1KHz
      - Audio Output Sync Delay: <10ms
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections
    • Input:
      - 1x DANTE [RJ45 LAN, PoE]
      - 1x POWER [USB-C power and firmware update port,12-pin female]
    • Output: 1x CH1/CH2 LINE OUT [6pin-3.5mm phoenix connector]

      Mechanical
    • Housing: Plastic enclosure
    • Color: Black/Green
    • Dimensions: 4.52" x 1.57" x 1.1" (115mm x 40mm x 28mm)
    • Weight: 0.2lbs (94g)
    • Power Supply:
      - PoE: PoE IEEE802.3af Class 0
      - USB: 5V/500mA
    • Power Consumption: 2W (MAX)
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 1x Turtle TAV-D2LDE Dante Dual Channel Analog Line Output Adapter with Gain Controls

  • Warranty:

    • 3 Year Limited Warranty
