Tascam DA-6400dp 64 Channel Digital Multitrack Recorder with 2 Power Supply Inlets

ITEM #: TCM-DA-6400DP MFG #: DA-6400DP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,999.00

Our Price:

$4,299.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DA-6400DP - Overview

TASCAM’s DA-6400dp is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Model with dual/redundant power supply, the DA-6400dp is an unbeatable option for professional remote recording.

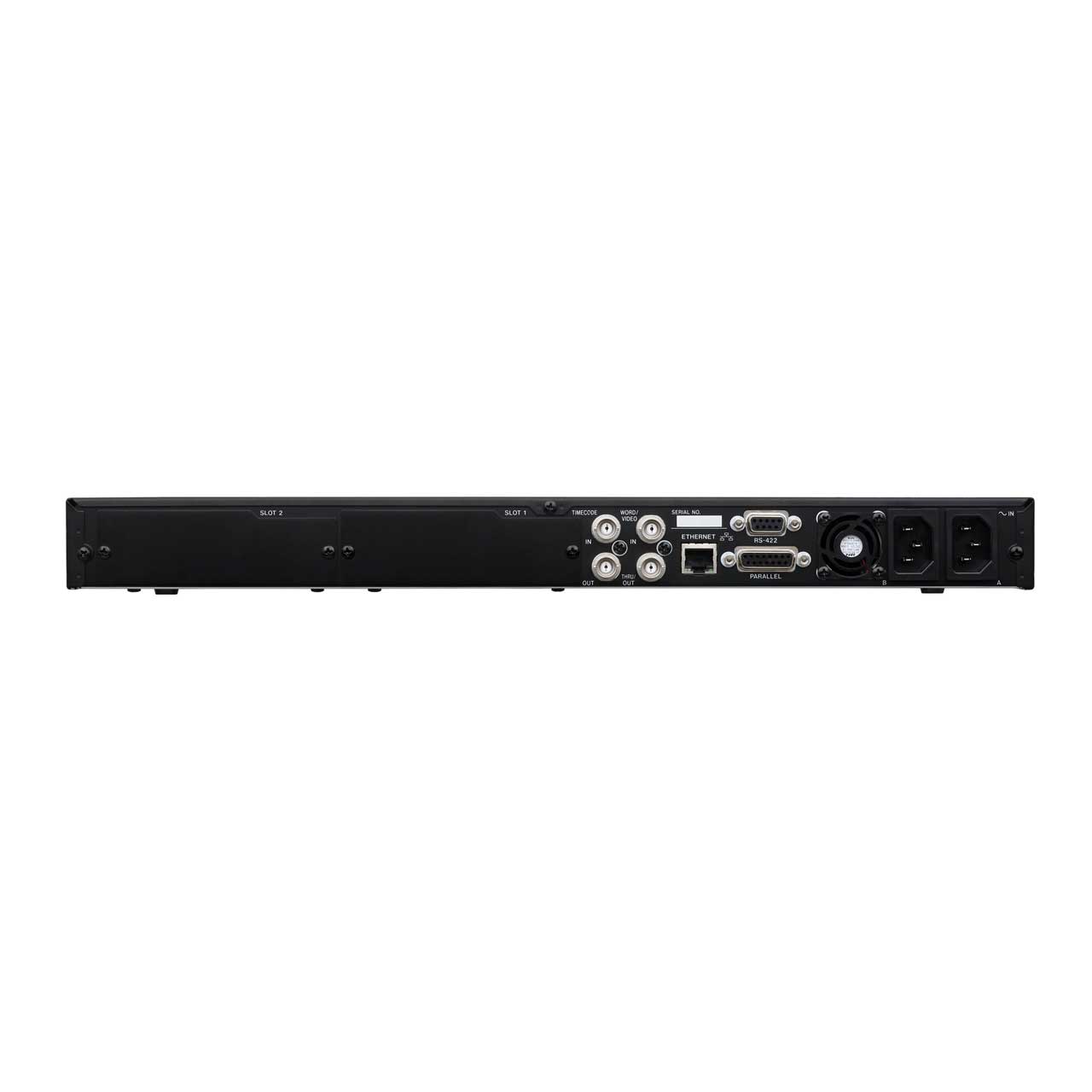

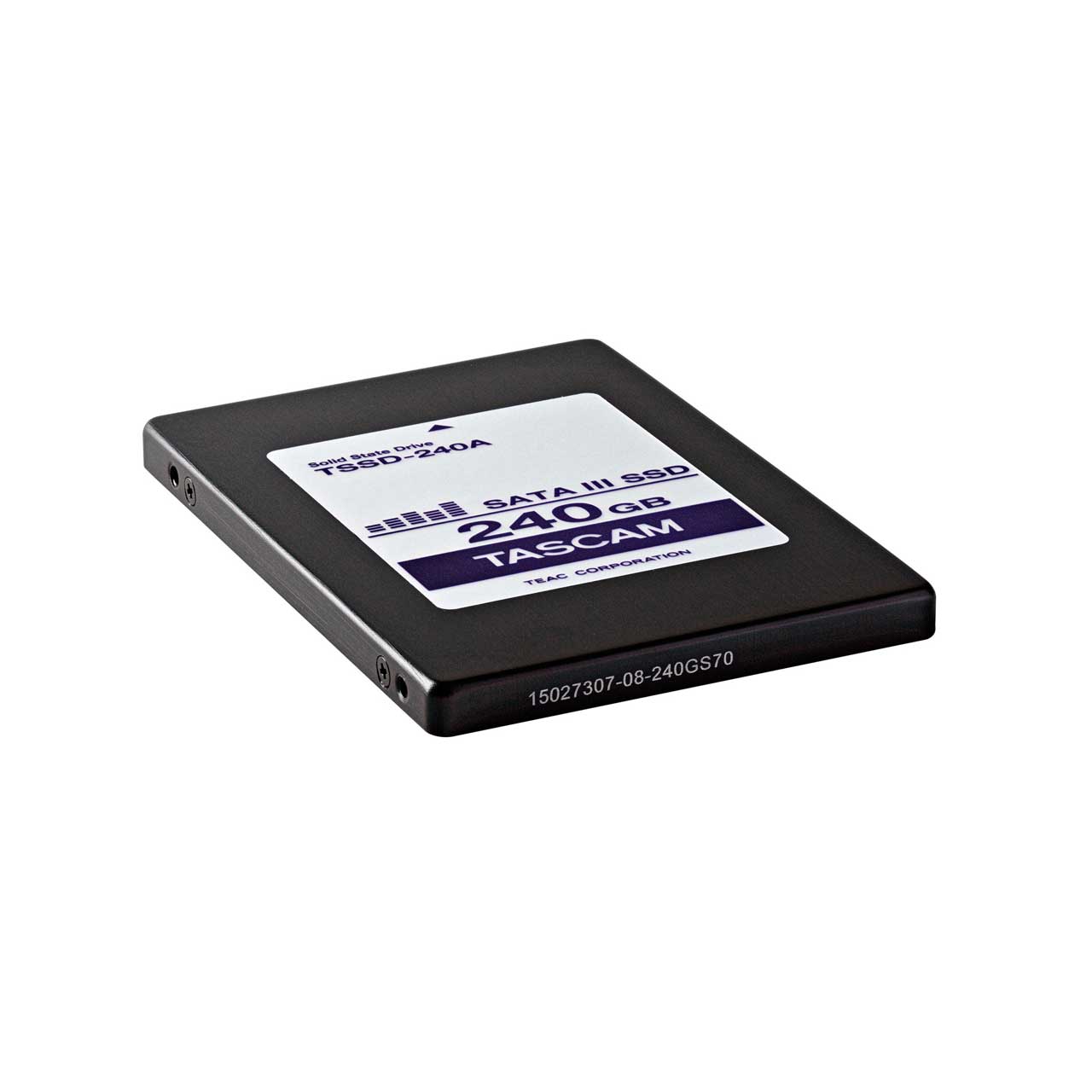

Included with the DA-6400dp is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400dp records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.

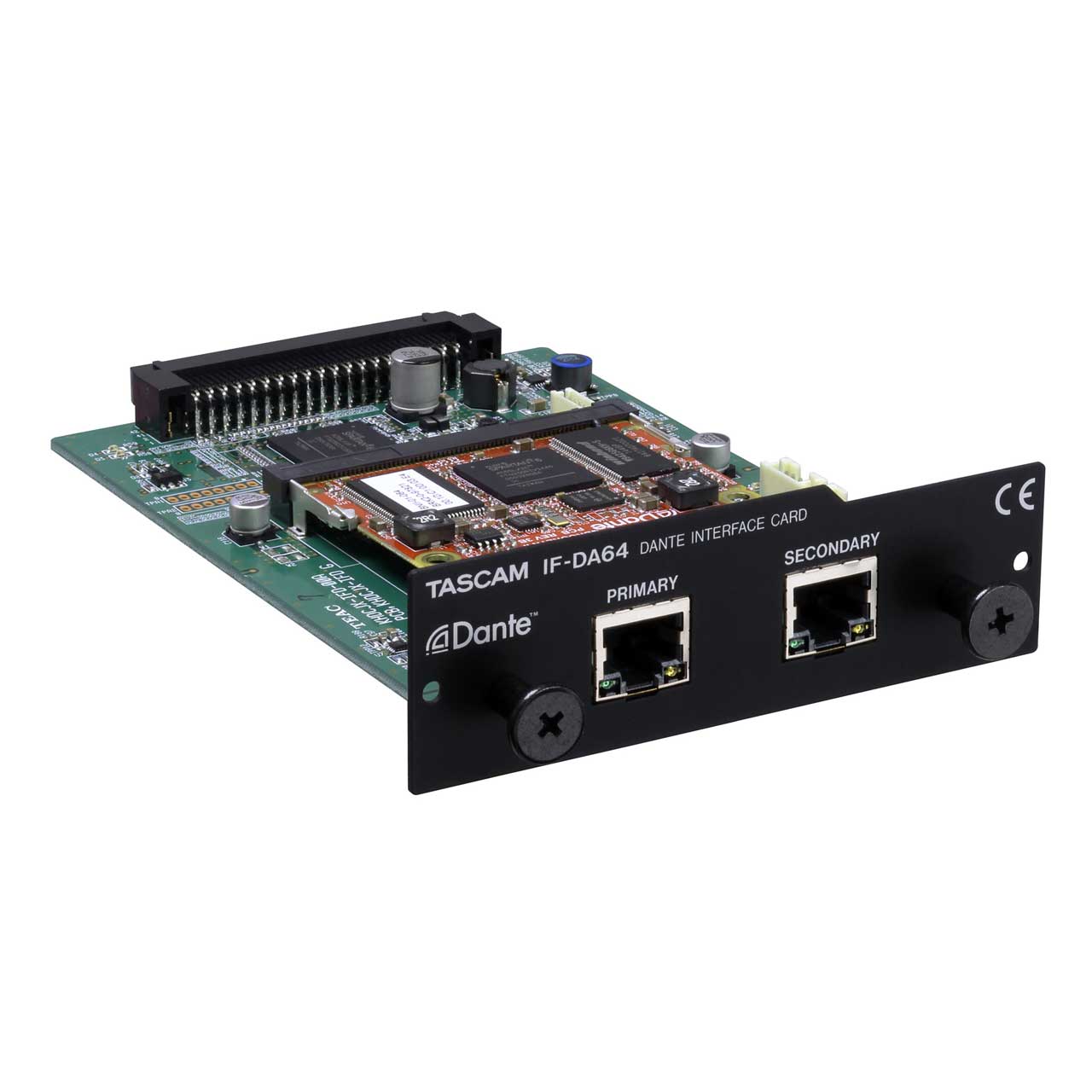

I/O options for the DA-6400dp include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.

No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM’s DA-6400dp solid-state 64-track recorder.

  • Specifications:

    • Recording media: SSD Note: HDD support also planned in addition to the SSD.
    • File system: FAT32
    • File formats: BWF(.wav)
    • Number of channels: 64(1xFs), 32(2xFs)
    • Sampling frequencies: 44.1k/48k/88.2k/96k Hz
    • Quantization bit rate: 16bit/24bit
    • Clock reference: INTERNAL, WORD IN, VIDEO IN
    • Timecode frame: 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF
    • TIME CODE IN
    • Connector: BNC
    • Signal voltage amplitude: 0.5V to 5Vp-p
    • Input impedance: 10k Ohm
    • Format: SMPTE 12M-1999 compliant
    • TIME CODE OUT
    • Connector: BNC
    • Signal voltage amplitude: 2Vp-p
    • Output impedance: 600 Ohm
    • Format: SMPTE 12M-1999 compliant
    • WORD/VIDEO IN
    • Connector: BNC
    • Input voltage amplitude (WORD): 0.5V to 5Vp-p TTL equivalent
    • Signal voltage amplitude (VIDEO): 1Vp-p
    • Input impedance: 75 Ohm +/-10%
    • Input frequency (WORD): 48kHz
    • Input signal (VIDEO): 24/25/29.97/30Frame(NTSC/PAL Black burst, HDTV Tri-Level)
    • WORD/VIDEO THRU/OUT
    • Connector: BNC
    • Output voltage amplitude: 5V TTL equivalent
    • Output frequency (WORD): 48kHz
    • ETHERNET
    • Connector: RJ-45
    • Protocol: 100BASE-TX, 1000BASE-T
    • RS-422
    • Connector: D-sub 9 pin (female, inch-standard)
    • PARALLEL
    • Connector: D-sub 15 pin (female, inch-standard)
    • USB
    • Connector: USB2.0 A-type
    • Protocol: USB 2.0 HIGH SPEED(480Mbps)
    • PHONES
    • Connector: 6.3mm (1/4') standard stereo jack
    • Maximum output level: 45mW+45mW or higher
    • Power: AC100V-240V, 50/60Hz
    • *DA-6400dp has 2 power supply inlets
    • Power consumption: 21W (At the time of IF-MA64/EX use)
    • Dimensions: 482.6(W)x44.7(H)x304.8(D)mm
    • Weight:
    • DA-6400 3.9kg
    • DA-6400dp 4.0kg
    • Operating temperature: 0 to +40C

  • Item Includes:

    • TASCAM SSD, SSD media case, Power cablex1 (DA-6400), Power cablex2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner's manual (with warranty)

  • GTIN:

    0043774031610
