ZOOM R4 Multi-Track Recorder for Musicians with 32 Bit Float Recording

ITEM #: ZOOM-R4 MFG #: R4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$199.99

After Savings:

$149.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Zoom Cyber Week Savings!Order Today for instant savings on select ZOOM products! Hurry, offer is available for a Limited Time Only!


R4 - Overview

The Little Recorder For Big Ideas

Designed By Musicians
All of Zoom's engineers are musicians and they designed the R4 Multi-Trak Recorder to empower musicians to explore big ideas. With a unique dedicated `bounce track' and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

Record. Bounce. Repeat.
With the R4, you can record up to four tracks, mix and then bounce them to the dedicated `bounce track.' This lets you free up additional tracks to keep adding layers. You can also `undo' your last bounce, allowing you to mix your tracks further or record new ones if necessary.

32-Bit Float Recording
Don't worry about your audio signal clipping. The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs

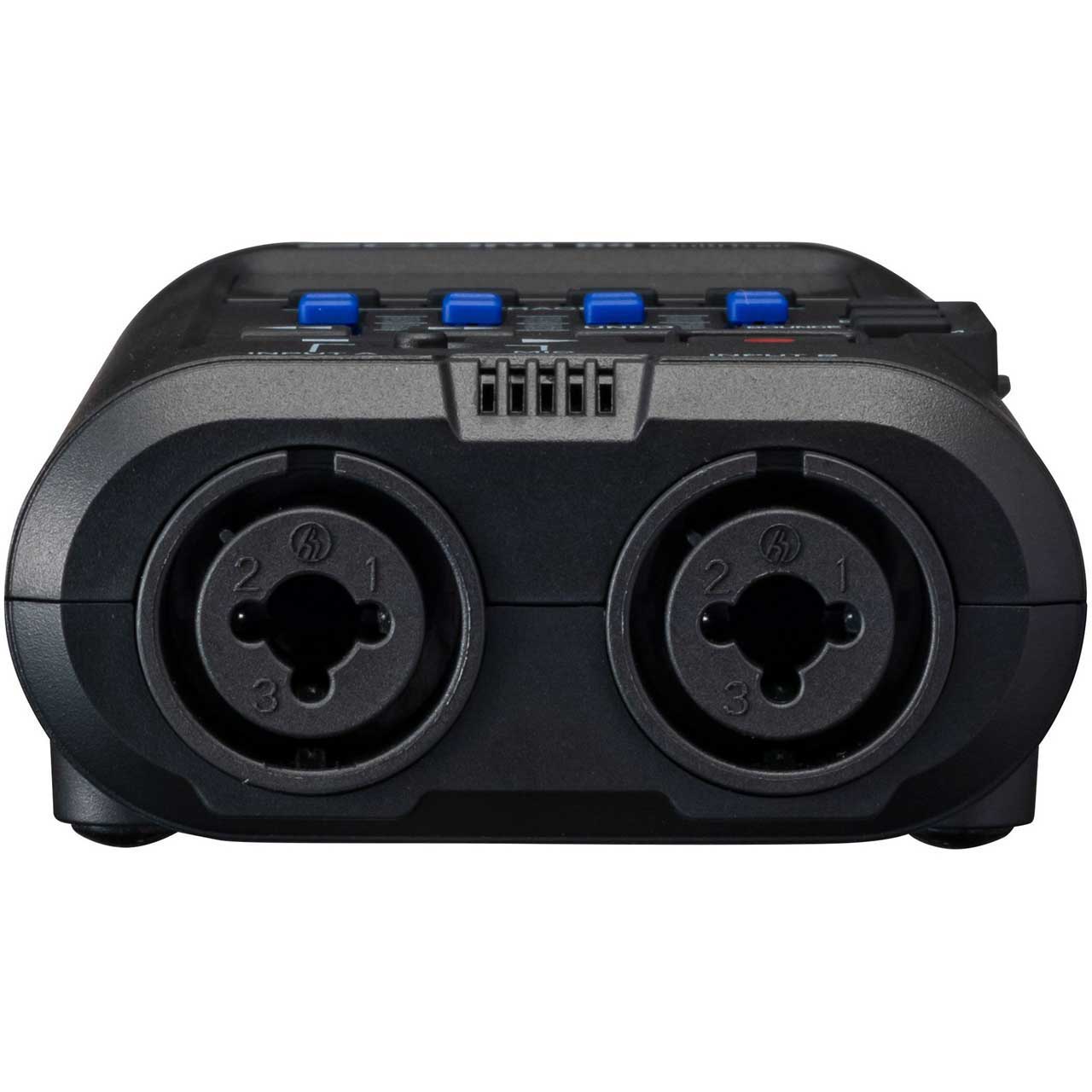

The R4 has 2 XLR/TS combo inputs with tried and tested Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Add Some Effects
Track Effects - Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.
Input Effects - Apply effects to input A such as amp simulations, delays, distortions and more.

Built-In Microphone
The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome
The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved
Tracks that you record are automatically saved individually, even after they have been bounced. These tracks or any other audio files can be loaded into a project on the R4.

32-Bit Float Audio Interface
The R4 is also a powerful 2-IN/2-OUT USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

Control And Create

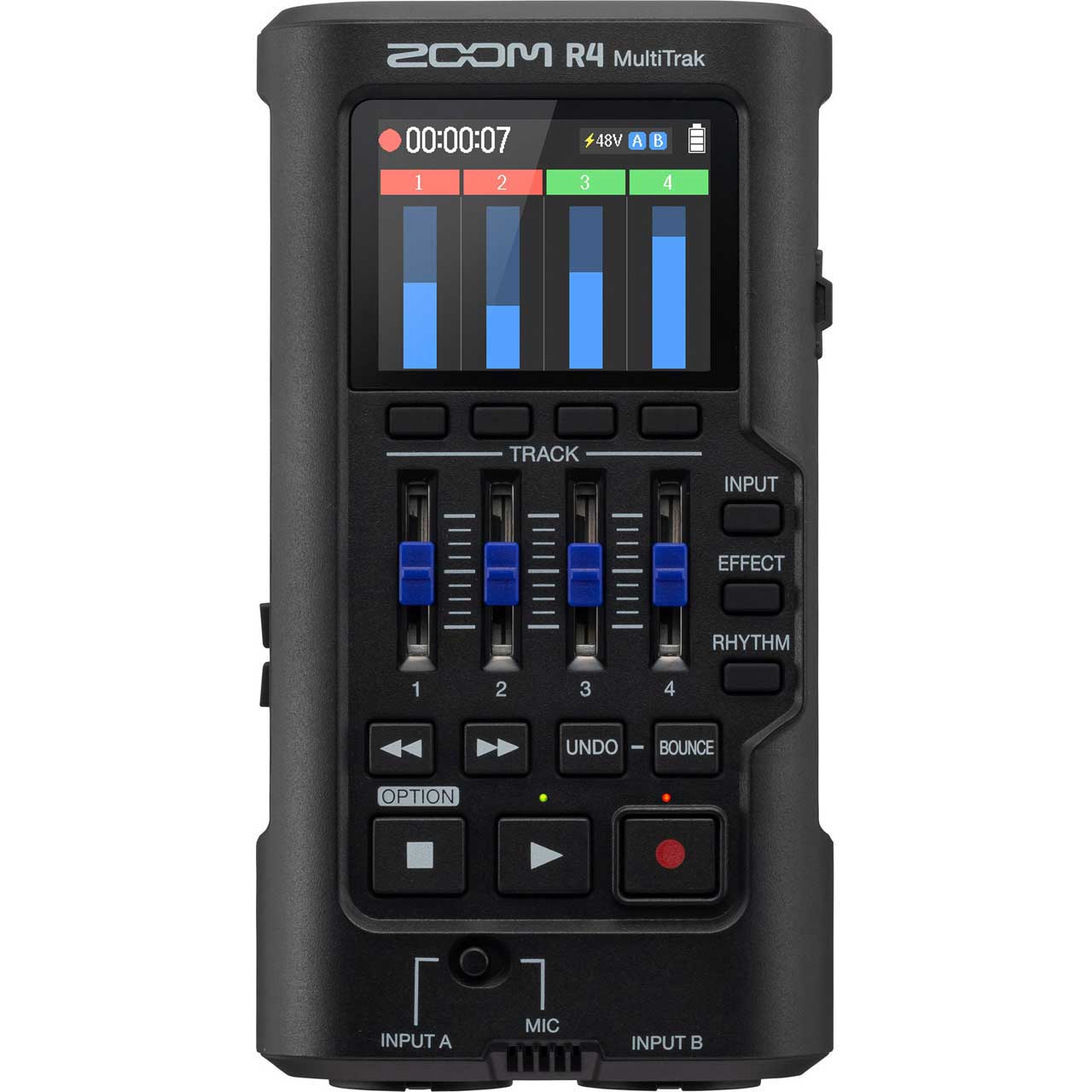

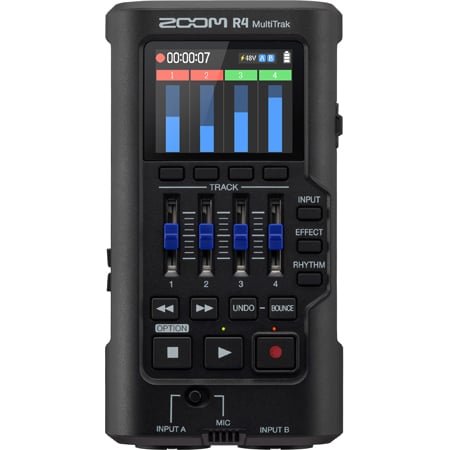

With a fader for each track and dedicated hardware buttons for the most used functions, you won't need to menu dive to record your music.

Powered For Your Ideas
The R4 can be powered by 4 AA Batteries, or through its USB-C port.

  • Features:

    • Faders: Control and mix the volume levels of the four tracks
    • Transport Controls: Play, stop, and record functions
    • Bounce/Undo Controls: Create bounces and undo your last bounce
    • Input Selection (Button): Assign inputs to recording tracks
    • Effects (Button): Access input effects
    • Rhythm (Button): Access rhythm and metronome controls
    • Inputs: 2 XLR/TS combo inputs
    • Built in Mic: High-quality built-in microphone

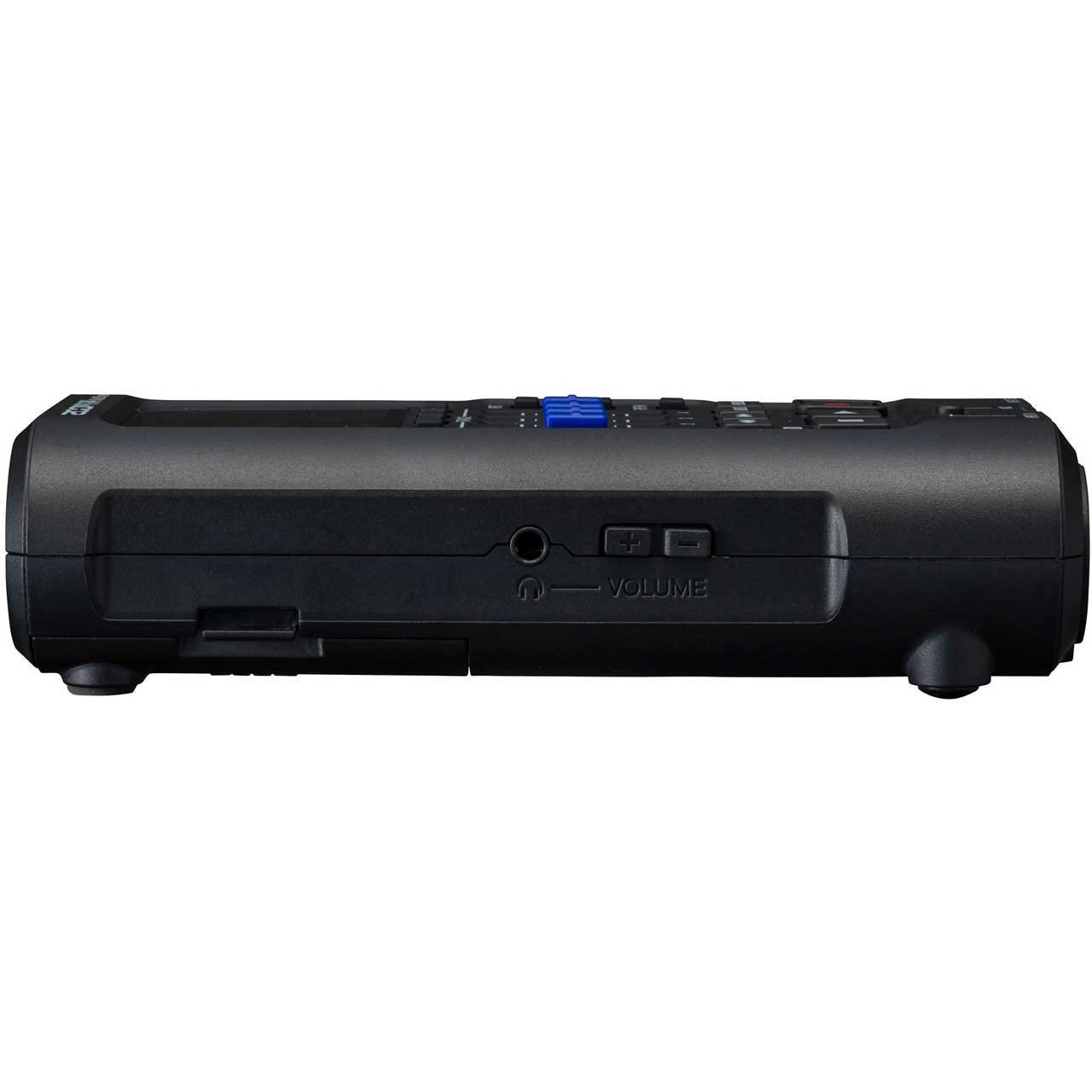

    • Headphone Output: Stereo 3.5mm output to monitor your recordings
    • Headphone Volume Control: Adjust the volume of the headphone output
    • LCD Screen: 2-inch Color LCD display
    • Micro SD Slot: Up to 1TB Micro SD card
    • Tripod Mount: ¼"-20 thread to mount to tripods and other accessories
    • Rubber Feet: Non-skid feet to keep the R4 from moving while using it on a table

  • Specifications:

    • Inputs
    • Channels: 2x XLR/TS Inputs and 1x Built-in mic

      XLR/TS Inputs
    • Connectors: 2x XLR/TS combo jacks
    • Input Gain: Adjustment unnecessary (dual AD converter circuits used)
    • Input Impedance:
      - XLR 2.3kΩ
      - TS 1MΩ
    • Maximum Input Level: +4dBu (mic)
    • Phantom Power: +48V
    • Equivalent Input Noise: -120 dBu or less (IHF-A)

      Mic Input
    • Mic Type: Omni-directional
    • Sensitivity: -12 dB, 1 kHz at 1 Pa
    • Input Gain: Adjustment unnecessary (dual AD converter circuits used)
    • Max Sound Pressure Input: 115 dB SPL

      Outputs (Headphone)
    • Connector: 1x 3.5mm stereo mini jack
    • Maximum Output Level: 20 mW +20 mW (32 Ω load)

      Recording:
    • Recording Media:
      - 4GB-32GB microSDHC cards
      - 64GB-1TB microSDXC cards

      WAV
    • Supported Formats: 48kHZ, 32-bit float, mono/stereo
    • Maximum Simultaneous Recording Tracks: 2 Input

      Power:
    • AC Adapter: ZOOM AD-17 (DC 5 V/1 A) - USB bus power is supported
    • Batteries: 4x AA
    • Estimated Continuous Operation Time Using Batteries: about 7 hours

    • LCD Display: TFT/240x320dot, White backlight

      USB:

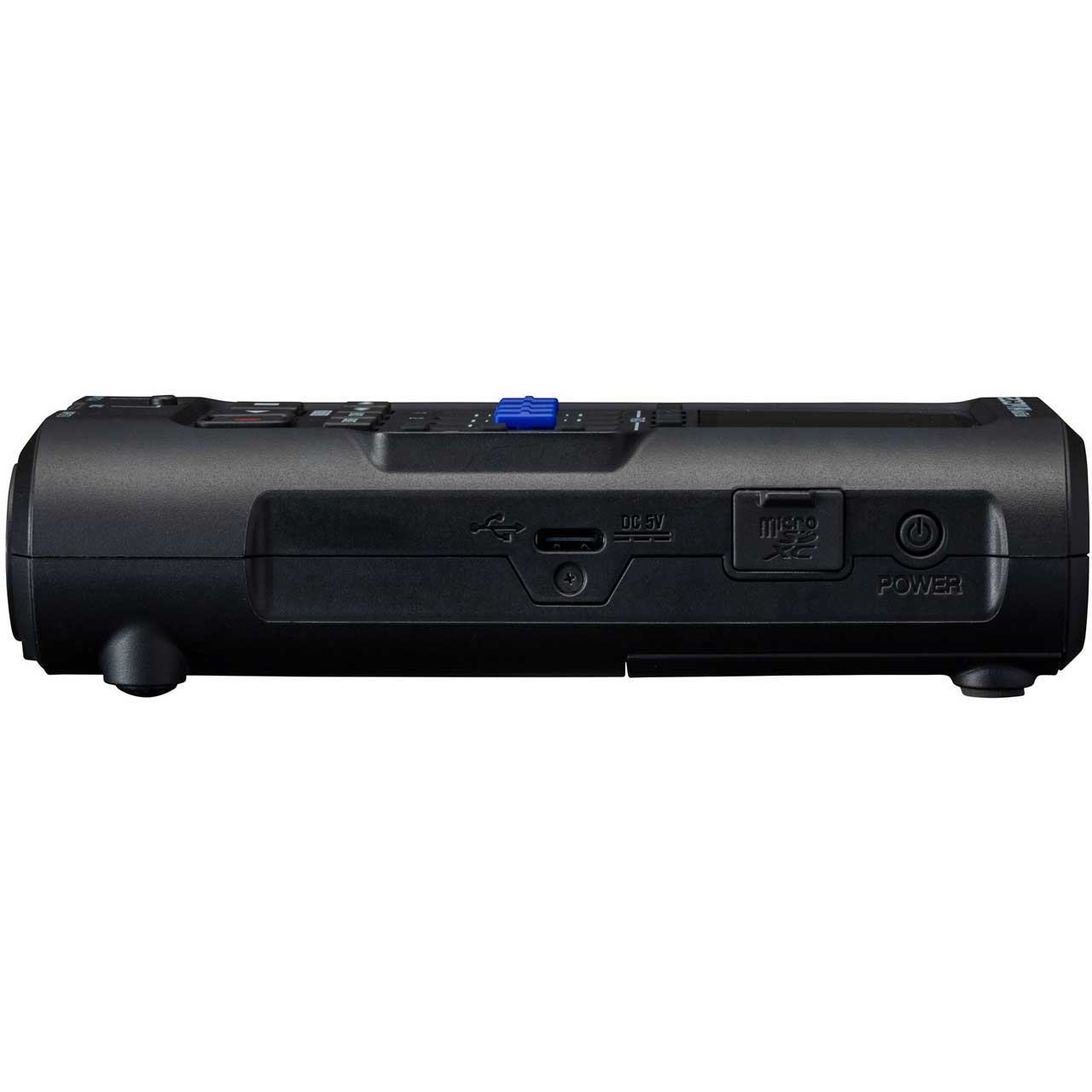

    • Connector: 1x USB Type-C
    • Mass Storage Class: USB 2.0 High Speed

      Audio Interface with REC
    • Class: USB 2.0 High Speed
    • Sampling Rate: 48kHZ
    • Bit Rate: 24-bit/32-bit float
    • Channels: 2 in/2 out

  • GTIN:

    4515260029266
