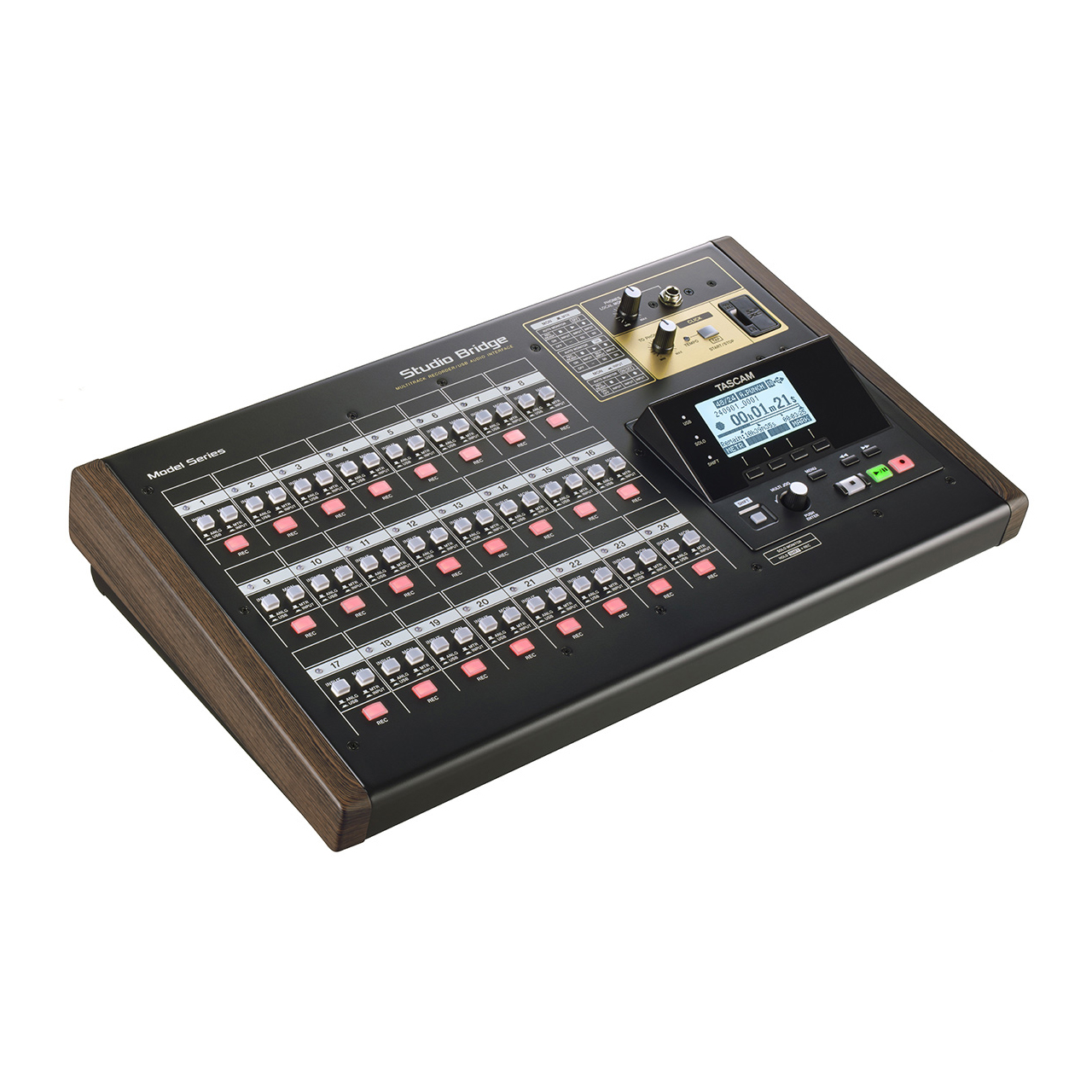

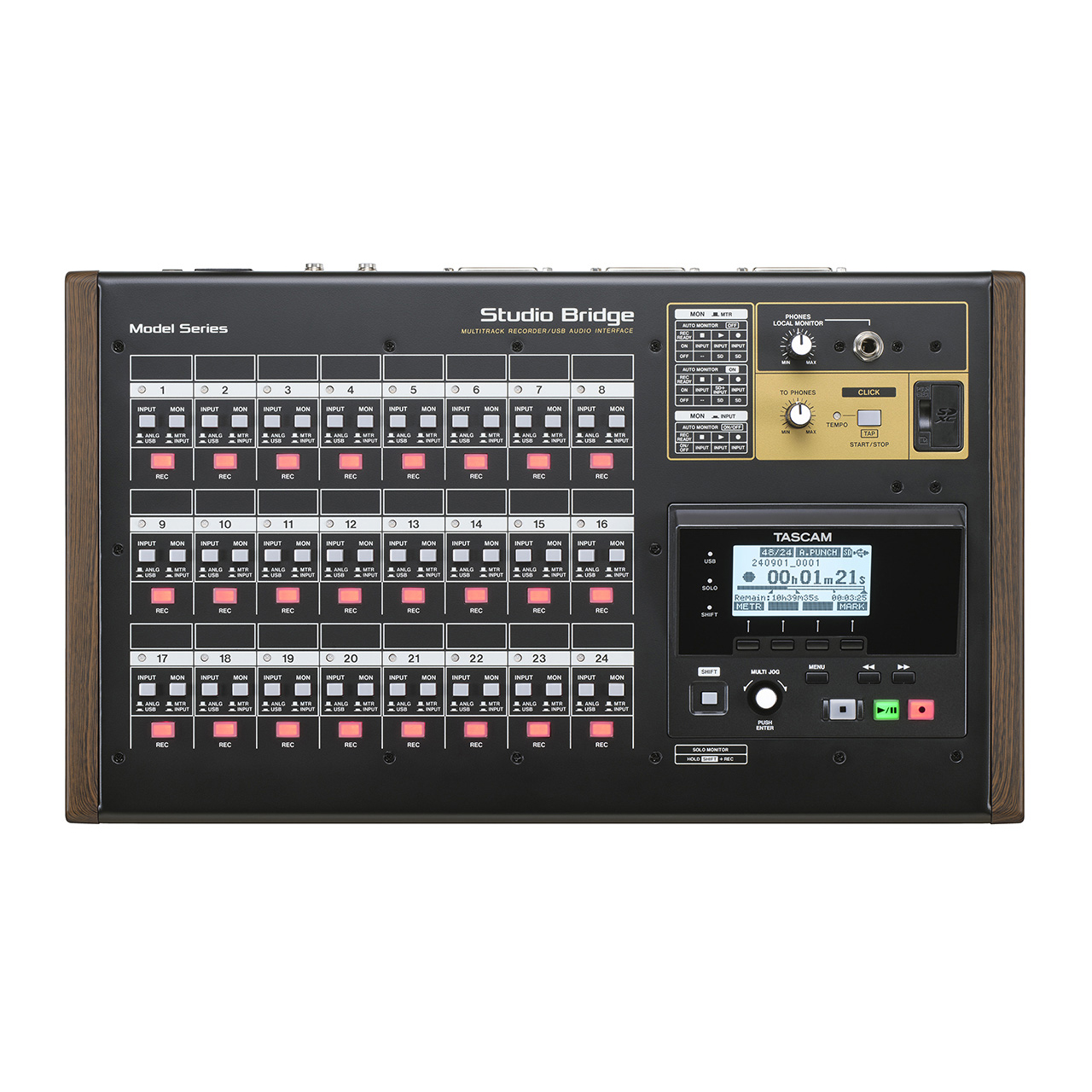

Tascam Studio Bridge 24-Track Recorder and USB Audio Interface with MIDI

ITEM #: TCM-STUDIOBRIDGE MFG #: STUDIO BRIDGE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Tascam
Free Shipping with $49 Minimum Order

List Price:

$1,299.00

Our Price:

$999.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    STUDIO BRIDGE - Overview

    Recording and Mixing with Analog Gear Made Easy

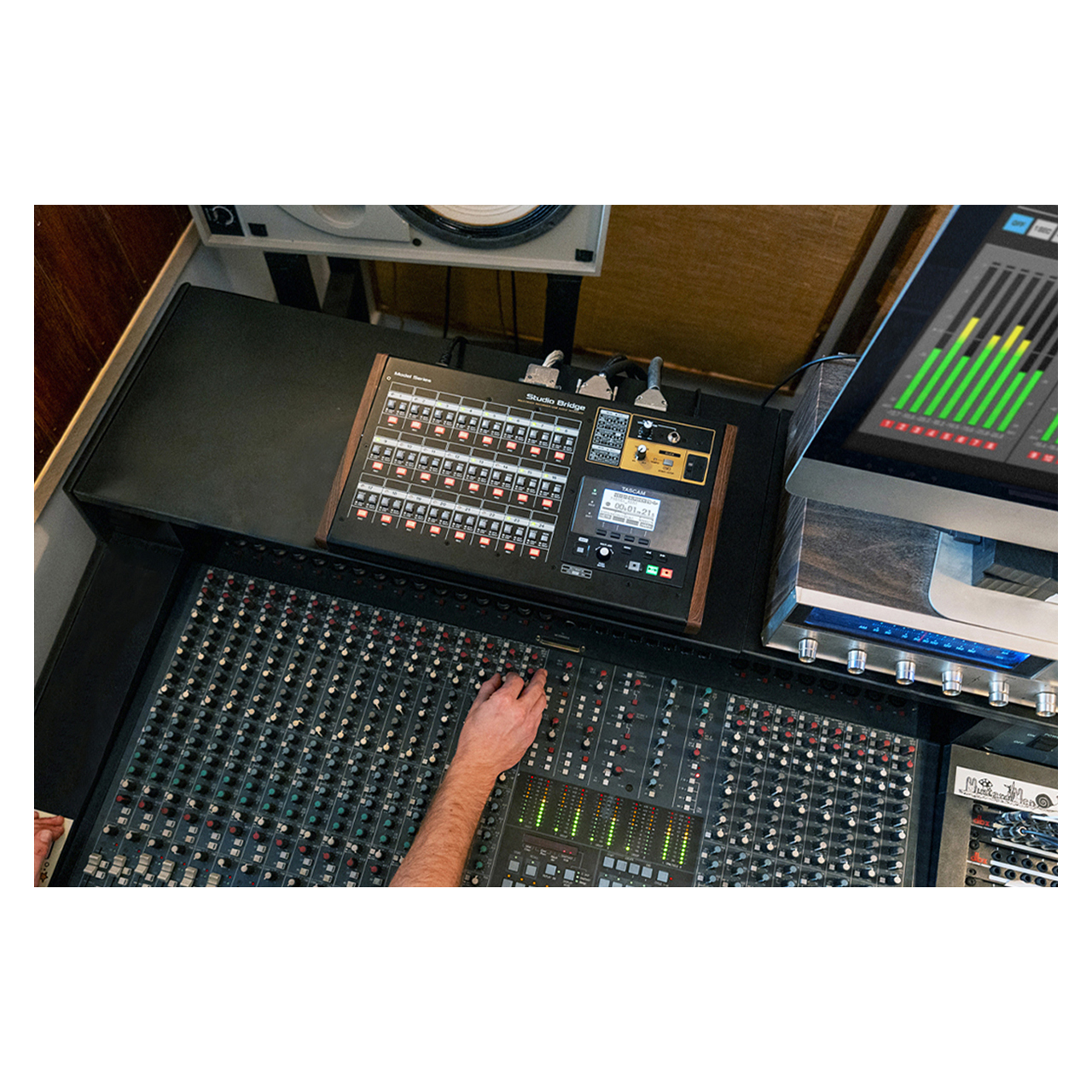

    The Tascam Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.

    24-Channel Modular Multitrack Recorder DAWLess Solution
    Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.

    24-IN/24-OUT Audio/MIDI Interface for DAWs

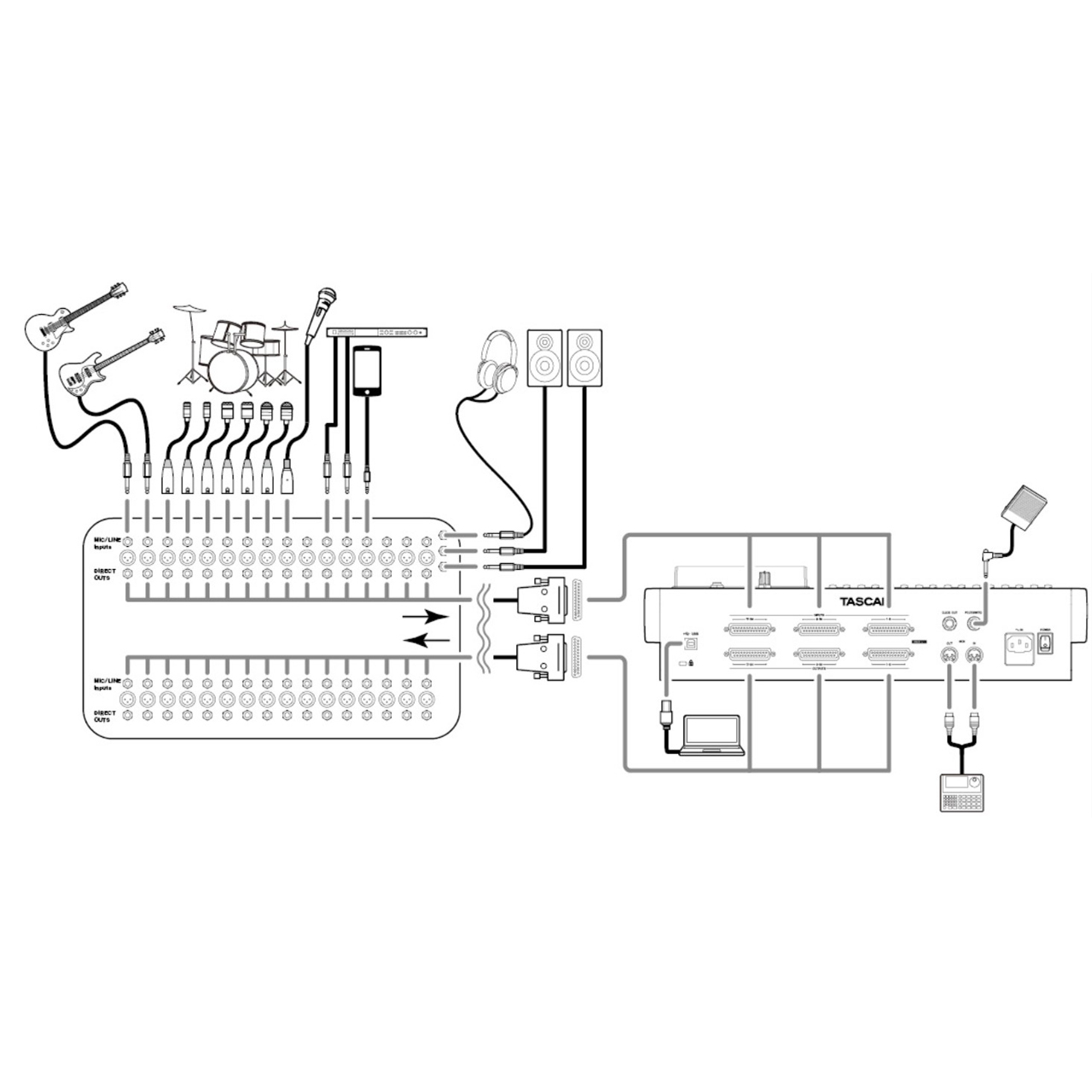

    TASCAM knows you want true analog flavor on your DAW recordings, and we're here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.

    DAW Transport Controller and Dedicated Meter Bridge Software
    Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.

    MIDI Synchronization for Your Sequencers
    With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production. Unlock your creativity with your go-to analog hardware and the Studio Bridge.

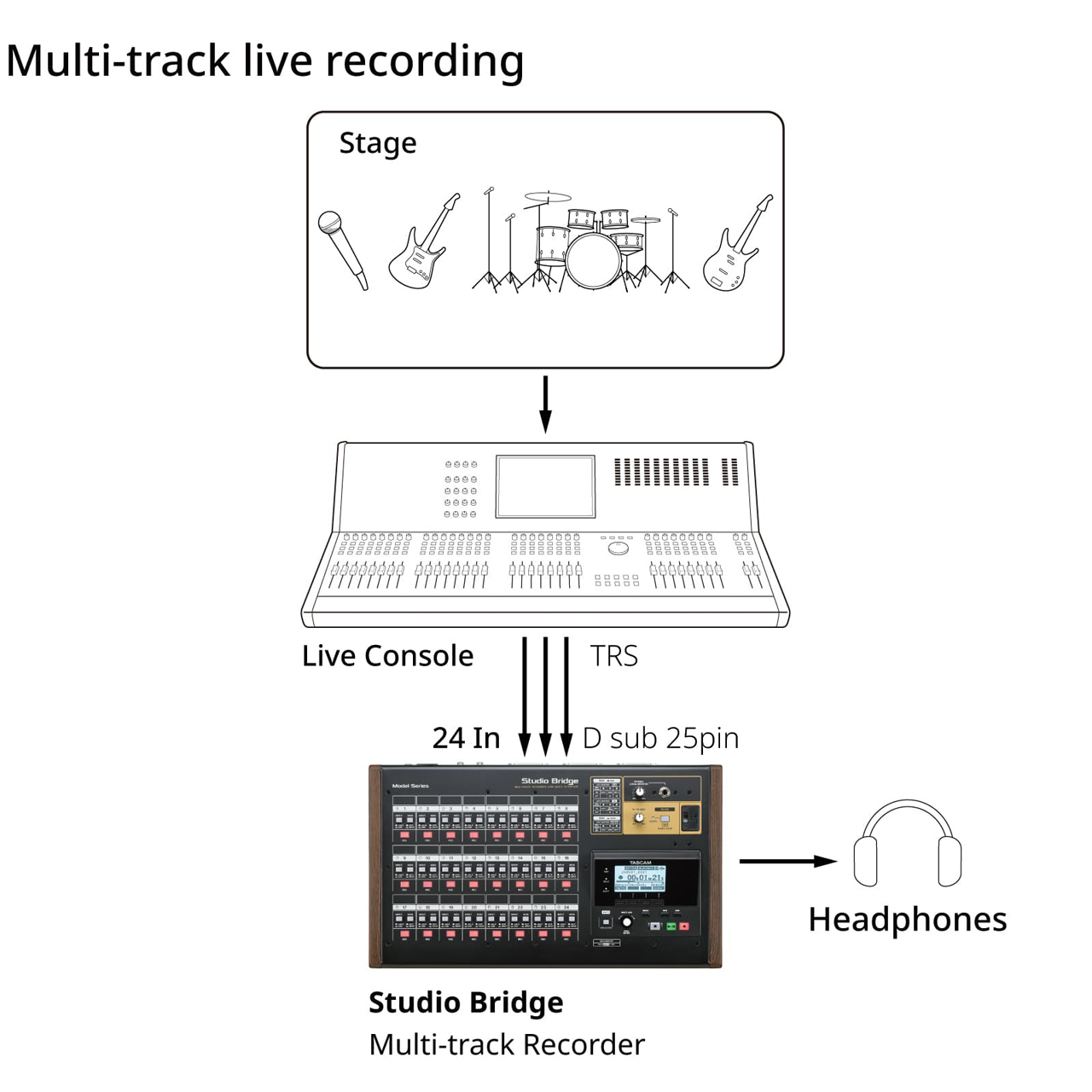

    Live Recording Applications
    In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.

    Please Note! DAW control operation has been confirmed to work with the following DAW software:
    • Avid Pro Tools
    • Apple Logic Pro
    • MOTU Digital Performer
    • Steinberg Cubase
    • Ableton Live
    • Cakewalk by BandLab
    • PreSonus Studio One
    • Cockos REAPER
    • Steinberg Cubasis 3.3

    • Features:

      • 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
      • 24-IN/24-OUT USB audio interface
      • 24 DB25 analog line level input and output
      • DAW transport control and REC READY control via HUI/MCU
      • Dedicated Settings Panel application with Meter Bridge
      • MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control


    • Specifications:

      • Recorder
      • Supported Media:
        - SD (512MB - 2GB)
        - SDHC (4GB - 32GB)
        - SDXC (64GB - 512GB)
      • Recording Format: WAV (BWF)
      • Playback Format: WAV (BWF)
      • Sampling Rate: 44.1/48 kHz
      • Quantization Bit Depth: 16-bit/24-bit
      • Maximum Number of Recording Tracks: 24
      • Maximum Number of Input and Output Channels:
        - Inputs: 24
        - Outputs: 24

        Phones/Local Monitor Jack
      • Connector: 1/4" standard stereo jack
      • Maximum Output: 80mW + 80mW (into 32Ω load)
      • Working Impedance: 16Ω - 600Ω

        Control Input/Output Ratings
      • USB:
        - Connector: USB Type-B
        - Transfer Format: USB 2.0 High-Speed
        - Device classes: Mass storage, USB audio class 2.0 (USB class compliant)
      • USB Audio:
        - Sampling Rate: 44.1kHz/48kHz
        - Quantization Bit Depth: 24-bit
        - Number of Inputs: 24 channels (Output from this unit)
        - Number of Outputs: 24 channels (Input to this unit)
      • CLICK OUT Jack:
        - Connector: 1/4" standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
      • FOOTSWITCH Jack:
        - Connector: 1/4" standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)

        MIDI OUT connector
      • Connector: 5-pin DIN
      • Format: MIDI 1.0

        MIDI IN Connector
      • Connector: 5-pin DIN
      • Format: MIDI 1.0

        Physical
      • Power: AC 100V - 240V, 50/60Hz
      • Power consumption: 20W
      • Dimensions:
        - With Side Panels (WxHxD): 17.47" x 4.51" x 10.61" (446.5mm x 114.6mm x 269.5mm)(including protrusions)
        - Without Side Panels (WxHxD): 16.32" x 4.51" x 10.61" (414.6mm x 114.6mm x 269.5mm)(including protrusions)
      • Weight: 9.92" (4.5kg)
      • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
      • Operating Humidity Range: 5% - 85% (without condensation)


    • Item Includes:

      • 1x Tascam Studio Bridge
      • 1x Power Cord (for Japan/USA, 3-pronged with protective grounding)
      • 1x Power Cord (for Other, 3-pronged with protective grounding)
      • 1x 3-prong to 2-prong adapter (for Japan)
      • 1x Safety Guide
      • 1x TASCAM ID Registration Guide


    • Warranty:

      • 1 Year Limited Warranty


    • GTIN:

      4907034135417
