10-0032 - Overview

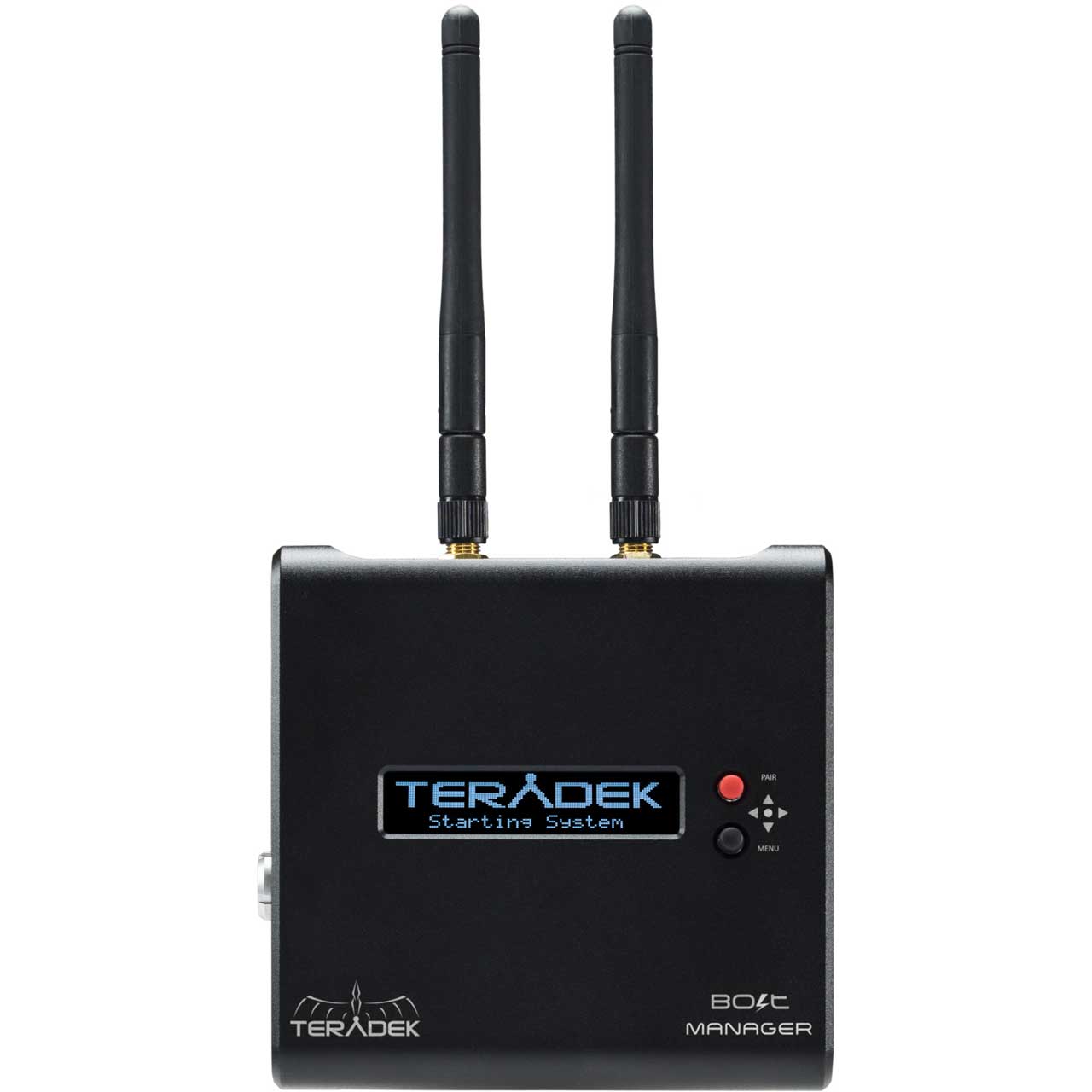

The Teradek 10-0032 Bolt Manager helps you quickly configure your wireless video system without a computer. Perfect for rental houses, the Bolt Manager hardware box lets you rapidly pair multiple receivers, change wireless channels, update firmware, and configure regional settings during prep or on set.

Note: Bolt Manager's pairing feature is only compatible with Bolt 500, 1000, 3000, 10K, Sidekick II / XT / LT, and newer. *planned for future firmware updates

  • Features:

    • Quick configuration tool for all Bolt models (3rd Generation or newer)
    • Update firmware & pair receivers with the click of a button
    • Manage channels across a multi-receiver set
    • Does not require a computer
    • Connect up to 4 receivers at once


  • Specifications:

    • Physical
    • Material: Machined Aluminum, black anodized & lasered
    • Dimensions: Approx 5 x 5 x 2 inches
    • Weight: 8.7 oz
    • Mountability: table top, with rubber feet

      Output
    • Output Voltage: 14.4V max from D-Tap Connector

      Interfaces
    • Configuration Interfaces: OLED with 2 x joysticks and status LEDs., WebUI for firmware upgrade

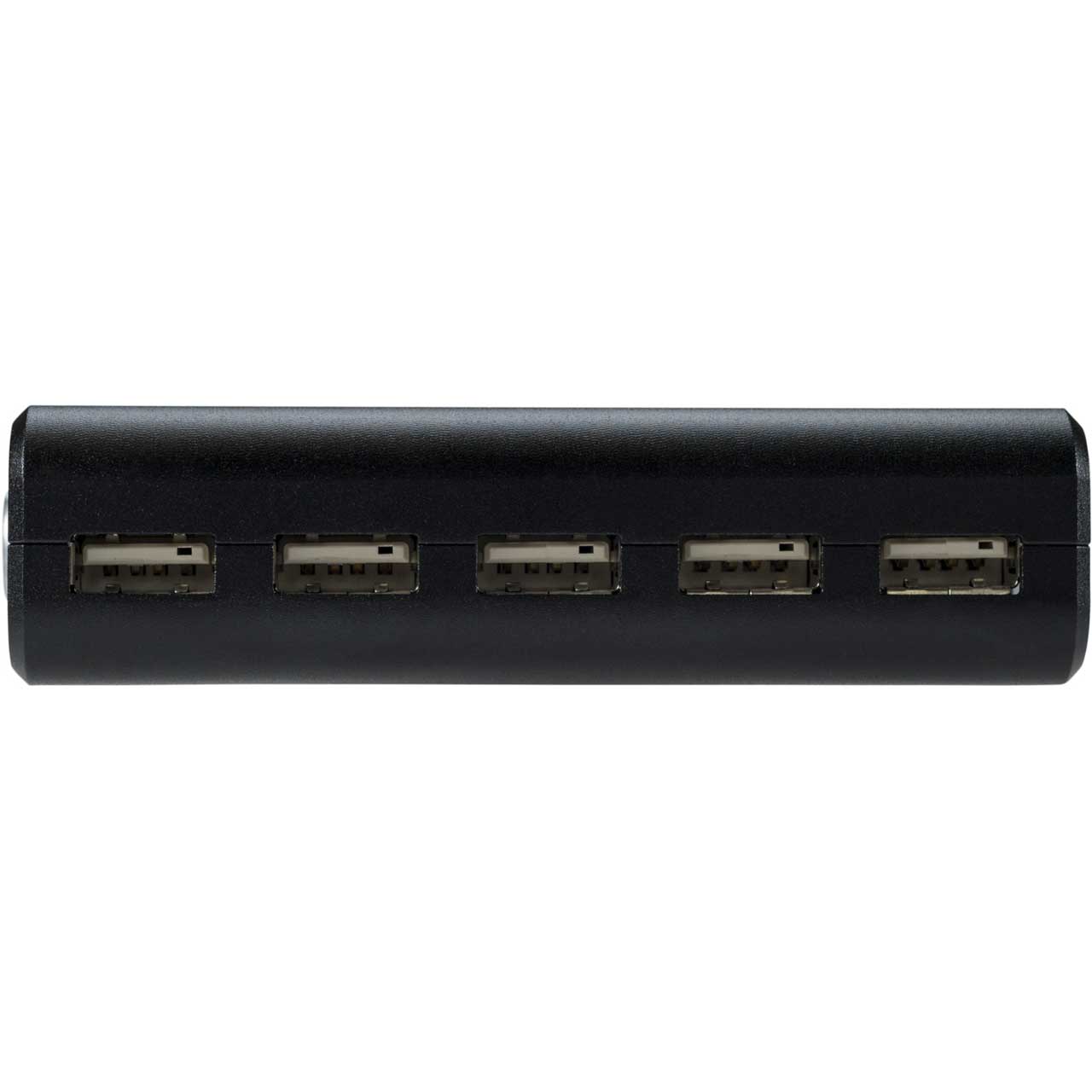

    • USB Interface Functionality: 5 Powered USB 2.0 host port, Upgrade via Mini-USB

      Power
    • Power Input: 2 pin-connector 6-28V DC
    • Battery: None

      Environmental
    • Operating Temperature: 0 - 50 degrees C ambient.
    • Humidity: 0-95% non-condensing

      Network

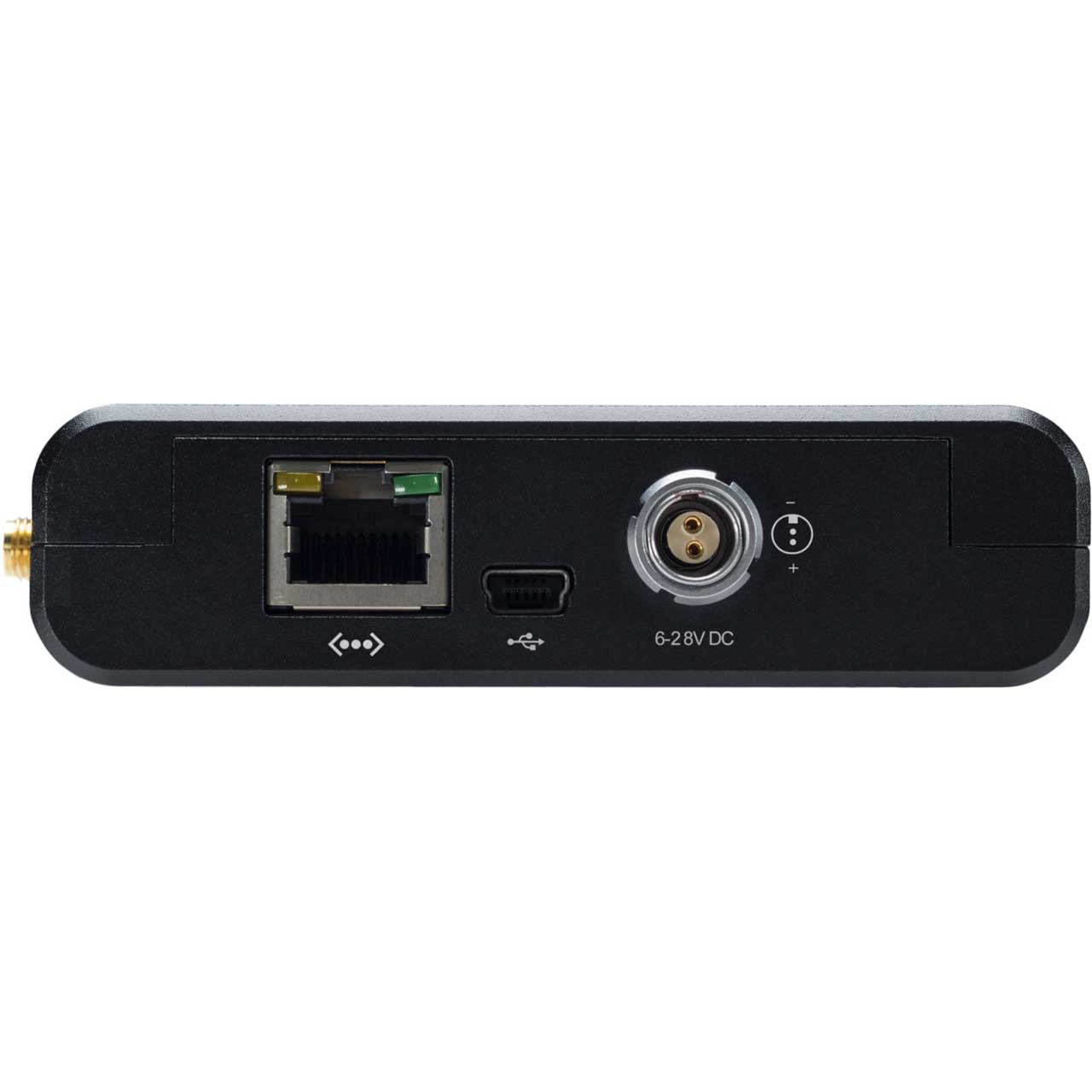

    • Ethernet: 10/100BASE-T
    • Wireless: WiFi: Dual Band MIMO 802.11 a/b/g/n


  • Item Includes:

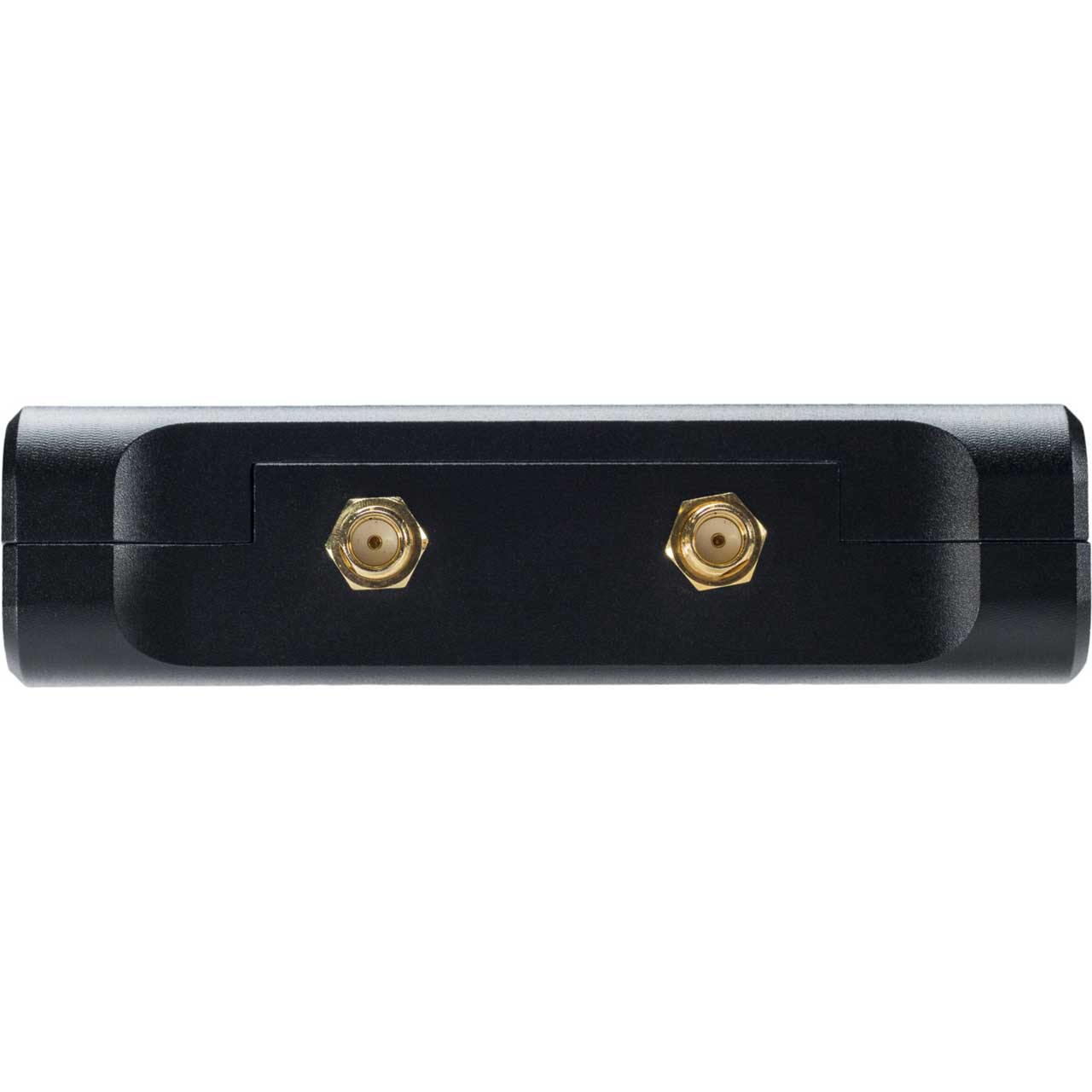

    • 2x 2dBi Wifi 2.4/5.8 GHz
    • 1x 2-pin Connector to 18W AC Adapter Cable
    • 5x USB 2.0 Cable (A-Male to Mini-B)
    • 1x Ethernet Cable


  • GTIN:

    0818264022856
