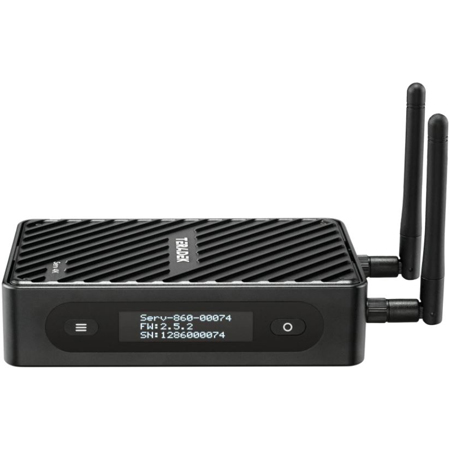

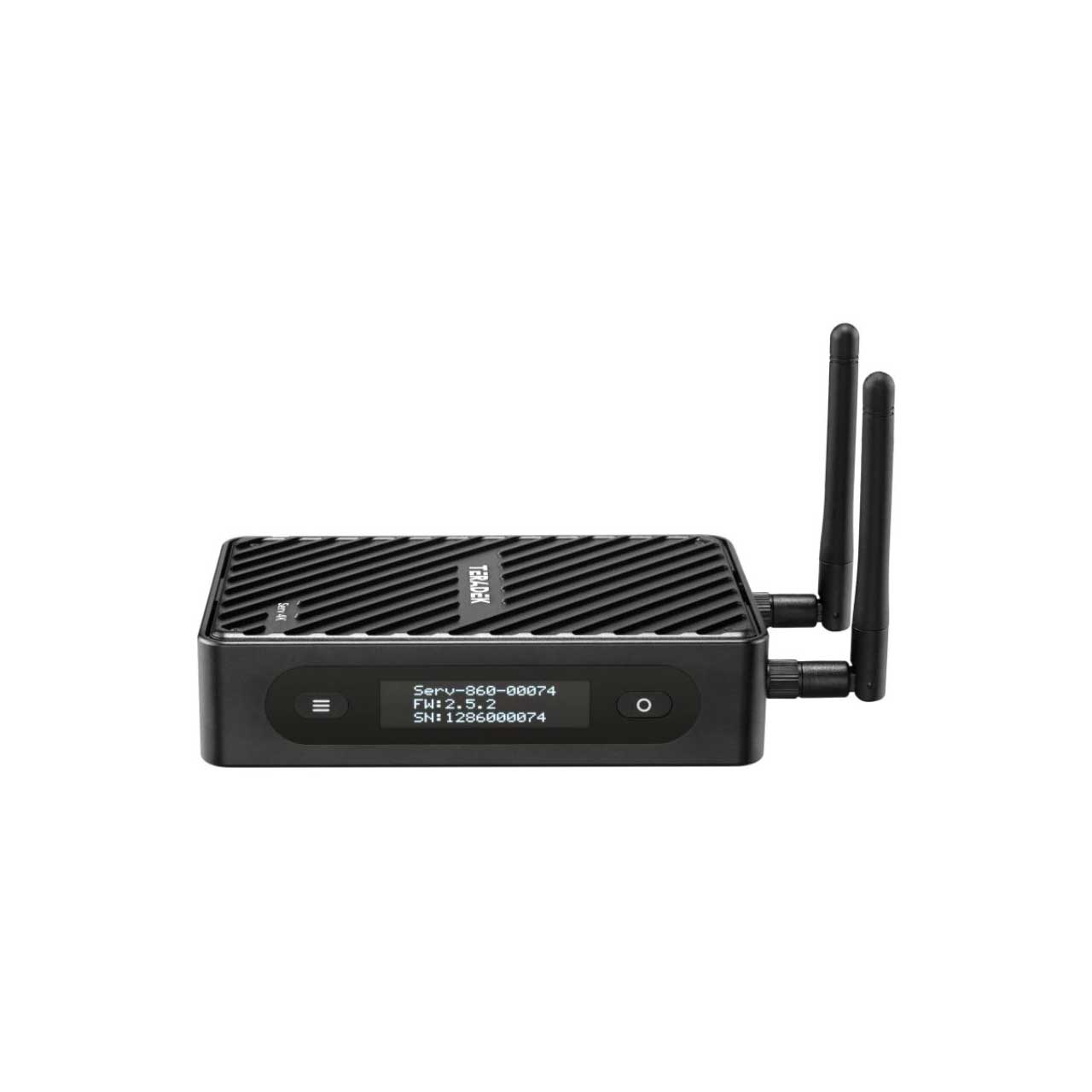

Teradek 10-2860 Serv 4K All-In-One Production Streaming Solution

ITEM #: TER-SERV-4K MFG #: 10-2860

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TER-SERV-4K

10-2860 - Overview

The Teradek Serv 4K is an all-in-one production streaming solution that unites next-gen hardware with simplified UI to easily manage and share 4K HDR image quality in real time, whether you're collaborating on set or around the world. Serv 4K allows both local and cloud-based streaming with Teradek's Vuer and Core apps as well as third-party integrations like Frame.io. Up to four live camera feeds can be streamed to multiple local devices at once, even without an internet connection. Cloud-based streaming can be shared with an unlimited number of devices via MacOS, iOS, Android, or web browsers.

This next-gen hardware includes military-grade 256-bit encryption, up to 45mbps HEVC support, 10bit 4:2:2 color, and DCI-P3 and PQ 2084 color gamuts for consistent color-accuracy from first shot through final color.

Collaborate with Serv 4K by providing multiple viewers with access, user-specific watermarking, and tracking history. Serv 4K is easy to set up, easy to manage, and comes with tools to keep every stakeholder in the loop, wherever they are.

  • Features:

    • 4K HDR with 10-bit 4:2:2
    • HEVC and AVC Compression
    • 12G-SDI and Loop Through
    • 256-bit Military-Grade Encryption
    • Cellular Bonding with Serv App
    • Compatible with MacOS, iOS, Android and Web Browsers

  • Specifications:

    • Video

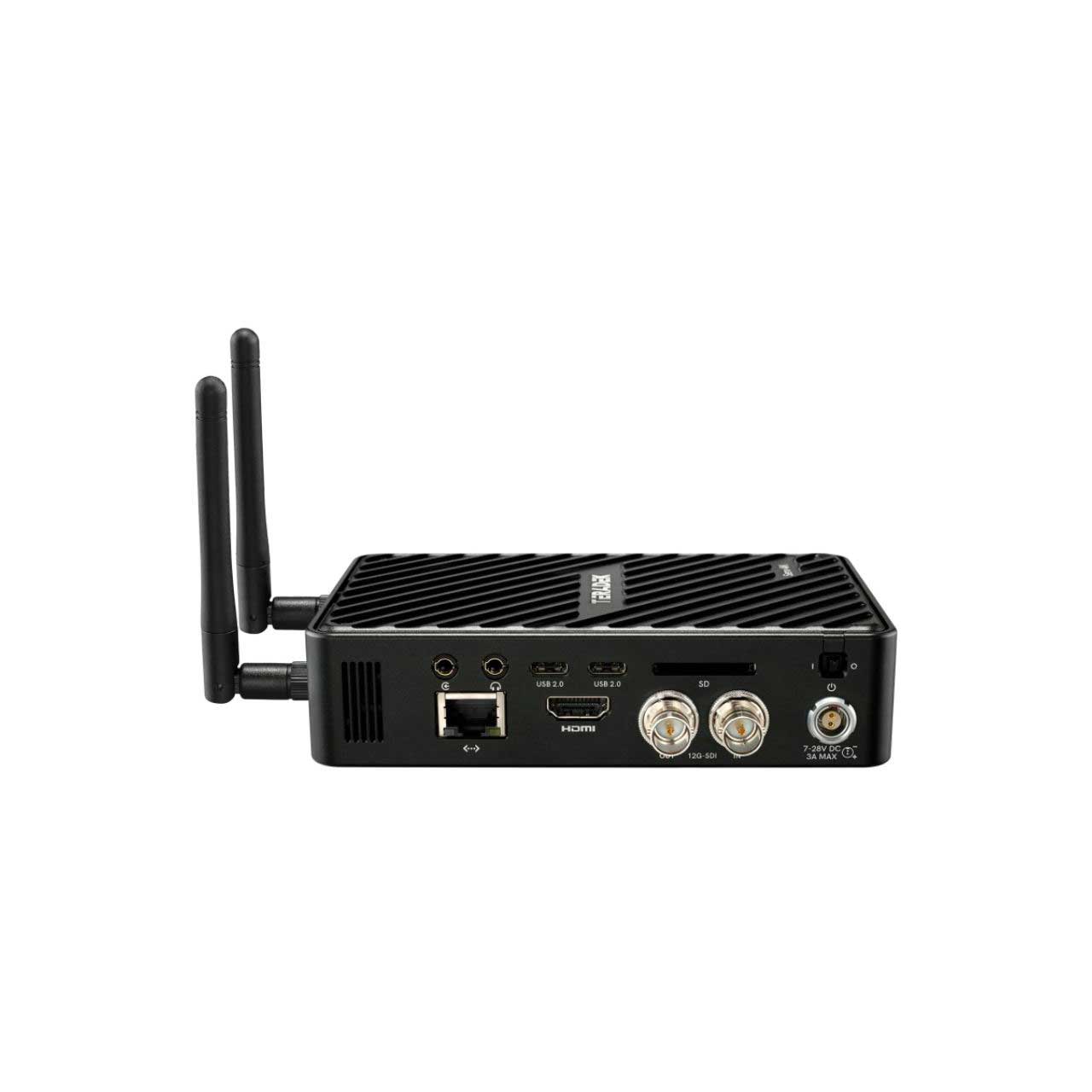

    • Video Inputs: 1x SD/HD/3G/6G/12G-SDI (75Ω BNC), 1x HDMI 2.0
    • HDR Support: Yes
    • Video Outputs: 1x SD/HD/3G/6G/12G-SDI (75Ω BNC loop out)

      Supported Resolutions
    • 4K DCI p23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60
    • 4K UHD p23.98/24/25/29.97/30/50/59.94/60
    • 1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1080i 50/59.94/60
    • 1080PsF 23/24/25/29/30
    • 720p 50/59.94/60
    • 576i
    • 480i

      Video Processing
    • Video Compression:
      ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
      AVC: Baseline profile, Main profile, High profile
      SO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
      HEVC: Main profile
    • Supported Video Bitrate: 250Kbps - 45Mbps
    • Video Format Conversion Support: Built in video scaler and deinterlacer
    • Number Of Encoder Streams: Up to one 4KDCI p60 4:2:2 10bit
    • Color Correction:
      CDL/1024 1D LUT (supports 10-bit color)
      33x33x33 3D LUT (supports 10-bit color)

      Protocol Support
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Supported Video Transport Protocols: Secure Reliable Tranport (SRT)
    • Remote Control: Teradek Core

    • Audio Compression: AAC-LC
    • Audio Input: 3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
    • Audio Output: 3.5mm Stereo Headphone output
    • Ethernet: 1x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
    • Wireless: WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
    • Configuration Interfaces: Feature-rich Web UI for configuration and control, OLED Status Display w/Nav control buttons
    • Recording Storage: SD Card: Full Size
    • USB Interface Functionality: 2x Powered USB-C host ports with 3G/4G modem support
    • Power Input: 2-pin circular locking connector
    • Nominal Power Consumption: 18W
    • Auxilary Power Input: 6-28V DC
    • Mountability: Can be mounted horizontally or vertically with 1/4" 20 mounting holes
    • Construction: Milled Aluminum
    • Dimensions: 6.25"W x 3.6"D x 1.4"H (150mm x 107mm x 36mm)
    • Weight: 1lb (476g)

  • Item Includes:

    • 1x Serv 4K
    • 2x Antenna 2dBi WiFi 2.4/5.8 GHz
    • 1x PSU 2-pin to 30W AC Adapter (Int) Cable - 6ft
    • 1x (Bit 118) 2-pin to D-Tap Cable - 18"
    • 1x SDI - BNC to BNC Cable - 10"

  • GTIN:

    0818264027370
