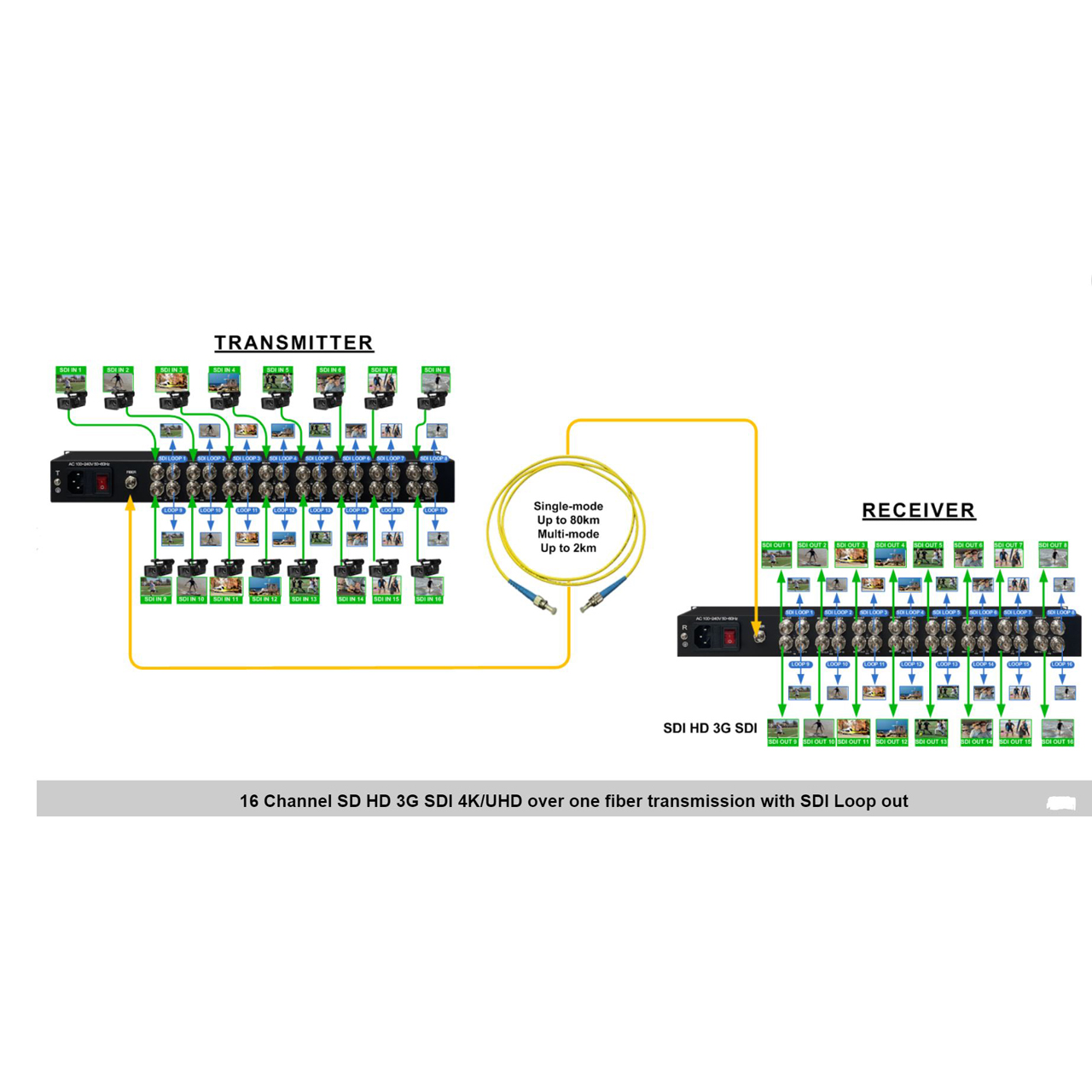

The Thor Fiber F-16SDI-3G-TX/RX 16-channel CWDM (Coarse Wavelength Division Multiplexing) 3G SDI fiber optic transmitter and receiver system is a powerful solution for long-distance video signal transmission. This setup allows for the simultaneous transmission of 16 separate channels of video signals over a single optical fiber cable. The 16-channel CWDM 3G SDI fiber optic transmitter and receiver system offers a robust solution for long-distance, high-quality video signal transmission while eliminating the need for cumbersome copper BNC cables, making it a valuable asset in professional broadcasting and video production environments.
16-Channel Capability: This system is equipped to handle up to 16 individual video channels, making it ideal for applications where multiple video sources or feeds need to be transmitted.
CWDM Technology: Coarse Wavelength Division Multiplexing technology is employed to efficiently combine and transmit these channels over a single fiber. Each channel is assigned a specific wavelength, allowing for the simultaneous transmission of multiple signals.
3G SDI Compatibility: It supports 3G SDI up to1080p/60, which is a high-quality digital video standard commonly used in professional broadcasting and video production.
Fiber Optic Transmission: The use of optical fiber ensures high bandwidth and reliability, making it suitable for long-distance transmission without signal degradation.

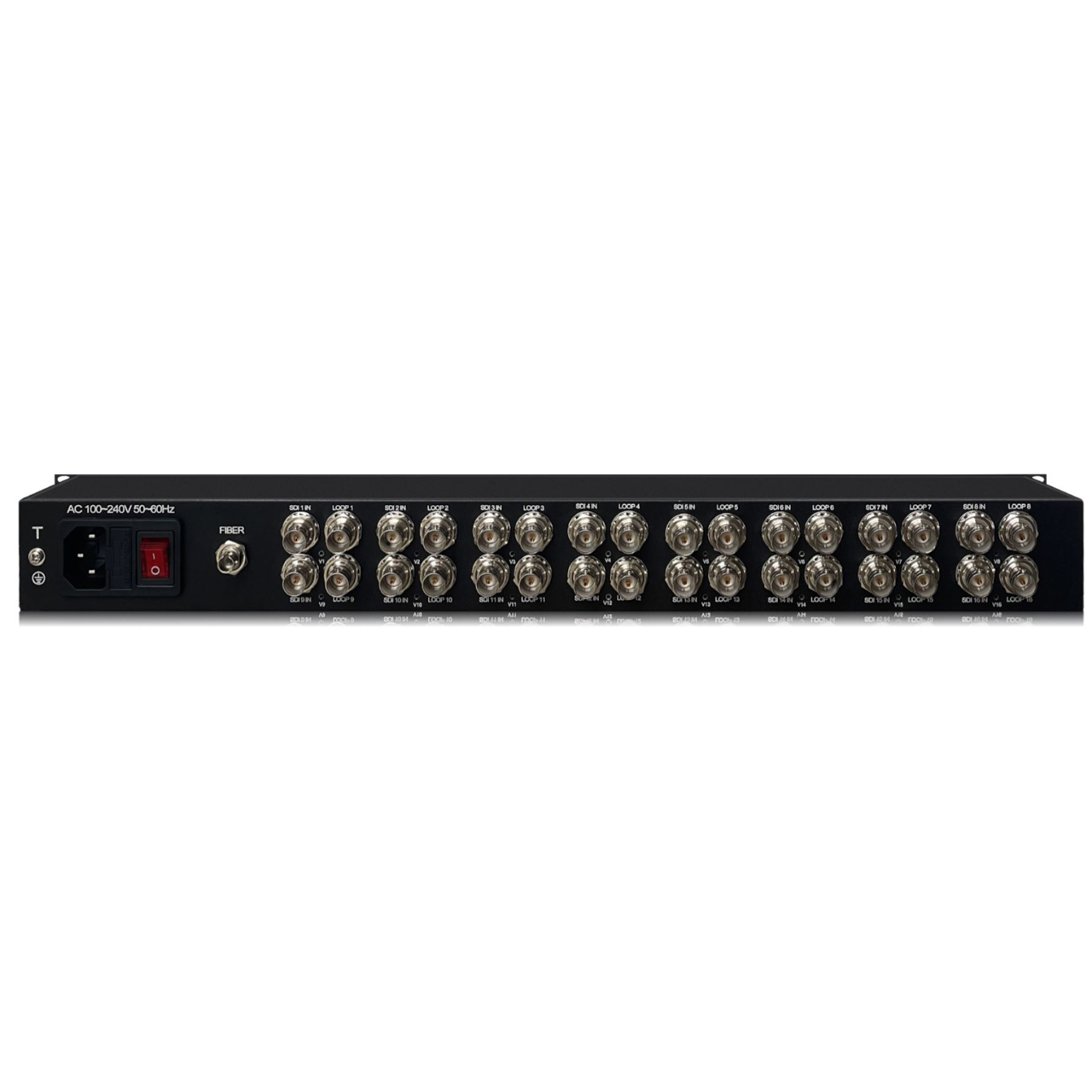

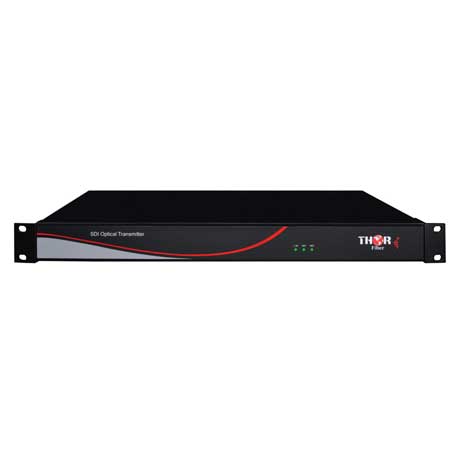

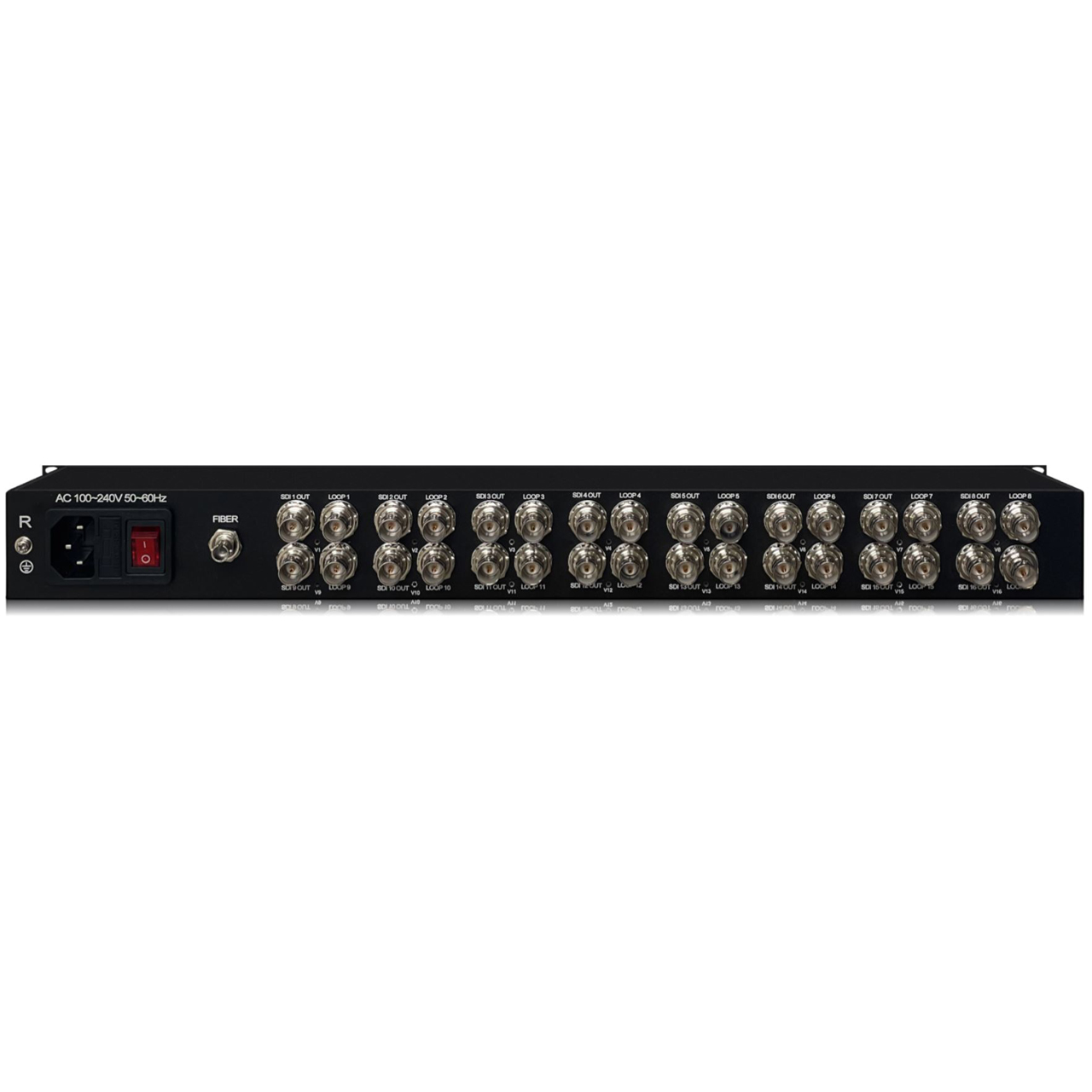

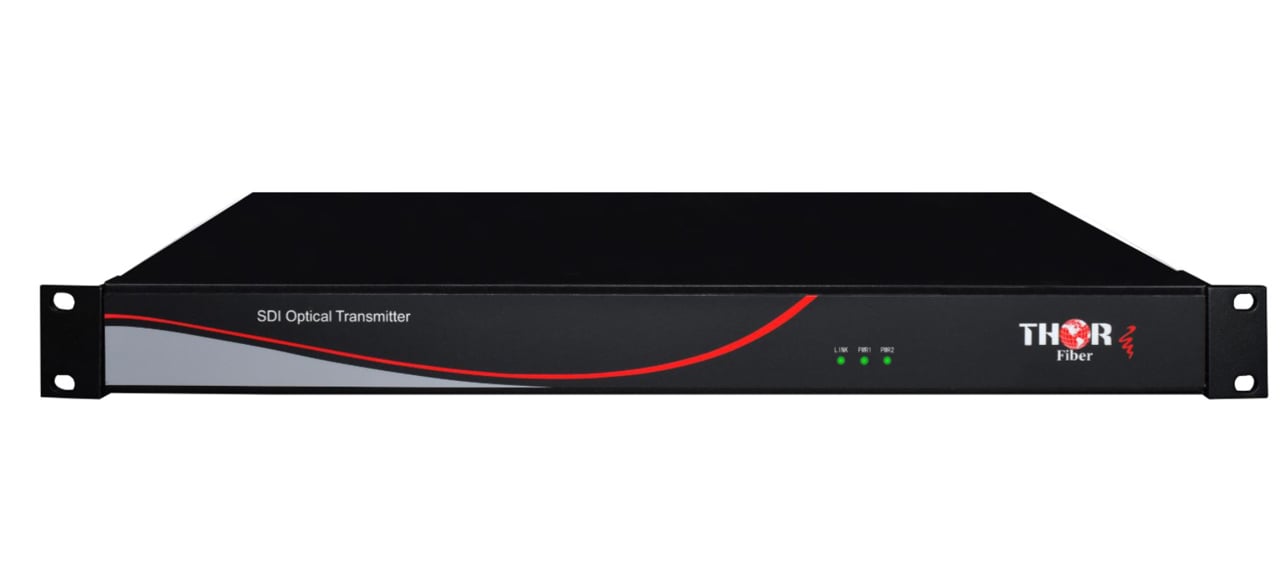

Transmitter and Receiver: The system includes both a t19" rack mountable Transmitter and a receiver, ensuring a complete solution for sending and receiving video signals.
Long-Distance Transmission: The use of fiber optics enables the transmission of video signals over significant distances, making it suitable for applications where traditional copper BNC cables would be impractical.
Signal Quality: Fiber optics maintain the quality of the video signals over long distances, ensuring that the transmitted video is of high quality and free from interference.
Space and Cable Reduction: With the ability to transmit 16 channels over a single fiber, this system eliminates the need for multiple copper BNC cables, reducing clutter and saving space in a broadcast or production environment.
Ease of Installation: The system simplifies the installation process by using fiber optic cables with standard ST/PC connectors, which are thinner and more flexible than copper cables, making them easier to manage and route.
Versatility: This system is versatile and can be used in a variety of applications, including live events, television studios, and remote broadcasting, where reliable and high-quality video transmission is essential.
