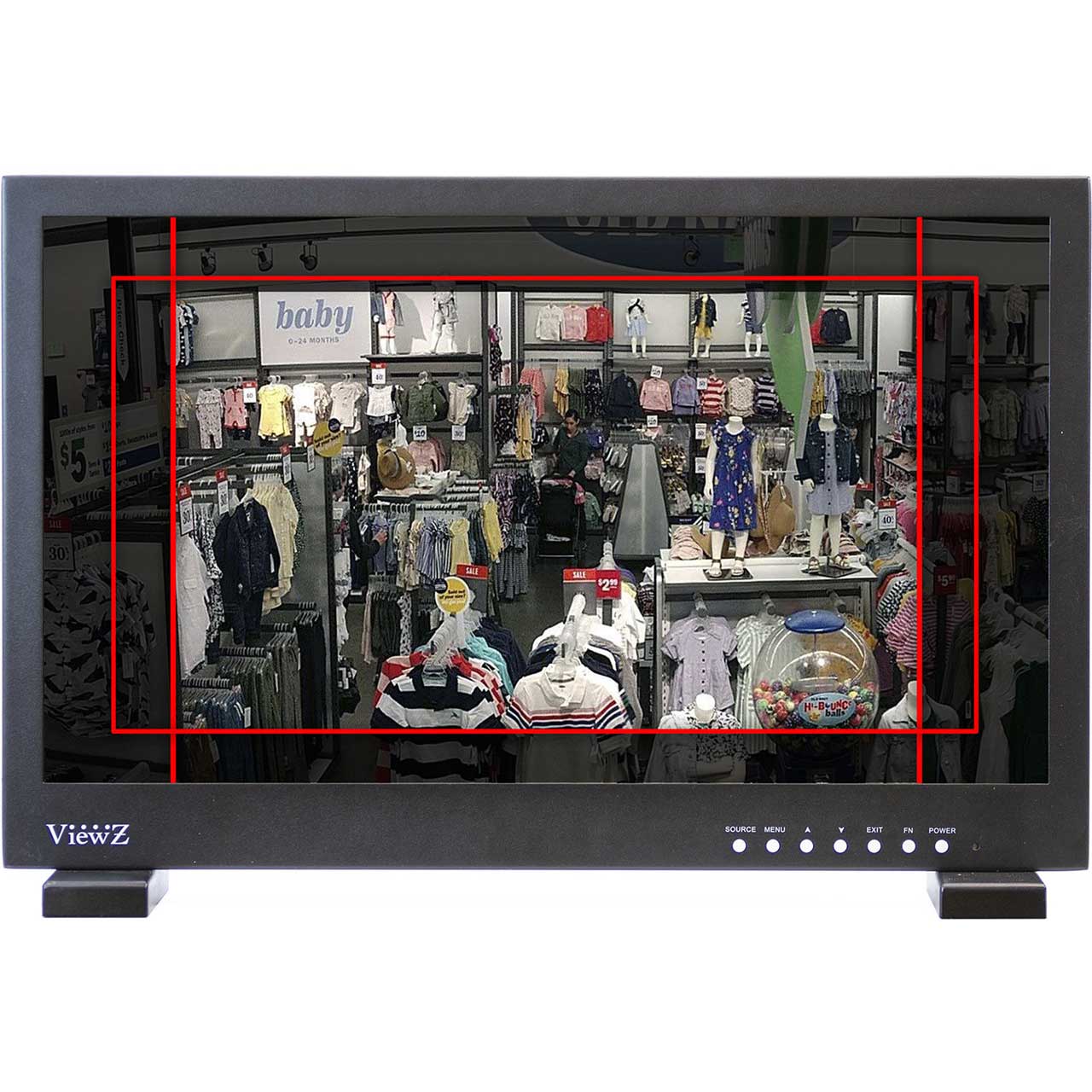

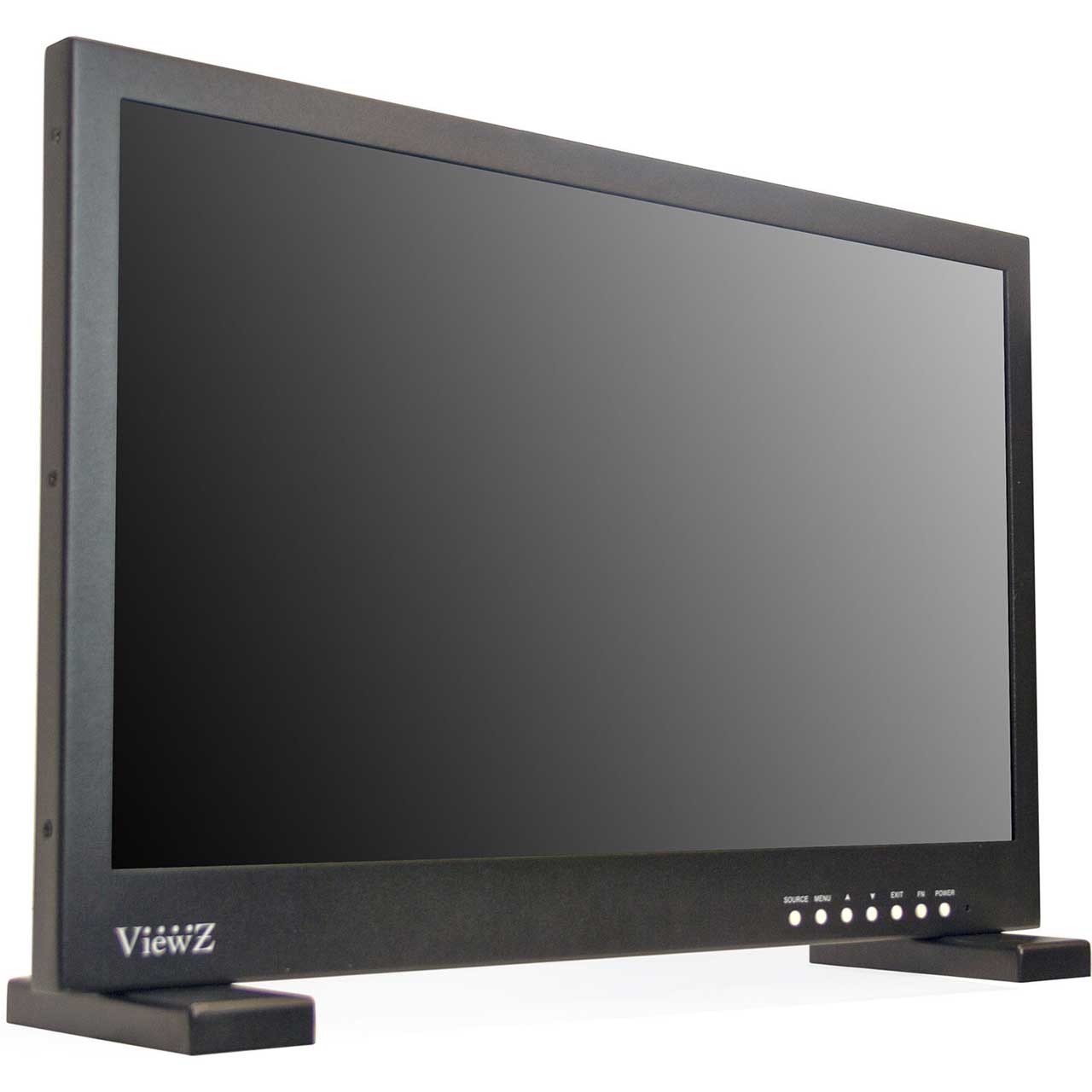

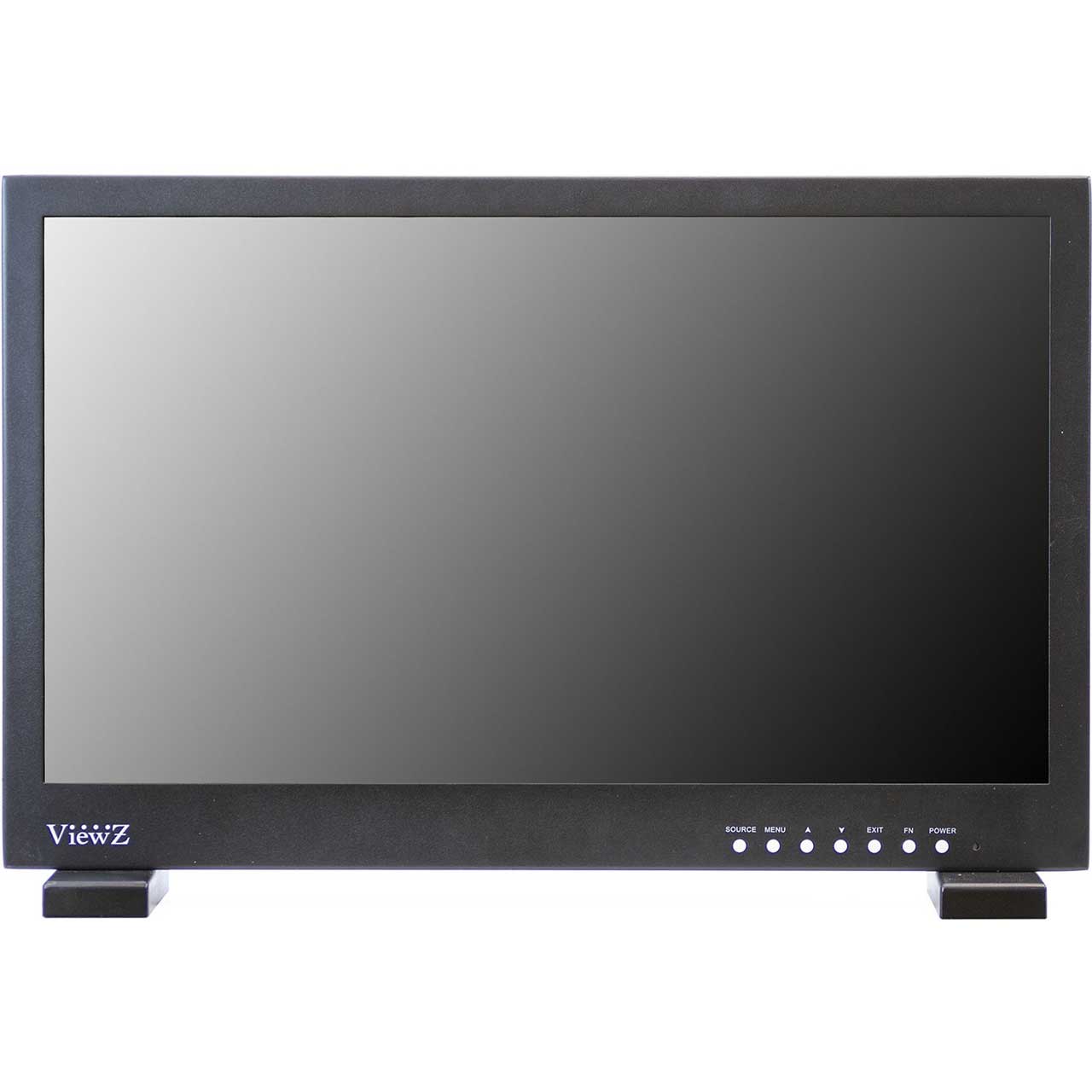

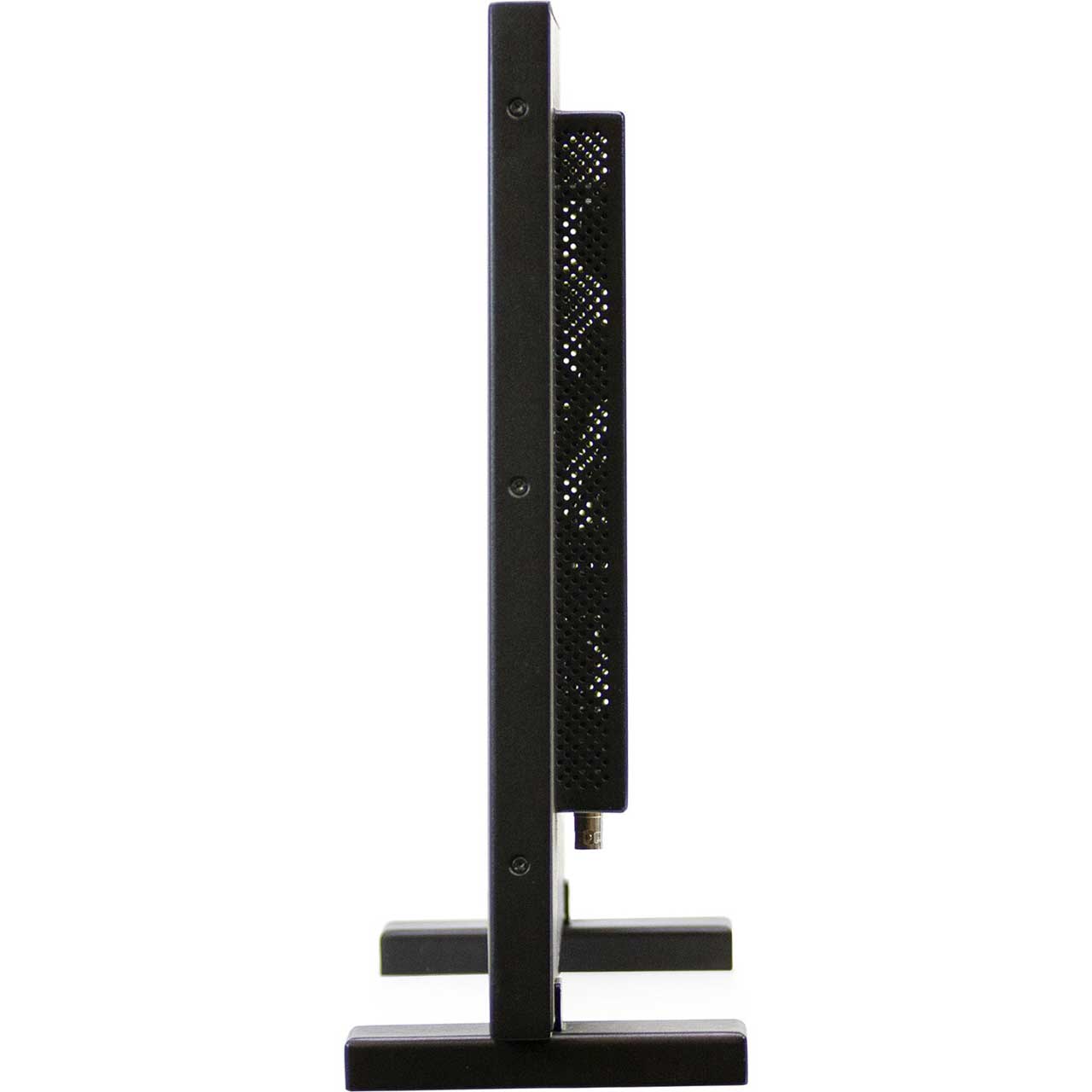

ViewZ VZ-215LED-L1 21.5 Inch Economic Broadcast Quality SDI LED Monitor - 1080p Resolution - 3G-SDI

VZ-215LED-L1 - Overview

• Features:

  • 1920 x 1080 Resolution at 60 Hz
  • 21.5" LED-Backlit Display
  • 170/160° H/V Viewing Angles
  • 16:9 Aspect Ratio


• Specifications:

  • Display
  • Screen Size (Diagonal): 21.5"
  • Resolution: 1920 x 1080
  • Supported Display Resolutions: Maximum: 1920 x 1080/60Hz
  • Panel Type: LCD
  • Brightness: 250 cd/m² (Typical)
  • Viewing Angle (HxV): 170° x 160°
  • Aspect Ratio: 16:9
  • Contrast Ratio: 1000:1
  • Response Time: 5ms
  • Refresh Rate: 60Hz
  • Dot Pitch: 0.24825mm x 0.24825mm
  • Backlighting Technology: LED

    Connectivity
  • Primary Connectivity Location: Display
  • Input Ports:
    - 3x BNC Component - Video (Rear)
    - 1x SDI - Video (Rear)
    - 1x 15-Pin VGA - Video (Rear)
    - 1x HDMI - Video (Rear)
    - 1x 3.5mm - Audio (Rear)
  • Output Ports:
    - 1x SDI - Video (Rear)
    - 1x Speaker Terminal - Audio (Rear)
  • USB Ports: 1x USB (Version Unspecified) (Rear)
  • Ethernet Ports: None
  • Digital Media Slot: None

    Audio
  • Built-In Speakers: Yes, 2 x 2 W
  • Speaker Configuration: 2-Channel

    Convenience
  • Analog Video Formats: NTSC, PAL

    Electrical
  • Power Consumption: Typical: < 24.0W
  • AC Input Power: 100V - 240V AC, 50/60Hz
  • DC Input Power: 12V DC
  • Power Adapter Type: External

    Environmental
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Certifications: CE, FCC, as per Manufacturer

    Physical
  • Wall Mounting: 100mm x 100mm
  • Material of Construction: Metal
  • Dimensions: 20.3" x 13.7" x 1.7" (516.0mm x 346.9mm x 43.6mm)
  • Weight: 8.4lbs (3.81kg)
