The H-4HDMI-QAM-IP is an exciting new QAM modulator with a wide range of features. This unit is a four channel CATV headend in a box. Featuring 4 HDMI inputs that are fully HDMI compliant, meaning you can connect it to a Blu Ray, DVD, or digital Set Top Box. This unit also streams all 4 inputs out as an IP stream for IPTV systems. This unit allows you to create a 4 channel mini headend that serves your existing coax network and at the same time gives you the ability to develop a future IP network based TV system. These units provide a standard QAM digital Cable output with four programs. The RF signal can be combined with outputs from other modulators to create a larger lineup of channels. These modulators also have ASI inputs and outputs. In addition to the 4 HDMI channels you can also insert a multiple program ASI that will be combined on the modulated QAM output. This way you can create a QAM channel with more than just 4 programs running on it. The whole system is controlled over the network via our Network Management Software that lets you control program settings, PIDs and channel lineups from anywhere in the world. Now offering MPEG-2 HD encoding in addition to H.264. MPEG-2 encoding makes the theor Modulators compatible with all world cable system. Contact Thor today for assistance in designing your Cable TV system.

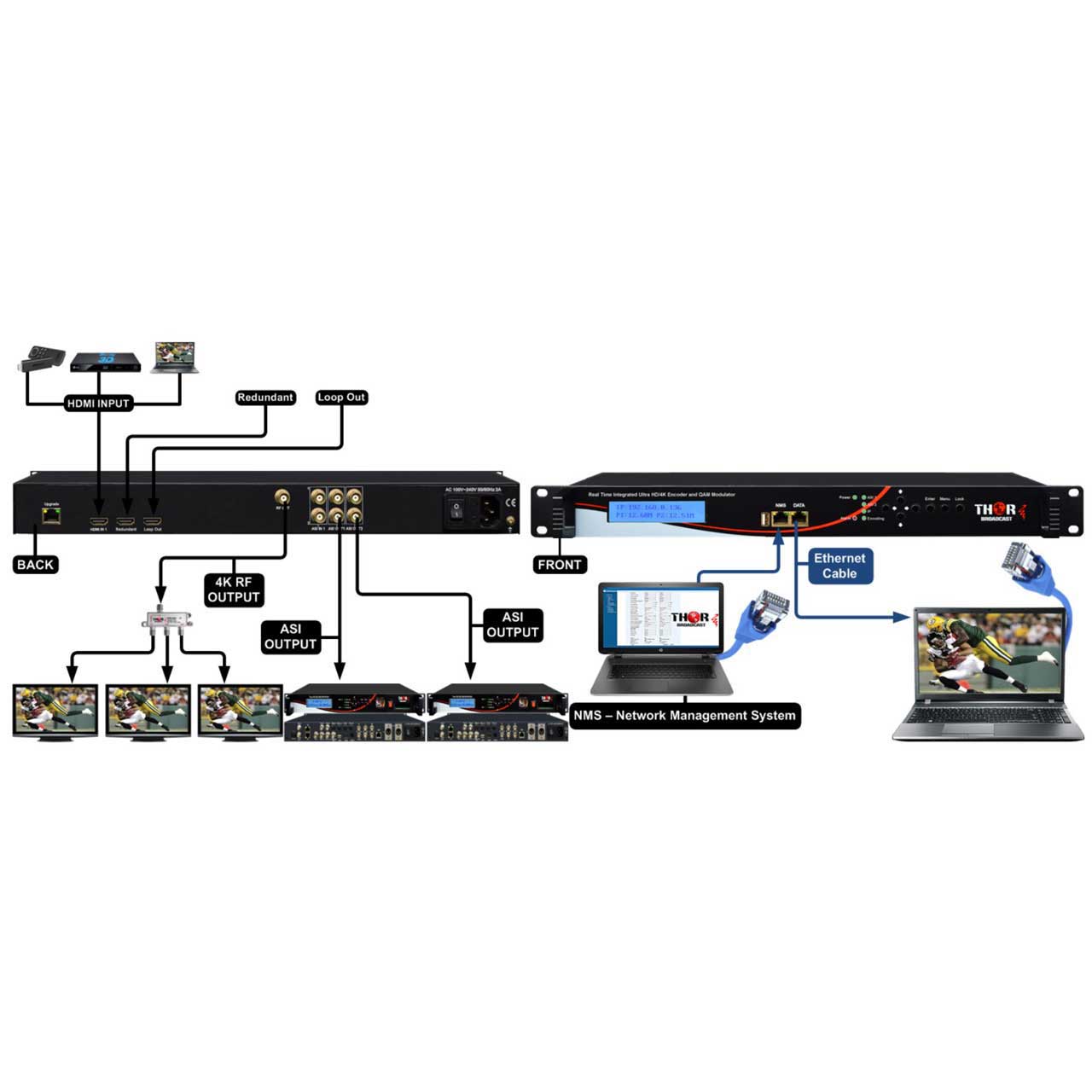

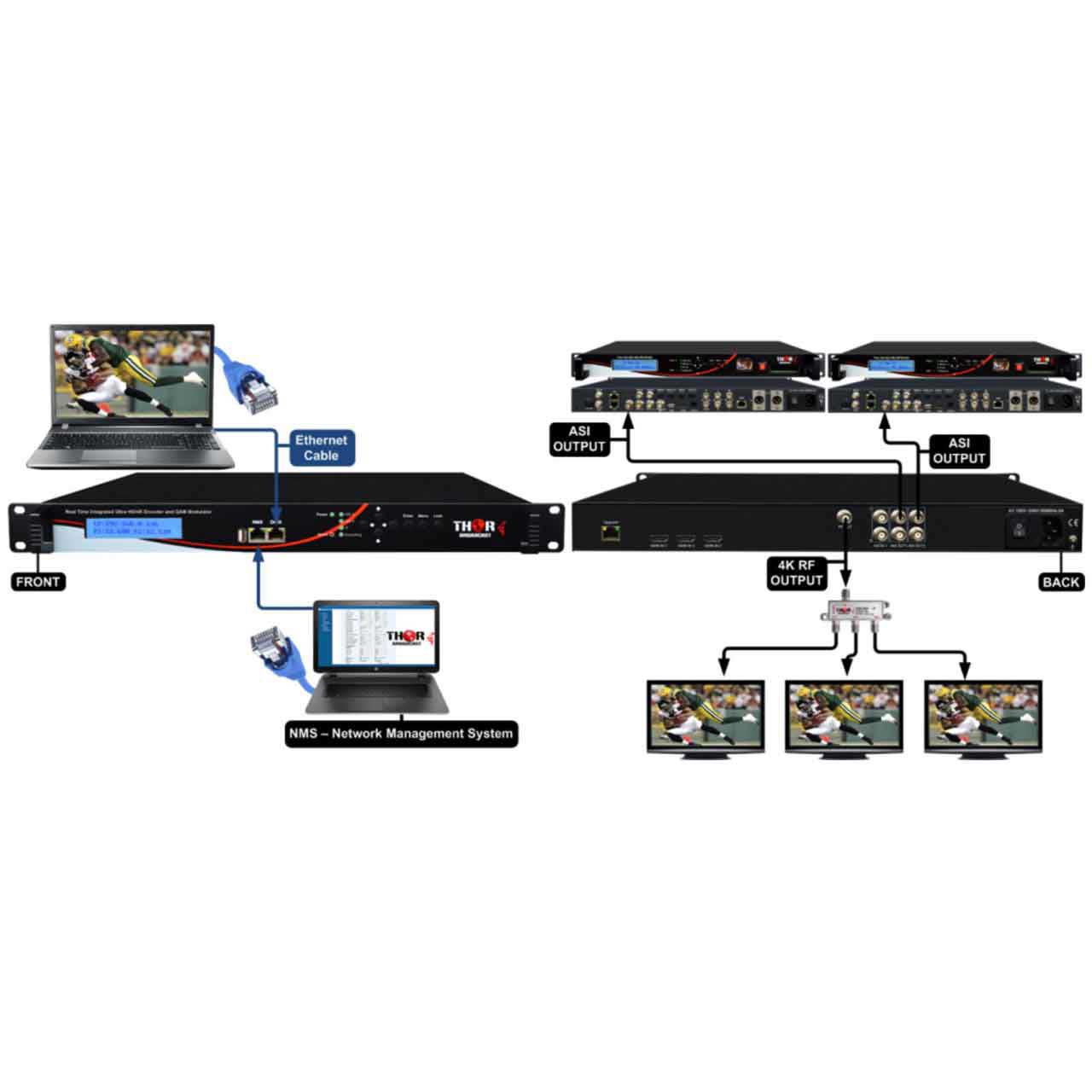

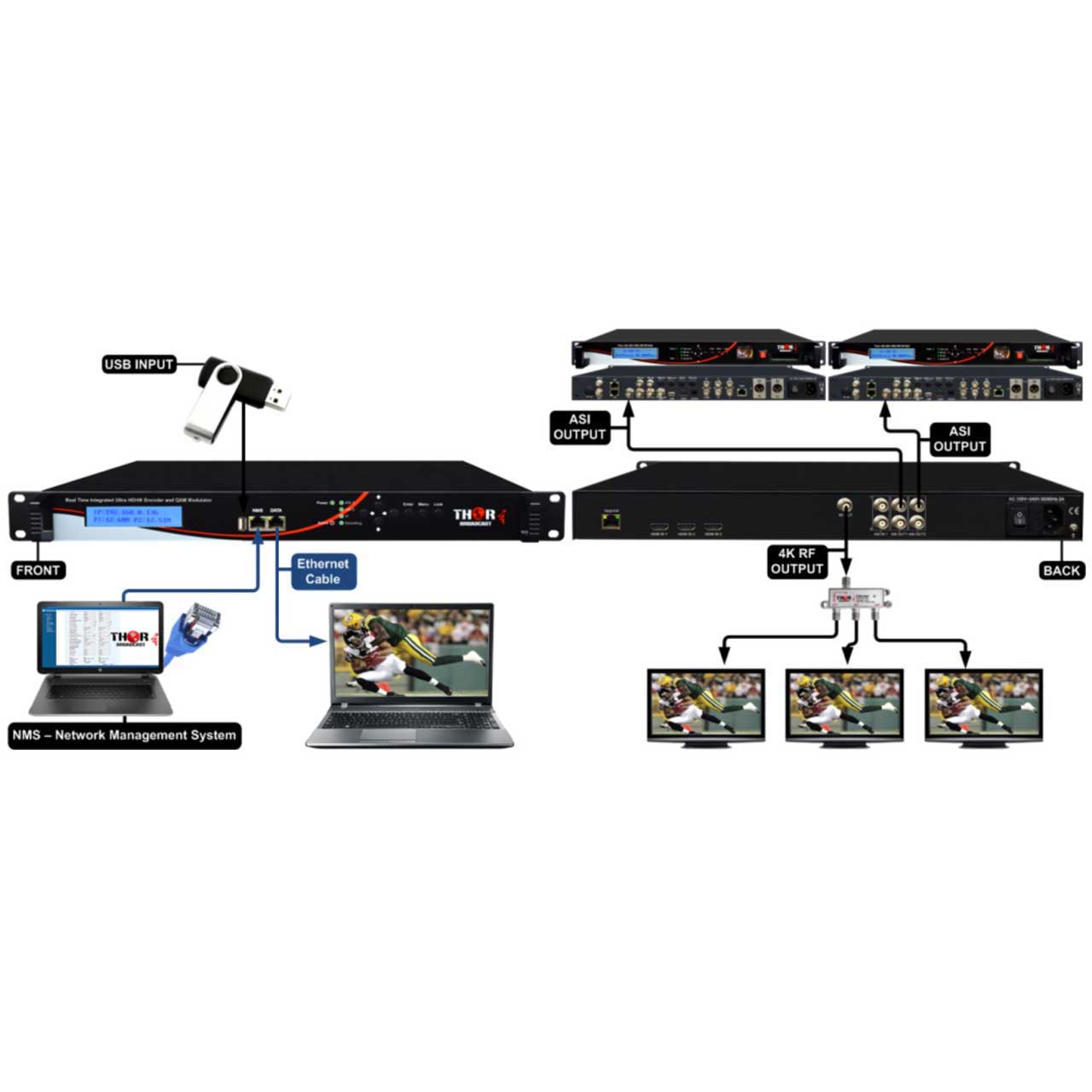

This 4k Broadcast Encoder covers all of the following applications:
4K/UHD over IP
4K/UHD over CATV RF COAX - QAM or ATSC or European DVB-T
4K/UHD over ASI
4K IP stream to QAM or ATSC or DVB-T (RF Channels will pass 4K resolution)
4K ASI stream to QAM (RF Channels will pass 4K resolution)
