Thor H-THUNDER-4 Four HDMI Digital RF Encoder Modulator - Full HD up to 1080P - 1RU

ITEM #: THR-H-THUNDER-4 MFG #: H-THUNDER-4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,698.80

Our Price:

$2,249.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


H-THUNDER-4 - Overview

HDCP compliant!

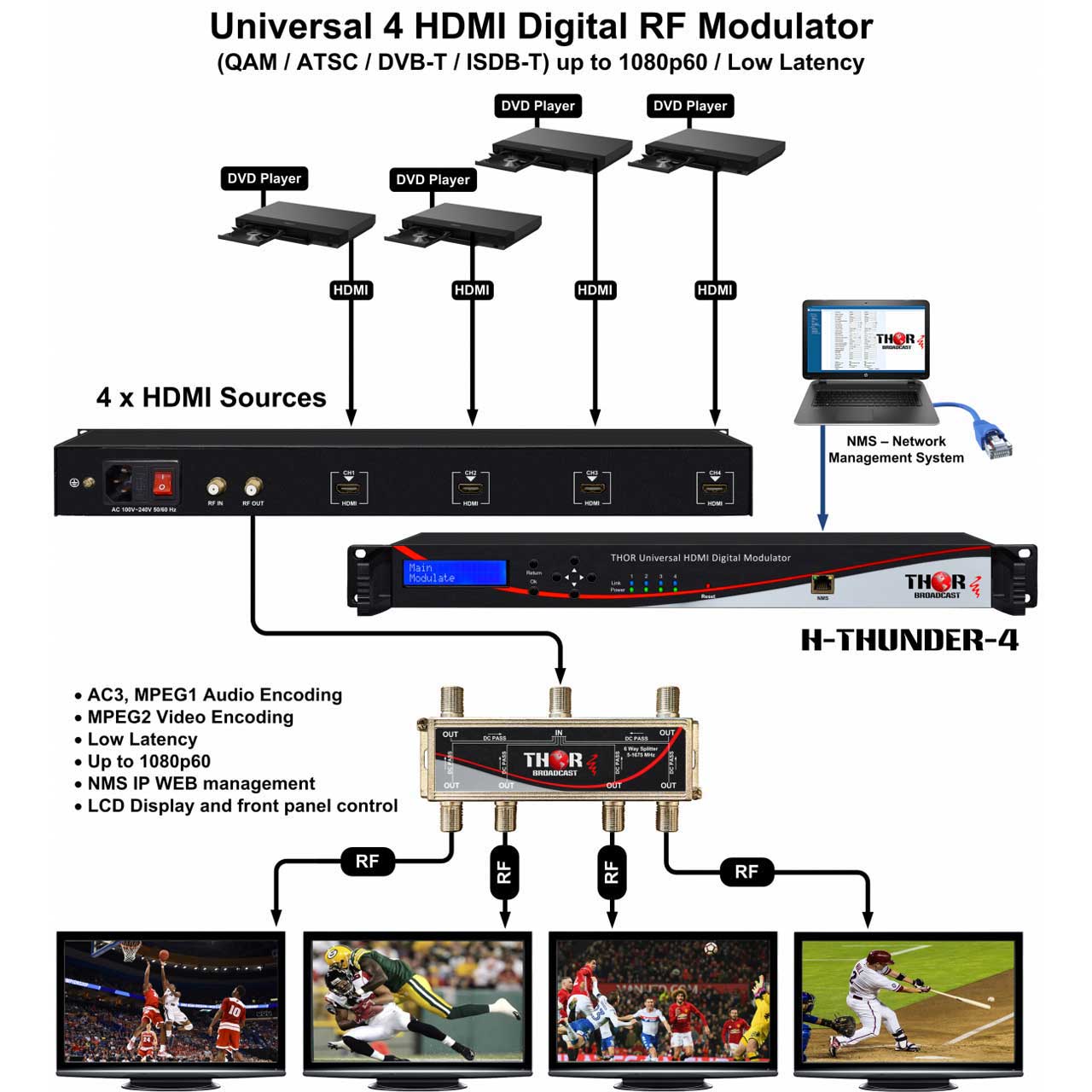

The THOR H-THUNDER-4 is a HDMI Digital RF Encoder Modulator for Full HD up to 1080P that supports 4 HDMI inputs. The signal source can be from any STB, satellite receiver, closed-circuit television camera or antenna source and the output signal is designed to work with any TV or STB. It comes standard with multiple RF modulation standards built in to assure this device can work anywhere in the world in a plug and play format.

This unit is similar to Thor's popular H-1, 2 and 4 HDMI-QAM-IPLL product line, but it has some differences. It's less expensive and each program is modulated on its own frequency and has a CATV RF output only, no IPTV output.

  • Features:

    • 4 HDMI channels Inputs (model dependent)
    • HDCP compliant works with any HDMI source like DVD Player or Cable, Satellite STB up to 1080p/60 resolution
    • MPEG2 Video Encoding
    • 1080p/60, 1080i, 720p, 576i, 480i Video Resolution
    • Low Latency (50~100ms)
    • MPEG layer 2, AAC, and DD AC3 Audio Encoding
    • LCN
    • DVB-C DIGITAL QAM, ATSC, DVB-T, ISDB-T RF in one device, Modulation dynamic switching
    • Control Via Web-Based NMS, and easy updates Via Web

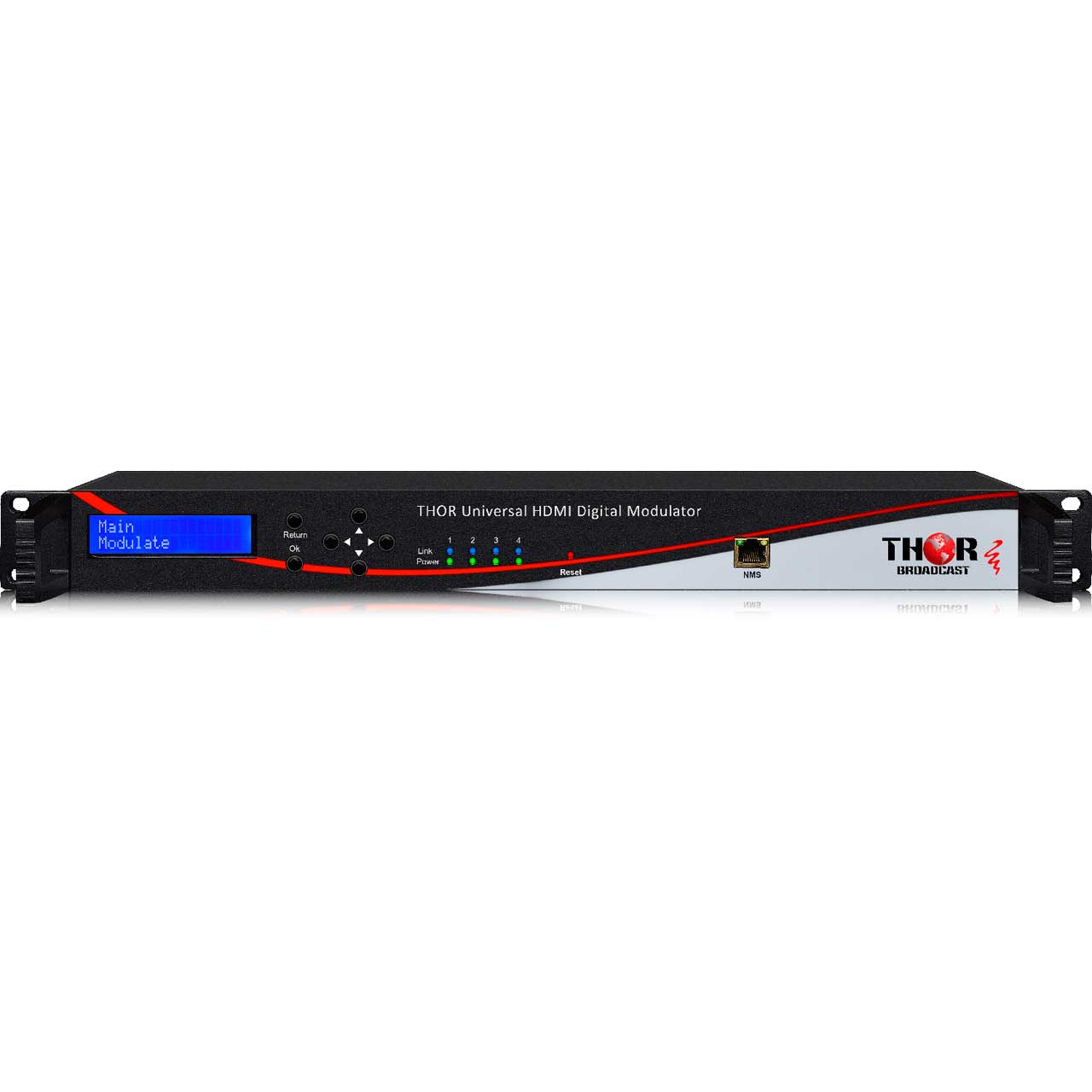

    • LCD Display and front panel control

  • Specifications:

    • Number of Inputs: 4
    • Number of CATV Frequencies (carriers): 4 - Each video has its own channel
    • Modulation: QAM, ATSC, DVB-T, ISDB-T in the same unit -pre-loaded & switchable
    • Can modulate multiple programs on the same frequency - carrier: No
    • Encoding method: MPEG2 only
    • Dolby Audio Encoding: Yes
    • NMS: Yes
    • Front Panel Control: Yes
    • IPTV Output: No


H-THUNDER-4 - Required Accessories
