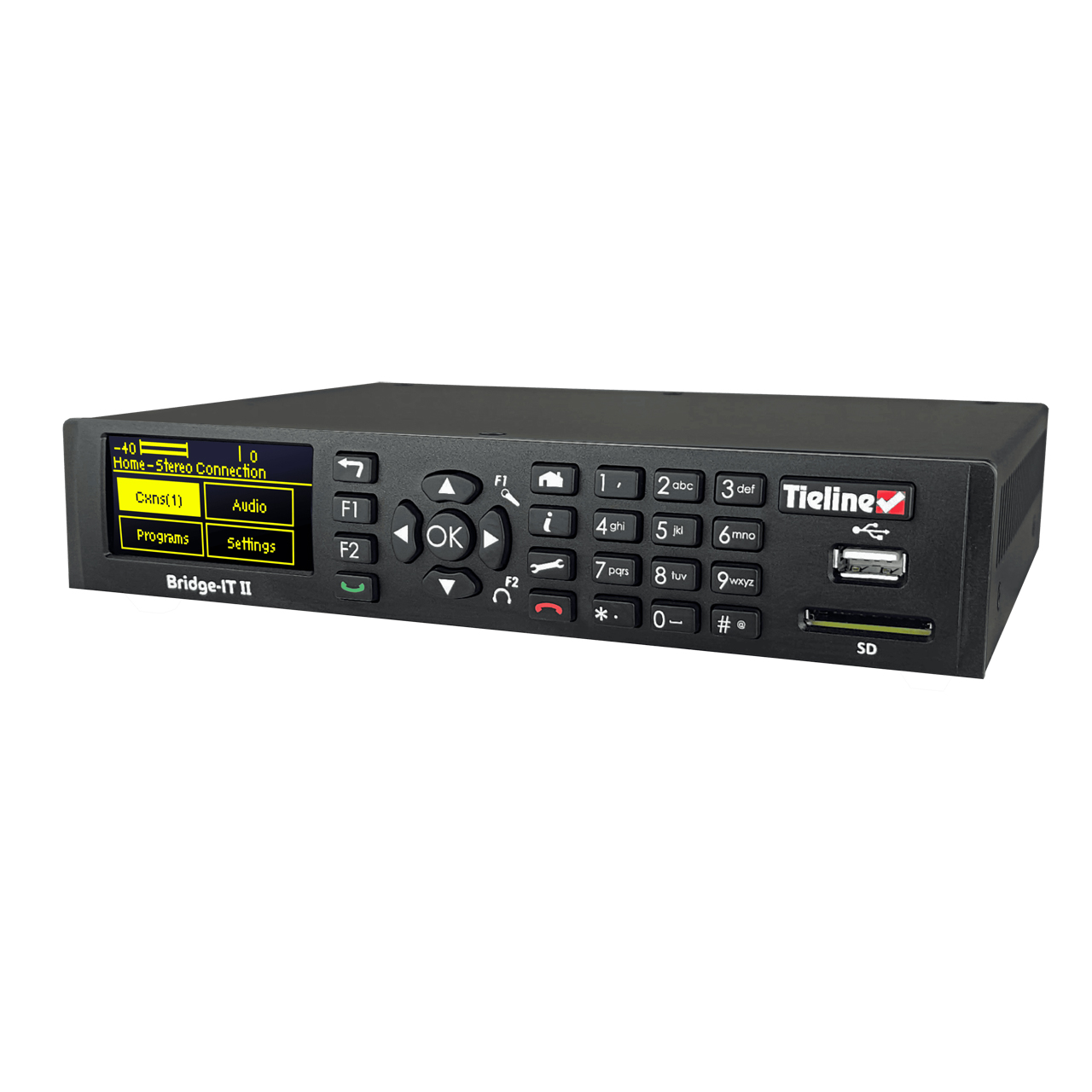

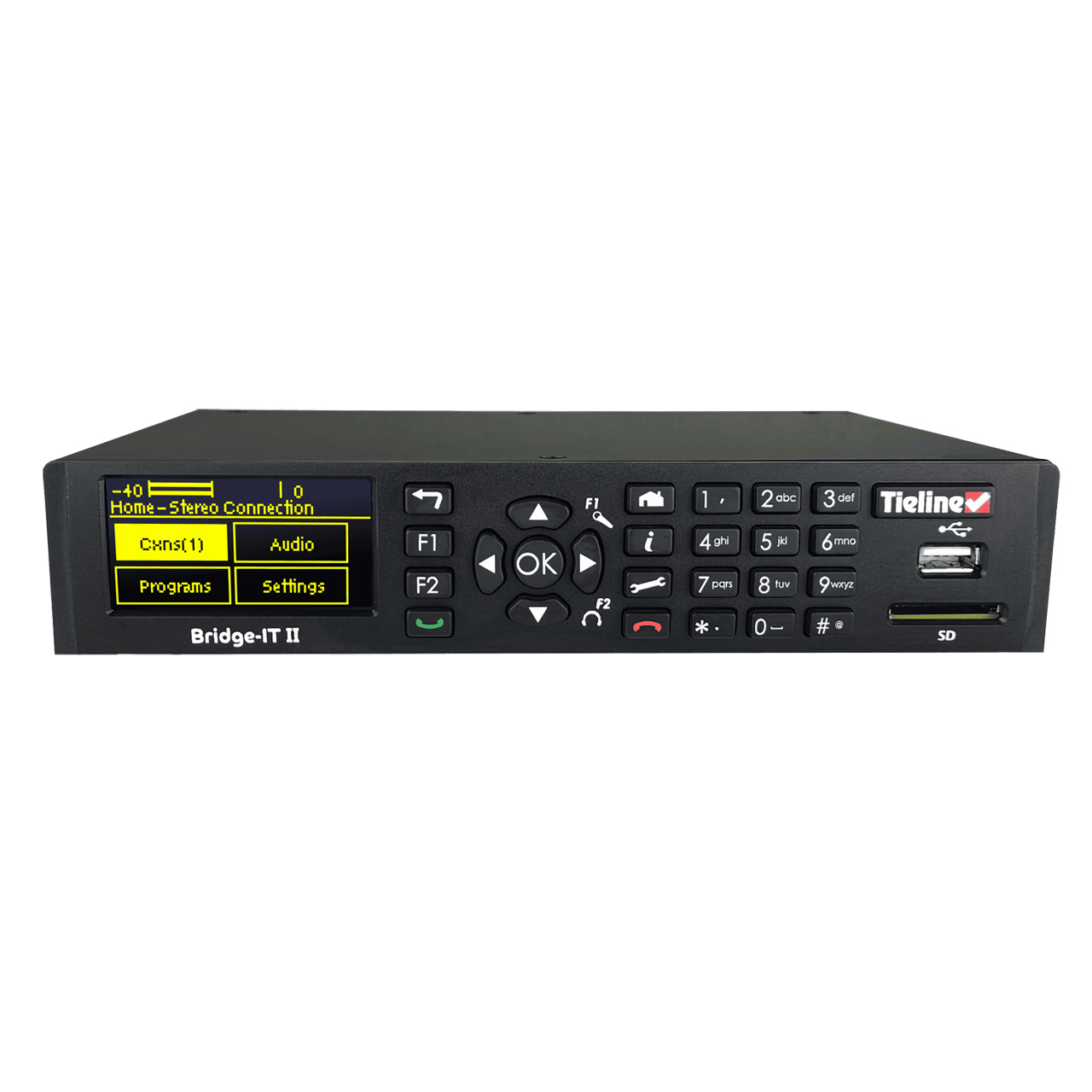

Tieline TLB6100 Bridge-It II Single Stereo or Dual Mono IP Streaming Audio Codec with two LAN Ports

ITEM #: TIE-TLB6100 MFG #: BRIDGE-IT II

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,995.00

Our Price:

$1,896.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BRIDGE-IT II - Overview

    Beyond Expectations. Not Beyond Budget.
    Experience unparalleled audio quality and versatility with Bridge-IT II and Bridge-IT XTRA II audio codecs as they deliver flexible, low cost broadcasting solutions over IP networks. These codecs are designed to meet the demands of modern broadcasting and deliver affordable, reliable, and high quality IP broadcasting with:

    - Exceptional audio quality with rock solid IP streaming reliability.
    - Seamless integration throughout the latest IP network infrastructure.
    - Multiple layers of redundancy.
    - Simple configuration and control.

    Unlike some low cost alternatives, Tieline's Bridge-IT II and XTRA II codecs have a front panel screen for simple, user-friendly operation. Smartstream PLUS redundant streaming and Fuse-IP data aggregation are included as standard to deliver rocksolid IP connections. A wide range of encoding options is available, including the AAC suite of algorithms, Opus, G.722, MPEG Layer 2, Enhanced aptX, Tieline Music and MusicPLUS.

    - Full Duplex Stereo or Dual Mono
    - Home Studios
    - Simple Remote Broadcasts
    - Studio-to-Transmitter Links (STL)
    - Studio-to-Studio Links (SSL)
    - Multi-unicast to 6 endpoints (Bridge-IT II) or 10 endpoints (Bridge-IT XTRA II), or Multicast to unlimited endpoints
    - Cable Head End IP Audio Distribution
    - Compact codec installations: 2 Bridge-IT II codecs fit side-by-side in 1 x 19" rack unit

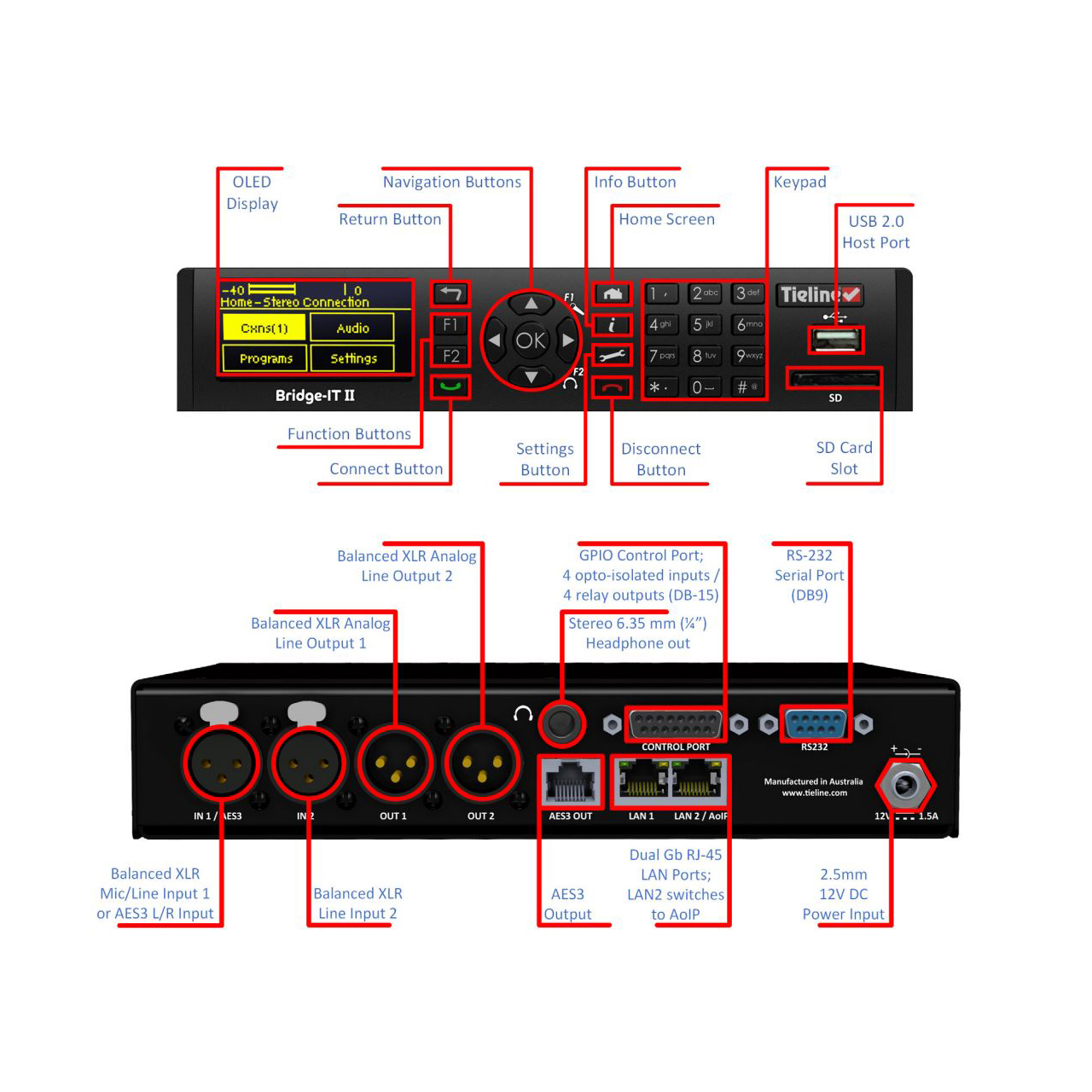

    User-Friendly Front Panel & Professional Connector
    Other inexpensive codecs require a PC to configure them. Bridge-IT II and Bridge-IT XTRA II have professional connectors and include:

    - Front panel keypad for menu navigation
    - Clear and bright OLED Display
    - Front panel PPM metering
    - XLR analog inputs and outputs
    - XLR AES/EBU input; RJ-45 AES/EBU output

    SmartStream PLUS Redundant Streaming
    Connect multiple IP links and use SmartStream PLUS to stream simultaneous redundant data streams and deliver seamless redundancy over IP.

    Bond Multiple Interfaces with Fuse-IP
    Imagine the peace of mind knowing you can bond data links from different Telcos and let Tieline's Fuse-IP technology automatically manage the data capability of each link!

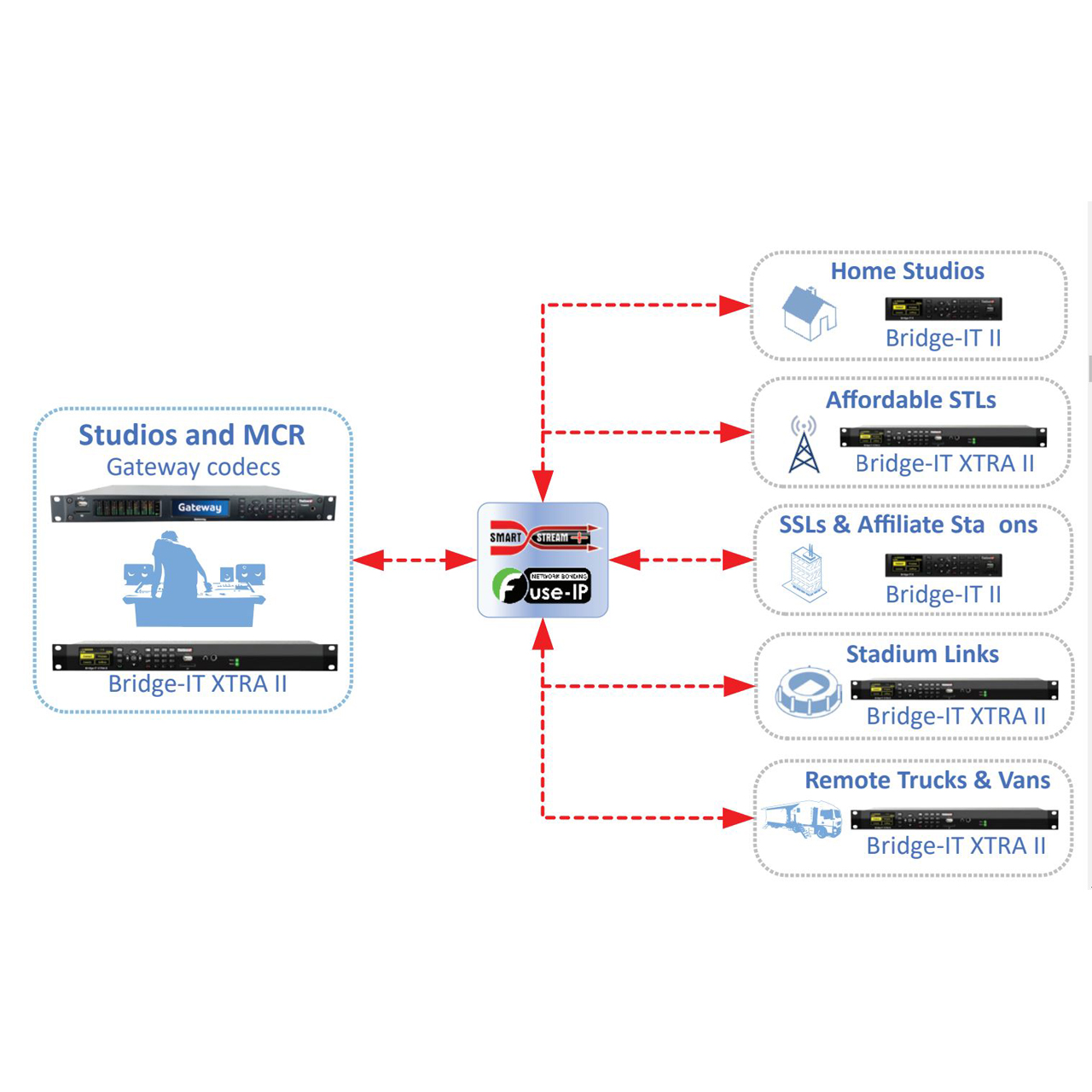

    Applications:
    Home studios
    Simple remote broadcasts
    Studio-to-Transmitter Links (STLs)
    Interstudio/Studio-to-Studio Links (SSLs)
    Multi-unicasting
    Multicasting

    • Features:

      • Automatic SDHC card audio file backup for lost connections
      • Connect using dual LAN ports or setup VLANs for redundancy when using SmartStream PLUS
      • Multicast to unlimited IP codecs over supported networks
      • Configure a full duplex stereo connection, or two full duplex mono connections
      • Multi-unicast with Bridge-IT II to up to 6 endpoints
      • 12VDC or Dual Internal Power Supplies - Bridge-IT II uses a 12 Volt DC power supply
      • Algorithms - Opus, Tieline Music, Tieline MusicPLUS, aptX Enhanced, G.711, G.722, MPEG Layer 2, AAC-LD, AAC-ELD, AAC-LC, AAC-HE, AAC-HEv2
      • Support for AES67, plus AES3 (AES/EBU) and analog I/O options

    • Specifications:

      • Common Input/Output
      • Analog Audio Inputs: 2x Female XLR
      • Analog Audio Outputs: 2x Male XLR left and right
      • AES3 Left/Right Input: 1x female XLR
      • AES3 Left/Right Output: 1x RJ-45
      • USB 2.0 Host Port: For single device like a cellular modem, or a tethered cellphone; 500mA power for charging
      • SD/SDHC/SDIO Card Slot: SD card slot for backup/restore config, firmware upgrades, and file failover playback
      • AES3 (AES/EBU): 24 bit inputs with support for sample rates from 32kHz-96 kHz; 24 bit outputs
      • Audio Input Impedance: High Impedance > 10k ohm
      • Output Impedance: <40 ohm Balanced
      • Clipping Level: +24dBu
      • A/D & D/A Converters: 24 bit
      • Frequency Response: 20Hz-20kHz
      • Total Harmonic Distortion: <0.005% at +19dBu, 1kHz
      • Signal To Noise Ratio: > 96dB at +4dBu, unweighted, 20Hz-20kHz
      • Crosstalk: < -80dB between adjacent channels

        Bridge-IT II Input/Output
      • Headphones: 1x 1/4" Jack on rear panel
      • Gigabit LAN Port: Gbit Ethernet port for IP streaming over WANs
      • Gigabit LAN/AoIP Port: Second Gbit Ethernet port for IP streaming over WANs, or configure as AoIP port for AoIP streaming
      • AES3 Left/Right Output: 1x RJ-45
      • 12VDC, 1.5A Power Input: 2.5mm Jack with Thread Lock

        Encoding/IP Streaming
      • Encoding Formats: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722, MPEG Layer 2, MPEG Layer-3 LC-AAC, HE-AAC, HE-AACv.2, AAC-LD, AAC-ELD, 16/24 bit aptX Enhanced algorithm
      • Uncompressed IP: Linear PCM16/24 bit 32kHz, 44.1kHz, 48kHz sampling
      • IP Sample Frequencies: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
      • Asymetric Encoding: Supports asymetric multi-format encoding
      • Protocols: RTP, DHCP, SNMP, DNS, HTTP, IGMP, IPv4/IPv6, RTCP, STUN, SSL Security Certificate
      • SmartStream PLUS: Primary plus 2 redundant streams supported
      • Multi-Unicasting: Bridge-IT II up to 6 endpoints
      • Multicasting: Support for Multicasting over compatible IP networks
      • Fuse-IP: Bond up to 3 IP interfaces to aggregate data

        Data/Control
      • Config/Connectivity: HTML5 Toolbox Web-GUI, Cloud Codec Controller
      • GPIO Control Ports: 4 relay inputs and 4 opto-isolated outputs via female DB-15 connector
      • Serial: RS232 up to 115kbps with or without CTS/RTS flow control via female DB9 connector

        AoIP Standards
      • EBU N/ACIP Tech 3326: Audio Contribution Over IP Compliant
      • I3P EBU Tech 3347: Intercom Over IP Compliant
      • N/ACIP 3368: SIP Profiles Compliant
      • AES67 Compliant: 44.1.kHz, 48kHz, 96kHz Sample rates; 16 & 24 Bit, SDP
      • SMPTE 2110-30 Compliant: Sender and Receiver Compliant
      • RAVENNA Compliant: Natively supports RAVENNA Stream Discovery and Advertisement
      • Livewire Compliant: Natively supports Livewire+ for AoIP streaming

        Advanced Networking
      • VLAN Tagging: IEEE 802.1Q,802.1p
      • Quality of Service (QoS): Support for DiffServ
      • Synchronization: IEEE 1588-2008
      • Multicasting: IGMP v2 and v3
      • SAP: SAP v2

        General
      • Display: 128x64 OLED display
      • Keypad: 20 button keypad
      • Navigation: 5 button keypad
      • Dimensions: 8-5/8" x 6-31/32" x 1-11/16"
      • Weight: 3lbs 2oz
      • Power Consumption: 12VDC
      • Operating Temp: 40°F - 104°F
      • Humidity Operating: 30% ≤RH ≤90% non-condensing

    • Item Includes:

      • 1x Tieline TLB6100 Bridge-It II Single Stereo or Dual Mono IP Streaming Audio Codec
