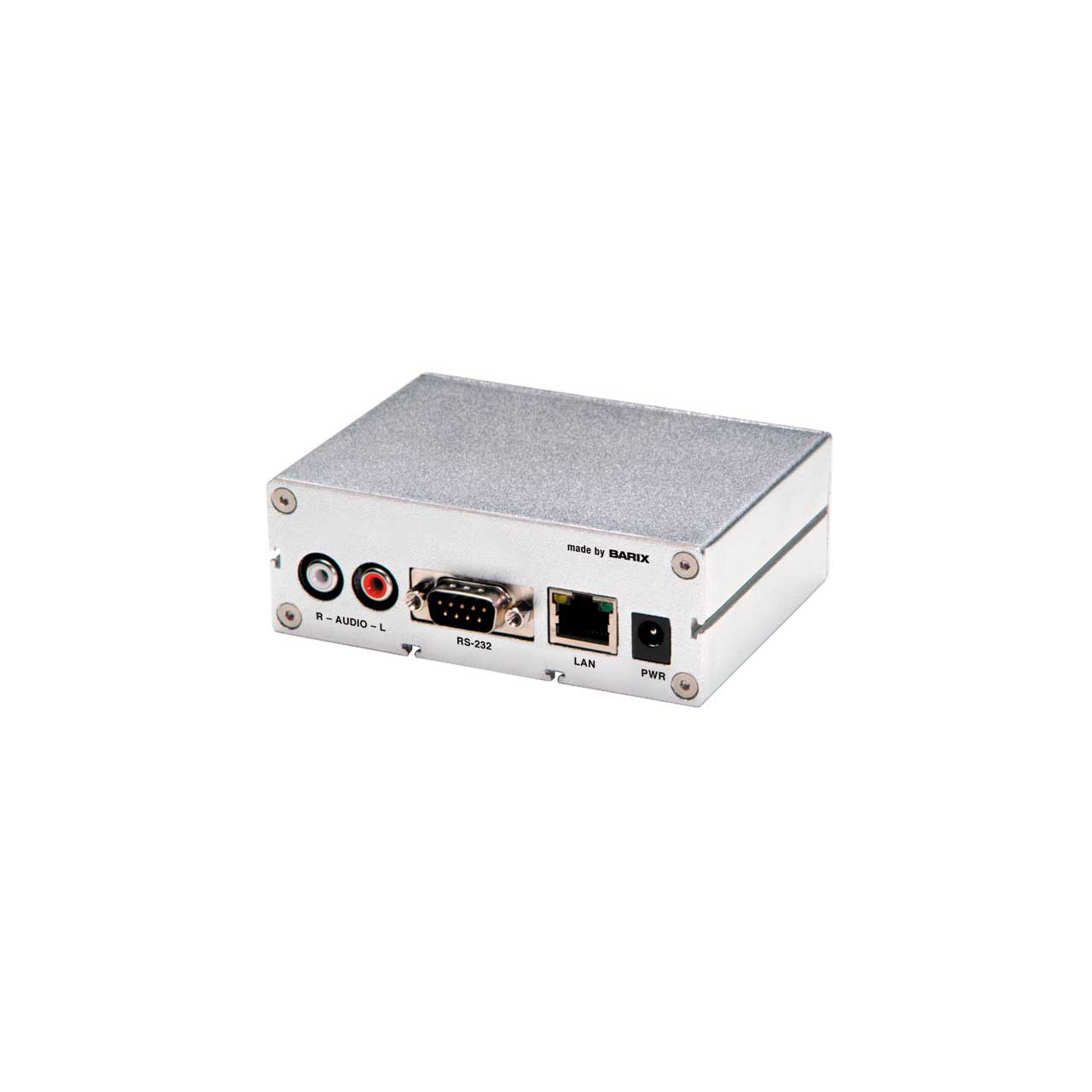

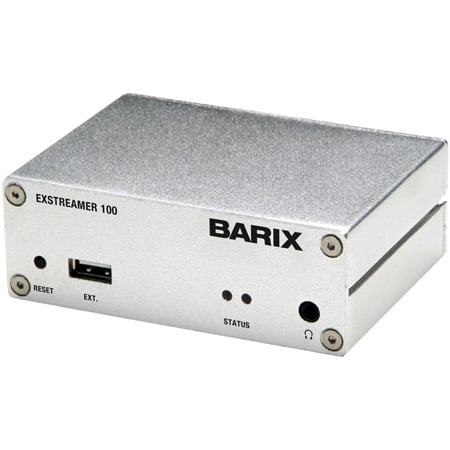

Barix Exstreamer 100 IP Audio Stream Decoder

2005.9052 - Overview

• Features:

  • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Line Level Output (Stereo)
  • RS-232 Serial Port
  • Supply Voltage (9.30VDC)
  • USB Flash Interface


• Specifications:

  • Electrical
  • 9 to 30 VDC, 5 Watt max.
  • 2.1mm barrel connector
    Ethernet
  • 10/100Mbps Auto-negotiation
  • RJ-45 connector with integrated Link/Activity LED
  • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
  • capable, webserver for control, status and configuration
    Analog Output
  • Line level output, 40..60 Ohm impedance on RCA
  • and 1/8" headphone jack
  • Output level software controllable
  • Full scale output voltage: 5.6 dBu, 4 Vpp
  • Frequency response (-3dB) 19Hz ..22kHz *
  • Signal to Noise Ratio 87 dB *, THD <0.05% *
    Audio formats
  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
  • AAC-HE (AAC, A AC plus, A AC plus V2)
  • Ogg Vorbis, WMA (up to version 9)
  • PCM (L16, uLaw, aLaw), 8..48 kHz sample freq.
  • G.711, G.722
    IR Interface
  • Built-in IR receiver and IR remote control included with
  • Exstreamer 110 & 120 models only
  • Optional external IR receiver via serial port (IR Kit)
    Discrete I/O
  • 1 Relay 24V 0.5A (normally open, 110 & 120 models only)
    RS-232 Interface
  • Male 9-pin Sub-D connector
  • 300..230`400 Baud asynchron., tunneling or local control
  • 12 VDC supply output for external device (100 mA max.)
    Display
  • Backlit LCD, 2x16 chars (110 & 120 models only)

  • Miscellaneous
  • Green and red LED for status display
  • Button for reset and factory defaults

  • Mechanical
  • Aluminum case, 250g
  • Rack and wall mountable using accessories
    Dimensions (W x H x D)
  • W x H x D : 108x38x78.7mm (4.25x1.5x3.1 inch)

  • Declarations of conformity
  • RoHS, FCC, CE, C-Tick
    MTBF (Calculated acc. MIL217F at 25°C)
  • Exstreamer 100 : min. 480 000h
  • Exstreamer 105 : min. 460 000h
  • Exstreamer 110 : min. 450 000h
  • Exstreamer 120 : min. 430 000h


• Item Includes:

  • Exstreamer 100, AC Power supply, quick install guide


• GTIN:

  0013167000059
