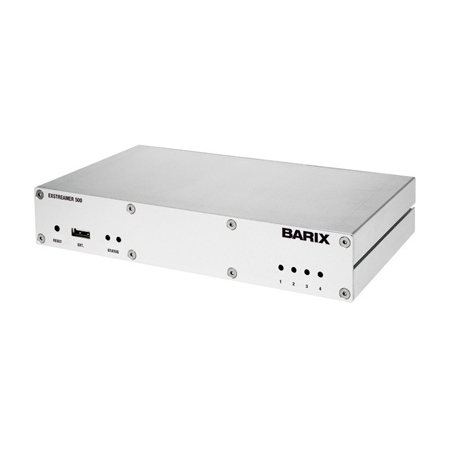

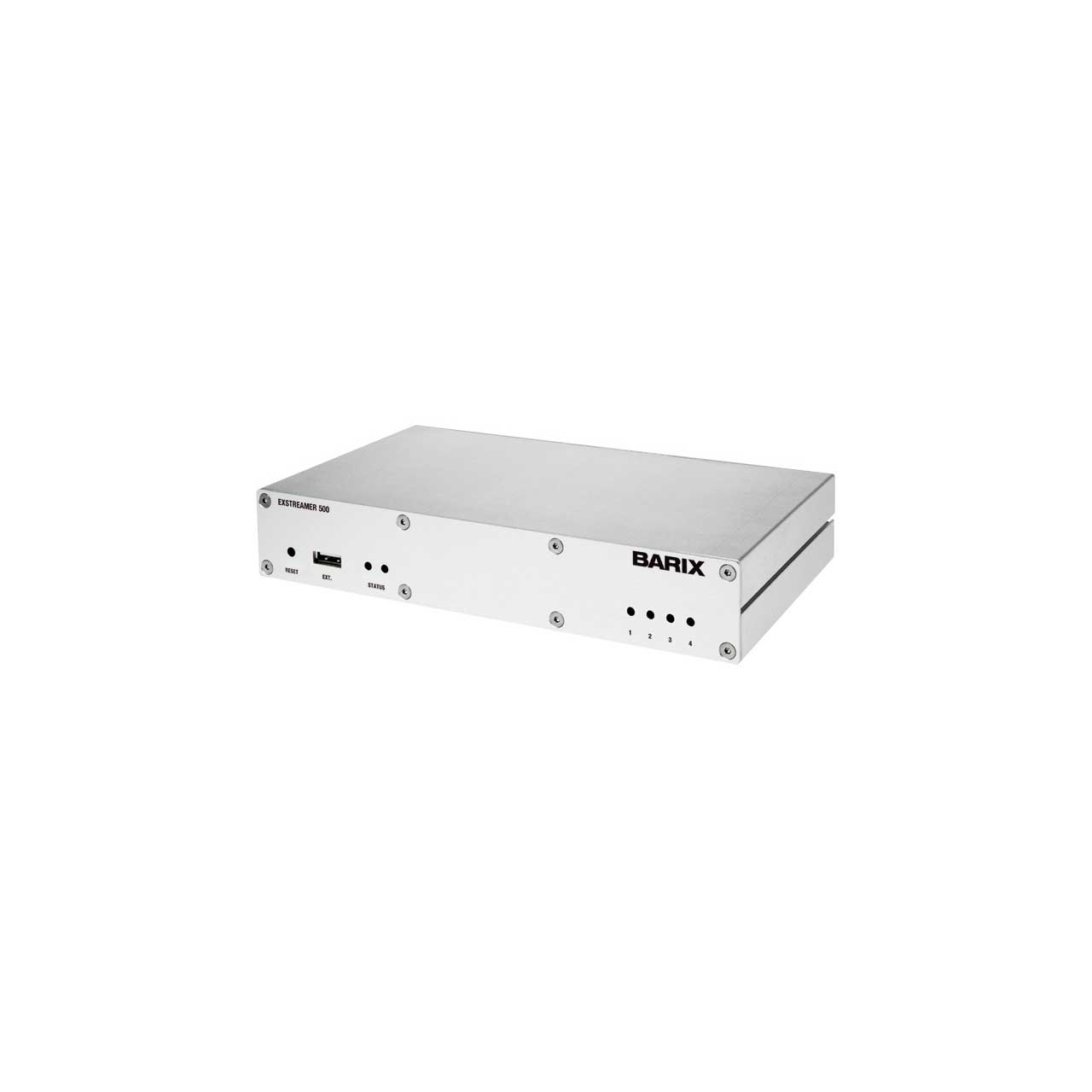

Barix Exstreamer 500 Professional Mulitprotocol IP Audio Encoder/Decoder

2010.9096 - Overview

• Features:

  • MP3, G.711, PCM Encoding
  • MP3, G.711, PCM, AACplus*, Ogg Vorbis* Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Balanced Line Level Input (Stereo)
  • Balanced Line Level Output (Stereo)
  • Relay Output (4)
  • Contact Closure Input (4)
  • RS-232 / RS-485 Serial Port
  • USB Flash Memory Interface
  • Supply Voltage 24...48 VDC
    * Hardware revision 2 only


• Specifications:

  • Electrical
  • 24 to 48 VDC ± 20%
  • Power requirement: 8 Watt max.
  • 2 pin screw terminal connector
    Ethernet
  • 10/100Mbps auto,
  • RJ-45 connetor with integrated Link & Activity LEDs
  • Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable
    RS-485
  • 4 pin screw terminal connector
  • 300..230`400 Baud asynchronous, 7/8 bit
    Analog Inputs & Outputs (stereo)
  • DB9 female socket
    Analog Inputs
  • Differential input, 18kOhm input impedance
  • Clipping level 15dBu, 12.3 Vpp
  • Frequency response (-3dB) 20..20`000 Hz**
  • Signal to Noise Ratio 87 dB, THD 0.01%
  • Stereo crosstalk -88 dB
  • Input level software controllable (-3.. +19.5dB)
    Analog Outputs
  • Differential output, 40..60 Ohm output impedance
  • Output level software controllable
  • Full scale output voltage: 15dBu, 12.3 Vpp
  • Frequency response (-3dB) 20..20`000 Hz**
  • Signal to Noise Ratio 92dB, THD 0.03%


• Item Includes:

  • Exstreamer 500, Power supply, Y-Cable Analog (DSub9 to 4 x XLR), screw terminal black connectors, quick install guide


• GTIN:

  7640113550967
