Barix Exstreamer M400 Multi-Format IP Audio Decoder with Syn-Apps and Stereo Line RCA Out for Audio over IP

ITEM #: BARIX-EXSTRM400 MFG #: 2020.9292

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$255.00

Availability: In Stock
iAvailability Description Popup


2020.9292 - Overview

Multiformat IP Audio Decoder with stereo line level audio output on RCA connectors
The Barix Exstreamer M400 feeds your PA and turns it into a extensive Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be trigger ed via a simple UDP command. Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings eliminating the need for an audio matrix device. The M400 is a solid metal device, compact and easily installed. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.

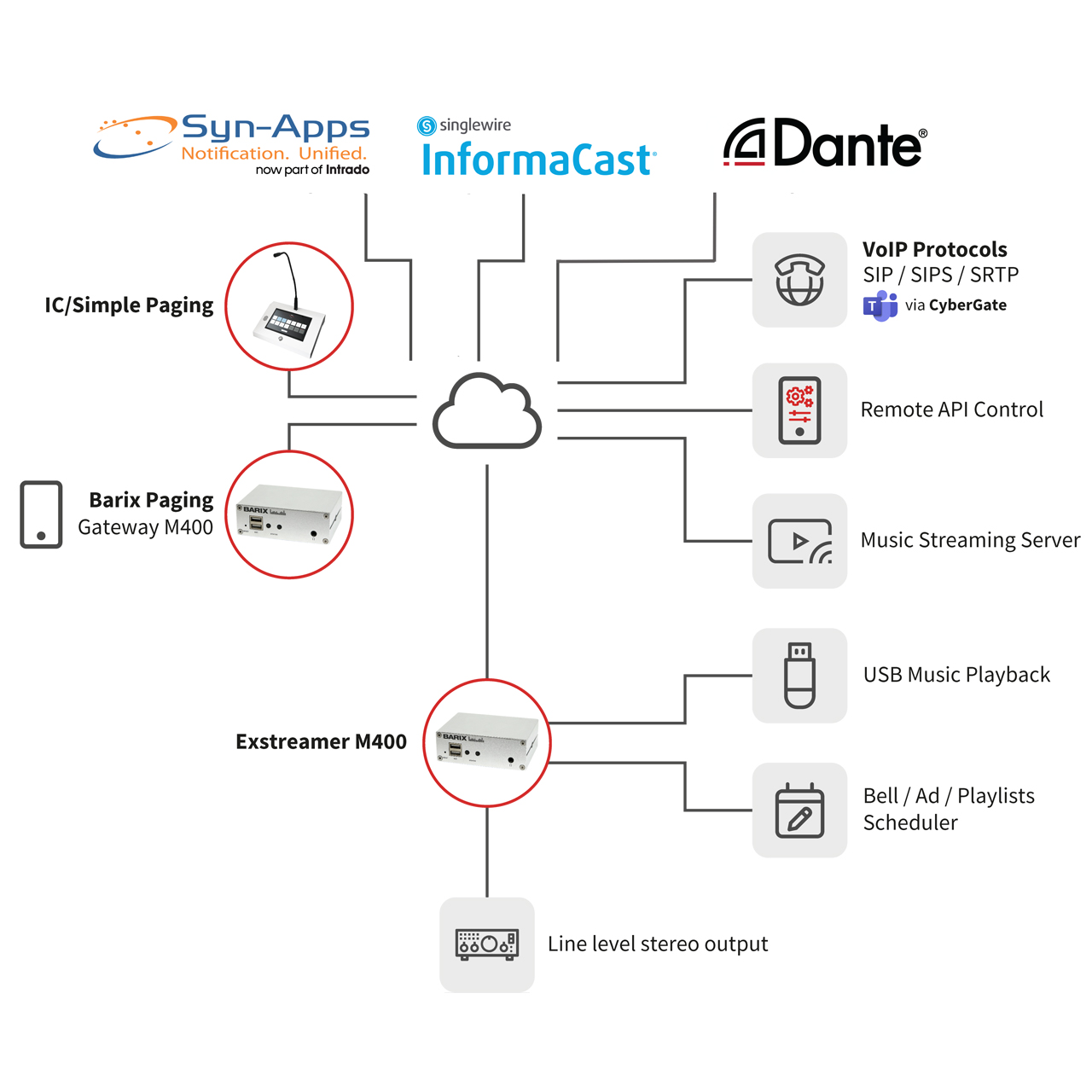

Syn-Apps. The Future of Unified Notifications
Whether located on- or off-premise, Revolution allows senders to initiate mass notifications to alert people using live, pre-recorded, or scheduled broadcasts delivered to IP phones, mobile devices, overhead IP & analog speakers, loud horns, digital signs, SMS, and more. Geo-location alerts via Revolution's Mobile Client app ensure mobile recipients receive relevant information based on their current location.

Rapidly communicate time-sensitive information during an emergency. Common use cases include: one-touch building lockdowns, triggering silent alarms with integrated panic buttons, automatically receiving alerts from external early-warning systems from sources like NWS, IPAWS EAS, AMBER Alerts, and more! Use geo-alerts to simultaneously send separate alerts to provide timely, relevant information based on recipients' current location.

Communicate routine, non-emergency information with your employees, visitors, patients, students, or bystanders located near your facility. Share information in real-time, on-the-fly, or schedule notifications ahead of time using Revolution's Scheduler tool.

Rethink your notification capabilities by integrating physical systems into your notification strategy. Trigger alerts from endpoints like panic buttons, access control systems, sensors, alarms, and more. Deliver alerts to IP endpoints, analog devices, and third-party services.

Application:
Syn-Apps Revolution addressable audio decoder with line level stereo audio output
Technical applications which require exact frequency reproduction
SIP and IP Paging / Notification
Background music
Emergency triggered message playout
Singlewire InformaCast integration
MS Teams endpoint via CyberGate service

  • Features:

    • Syn-Apps certified
    • L-R Line Out on RCA Connectors (unbalanced)
    • Ruggedized aluminium case
    • Ultra reliable with dual boot recovery
    • OPUS, AAC+, MP3, PCM and G.711 codec
    • 4 encoding engines (up to 10 targets per engine)
    • RTP and BRTP streaming protocol
    • Line level input (mono, stereo)
    • SIP VoIP endpoint support
    • Supply voltage 5VDC

  • Specifications:

    • Operation System
    • Embedded Linux based on Yocto

      Network Interfaces
    • 1 x Ethernet (RJ45) Interface
    • IPv4, IPv6 capable
    • 10/100 fdx/hdx, auto negotiation

      Protocols
    • TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
    • Singlewire InformaCast compatibility - requires extra license
    • Syn-Apps Revolution compatibility

      CPU / Memory
    • Barix IPAM400 Processor Module
    • Quad-Core ARM Cortex™ -A7
    • 256MB DDR3 SDRAM
    • 16MB SPI Flash
    • 8GB SD-Card Flash

      Audio Formats
    • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @44.1 kHz
    • G.711
    • Opus, WAV, OGG Vorbis

      RS-232 Interface
    • Serial Port

      Audio Interface

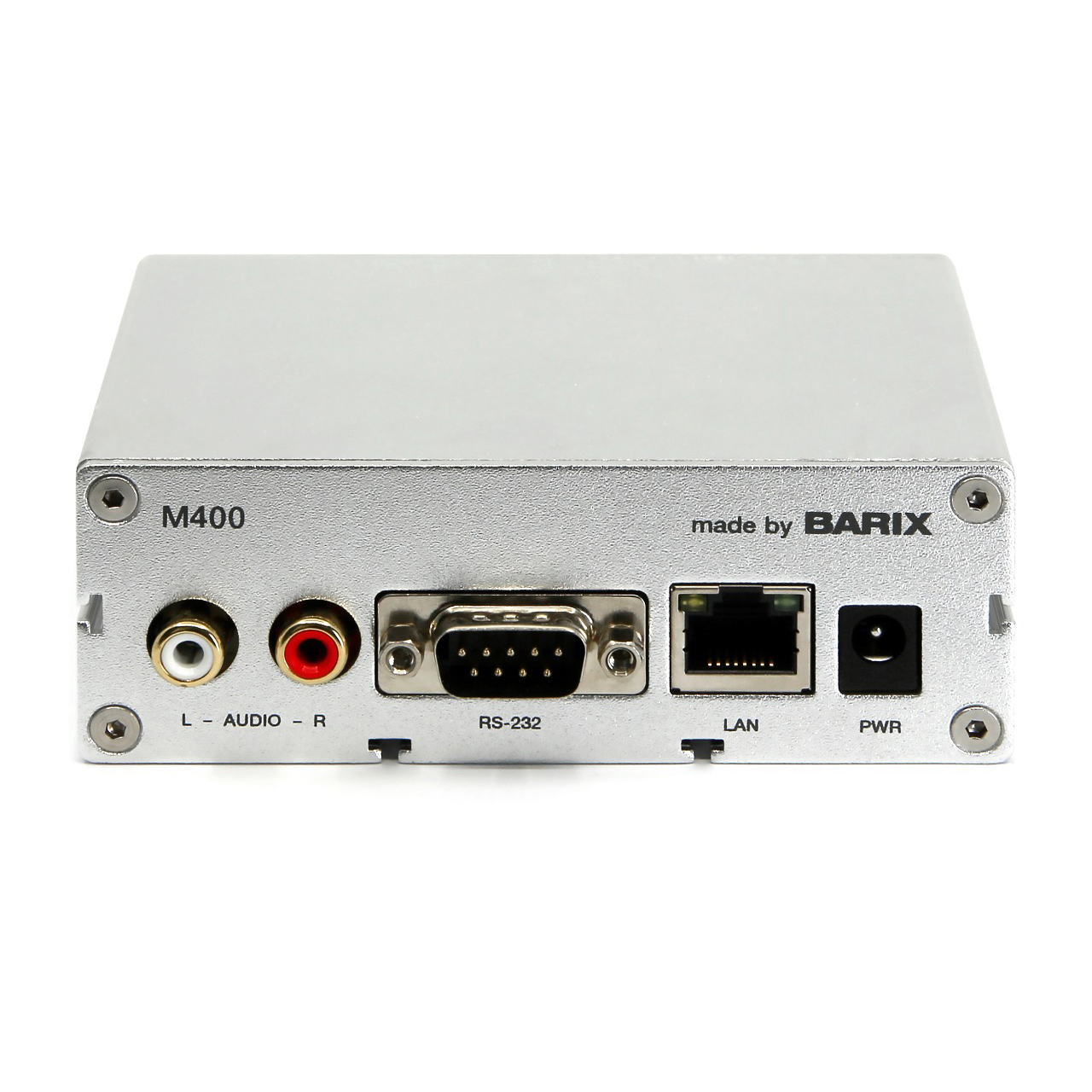

    • unbalanced L-R Line level output on RCA connectors

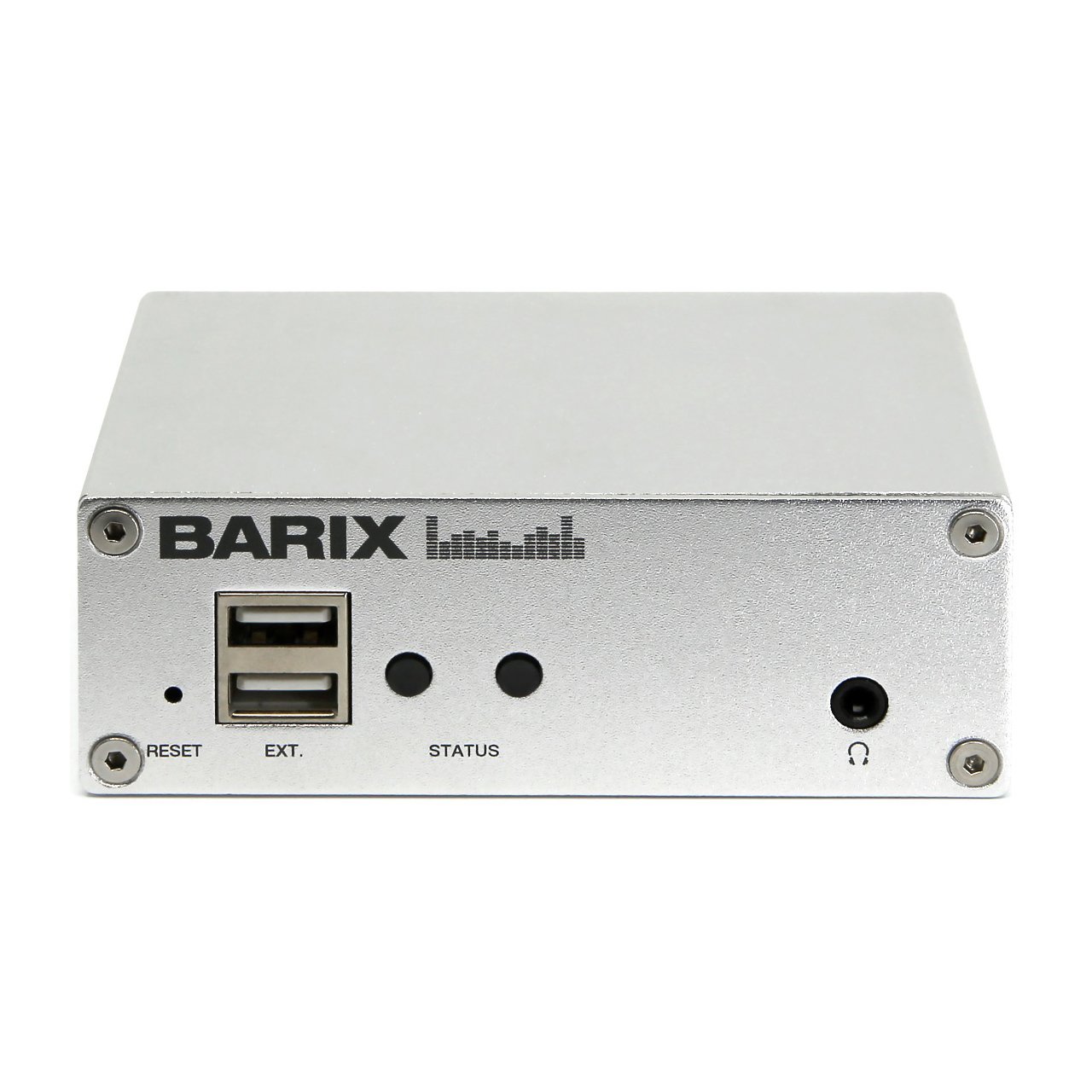

    • Headphone connector on the front panel

      User Interface
    • Web interface for configuration
    • 2 x Multicolor LED Status indicators
    • Reset & Factory Defaults Button

      Power Requirements
    • 5VDC, 10W maximum on 5.5x2.1mm barrel connector (inner positive)

      MTBF
    • > 200'000h

      Physical
    • Measurement: 4.25 x 1.5 x 3.1 inch
    • Weight: 0.55lb

      Environmental
    • Operating Environment: 0 to +50°C / 32 to 122°F, 0 - 70% relative humidity, non-condensing
    • Storage Conditions: -20 to +70°C / -4 to 158°F, 0 - 70% relative humidity, non-condensing

      Certifications
    • CE, RoHS, FCC

  • Item Includes:

    • 1x Barix Exstreamer M400 Syn-Apps certified
    • 1x Audio cable with RCA connectors
    • 1x Power Supply Unit
    • 1x Quick Install Guide

  • Warranty:

    • Two years

  • GTIN:

    0753464120943
