Barix Barionet 100 IP Automation Controller & Programmable I/O Device Server

ITEM #: BARIX-BAR-100 MFG #: 2003.9014

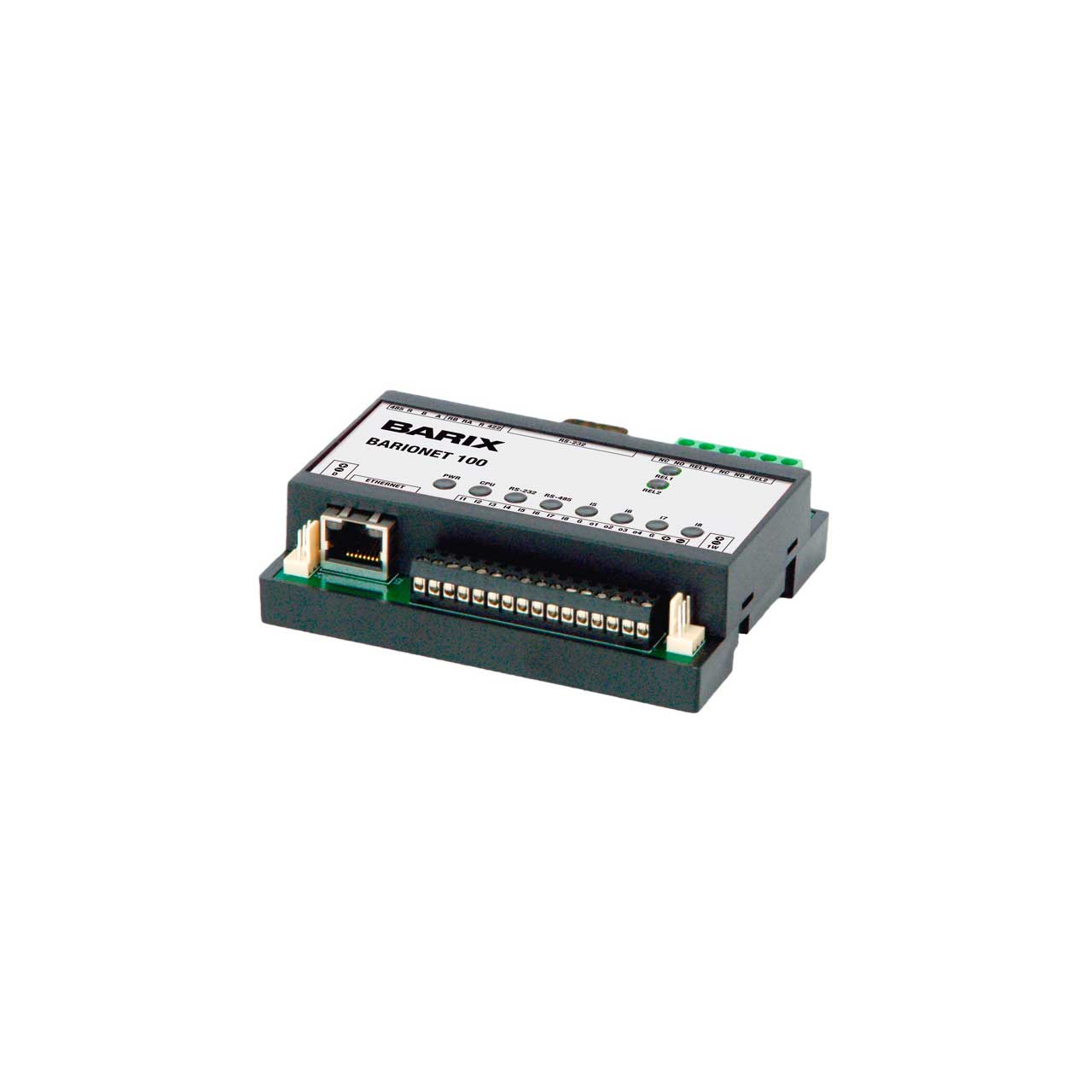

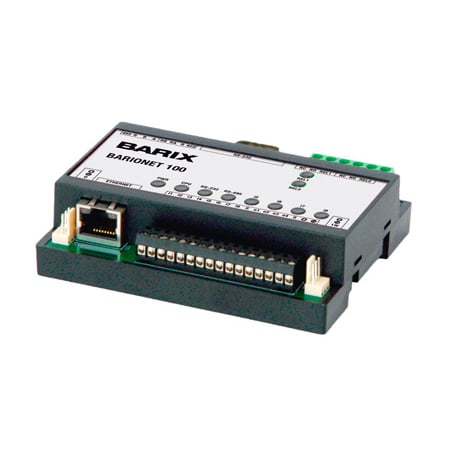

Primary Image
Barix
Free Shipping with $49 Minimum Order

Our Price:

$335.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

2003.9014 - Overview

The Barionet from Barix is family of programmable network-enabled automation controllers for interfacing a wide variety of devices and systems to IP-based networks in home and industrial automation applications. With the Barix Barionet 100, most devices can be network enabled for monitoring and control via a web browser as well as other standards-based automation systems, such as SNMP and Modbus.

The Barix Barionet 100 provides a variety of standard hardware and software interfaces as well as general-purpose inputs and outputs for control and monitoring applications.

Two Barionet models are available, the Barix Barionet 100 (the original Barionet) and the new Barionet 50. The two models differ primarily in the number of inputs and outputs provided.

Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, analog and digital I/O, Relays and Dallas 1-wire support. UL listed.

Please Note: The Barionet is powered by your network or a standalone power supply, 9-30 VDC, like the BARIX-BAR50PS. (sold separately)

  • Features:

    • IP Automation Controller
    • 4 digital outputs
    • 4 analog or digital inputs
    • 4 digital inputs
    • 2 relay outputs
    • RS-422/485 serial interface
    • Wiegand reader Interface
    • 10/100 Mb auto-sensing Ethernet port
    • Integrated web server
    • RS-232 serial interface
    • Dallas Semiconductor 1-wire interface with built-in support for temperature sensors.
    • Support for Modbus/TCP, SNMP, CGI, HTTP and other standard protocols
    • Barix proprietary dynamic tags for creating custom web pages to display status information.
    • Programmability via BASIC-like Barix Control Language (BCL).
    • Support for control of external Modbus devices via BCL code
    • Relay Output (2x250VAC, 5A)
    • Digital Inputs (4)
    • Open Collector (digital) Outputs (4x24VDC)
    • Analog (0..5VDC) Input (4)
    • RS-232 Serial Port (1)
    • RS-422/485 Serial Port (1)
    • Supply Voltage (9-30VDC)
    • Wiegand Interface Input (2)


  • Specifications:

    • I/O Interfaces
    • 2 relay outputs (240 VAC 5 A)
    • 4 digital inputs (0..12 V ), configurable pullups
    • 4 universal inputs (analog 0..5/10 V or
    • digital 0..12 V ) with configurable pullups
    • 4 digital outputs (open collector, 24 V 0.1 A)
    • 2 Barix extension bus connectors with Dallas
    • 1-Wire capability
      Serial Interfaces
    • 1 RS-232 * (DSub-9 male, RX/TX only)
    • 1 RS-422/485 * (2 /4-wire)
    • * 600..19'200 Baud, 7/8 bit, Odd/Even/No par
      Network Interface
    • RJ45 10/100 Mbit Ethernet (Autodetect)
    • TCP/IP, UDP, ICMP, DHCP, AutoIP, IPzatorT,
    • XML, SOAP, Modbus/TCP, SNMP, CGI, HTTP web
    • server for control, status and configuration
      Misc
    • 8+2 LED status indicators
      Power input
    • 12..24 VDC (±20%)
      Case
    • high quality plastic, 160 g, , DIN-rail mount.
    • 4.13" x 3.34" x 1.1", 105 mm x 85 mm x 31 mm
      MTBF
    • Min. 850 000h acc. to MIL217F at 25°C
    • ambient temperature
    • User Interface
    • browser based (integrated webserver),
    • serial port or ethernet control API


  • Item Includes:

    • Barionet, quick install guide, 3 pin interface cable


  • GTIN:

    7640113550141
