TRENDnet TI-PG541 5-port Hardened Industrial Gigabit PoEplus DIN-Rail Switch (Version v1.0R)

TI-PG541 - Overview

• Features:

  • 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
  • 120 W full PoE+ power budget
  • 12 Gbps switching capacity
  • Hardened IP30 rated metal switch with integrated DIN-Rail mount
  • -40 to 70 °C (-40 to 158 °F) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)
  • Lifetime Warranty*


• Specifications:

  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3x

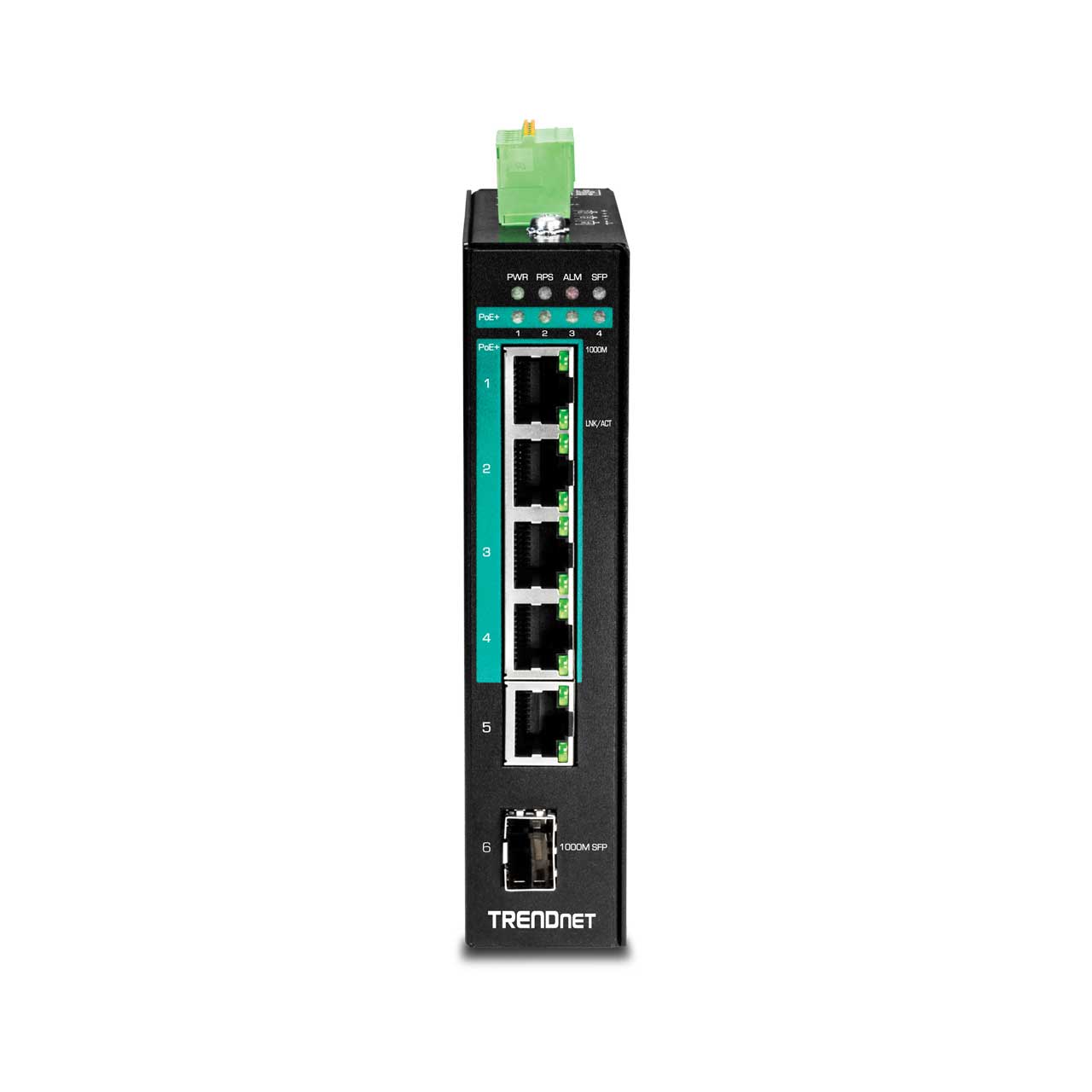

    Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x Gigabit SFP slot
  • 6-pin terminal block (removable)
  • DIP switch
  • DC power connector
  • LED indicators

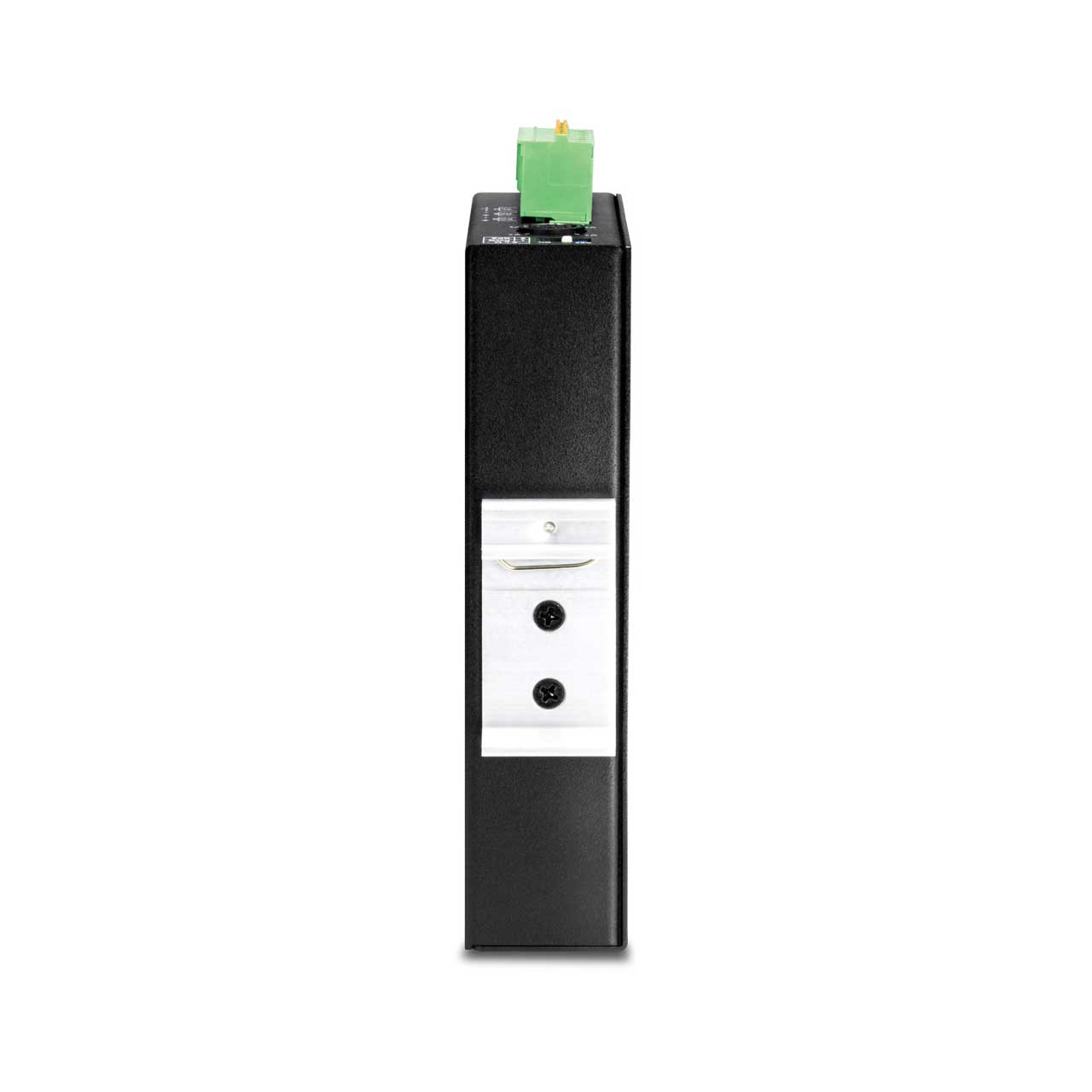

  • Integrated DIN-Rail mount

    Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
  • SX / LX: 2000 Mbps (full duplex)

    Performance
  • Data RAM Buffer: 512 KB
  • Switching Fabric: 12 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 10 KB
  • Forwarding rate: 8.9 Mpps (64-byte packet size)

    Special Features
  • Full PoE+ power to each PoE+ port
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Alarm output triggered by power failure
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection

    Optional Power Adapter (48VDC3000 sold separately)
  • Input: 100 - 240 V AC, 50/60 Hz, 2 A
  • Output: 48 V DC, 3.34 A 160 watts max.

    Optional Power Supply (TI-S24048 / TI-S12048 sold separately)
  • Input: 100 - 240 V AC, 50/60 Hz, 1.8 A 125 - 370 V DC
  • Output: 240 Watts, 48 V, 5 A
  • DIN-rail: TS-35/7.5 or 15
  • Operating Temperature: - 25 to 70 °C (- 13 to 158 °F)

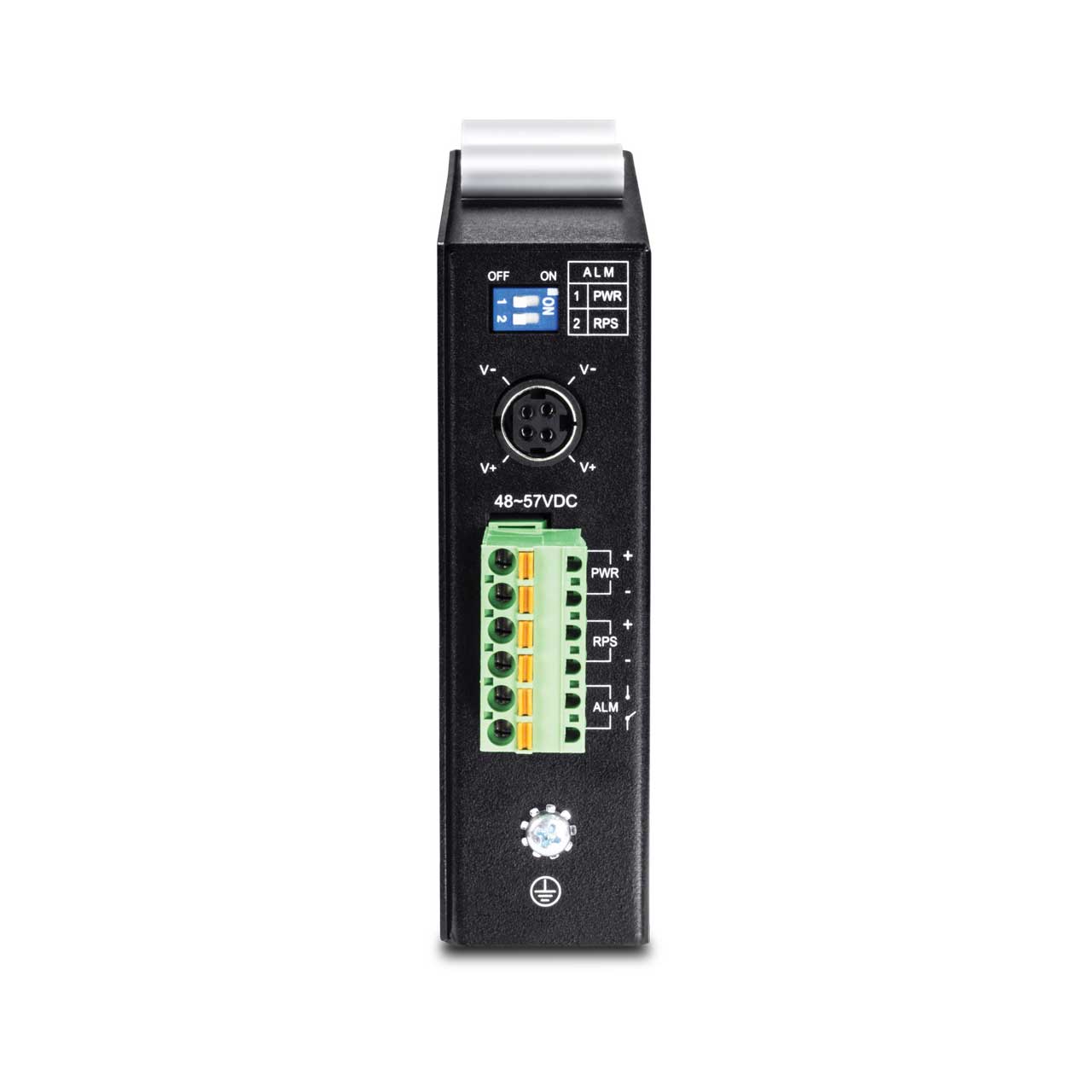

    Terminal Block
  • Input: PWR (Primary): 48 - 57 V DC
  • RPS (Redundant): 48 - 57 V DC

    Power Consumption
  • Min.: 10 Watts (standby)
  • Max.: 130 Watts
  • PoE budget: 120 Watts (Max.)

    PoE
  • Up to 15.4 watts / port for PoE
  • Up to 30 watts / port for PoE+
  • PoE: pin 1, 2 for power + and pin 3, 6 for power - (mode A)
  • IP30 metal case
  • Integrated DIN-rail mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV Surge protection

    Operating Temperature
  • - 40 - 70 °C (- 40 - 158 °F)

    Operating Humidity
  • Max. 95 % non-condensing

    Dimensions
  • 135 x 100 x 30 mm (5.3 x 3.9 x 1.2 in.)

    Weight
  • 500 g (1.2 lbs.)

    Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)


• Item Includes:

  • TI-PG541
  • Quick Installation Guide
  • DIN-Rail kit


• Warranty:

  • Lifetime Warranty*


• GTIN:

  0710931160246
