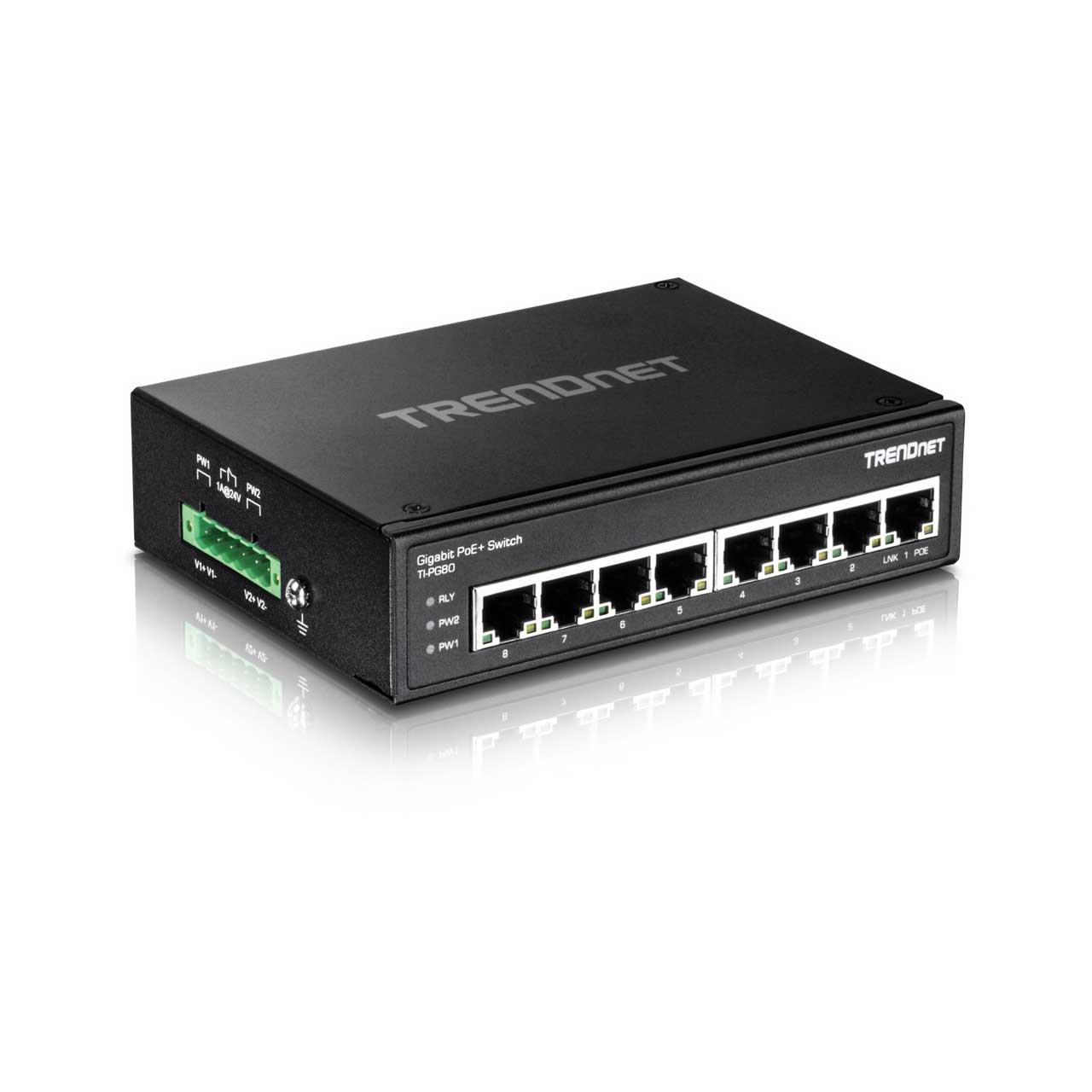

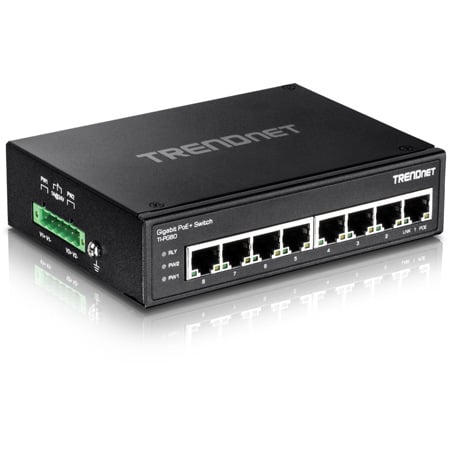

TRENDnet TI-PG80 8-port hardened Industrial Gigabit PoEplus Switch (Version v1.0R)

TI-PG80 - Overview

• Features:

  • 8 x Gigabit PoE+ Ethernet ports
  • Up to a 200 Watt full PoE+ power budget
  • 16 Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-rail and wall mounts
  • Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Powers supply sold separately (Model TI-S24048)
  • Lifetime Warranty*


• Specifications:

  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+

    Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point

    Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)

    Performance
  • Data RAM Buffer: 1024 KB
  • Switching Fabric: 16 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 11.9 Mpps (64-byte packet size)

    Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection

    Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Consumption: Max. 5.76 Watts (without PD)

    PoE
  • PoE budget: 200 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)

    Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. - In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm

    Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1 A, 24 V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected

    Power Consumption
  • Max. 5.76 Watts (without PoE)

    MTBF
  • 510,304 hours

    Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection

    Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)

    Operating Humidity
  • Max. 95 % non-condensing

    Dimensions
  • 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)

    Weight
  • 554 g (1.22 lb)

    Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)

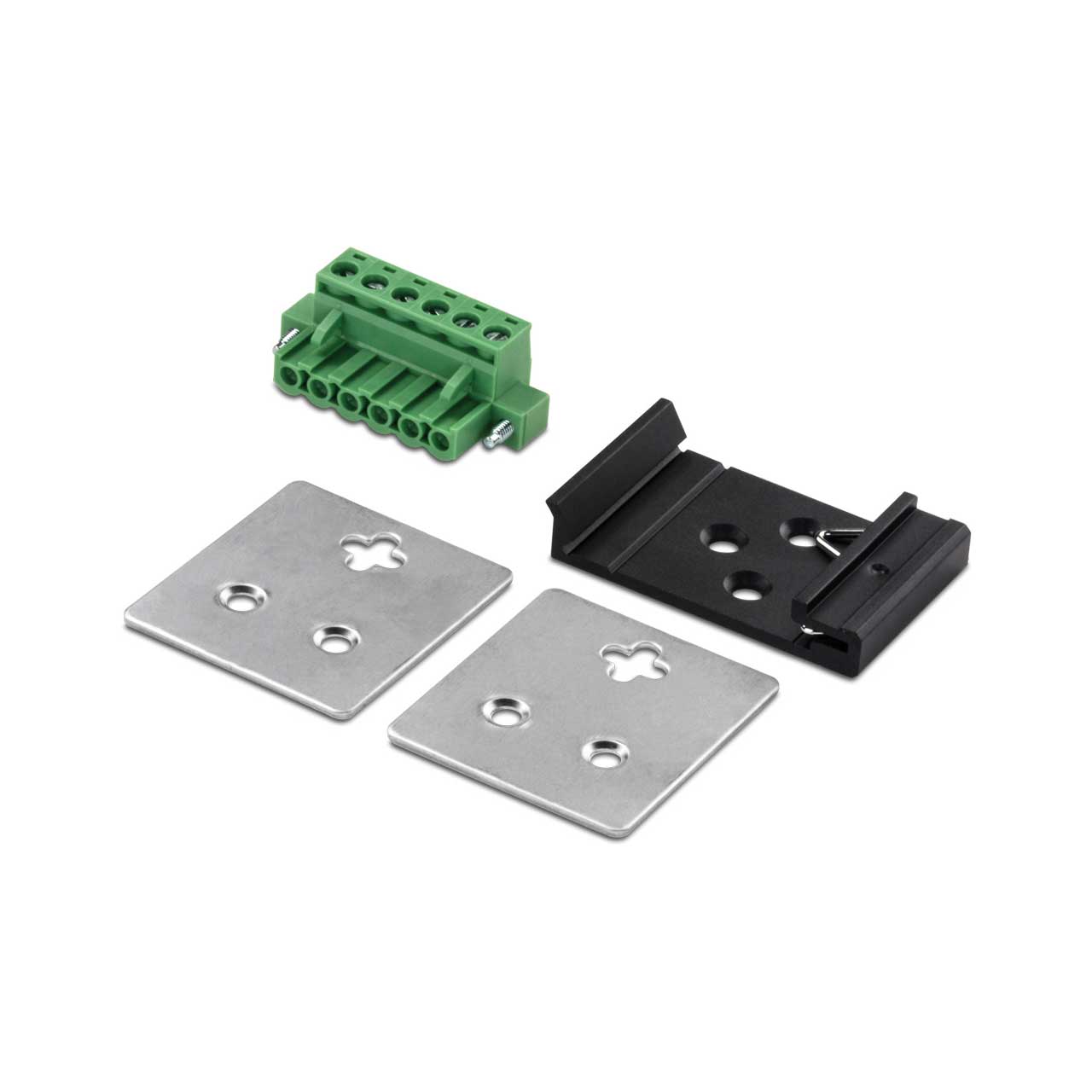

• Item Includes:

  • TI-PG80
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail / wall mount kit


• Warranty:

  • Lifetime Warranty*


• GTIN:

  0710931160352
