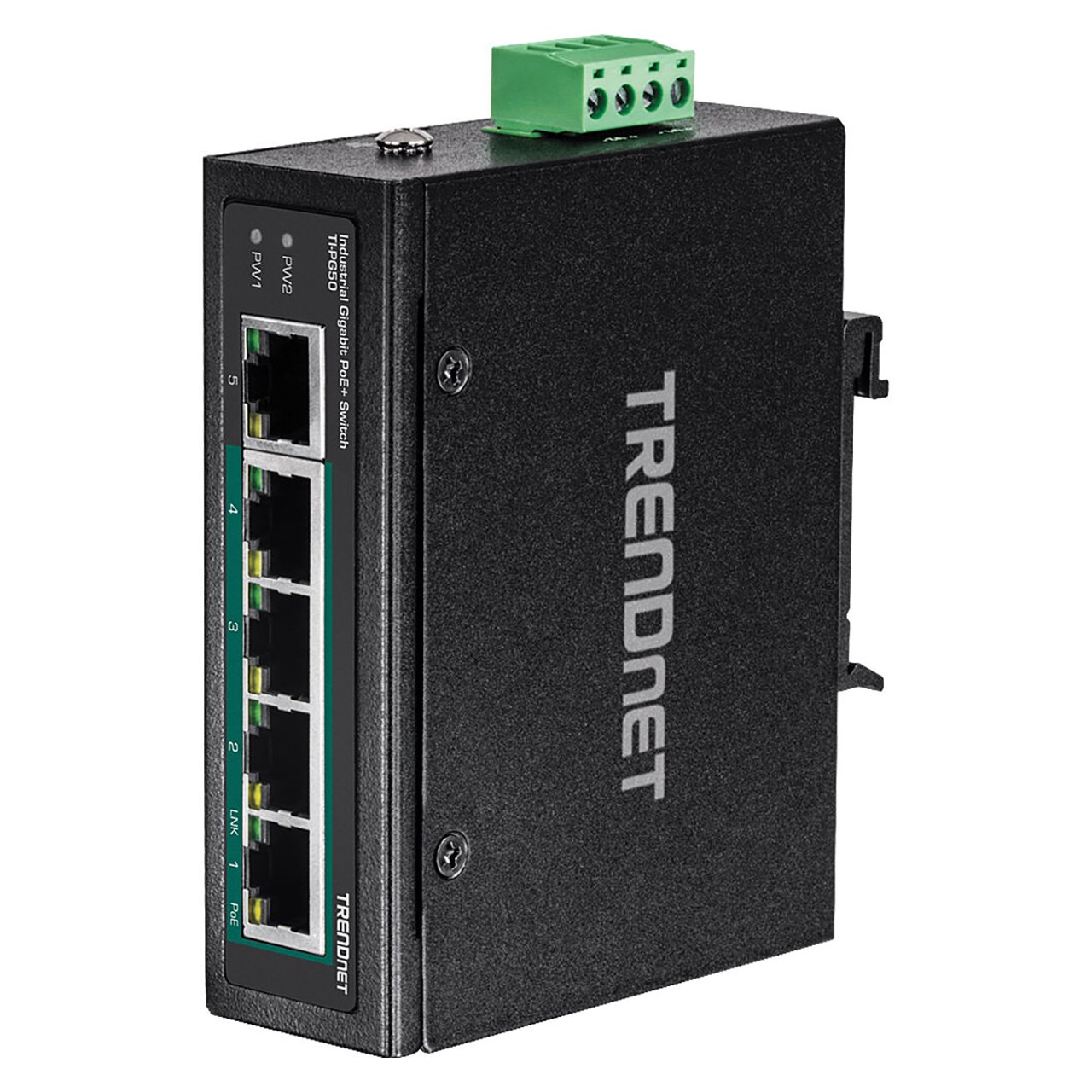

TRENDnet TI-PG50 v2.0 5-Port Industrial Gigabit PoE and DIN-Rail Switch - Four PoE Plus Port/One Gigabit Port

TND-TI-PG50 - Overview

• Features:

  • Maximum A 120W PoE+ power budget supplies power up to four Power over Ethernet devices
  • Up to 30W of power per port and data over a single Ethernet cable to PoE devices
  • The industrial unmanaged PoE+ switch features redundant power inputs for backup power
  • Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40°F-167°F (-40°C-75°C)
  • No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

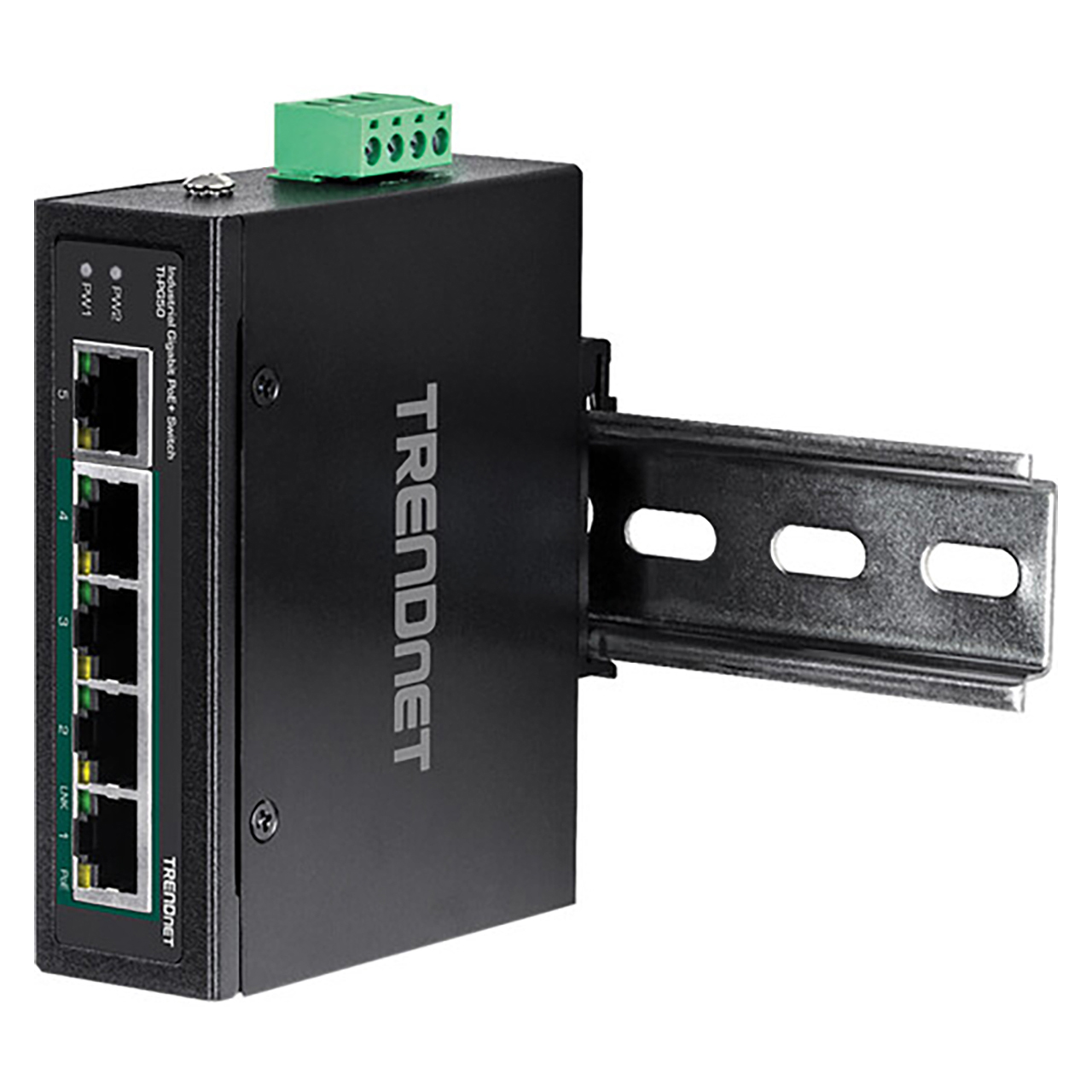

  • The se rugged PoE+ switches each includes DIN-Rail mount and wall mount hardware included
  • This industrial media converter is IP50 rated for ingress dust protection
  • Dual inputs provide redundant power with overload current protection (power supply sold separately, model: TI-S15052)
  • An extreme operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with intense hot or cold conditions
  • Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
  • Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

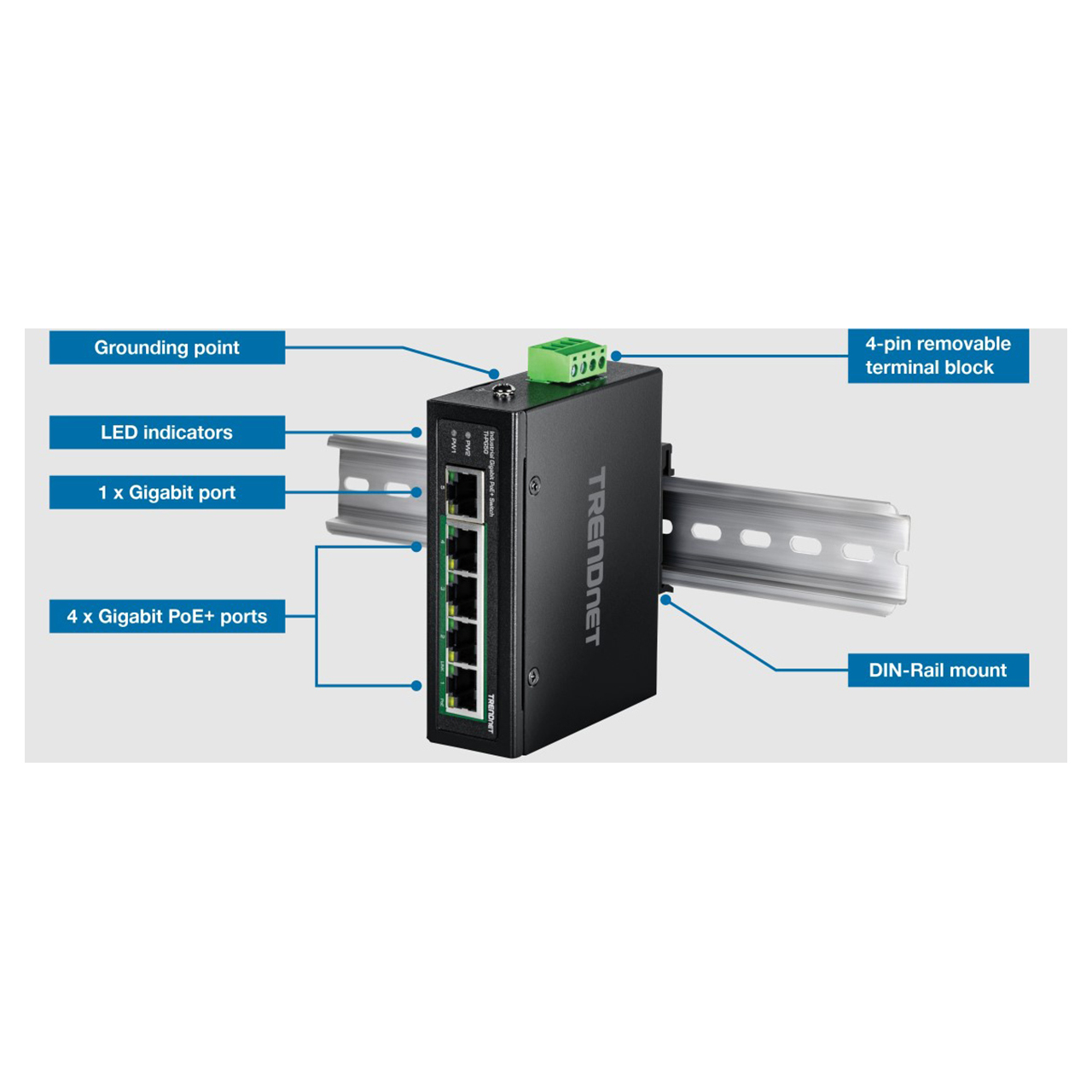

  • The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges


• Specifications:

  Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)

    Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)

    Power
  • Input: 48V - 56V DC
  • Compatible Power Supply: TI-S15052 (sold separately)
  • Max. Consumption: 2.24W @ 48V DC

    PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • PoE budget: 60W - 120W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power

    Terminal Block
  • Redundant Power Iinputs: 4-pin
  • Wire Range: 0.34mm² to 2.5mm²
  • Solid Wire (AWG): 12-24
  • Stranded Wire (AWG): 12-24
  • Torque: 5 lb.-In/0.5Nm/0.56Nm
  • Wire Strip Length: 7mm - 8mm
  • MTBF: 83,000 hours at 77°F (25°C)

    Enclosure
  • Rating: IP50 rated Metal Case
  • ESD Protection: Contact: 6kV/Air: 8kV
  • Grounding Point: Yes

    Physical
  • Operating Temperature: -40°F - 167°F (-40°C - 75°C)
  • Operating Humidity: Max. 95% non-condensing
  • Dimensions: 6.1" x 4.8" x 1.9" (156mm x 122mm x 48mm)
  • Weight: 0.41lbs (190g)

    Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5

    Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at


• Item Includes:

  • 1x TRENDnet TI-PG50 5-Port Industrial Gigabit PoE and DIN-Rail Switch
  • 1x Quick Installation Guide

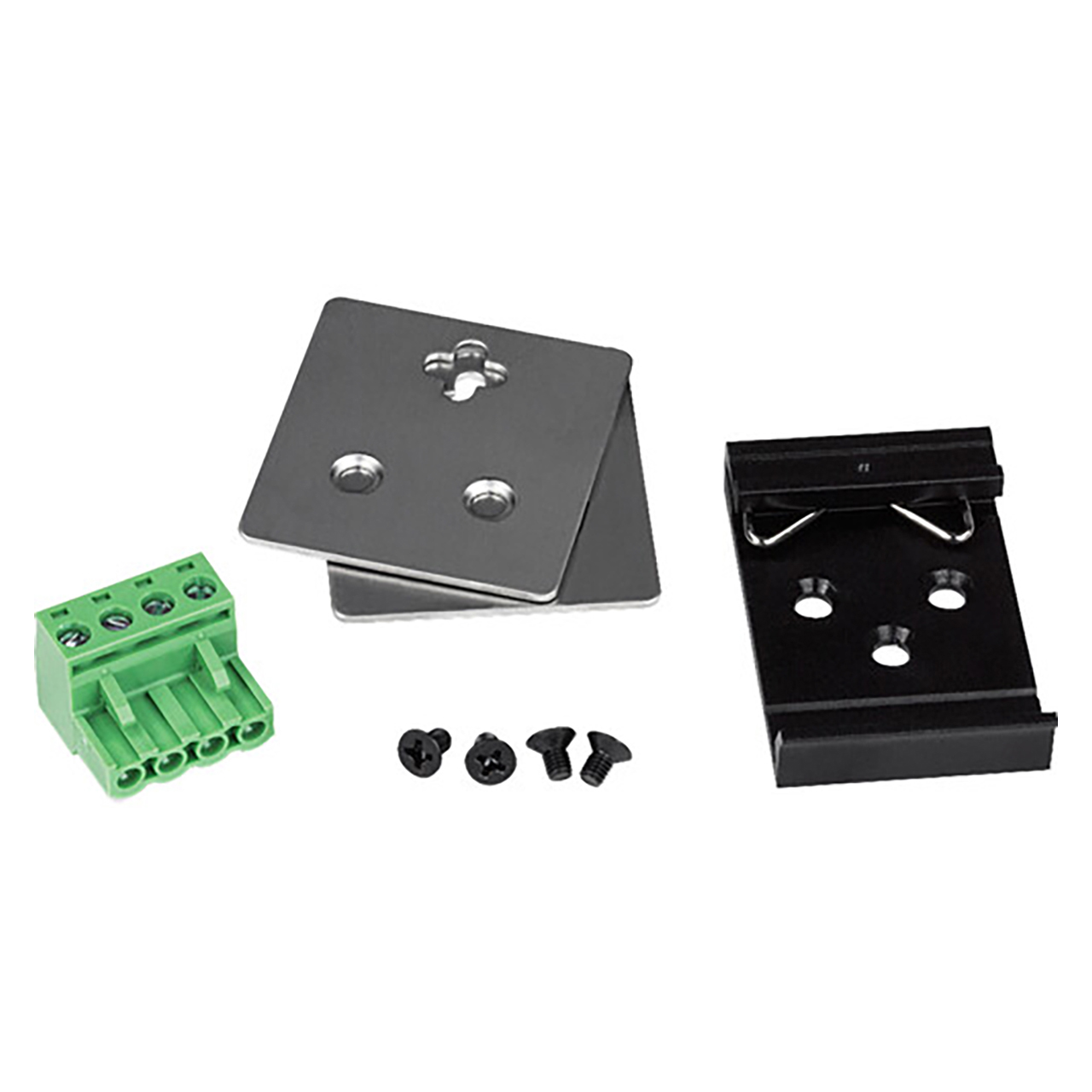

  • 1x Removable terminal block
  • 1x DIN-Rail and wall mount kit


• Warranty:

  • Lifetime Warranty
