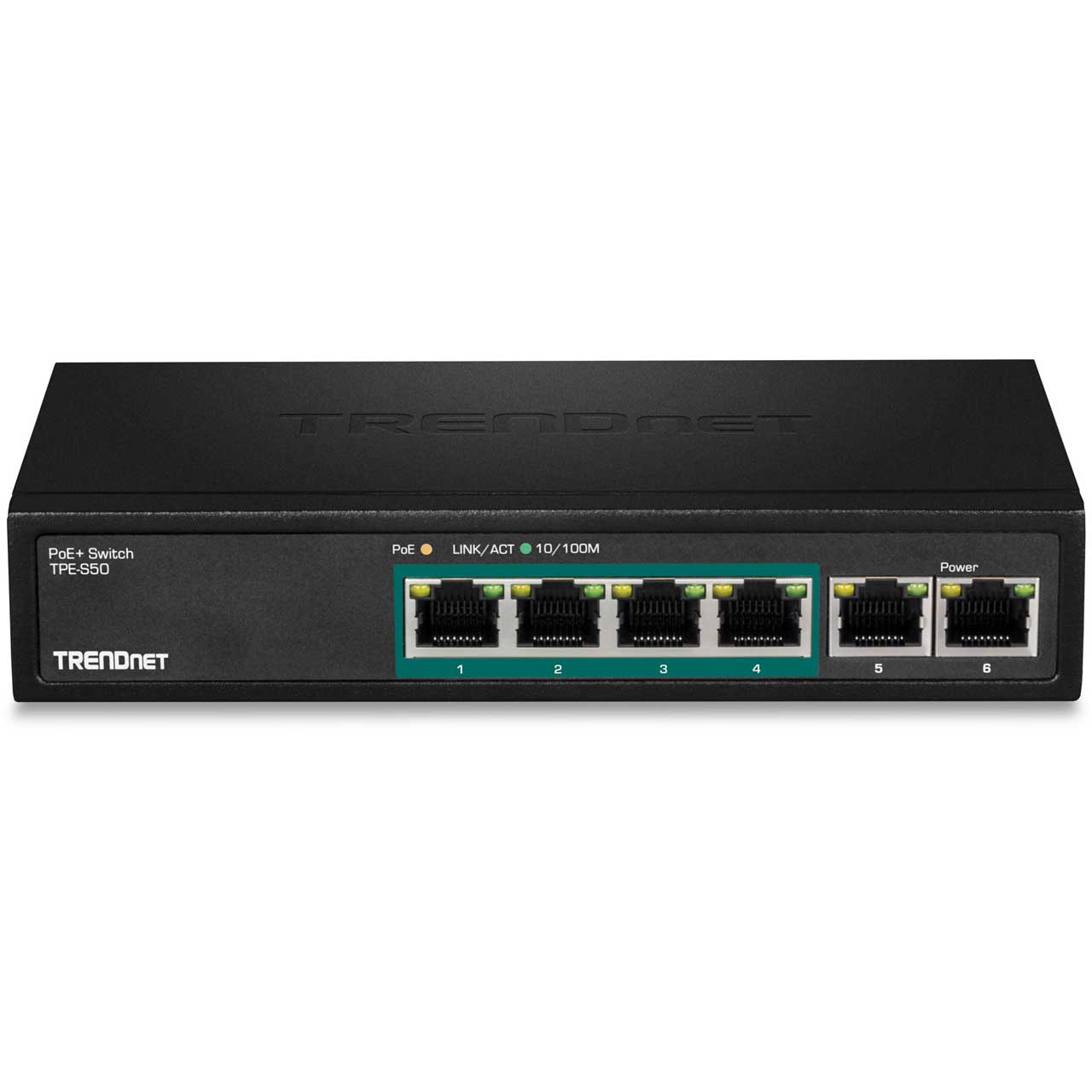

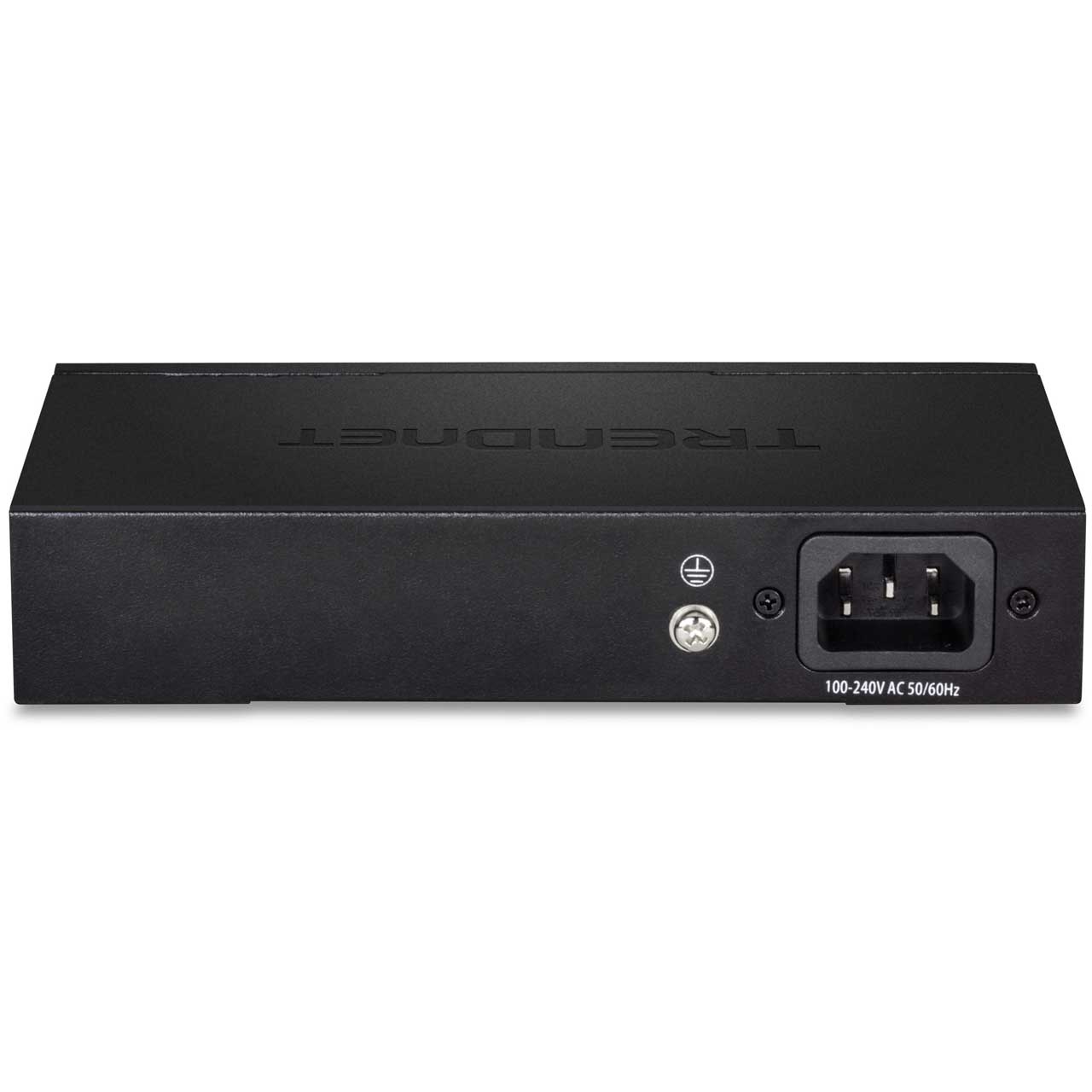

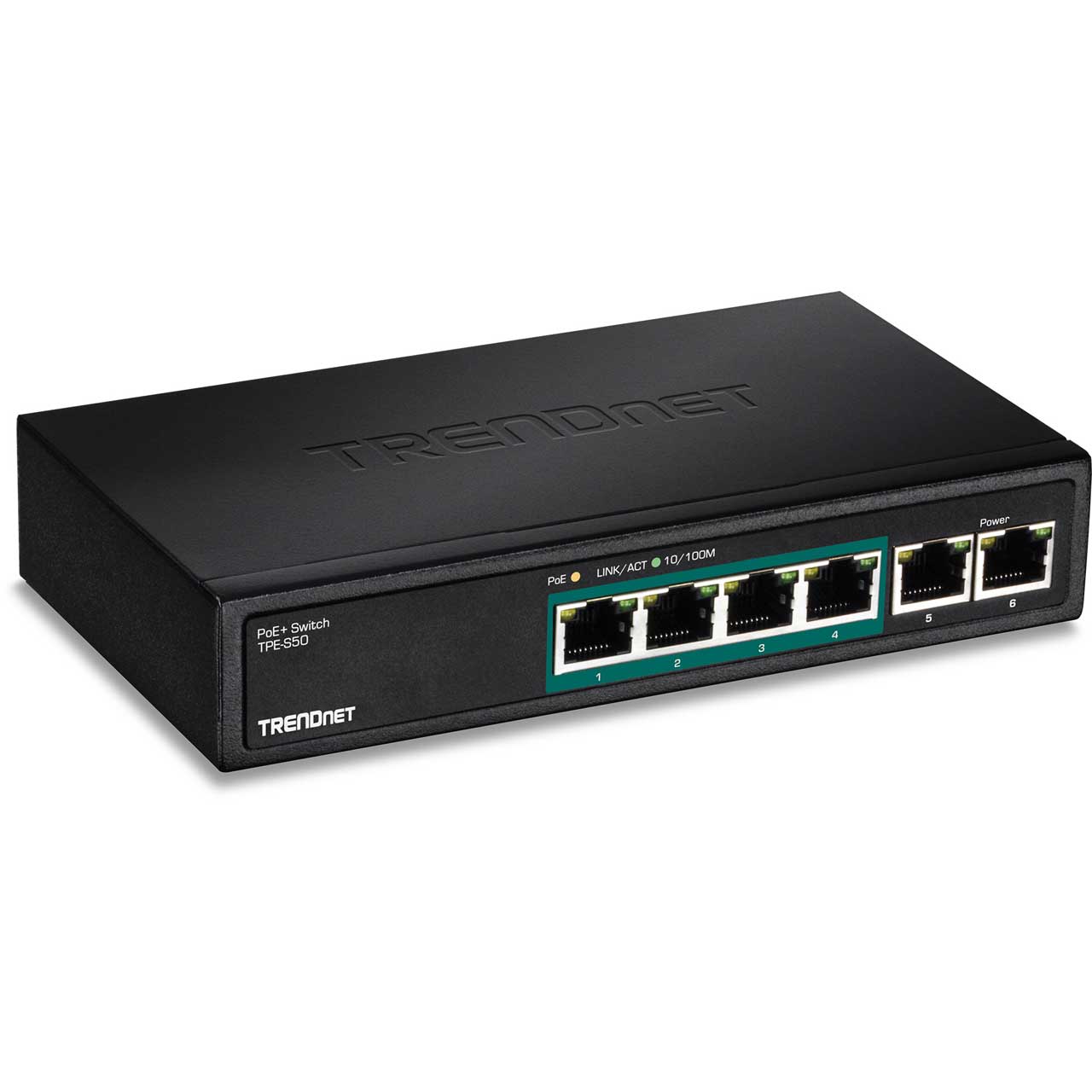

TRENDnet TPE-S50 6-port 10/100Mbps PoE Switch (60W)(Version v2.0R)

TPE-S50 - Overview

• Features:

  • Easy installation
  • 4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
  • 1.2Gbps switching capacity
  • 60W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • Lifetime Warranty*


• Specifications:

  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az

    Device Interface
  • 4 x 10/100Mbps PoE+ Ports
  • 2 x 10/100Mbps Ports
  • LED indicators

    Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

    Performance
  • Data Ram Buffer: 96KB
  • Switch Fabric: 1.2Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 0.89Mpps (64-byte packet size)

    Special Features
  • GREENnet energy saving technology

    Power
  • Input: 100~240 VAC, 50/60 Hz Internal universal switching power
  • Consumption: 65 Watts (max.)

    PoE
  • PoE budget: 60 Watts
  • Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)

    Operating Temperature
  • 0 - 40 °C (32 - 104 °F)

    Operating Humidity
  • Max. 90% non-condensing

    Dimensions
  • 168 x 95 x 32 mm (6.6 x 3.7 x 1.6 in.)

    Weight
  • 504g (17.8 oz.)

    Certifications
  • CE
  • FCC


• Item Includes:

  • TPE-S50
  • Quick Installation Guide
  • Power cord (1.2m / 4 ft.)


• Warranty:

  • Lifetime Warranty*


• GTIN:

  0710931160413
