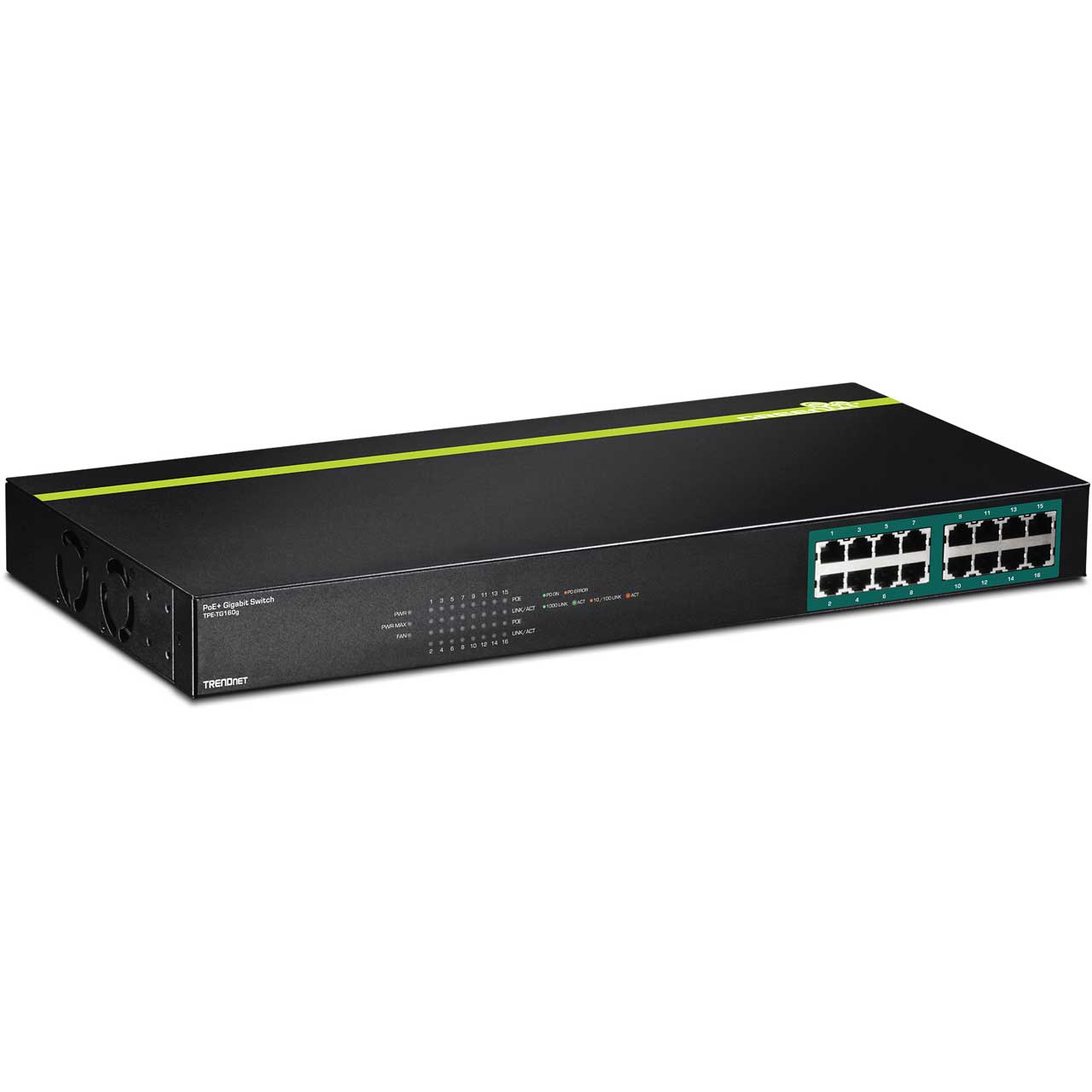

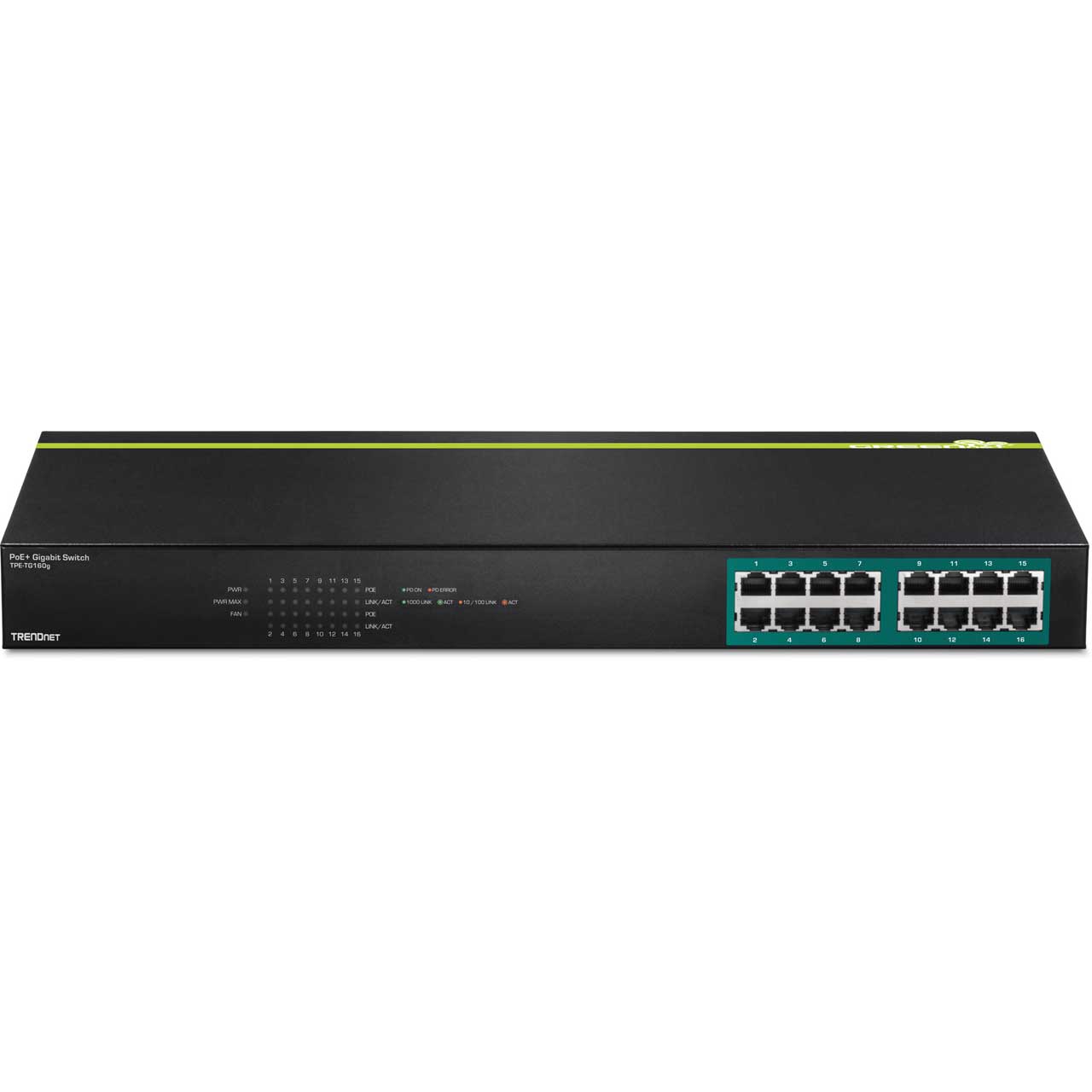

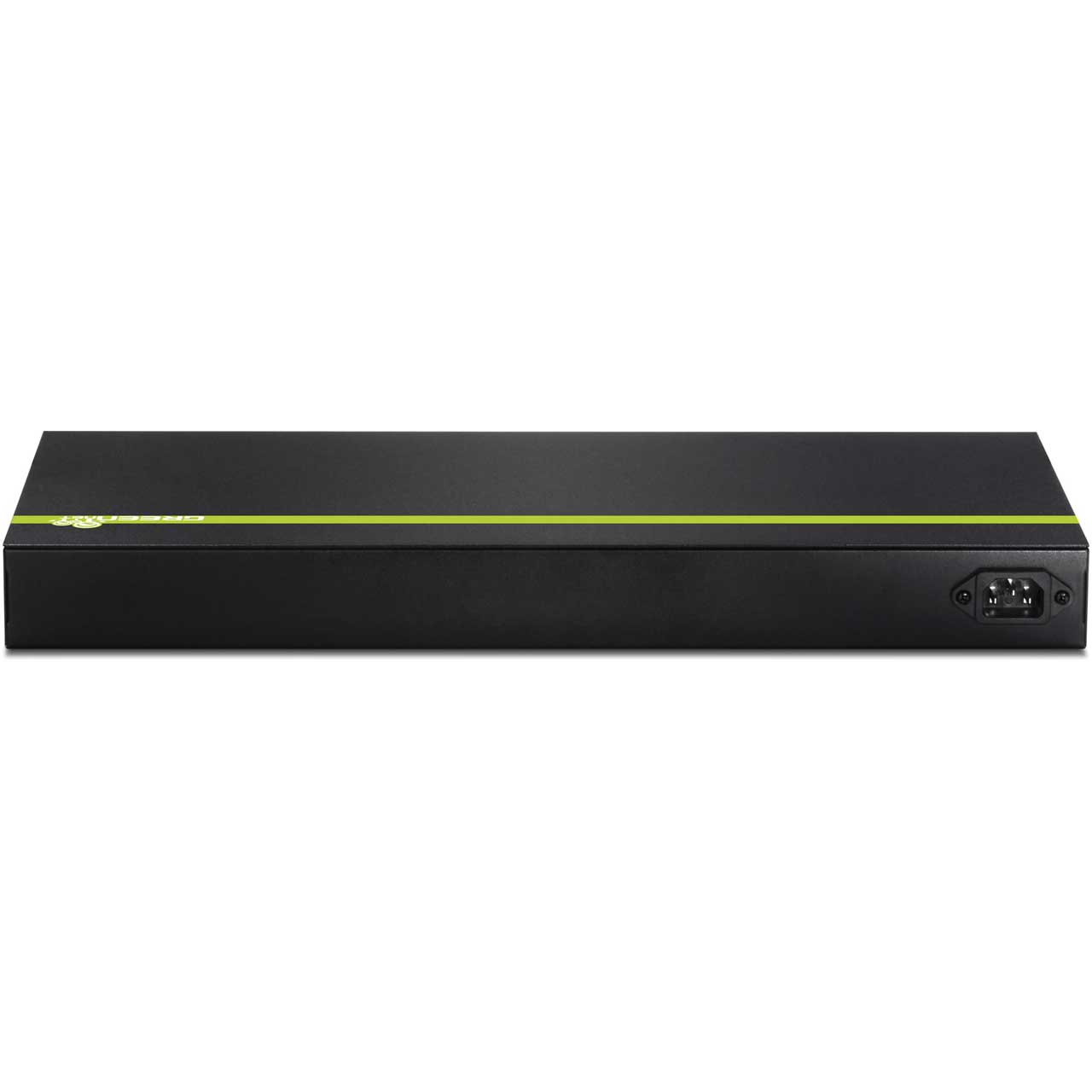

TRENDnet TPE-TG160G 16-port GREENnet Gigabit PoEplus Switch 250-Watt v1.1R

TPE-TG160G - Overview

• Features:

  • 16 x Gigabit PoE+ ports
  • 246 W PoE budget
  • 32 Gbps switching capacity
  • Sturdy metal switch
  • Rack mount brackets included
  • Lifetime Warranty*


• Specifications:

  • Standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af (15.4 Watts / port)
  • IEEE 802.3at (30 Watts / port)
  • IEEE 802.3az

    Device Interface
  • 16 x Gigabit PoE/PoE+ ports
  • LED indicators

    Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2,000 Mbps (full duplex)

    Performance
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 32 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 23.8 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB

    Power
  • Input: 110-240 V AC, 50/60 Hz, 54 V / 4.82 A; 12 V / 1.67 A
  • Consumption: 36 Watts (Max. without PD)

    PoE
  • PoE budget: 246 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Over current protection
  • Short circuit protection

    Operating Temperature
  • 0 - 40 °C (32 - 104 °F)

    Operating Humidity
  • Max. 90% non-condensing

    Dimensions
  • 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 in.)

    Weight
  • 3 kg (6.8 lbs.)

    Certifications
  • CE
  • FCC


• Item Includes:

  • TPE-TG160g
  • Quick Installation Guide
  • Rack mount kit
  • Power cord


• Warranty:

  • Lifetime Warranty*


• GTIN:

  0710931160277
