TRENDnet TPE-TG50G 5-port Gigabit PoEplus Switch (Version v2.0R)

ITEM #: TNET-TPE-TG50G MFG #: TPE-TG50G

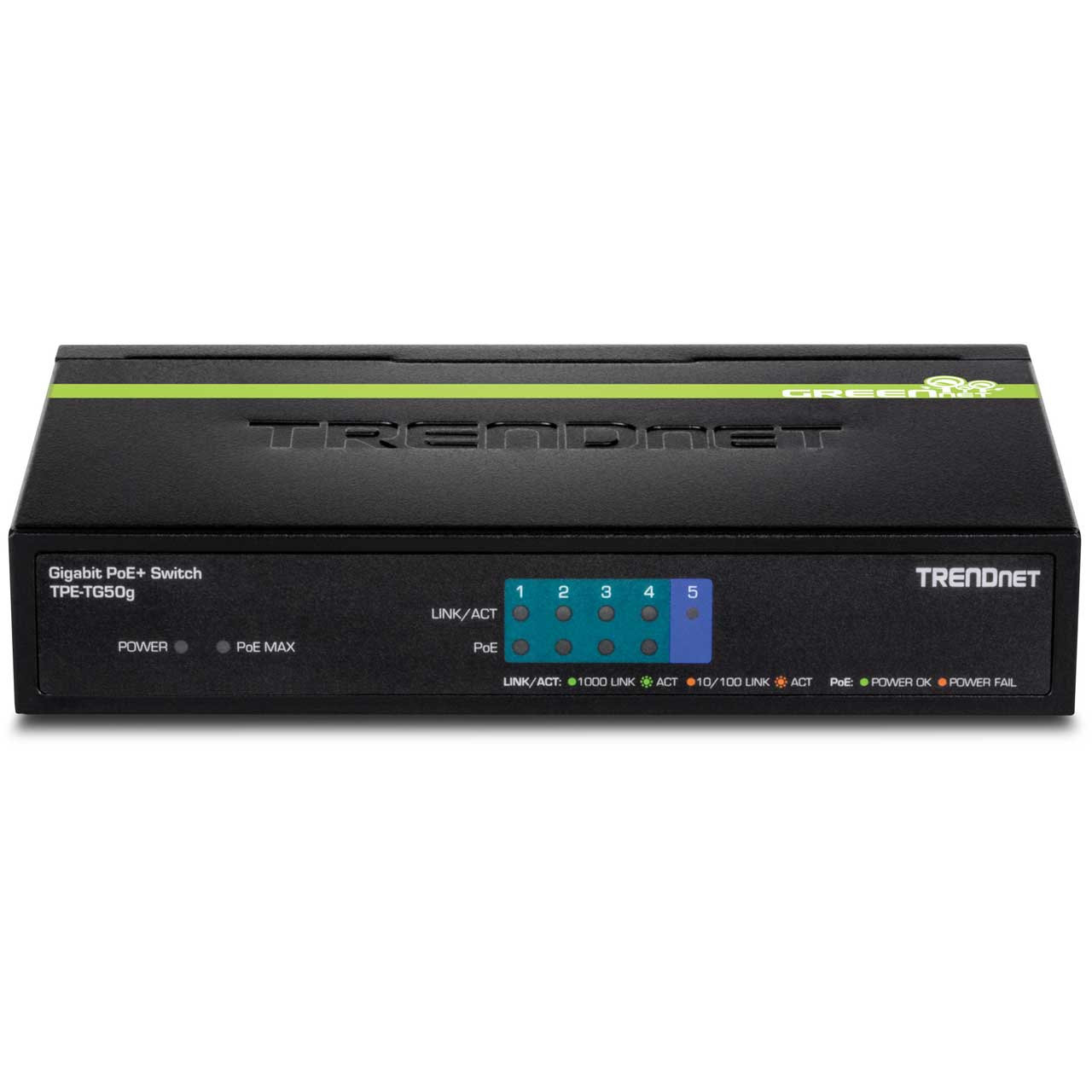

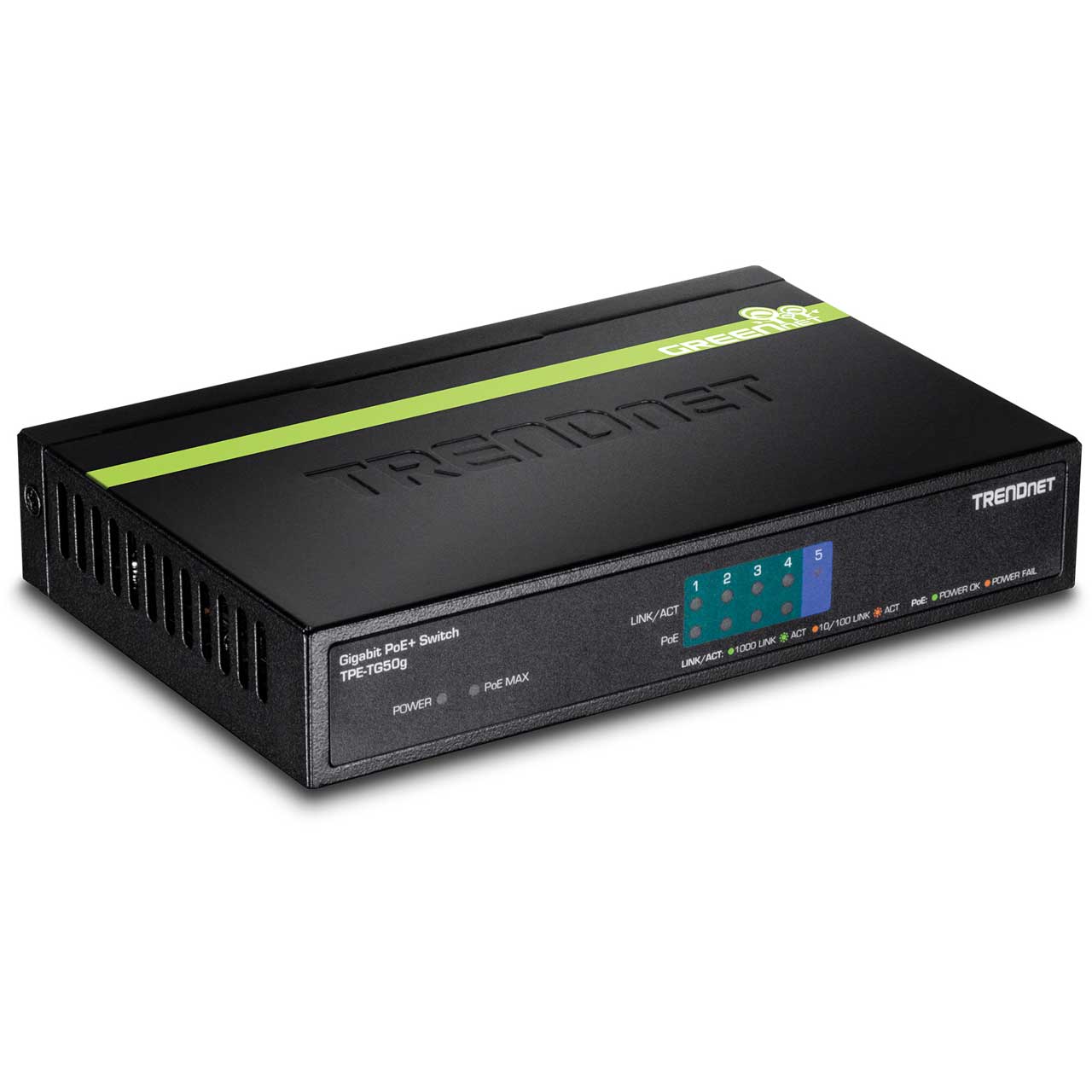

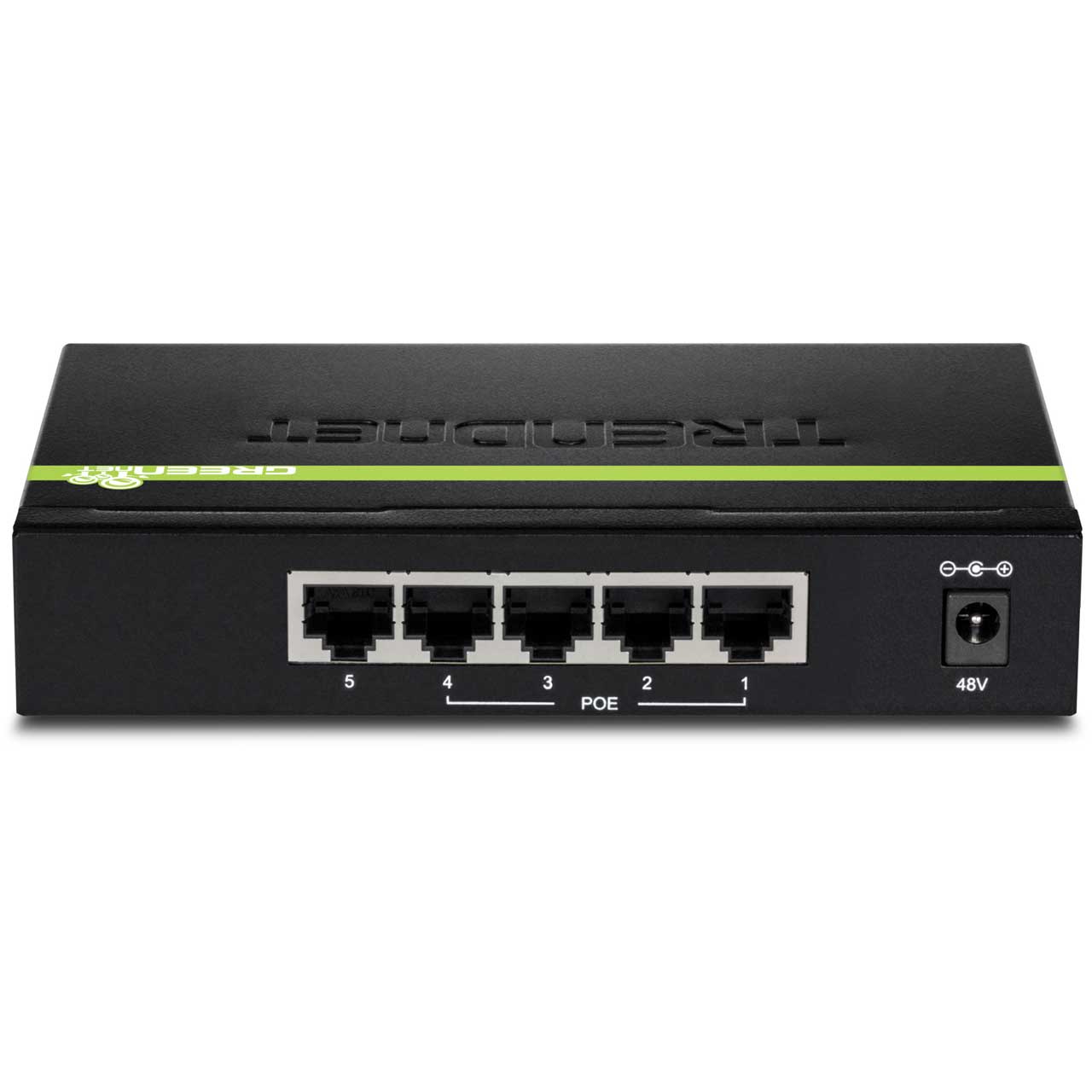

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$69.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TPE-TG50G - Overview

TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG50G, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points and IP cameras. it supports both PoE and PoE+ devices with a 31W PoE power budget. Easily install this compact sturdy metal switch for reliable high-speed PoE networking.

Gigabit Ethernet
Five gigabit ports provides a 10Gbps switching capacity to support edge network installations.

PoE Power
A 31W PoE power budget supplies up to four Power over Ethernet devices.

Compact Design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

  • Features:

    • 4 x Gigabit PoE+ ports
    • 1 x Gigabit port
    • 31W PoE power budget
    • 10Gbps switching capacity
    • Compact metal switch
    • Lifetime Warranty*

  • Specifications:

    • Standards
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3az

      Device Interface
    • 4 x Gigabit PoE/PoE+ ports
    • 1 x Gigabit port
    • LED indicators

      Data Transfer Rate
    • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    • Gigabit: 2000Mbps (full duplex)

      Performance
    • Packet Buffer: 128KB
    • Switch Fabric: 10Gbps
    • MAC Address Table: 8K entries
    • Forwarding rate: 7.44Mpps (64-byte packet size)
    • Jumbo Frame: 9K

      Power
    • Input: 110-240V AC, 50/60Hz, 0.75A
    • Output: 48V DC, 0.8A
    • Consumption: Max. 34W

      PoE
    • PoE budget: 31 Watts
    • Pin 1,2 for power+ and pin 3,6 for power- (mode A)

      Operating Temperature
    • 0 - 40°C (32 - 104°F)

      Operating Humidity
    • Max. 90% non-condensing

      Dimensions
    • 148 x 95 x 26mm (5.8 x 3.7 x 1 in.)

      Weight
    • 366g (12.9 oz.)

      Certifications
    • CE
    • FCC

  • Item Includes:

    • TPE-TG50g
    • Quick Installation Guide

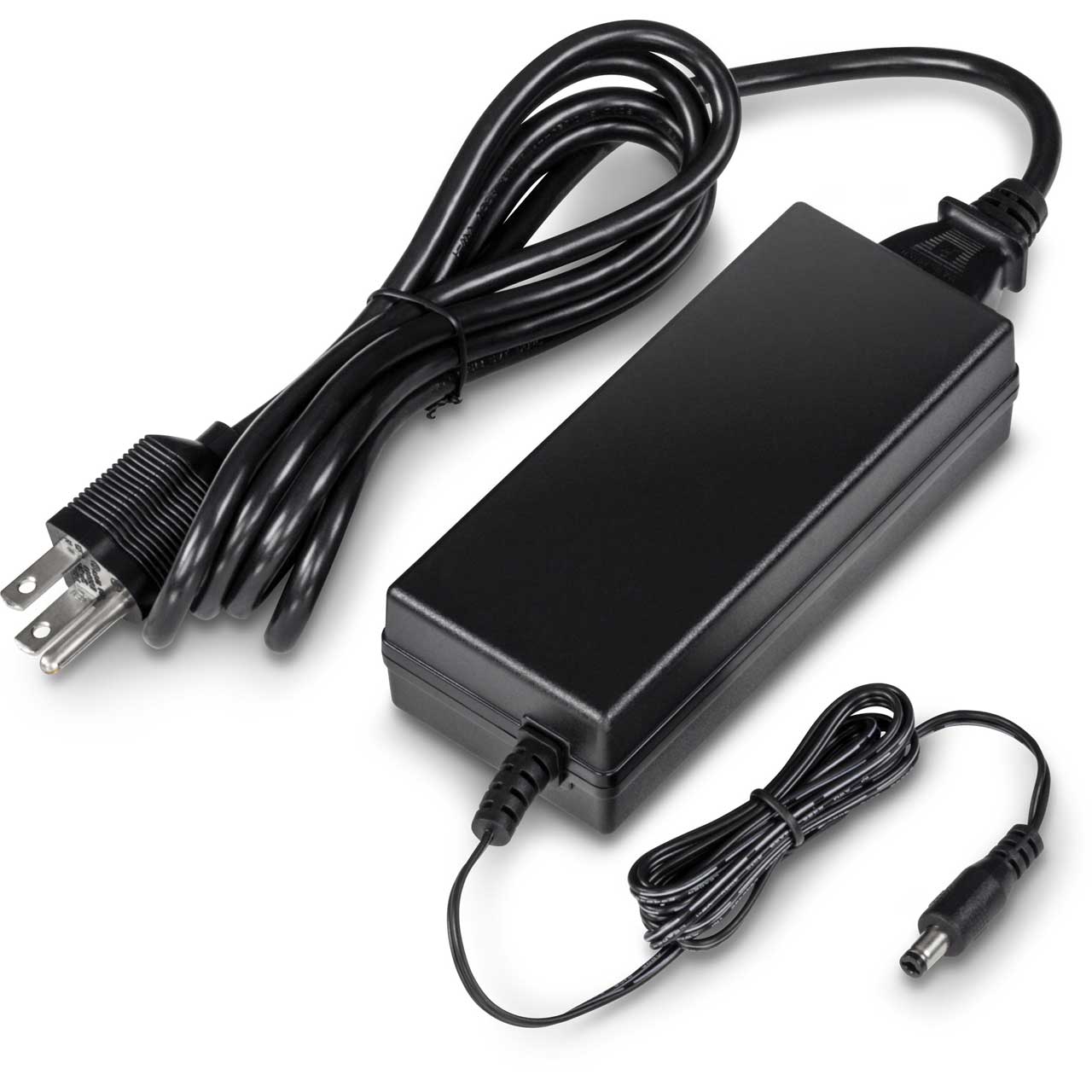

    • Power adapter (48V DC, 0.8A)
    • Power Cord

  • Warranty:

    • Lifetime Warranty*

  • GTIN:

    0710931160154
