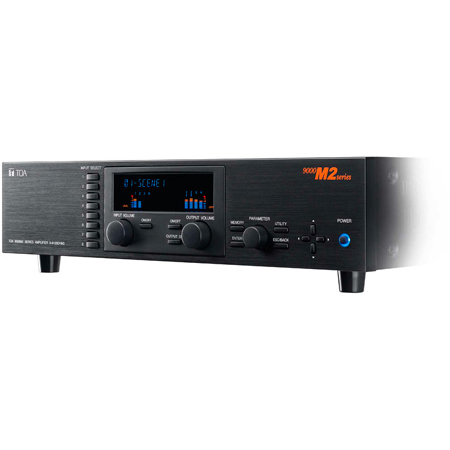

TOA A-9060DHM2CU Digital Matrix Mixer/Amplifier 2 x 60W - 70V

A-9060DHM2CU - Overview

• Features:

  • Modular digital matrix mixer/amplifiers for a multitude of applications
  • including audio-visual, zone paging, room combining and many more.
  • Enhanced GUI programming interface for PC configuration and
  • uploading/downloading of settings using RS-232 connection. Includes setup wizards and firmware upgrade utility.
  • Exceptional Audio Quality:
  • 24-bit, 48 kHz sampling . Ultra-Low Distortion . 0.0008%
  • Dual Channel Digital Signal Processor (DSP) on Input & Output channels:
  • 10-Band Parametric EQ . High and Low Pass Filters . Bass and Treble
  • Loudness . Compressor . Gate . Ducker . NOM (Automix)
  • Delay (Output channel only) . TOA Speaker EQ Presets (Output channel only)
  • DSP included on 9000 Mainframe Outputs, D-001T, D-001R and T-001T modules
  • Single or Dual Channel Power Amplifiers . 70.7V, 25V wide range of power ratings
  • Flexible Output Power . dual channel models allow up to 50% of either amplifier channel to be allocated to the other channel
  • (A-9060DHM2 and A-9120DHM2) (Ex. A-9060DHM2: CH1; 90W, CH2; 30W)
  • Flexible, Integrated Operating System (Mixer + Paging Matrix):
  • Mixer functions along with simultaneous Priority Paging Matrix activation, each with 32 presets.
  • Scene memory (x32) contains all mixer (non-priority) settings
  • Paging memory (x32) contains global (static) input settings, independent Xpoint
  • assignments, paging trigger & paging output levels for all high priority (1, 2 & 3) inputs.
  • Both scene & paging memories are stored in a single template along with remote assignments, security lock and other global functions
  • Mixer & Paging functions are independent and mixer (scene) settings will not affect Paging (event) functions.


• Specifications:

  • Output Power 2 x 60W @ 70V
  • Audio Output Preamplifier output 1, 2: 0dBV, 300U, unbalanced, RCA pin jack
  • Power Bandwidth 20Hz - 20kHz, 0.008% THD
  • Frequency Response Power amplifier section: 20Hz - 20kHz, +0, -1dB
  • Analog input module to speaker output: 20Hz - 20kHz +1, -3dB
  • Total Harmonic Distortion: Power amplifier section: 0.0008% (22kHz LPF, 1 kHz, rated power)
  • Analog input module to speaker output: 0.008% (22kHz LPF, 1 kHz, rated power)
  • S/N Ratio At input short, 20Hz - 20kHz, ALL FLAT or OFF setting
  • Output volume min.: 90dB (preamplifier output)
  • Output volume max.: 61dB (preamplifier output, input 1 volume: 0dB, other inputs: OFF)
  • Power amplifier section: 110dB
  • Crosstalk 64dB or more at 20kHz
  • Tone Control Bass: +/-12dB (at 100Hz), Treble: +/-12dB (at 10kHz)
  • Parametric EQ 10 bands, Freq: 20Hz - 20kHz, 31 steps, Various range: +/- 12dB, Q: 0.3 - 5
  • Speaker Equalizer 30 (presets for TOA speakers)
  • High-pass Filter -12 dB/oct, Variable frequency range: 20Hz - 20kHz, 31 steps
  • Low-pass Filter -12dB/oct, Variable frequency range: 20Hz - 20kHz, 31 steps
  • Compressor Depth: 1 - 5
  • Delay 0 - 40ms (1 ms steps), maximum 40ms (CH1 + CH2)
  • Scene/Paging Memory 32/32
  • Auxiliary Function Key lock function

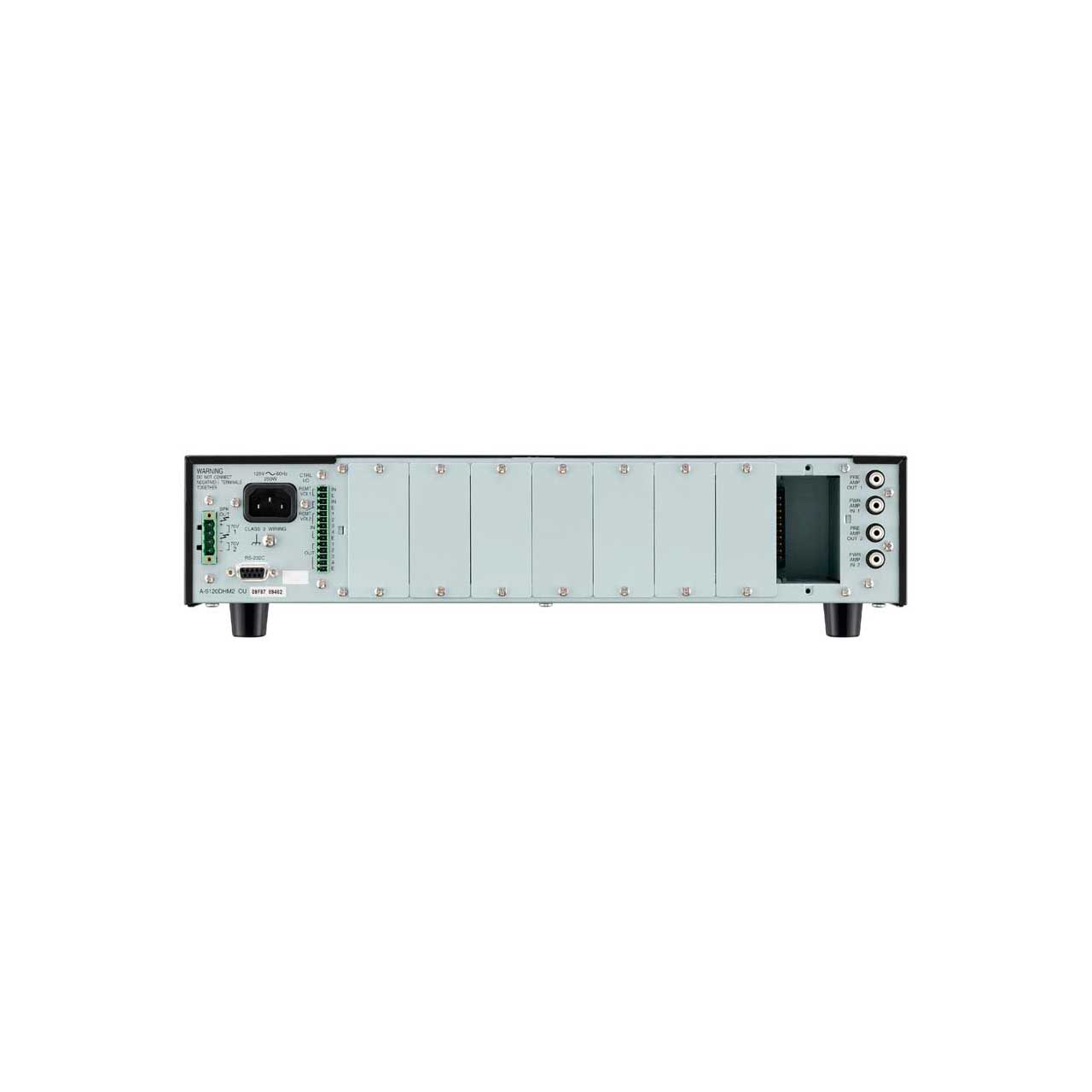

  • Control Input/Output RS-232C, D-sub connector (9P, female)
  • Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3V DC, short-circuit current: 1mA or less,
  • removable terminal block
  • Control output: 4 outputs, open collector output, withstand voltage: 27V DC, control current: 50mA, removable
  • terminal block
  • Remote volume: 2 channels, connect a 10kU/linear taper variable resister or 0 - 10V DC, removable terminal block
  • Power Source 120V AC, 60Hz
  • Power Consumption 150W 250W 100W
  • Operating Temperature 14° to 104° F (-10° to 40° C)
  • Operating Humidity 35% to 80% RH (no condensation)
  • Finish Panel: aluminum, hair-line, black; Case: surface-treated steel plate, black paint
  • Dimensions (W x H x D) 16.54" x 4.24" (3.5" w/out feet) x 15.55" (420 x 107.6 x 395mm)
