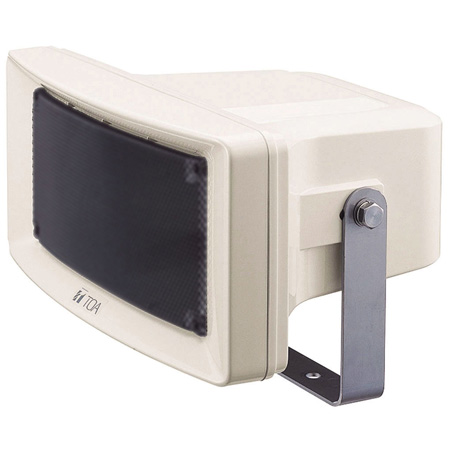

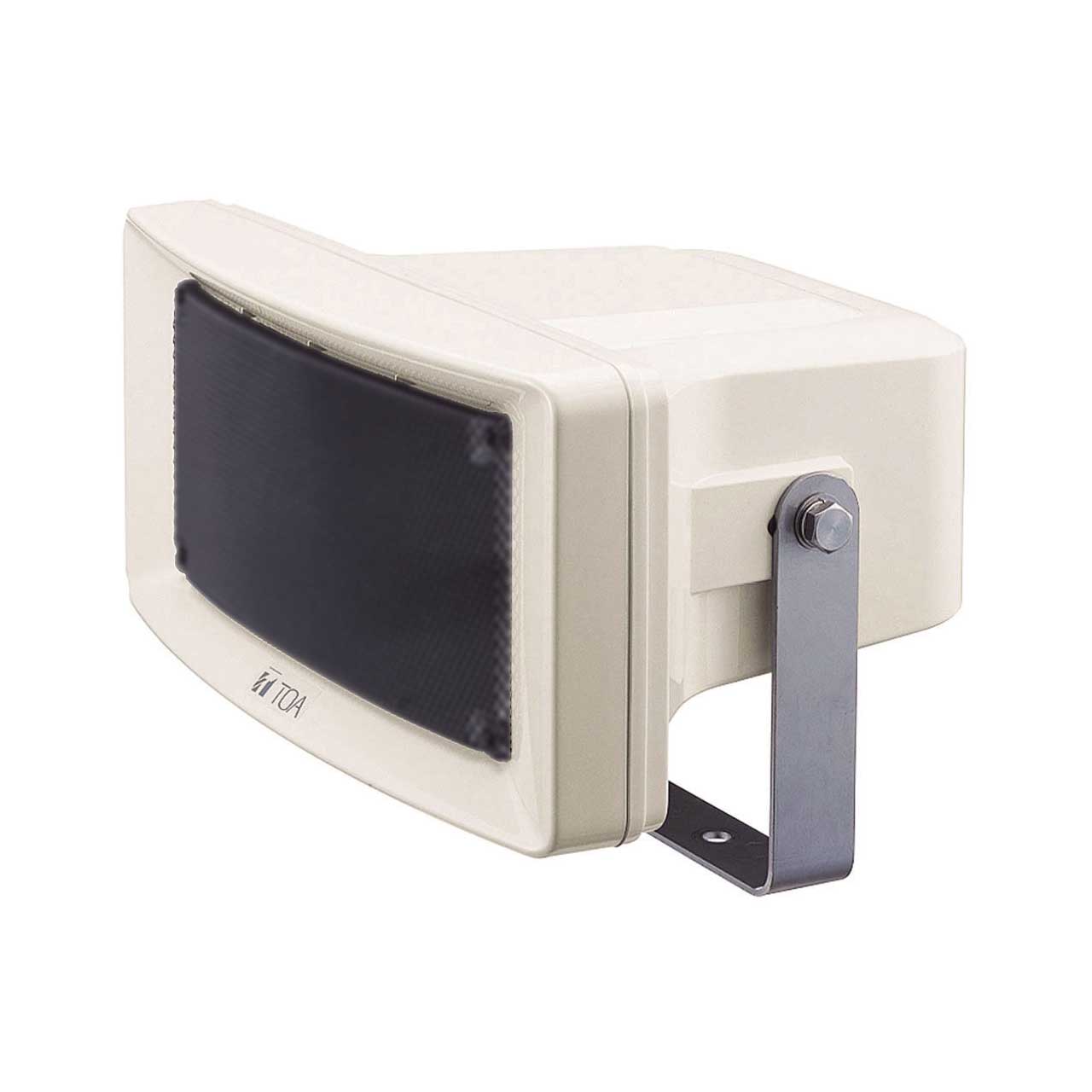

TOA CS-304U Wide Range Weatherproof Speaker

ITEM #: TOA-CS-304U MFG #: CS-304U

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$177.00

Our Price:

$143.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CS-304U - Overview

The CS-304U UL listed outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-304 employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90°operation.

  • Specifications:

    • Rated Input: 30 W
    • Rated Impedance: 100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W)
    • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
    • Sensitivity: 98 dB (1 W, 1 m)
    • Frequency Response: 120 - 15,000 Hz
    • Speaker Component: 12 cm cone-type
    • UL Code: UL-1480 UEAY
    • Horizontal Directivity: Constant directivity horn 90° (±45° horizontal from front axis)
    • Speaker Cord: 2-core cabtyre cord with diameter of 6 mm
    • Operating Temperature: -20° to +55°
    • Dust/Water Protection: IP65


CS-304U - Required Accessories
