Designed for Outdoor Paging, Background Music and Tone Signaling Distribution

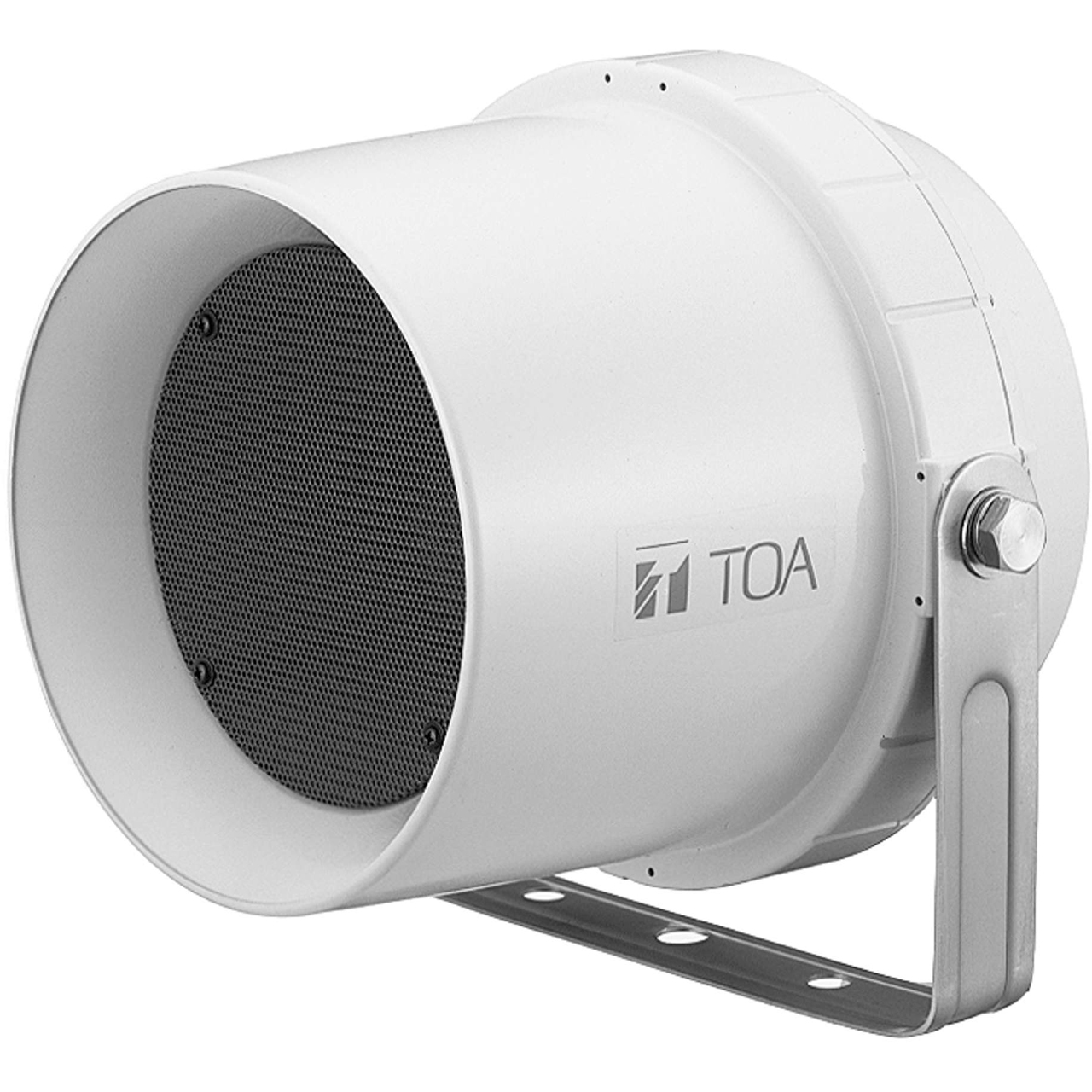

The TOA CS-64 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64 employs a rotary switch to facilitate impedance changes.
-
- Round wide-range speaker for paging, background music and tone signaling distribution
- Exponential horn improves directivity characteristics and ensure uniform and clear sound dispersion
- Wide temperature range: -4°F - 131°F (-20°C - 55°C)
- Stainless steel hardware protects the speaker from corrosion
-
- Rated Input: 6W
- Rated Impedance:
- 100V Line: 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)
- 70V Line: 830Ω (6W), 1.7kΩ (3W), 3.3kΩ (1.5W), 10kΩ (0.5W) - Sensitivity: 96dB (1W, 1m)
- Frequency Response: 130Hz - 13kHz
- Speaker Component: 12 cm cone-type (treated for splash proof)
- Speaker Cable: 2-core cabtyre cord with diameter of 6 mm
- Operating Temperature: -4°F - 131°F (-20°C - 55°C)
- Finish Horn Cover: ABS resin, off-white, paint
- Bracket: Stainless steel
- Panched Net: Surface treated steel plate, dark-gray, powder coating
- Screw: Stainless steel
Please Note: Do not install the speaker face-up from a horizontal plane nor in such a way that the paper cone is exposed to direct sunlight. If water accumulates on the paper cone, or ultraviolet rays are radiated on it, this may cause the paper cone to deteriorate, leading to speaker malfunction.
-
- 1x CS-64 Speaker
- 1x Mounting Bracket - Stainless Steel
- 1x Hardware Pack - Stainless Steel
-
