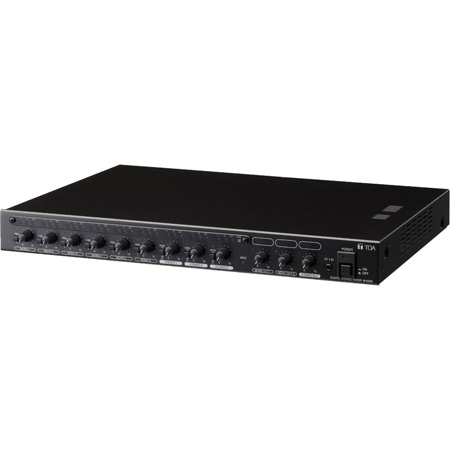

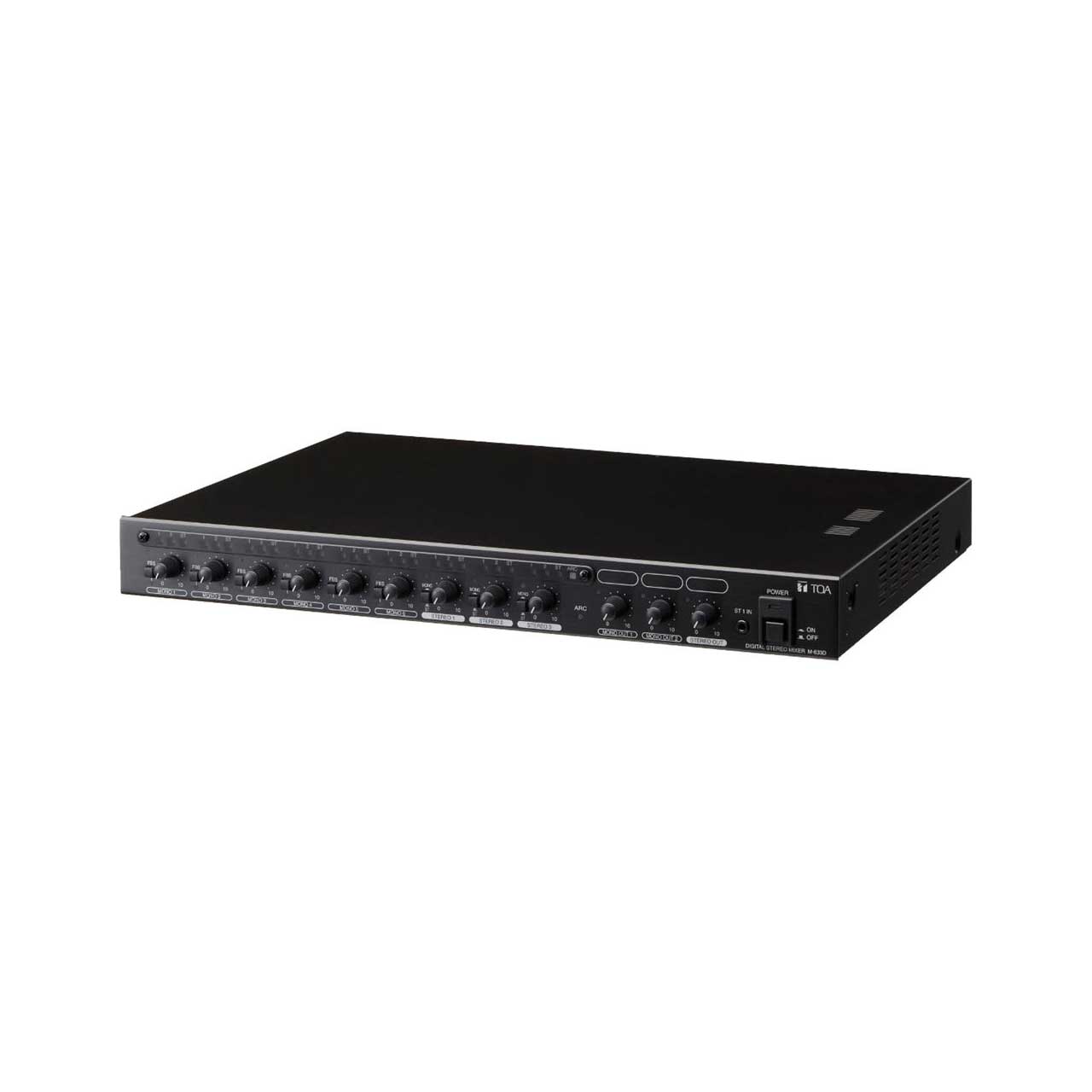

TOA M-633D CU Compact Digital Matrix Mixer

M-633D-CU - Overview

• Features:

  • Pristine Digital Audio quality w/24bit 48kHz A/D & D/A
  • 1U rack size digital mixer with 12 inputs and 6 outputs:
  • Inputs: 6 mono Mic/Line (Phoenix)+ 3 stereo Unbalanced Line (RCA)
  • Outputs: 2 Balanced mono + 1 stereo (Phoenix) + 1 recording (RCA).
  • Easy operation: Analog user interface, no PC setting is required
  • No more feedback: Intelligent Feedback Suppressor (FBS) built in
  • Feedback Suppressor automatically searches out and reduces sensitive frequencies that contribute to acoustic feedback
  • 7 automatic filters per channel
  • Can be activated independently for each MIC Input
  • Easy-to-use Automatic Resonance Control (ARC) function built in
  • ARC processor (same as in TOA DP-K1) compensates for acoustic resonances which can reduce intelligibility
  • May be set to work for all main outputs independently (12 filters per output)
  • Simple 1 Button activation
  • Automatic Clip-Guard, prevents Input clipping distortion
  • Auto-Muting of Line Input Sources via Priority Mic Inputs
  • Output zone assignments easily accessed from front panel
  • Supplied security cover prevents unauthorized access to front panel controls
  • 5 Year Warranty


• Specifications:

  • Power Source: 120 V AC, 60 Hz
  • Power Consumption: 13 W
  • Frequency Response: 20 Hz - 20 kHz
  • Sampling Frequency: 48 kHz
  • Dynamic Range: 90 dB or more (IHF-A weighted)
  • Distortion: 0.03 % or less, 1 kHz, -10 dB(*4) input, 0 dB(*4) output (20 Hz - 20 kHz BPF)

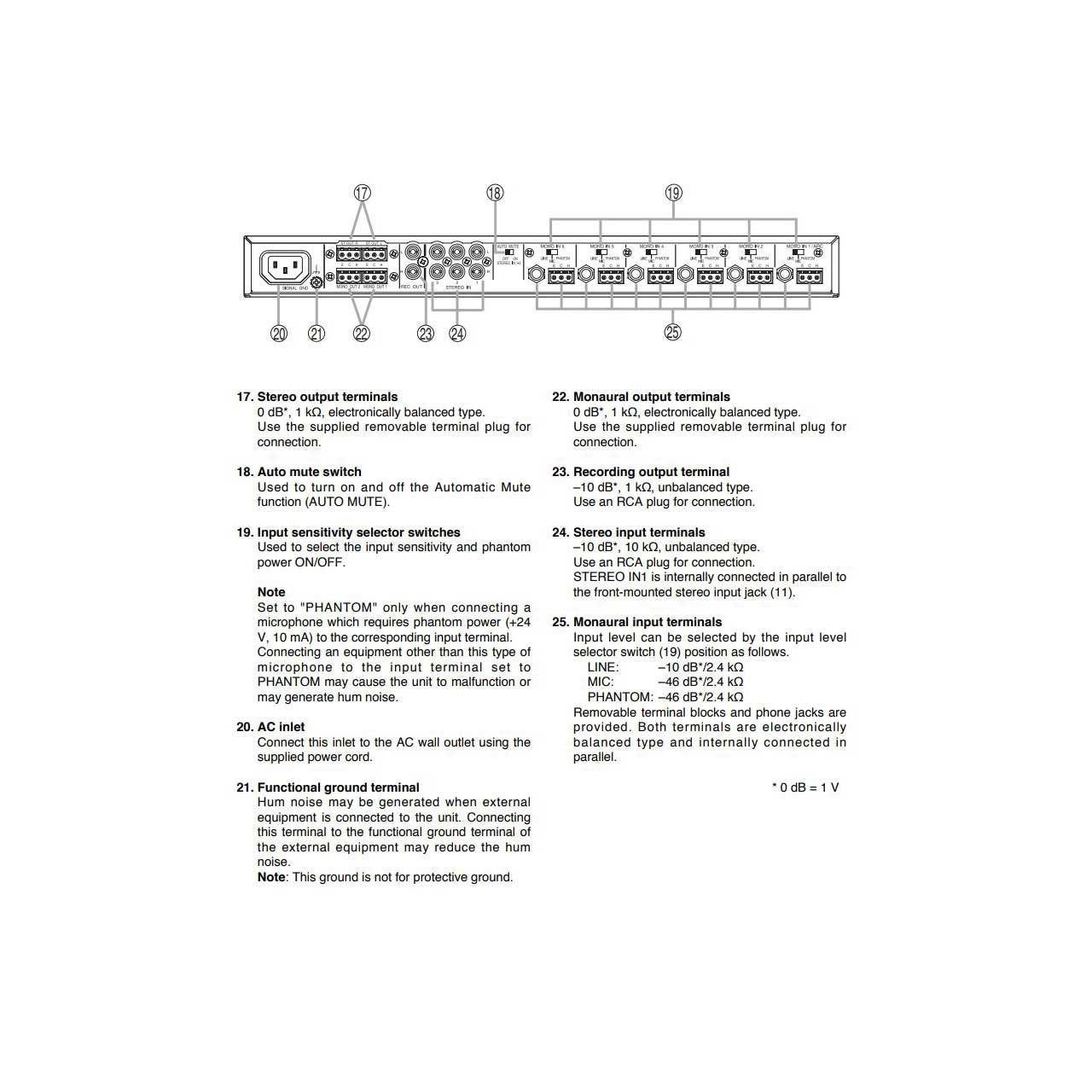

  • Input:
  • 6 monaural input channels (MONO IN 1 - 6), selectable independently from 3 types of inputs below for each channel
  • LINE
    -10 dB(*4), 2.4 KΩ
  • MIC
    -46 dB(*4), 2.4 KΩ
  • PHANTOM
    -46 dB(*4), 2.4 KΩ
  • Supplies phantom power of +24 V DC, 10 mA
  • Electronically balanced
  • Removable terminal block (3 pins), phone jack
  • 3 stereo inputs (L, R) (STEREO IN 1 - 3)
  • -10 dB(*4)/ 10 kΩ,
  • RCA jack (STEREO IN 1 - 3), Stereo mini jack (ST IN 1)

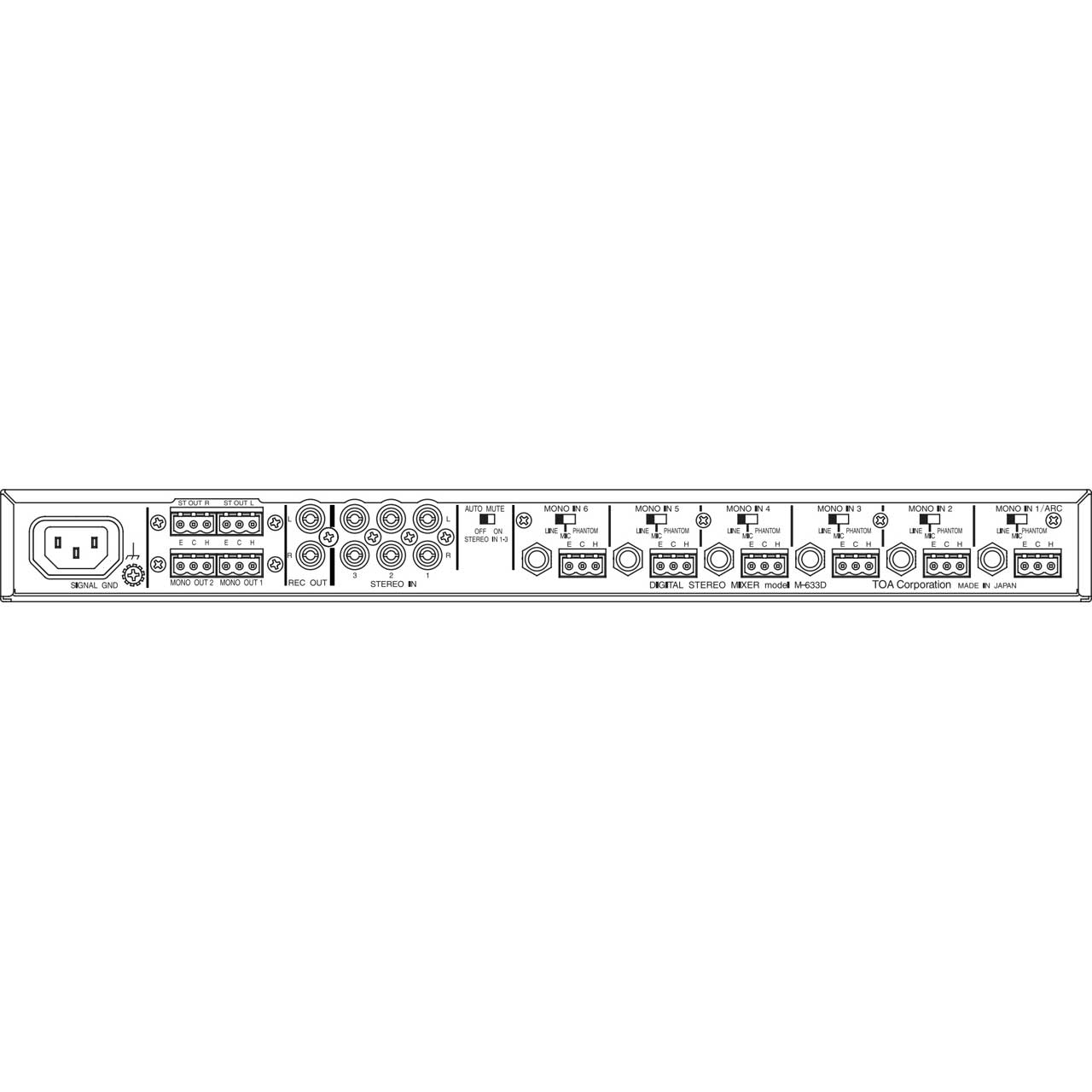

    Output
  • 2 monaural output channels (MONO OUT 1, 2)
  • 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins)
  • 1 stereo output (L, R) channel (ST OUT L, R)
  • 0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced, removable terminal block (3 pins)
  • 1 stereo recording output (L, R) channel (REC OUT L, R)
  • -10 dB(*4) (applicable load: 1 kΩ or more), RCA jack
  • Bus Line: Monaural channel x 2, Stereo channel x 1
  • AD Converter: 24 bits
  • DA Converter: 24 bits

    Signal Processing
  • Automatic Resonance Control Function: 3 output channels (each monaural output channel, stereo output L, R),
  • independent settings for each channel, automatic creation of EQ curves (for sound field compensation)
  • ARC measurement start switch x 1, Function ON/OFF check indicator x 1
  • Feedback Suppression Function: 6 channels (each monaural input channel), independent settings for each channel
  • Function ON/OFF switch x 6, Function ON/OFF check indicator x 6
  • Automatic Clipguard Function: 6 channels (each monaural input channel), independent settings for each channel
  • Automatic Mute Function: Function ON/OFF switch x 1
  • Input Level Indicator: 2-color LED indicator: Green (for appropriate level)/red (for peak level)
  • Output Level Indicator: 2-color LED indicator: Green (for appropriate level)/red (for peak level)

    Finish
  • Panel: Aluminum, black, hairline
  • Case: Precoated steel sheet, black, 30 % gloss

    Physical
  • Dimensions: 420 (W) x 44 (H) x 341.3 (D) mm (16.54" x 1.73" x 13.44")
  • Weight: 4 kg (8.82 lb)


• Warranty:

  • 5 Year Warranty
