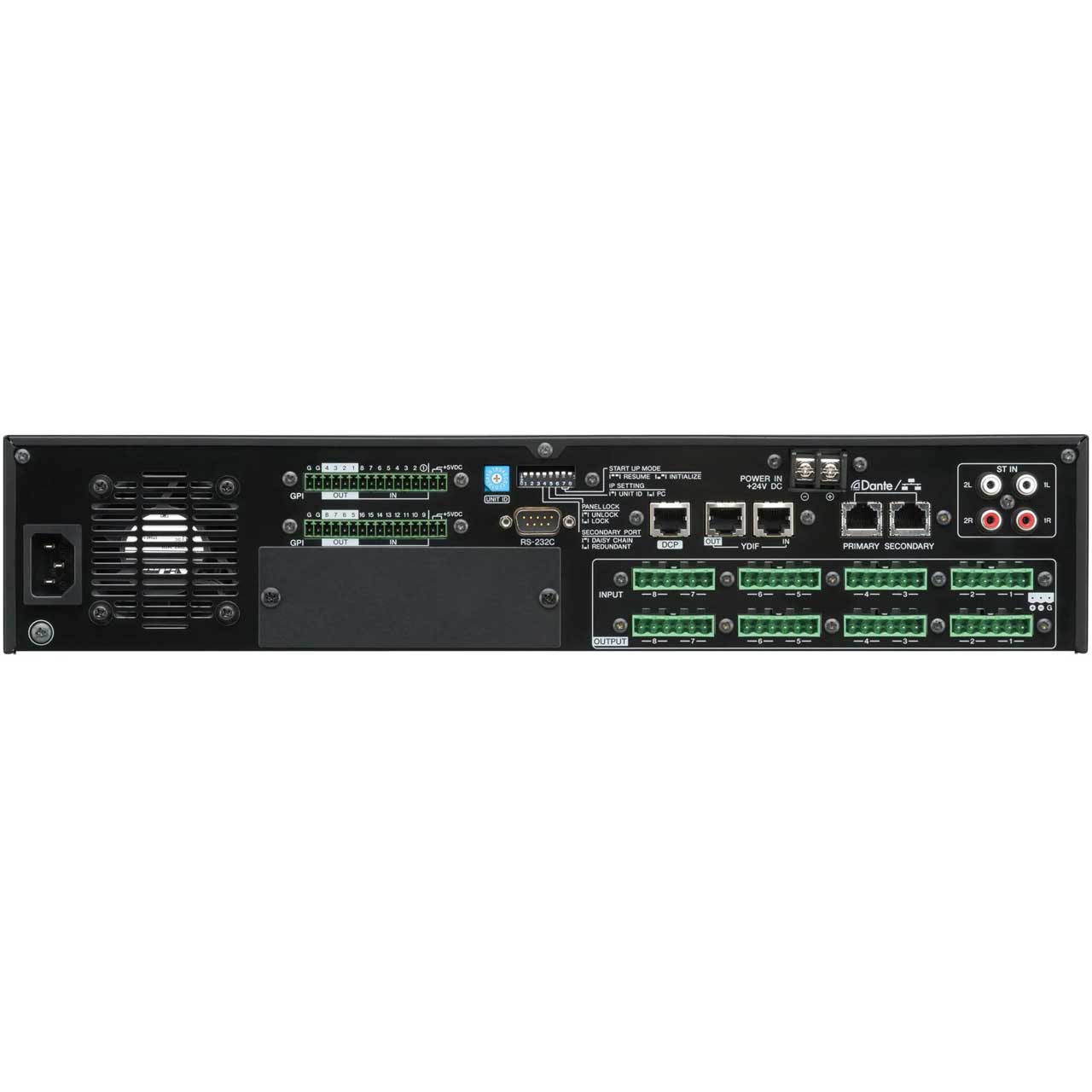

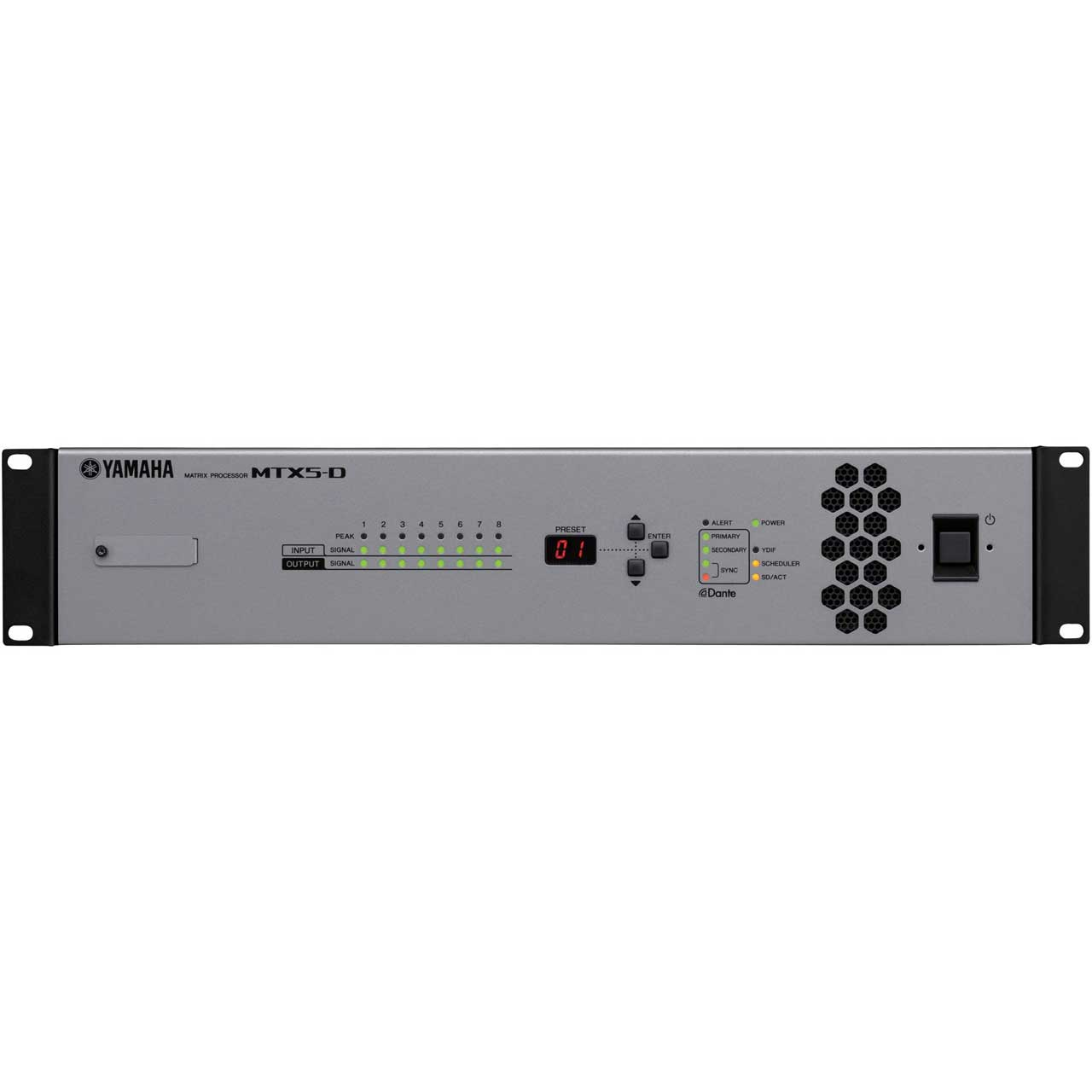

Yamaha MTX5-D 34 x 16 Matrix Mixer / Signal Processor

ITEM #: YMH-MTX5-D MFG #: MTX5-D

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,209.00

Our Price:

$2,874.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MTX5-D - Overview

Designed primarily for multi-zone commercial installations, MTX Series MTX5-D matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications such as retail stores, restaurant/bars or banquet rooms. Responsible for the primary processing functions at the heart of your system's design, MTX processors allow you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The series is comprised of two models with varying DSP capacities and expansion capabilities, allowing MTX processors to meet the demands of a truly impressive range of commercial environments.

  • Features:

    • SD Memory Card Slot for playback
    • Easily increase system inputs and outputs
    • MTX Digital Network System
    • Audio Network for MTX System
    • Dante for MTX (MTX5-D, XMV-D only)
    • Daisy Chain Network
    • Star Network
    • Redundant Network

  • Specifications:

    • Mixing capability
      Mixing Channels: Mixing Channel : 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
      Input Channel Functions: Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (available in ch 1-8)
      Output Channel Functions: Room Delay, Room EQ, Speaker Processor, X-Over (1way & 2way), Delay, 6-band PEQ, Limiter
    • I/O Phantom Power: +48V
    • Internal Processing: Priority Ducking, Ambient Noise Compensator
    • Sampling Frequency Rate: Internal: 48kHz/ 44.1kHz
    • Signal Delay: Less than 3.0ms (AD-DA @48kHz)
    • Total Harmonic Distortion: Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
    • Frequency Response: 20Hz to 20kHz, +0.5dB, -1.5dB
    • Dynamic Range:107dB (Gain:-6dB)
    • Hum & Noise Level: Equivalent input noise: -60dBu (Gain: +66dB), -83dBu (Gain: -6dB)
    • Crosstalk: -100dB
    • Heat Dissipation: 55.9kcal/h max
    • Power Requirements: AC100V-240V 50Hz/60Hz
    • Power Consumption: 65W
    • Dimensions (WxHxD): 18.9 x 3.4 x 13.9" (480 x 88 x 351mm)
    • Net Weight: 13.9Lbs (6.3kg)
    • Others: Memory bank: PRESET 50

  • GTIN:

    0086792973401
