TOA U-03S Line Input Module w/Lo/High Cut Filters & Screw Terminals

ITEM #: TOA-U03S MFG #: U-03S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$86.00

Our Price:

$70.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

U-03S - Overview

The U-03S is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a low-cut and a high-cut filter.

  • Specifications:

    • Power Source: 24 VDC
    • Current Consumption: Less than 8 mA
    • Input Sensitivity (Rated Output 100 mV ): 100 - 3,600 mV (adjustable)
    • Low Cut Filter (100 Hz ): -5 - -15 dB
    • High Cut Filter (10 kHz ): -7 - -13 dB
    • Noise Output (20 Hz - 20 kHz BPF): Less than 10 æV
    • Distortion: Less than 0.05 %
    • Frequency Response: 20 Hz - 20 kHz

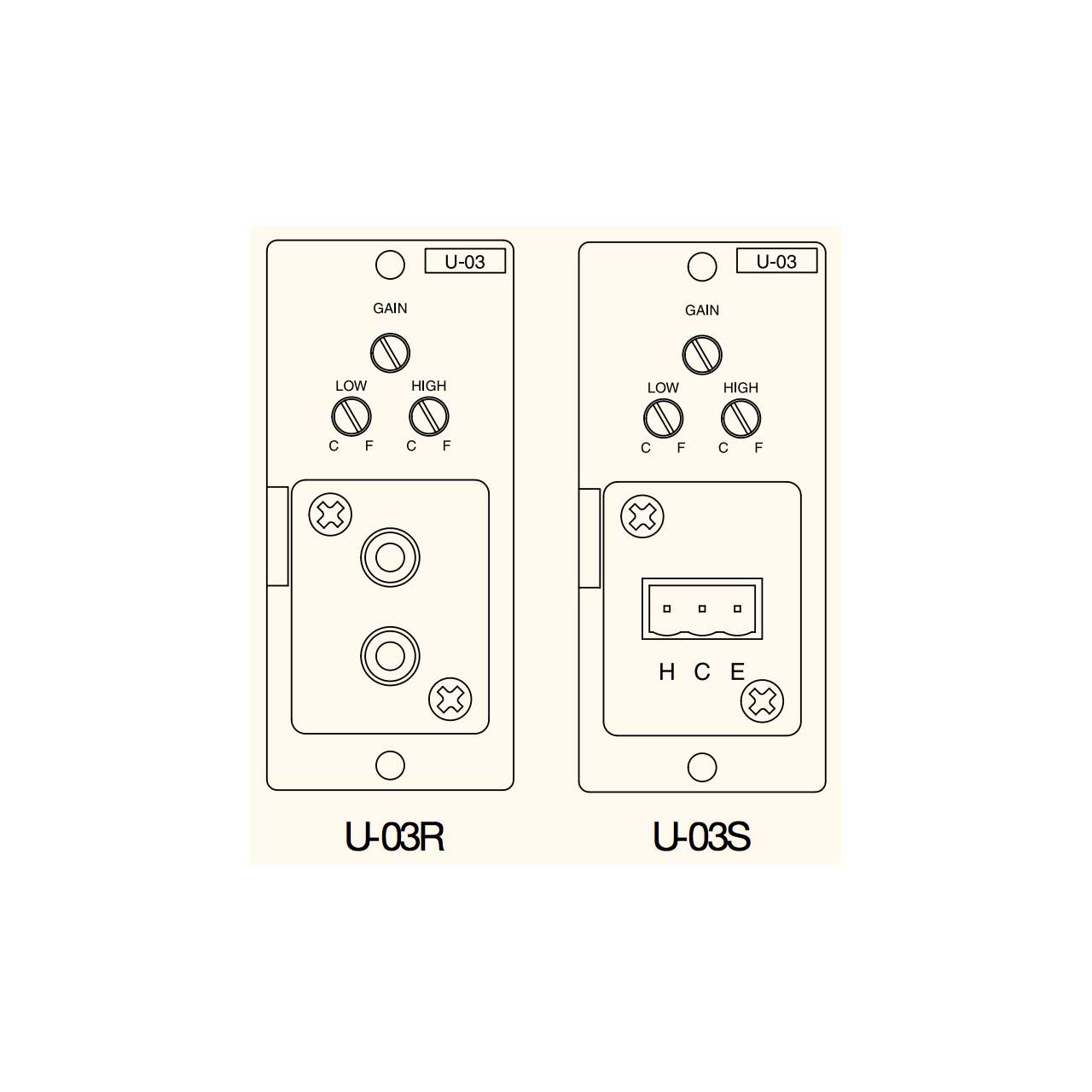

    • Input Connector: 3P terminal block
    • Output Connector: 6P card edge-connector
    • Dimensions: 35 (W) x 78 (H) x 88 (D) mm
    • Weight: 50 g
