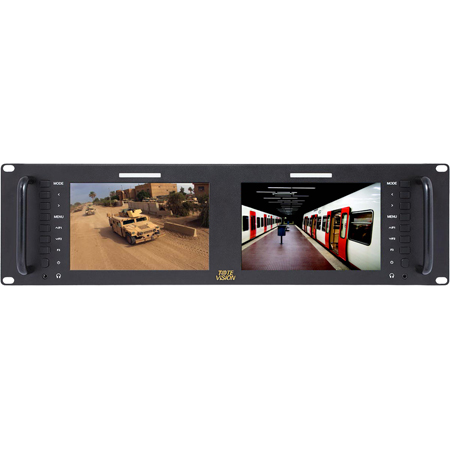

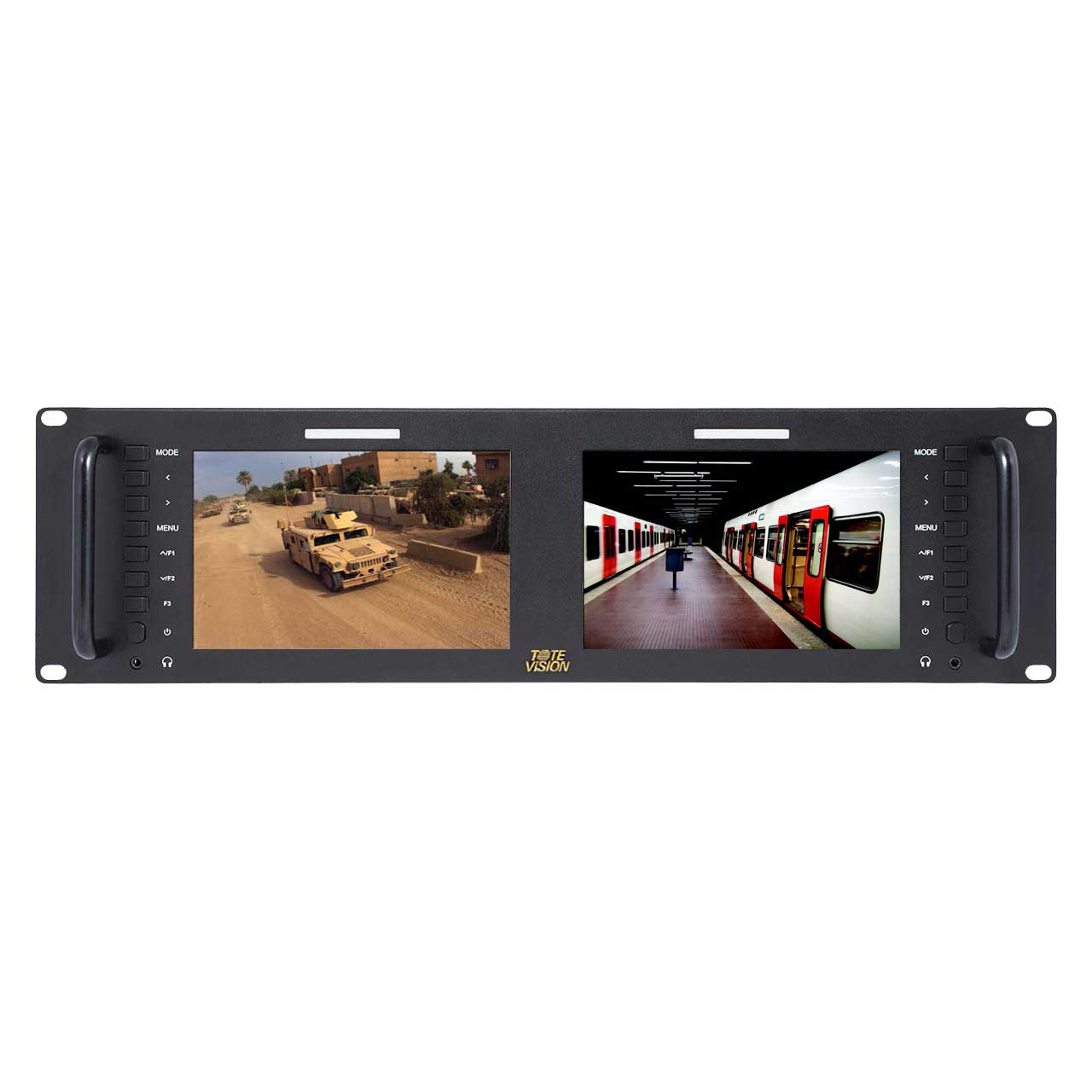

ToteVision LED-712-4K2 3RU Dual 7-Inch 1920x1200 450 Nit Rackmount Monitor with HDMI/BNC/1200:1/16.7m Colors/Audio In

LED-712-4K2 - Overview

• Features:

  • LED backlight: brighter picture using less power
  • Native 1920 x 1200 resolution displays up to 4K (3840 x 2160p @30Hz) imagery
  • Multiple software features including Peaking Filter (monochrome), Check Field (B/W/R/G/B), Center Marker, Safe Area, Under Scan / Over Scan, Ratio Marker, Anamorphic Mode (1.3x, 2x, 2x Mag, User-defined 1.2x ~ 2x), Image Freeze, Image Flip (U/D/R/L), Noise Reduction, and Zoom (4x, 9x, 16x)


• Specifications:

  • Mount: 3RU
  • Case: Durable Metal
  • Display: 7" TFT LCD active matrix
  • Resolution: 1920 x 1200 (displays up to 4K (3840 x 2160) resolution
  • Native Aspect Ratio: 16:10
  • Visible Screen Size: 5.95" x 3.7" / 151.2 x 94.5mm
  • Back Light: LED
  • HD Compatible: Yes (displays up to 2160p)
  • Brightness: 450 cd/m² (Nit)
  • Contrast: 1200:1
  • Dot Pitch: 0.07875(H) x 0.7875(V) mm
  • Viewing Angle (L/R/T/B): 80/80/80/80 degree
  • HDMI: x1 Input; x1 Output; supports 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98, 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 4K UHD 3840x2160p (30/29.97/25/24 /23.98 Hz), and 4096x2160p (24Hz) resolutions
  • Composite: x1 BNC Input; x1 BNC Output
  • Audio: x1 3.5mm Input; Built-in Speakers
  • Power: x1 DC Input
  • Operating Temp: 14 ~ 140°F / -10 ~ 60°C
  • Power Requirements: 12VDC (9VDC ~ 24VDC)
  • Power Consumption: = 8 Watts (Max)
  • Dimensions: 19" x 5.5" x 1.4" / 482.6 x 139.8 x 35.6mm
  • Product Weight: Net: 6.15 lbs / 2.79 kg


• Item Includes:

  • 1x ToteVision LED-712-4K2 3RU Dual 7-Inch 1920x1200 450 Nit Rackmount Monitor with HDMI/BNC/1,200:1/16.7m Colors/Audio In
