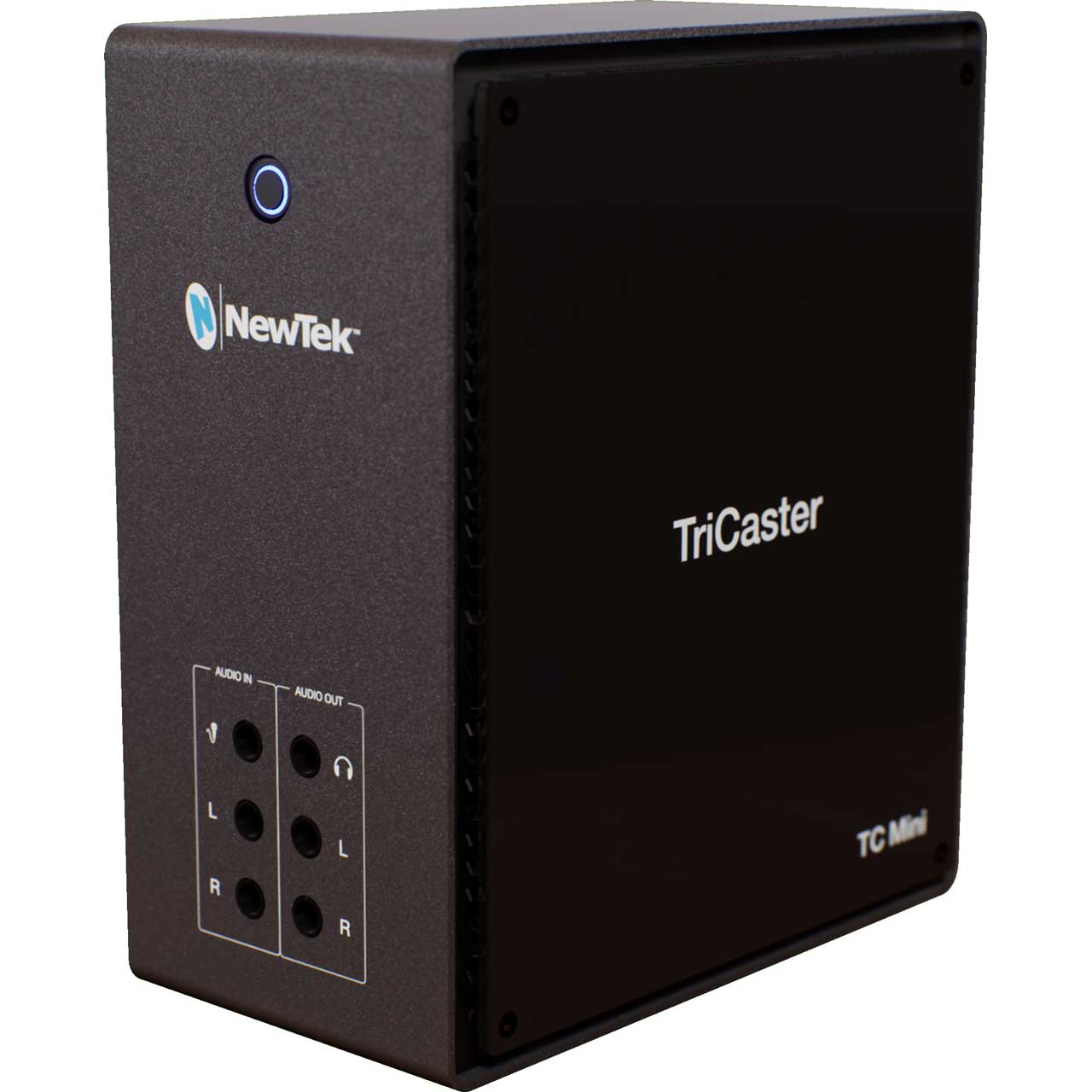

VIZRT TCM4KUH Tricaster Mini with UHD 4K Support

ITEM #: TRI-TCM4KUHD MFG #: FG-002780-R001

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$9,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FG-002780-R001 - Overview

VIZRT TC Mini (TCM4KUHD) is an easy to use compact video creation system to let anyone with a story to tell make fun and exciting shows without needing production expertise.

You don't have to be a video expert to tell your story with television-quality results. With TC Mini, you can be on your way to making a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini takes portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, and even live motion graphics and Live Story Creator MS Word® show automation with Premium Access. TC Mini delivers you all the benefits of IP based production using NDI® for easy connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras and devices without cable length limitations.

No other portable video creation system offers so many easy and enjoyable ways to tell stories in such a small package for the price than TC Mini. The compact unit is easy to transport and set up with all the features you need to deliver high quality shows to screens and displays of any size or shape. With NDI®, TC Mini connects to a wide variety of VIZRT and third-party systems over IP like cameras, converters, and custom software applications. Direct one-to-one connectivity with HDMI cameras and devices simplifies configurations and removes cable length limitations.

  • Features:

    • 4K Ultra HD
    • Multi-Source Video Mixing
    • Built-In Video Servers
    • Skype TX Software Integration
    • Recording
    • Replay
    • Live Streaming
    • Social Media Integration
    • Live Sound Experience
    • Phenomenal Creative Elements
    • Real Time Monitoring and Multiviewers
    • Studio Grade Video Tools
    • Spectular Live Chromakeying
    • World Class Live Virtual Sets
    • Interconnected Workflows

  • Specifications:

    • Network Video Input: 8x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of st&ard formats, resolutions, & frame rates*: 2160p 59.94, 50, 29.97, 25, 24, 23.976, 1080p: 59.94, 50, 29.97, 25, 24, 23.976, 1080i: 59.94, 50, 720p: 59.94, 50, 29.97, 25, SD: 59.94, 50, 25
    • Note: *Available frame rates determined by model & session video st&ard (NTSC or PAL)
    • PTZ: Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial & network protocols, including RS232, RS422, & IP, with integrated controls & preset system
    • Network Video Output: 2x independent IP video mix outputs via NDI®
    • Stream Output: 2x streaming video output, independently configurable, with simultaneous stream archive
    • Monitor Outputs: 4x mini display port with HDMI output adapters; 2x of the outputs support multiviewers using st&ard display resolutions
    • Mix/Effect Buses (M/E): 4x M/E buses supporting video re-entry; 1x Mix/Effect channel per bus with support for up to 2 sources; 2x KEY layers per bus; 9x memory slots per bus; DSK Channels: 2x DSK channels
    • Media: 5x media players; 2x DDR; 2x GFX; 1x Sound; 15x media buffers; 5x animation buffers; 10x graphic buffers
    • Keyers: Integrated LiveMatte™ chroma & luma keying technology on all source channels & M/E buses; 8x input keyers; 2x media player keyers; 4x M/E keyers; 15x buffer keyers
    • COMP: Integrated video composition engine on the switcher & each M/E bus to create, store, & apply layer configurations & DVE-style motion sequencesl; 16x configurable COMP presets per bus
    • Virtual Sets: Integrated LiveSet™ technology with 30+ live virtual sets & box effects included
    • DataLink: Integrated DataLink™ technology enabling real-time, automated data input from internal & external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII & more
    • Recording: 4x recording channels from either NDI® inputs or Mix outputs (10x with Premium Access)
    • Records & Retains Alpha Channel Data: 4x QuickTime® archival video recorders*
    • Note: *QuickTime Player not required for playback in common NLE applications
    • Storage: Capacity varies by format, resolution & file specification; Supports recording to external storage via USB 3.0
    • Grab: Grab full-resolution, deinterlaced still images from external video sources & outputs
    • Export: Export video & image files to social media, FTP, local or external volumes, & network servers, with optional transcoding
    • Audio Mixing: Integrated multi-channel audio mixer with support for stereo audio, & DSP's
    • Local Audio Input: 1x 1/4" bal. mic; 2x 1/4" bal. line
    • Local Audio Output: 2x 1/4" bal. line; 1x 1/4" stereo headphones jack
    • Network Audio: Native support for network audio input & output via NDI®; Embedded audio supported for all NDI® input & output video signals; Integrated support* for Dante™ networking protocol from Audinate®
    • Note: *Requires Dante Virtual Soundcard license from Audinate; Requires third-party virtual sound card license (both sold separately)
    • Supported Media File Formats: Import/store & play back multimedia files, with optional transcoding.
    • Processing: Video: Floating Point YCbCr +A 4:4:4:4; Audio: Floating Point, 96kHz
    • Throughput Latency: ~1.0-1.5 frames
    • Tally: Support for network tally via NDI®
    • MIDI: Support for st&ard MIDI protocol enabling third-party device control
    • NIC: 2x 1 Gigabit NIC
    • Physical: System chassis, including adjustable cable retention bracket; Dimensions: 4.6 x 9.2 x 7.9"; Weight: 9lbs

  • Item Includes:

    • 1x TriCaster Mini
    • 2x Spark Plus 4K IO Converters
