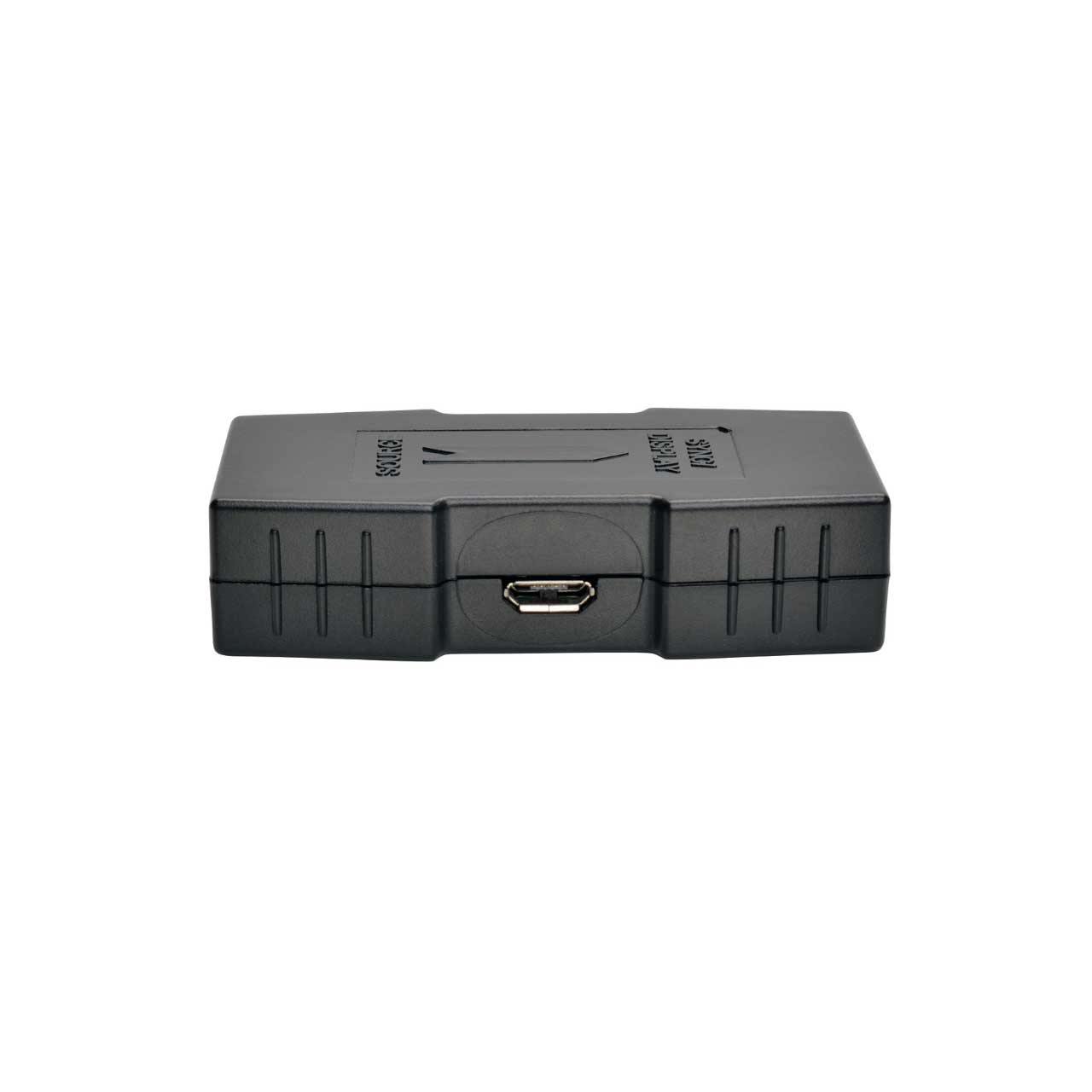

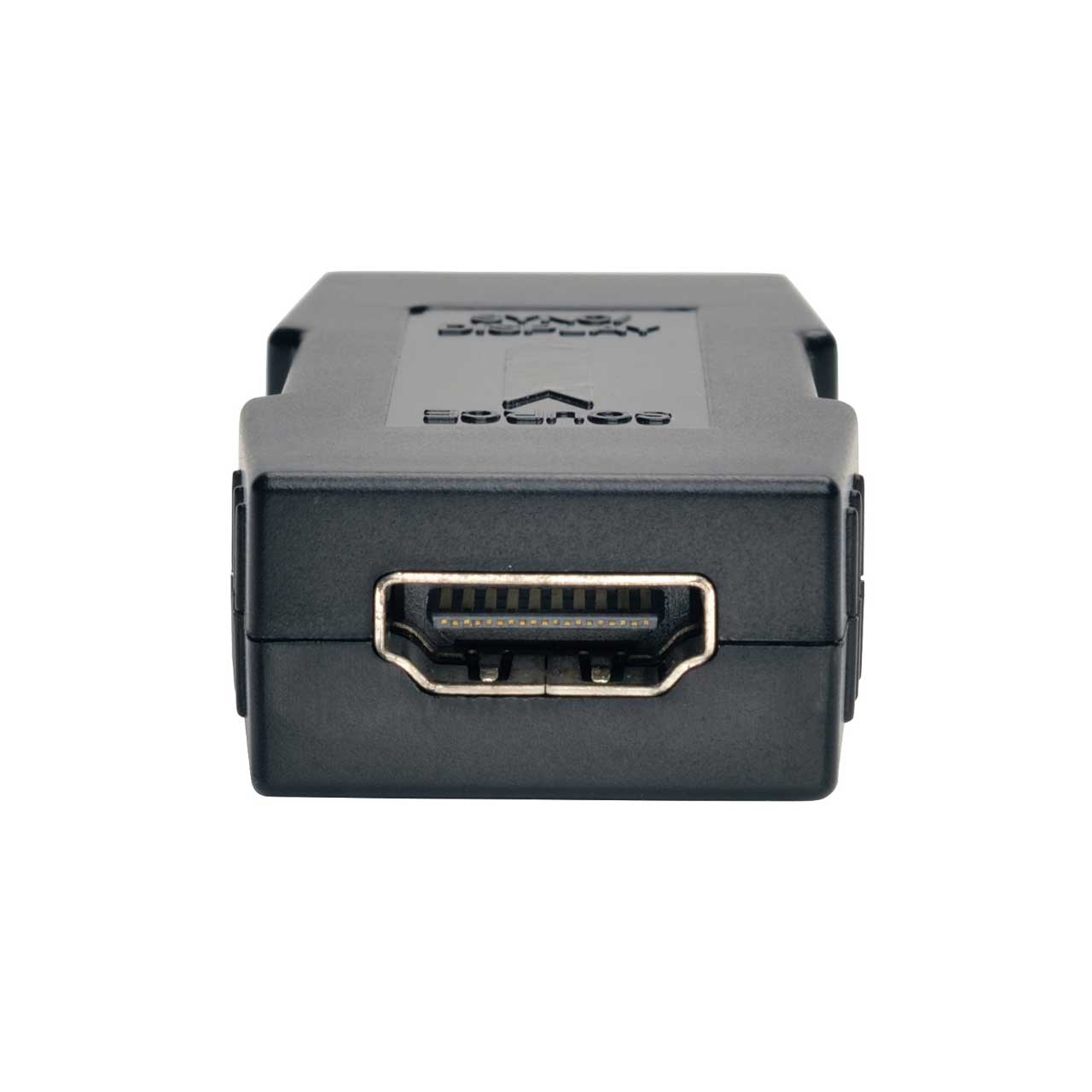

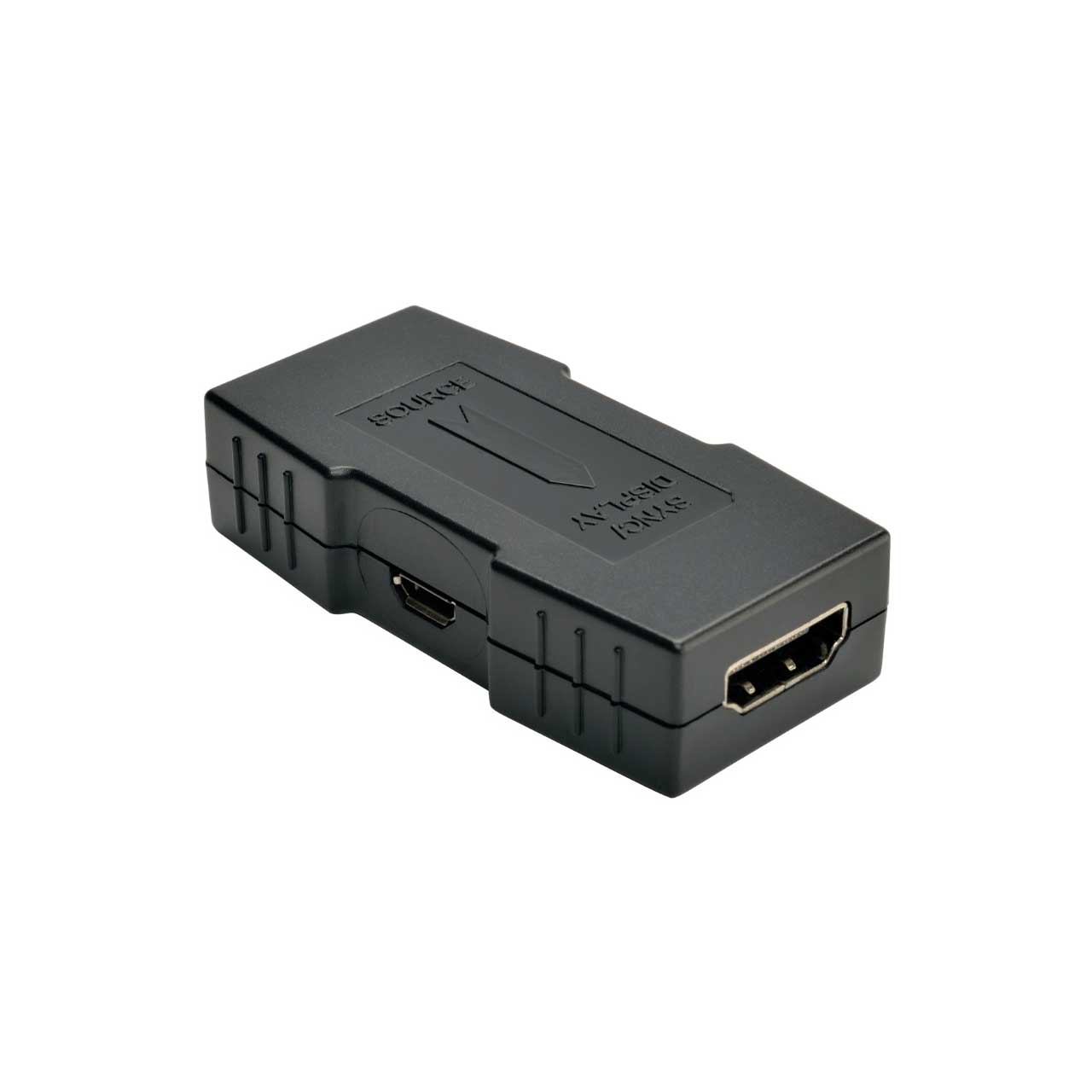

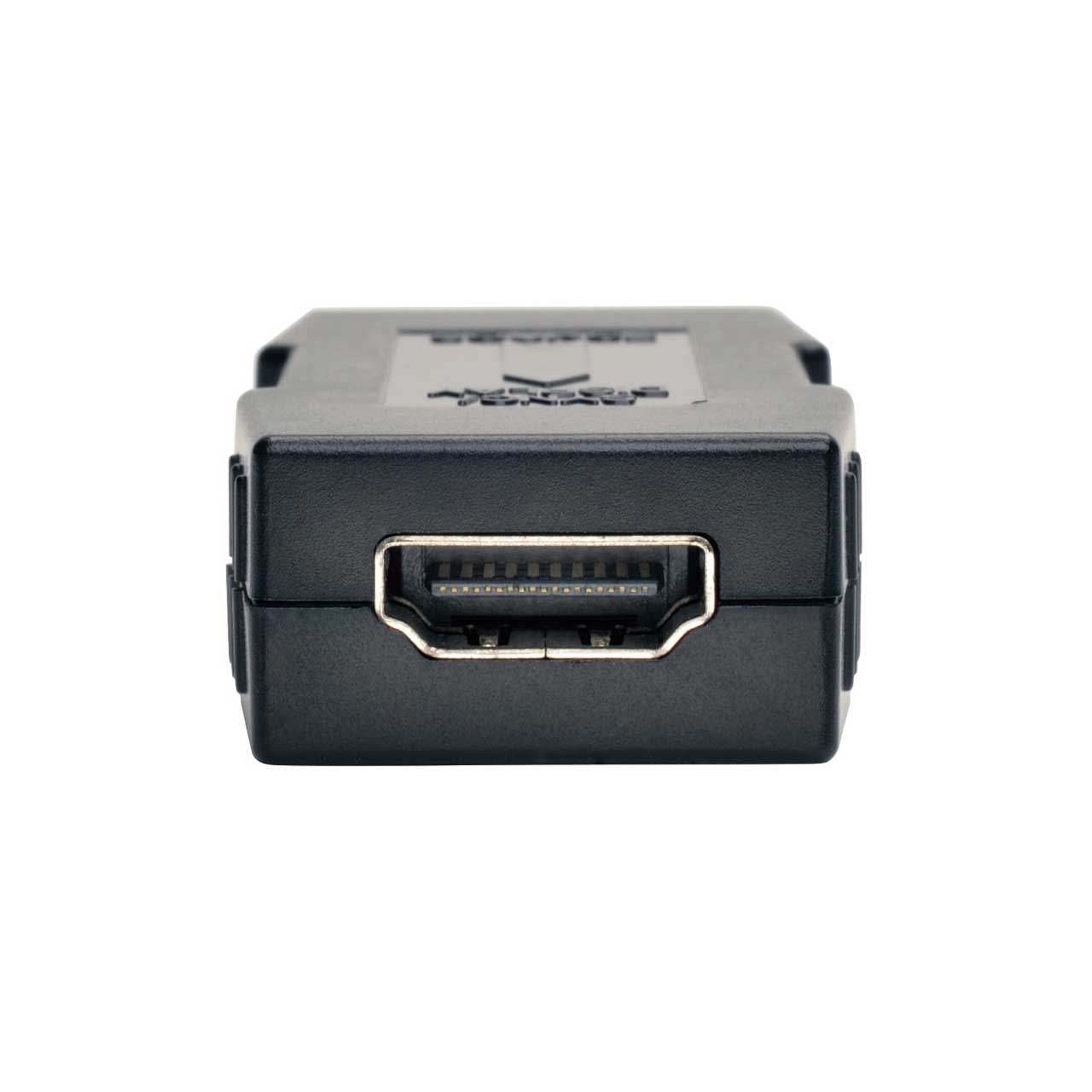

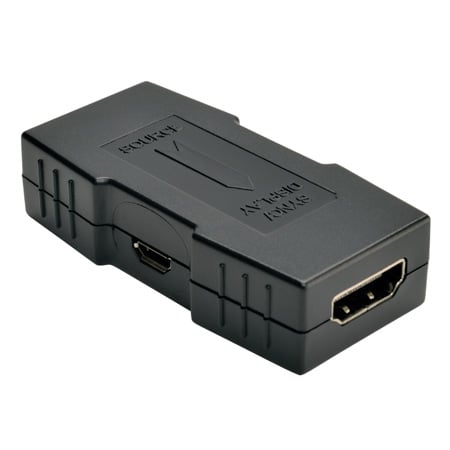

Tripp Lite's B122-000-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16-ft. (5M). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 150-ft. from the source. Use standard P568-Series HDMI cables in most applications.
When extending a 1080p @ 60Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24 AWG wiring, such as the P568-100-HD. 24 AWG HDMI cable is also needed when extending a 3D signal more than 50-ft. A 3D signal can be extended up to 125-ft. using 24 AWG HDMI cable. Simply connect the longer cable between the source and the B122-000-60, and the shorter cable (16-ft. or less) between the adapter and the monitor. Software or drivers are not required. External power is not required in most installations. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
