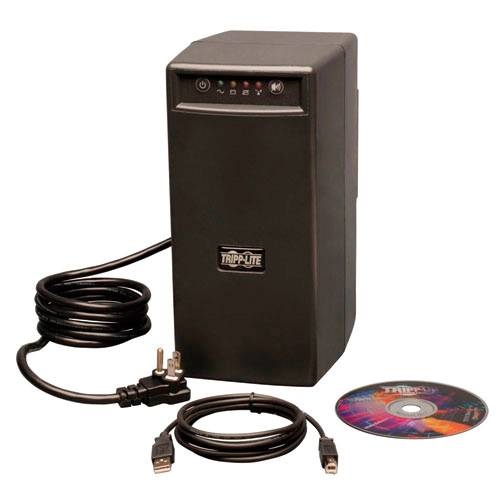

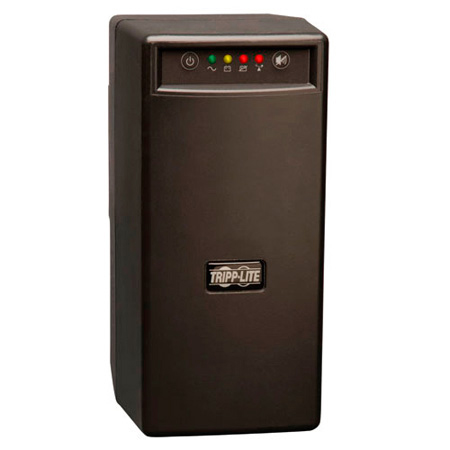

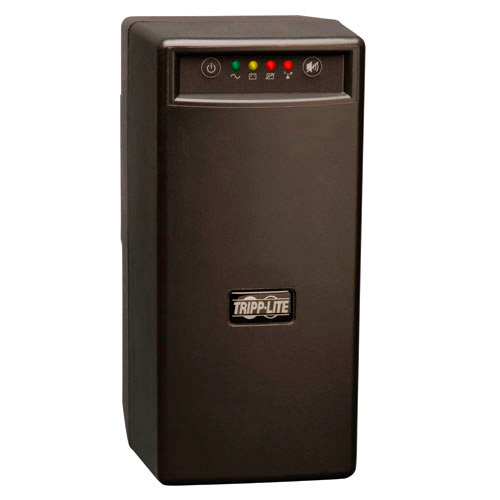

Tripp Lite BC600SINE 600VA 375W UPS Battery Back Up Pure Sine Wave PFC Tower 120V USB

ITEM #: TRL-BC600SINE MFG #: BC600SINE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-BC600SINE

BC600SINE - Overview

Tripp Lite's BC600SINE UPS system provides long-lasting battery backup for professional workstations, PCs, networking equipment and other sensitive electronics. Sine wave output in both line and battery power modes provides compatibility with all electronic loads, including PC and Mac systems fitted with Active Power Factor Corrected (PFC) power supplies. Uninterruptible Power Supply switches to battery derived sine wave AC output during power failures and severe voltage fluctuations so that connected equipment can be operated normally and shut down without data loss. Provides 18 minutes battery runtime with a typical desktop computer system (100 watts). Includes 3 battery-supported outlets for computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in case of extended power failure; cable included. USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert software is also included for a variety of desktop and network shutdown agents. Built-in audible alarm and 4 front-panel LEDs indicate line power status, battery power status, overload status and battery low/replace status. 650VA/375W power handling ability supports professional workstations, desktop PCs, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Supports user battery replacement via built-in access panel. $150,000 connected equipment insurance (USA, Puerto Rico, & Canada only).

  • Features:

    • Tripp Lite's BC600SINE tower, sine wave UPS system provides long-lasting battery backup for a variety of computer and electronic applications
    • Sine wave output in both line and battery modes provides compatibility with all electronic loads, including PC and Mac systems fitted with Active Power Factor Corrected (PFC) power supplies
    • BC600SINE UPS system switches to battery derived sine wave AC output during power failures and severe voltage fluctuations with enough time to shut down without data loss
    • 650VA / 375 watt UPS capacity with 3.3 minutes runtime at 100% load and 11.1 minutes at 50% load
    • Provides 18 minutes battery runtime with a typical desktop computer system consuming 100 watts

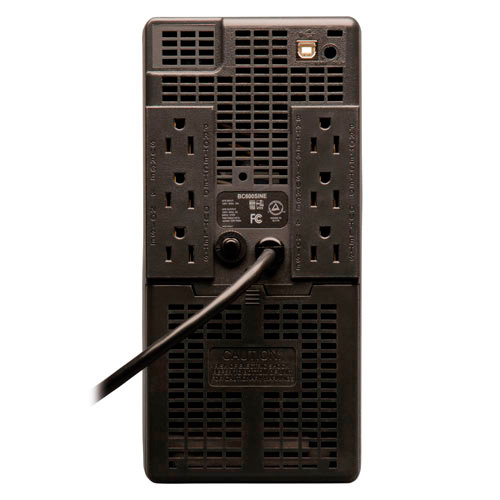

    • Includes 3 battery-supported outlets for computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support
    • USB port enables optional unattended system shutdown without data loss in case of extended power failure; USB cable included
    • HID-compliant USB port enables integration with built-in power management and auto-shutdown of Windows and Mac OS X
    • PowerAlert software CD included
    • Built-in audible alarm with cancel switch warns of power failure conditions; once silenced, alarm will re-sound as batteries approach full discharge
    • Alarm can be permanently silenced via PowerAlert interface

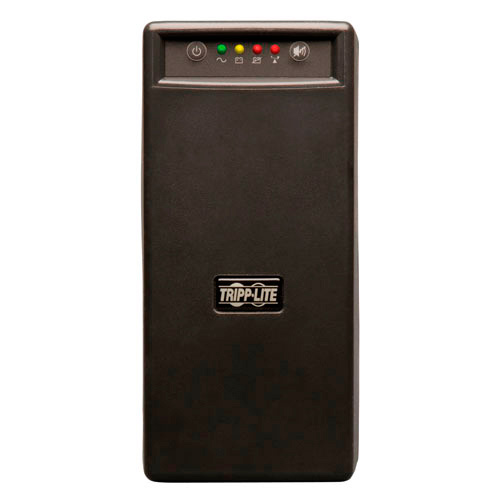

    • 4 front panel LEDs indicate line power status, battery power status, overload status and battery low/replace status
    • Supports user hot-swappable battery replacement via built-in access panel
    • Optional PDUB15 bypass PDU enable hot-swappable UPS replacement with no disruption to connected equipment
    • $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

  • Specifications:

    • Output Volt Amp Capacity (VA): 600
    • Output Watt Capacity (Watts): 375
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Battery Mode): +/- 5%
    • Output Receptacles: (6) 5-15R
    • UPS Output Receptacles (Surge Suppression Only): 3 UPS outlets, 3 surge-only outlets
    • Hot-Swap PDU options: PDUB15 (2U / 8 5-15R outlets)
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Rated input current (Maximum Load): 10A Max (UPS and surge-only loads combined)
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-15P
    • UPS Input Connection Description: Space-saving angled input plug
    • UPS Input Cord Length (ft.): 6
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase
    • Full Load Runtime (min.): 3.3 min. (375 watts)
    • Half Load Runtime (min.): 11.1 min. (190 watts)
    • DC System Voltage (VDC): 12
    • Battery Recharge Rate (Included Batteries): Less than 9 hours from 10% to 90%
    • Internal UPS Replacement Battery Cartridge: RBC51
    • Battery Replacement Description: Hot-swappable, user replaceable batteries
    • LED Indicators: LINE POWER (green), INVERTER MODE (yellow), OVERLOAD (red), REPLACE BATTERY (red)
    • Audible Alarm: Audible alarm indicates power failure and overload conditions
    • Alarm Cancel Operation: Power-fail alarm can be silenced during a power failure.
    • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
    • UPS AC Suppression Joule Rating: 252
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes
    • Cooling Method: Fan
    • UPS Housing Material: Steel
    • PowerAlert Software: Included
    • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Low Voltage Transfer to Battery Power (Setpoint): 99V
    • High Voltage Transfer to Battery Power (Setpoint): 139V
    • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
    • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

  • Item Includes:

    • BC600SINE UPS System
    • USB Cable
    • Owner's manual

  • GTIN:

    0037332159618
