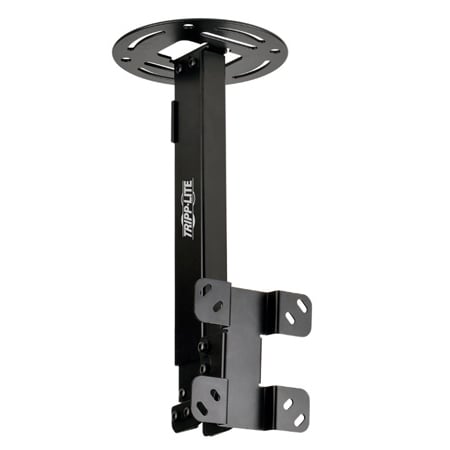

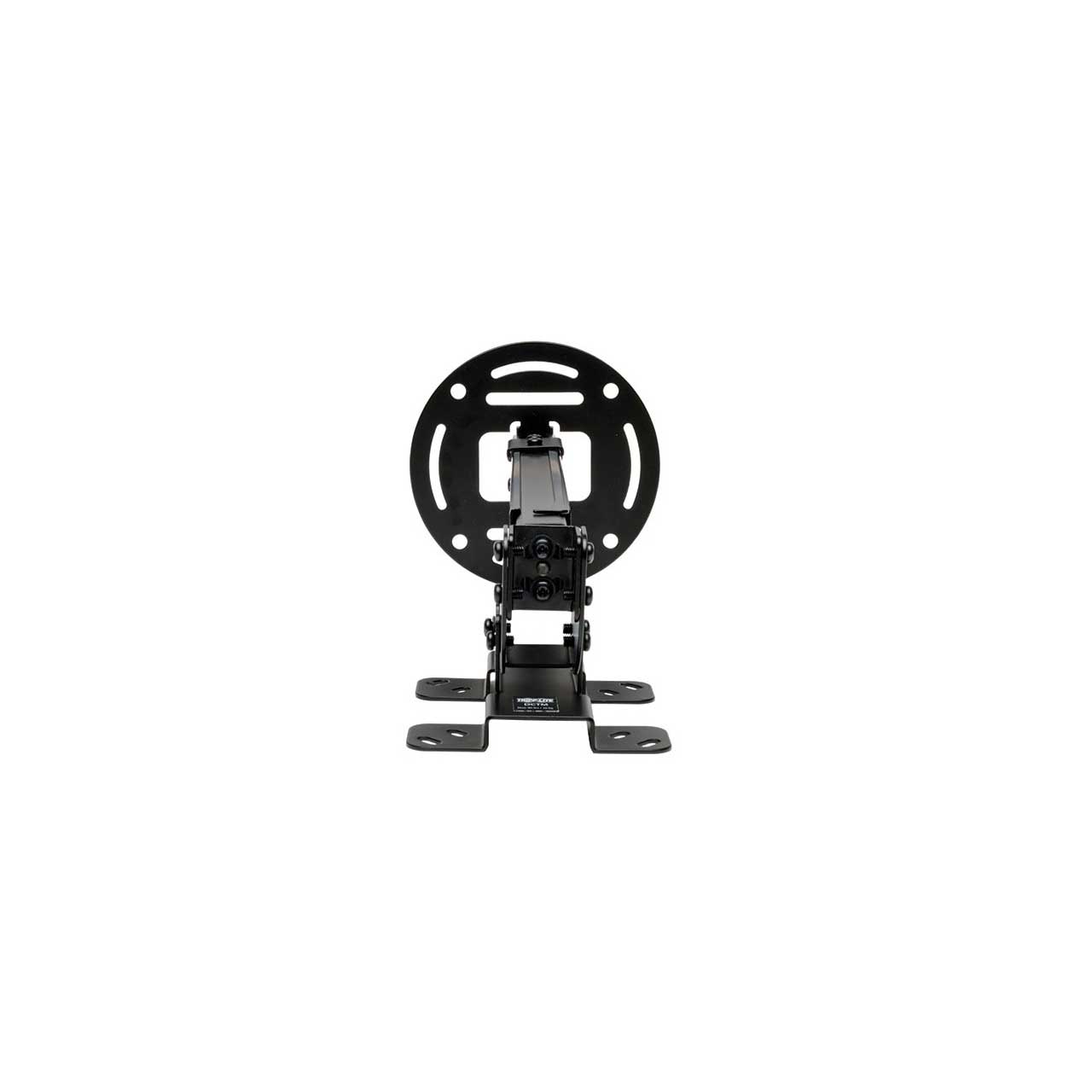

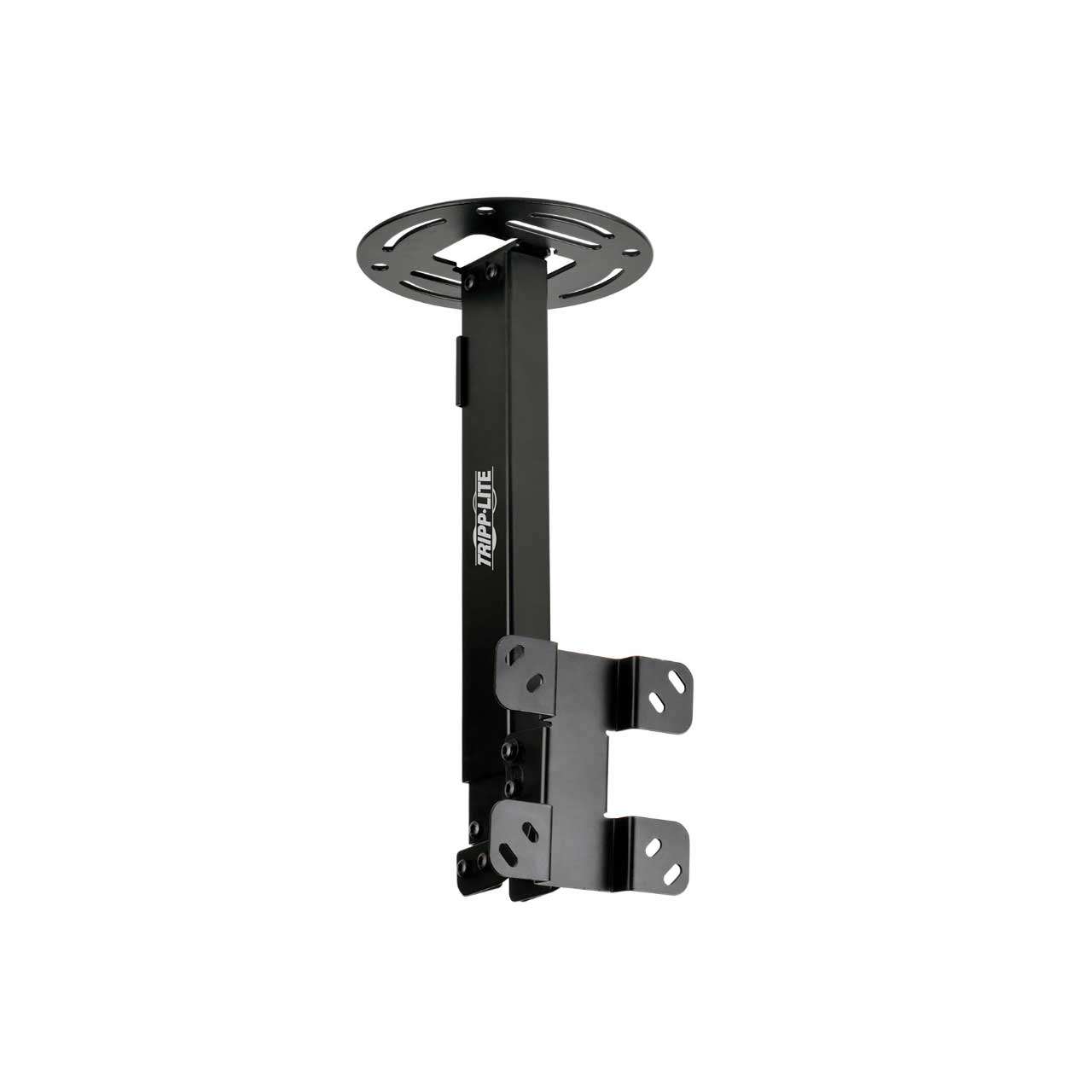

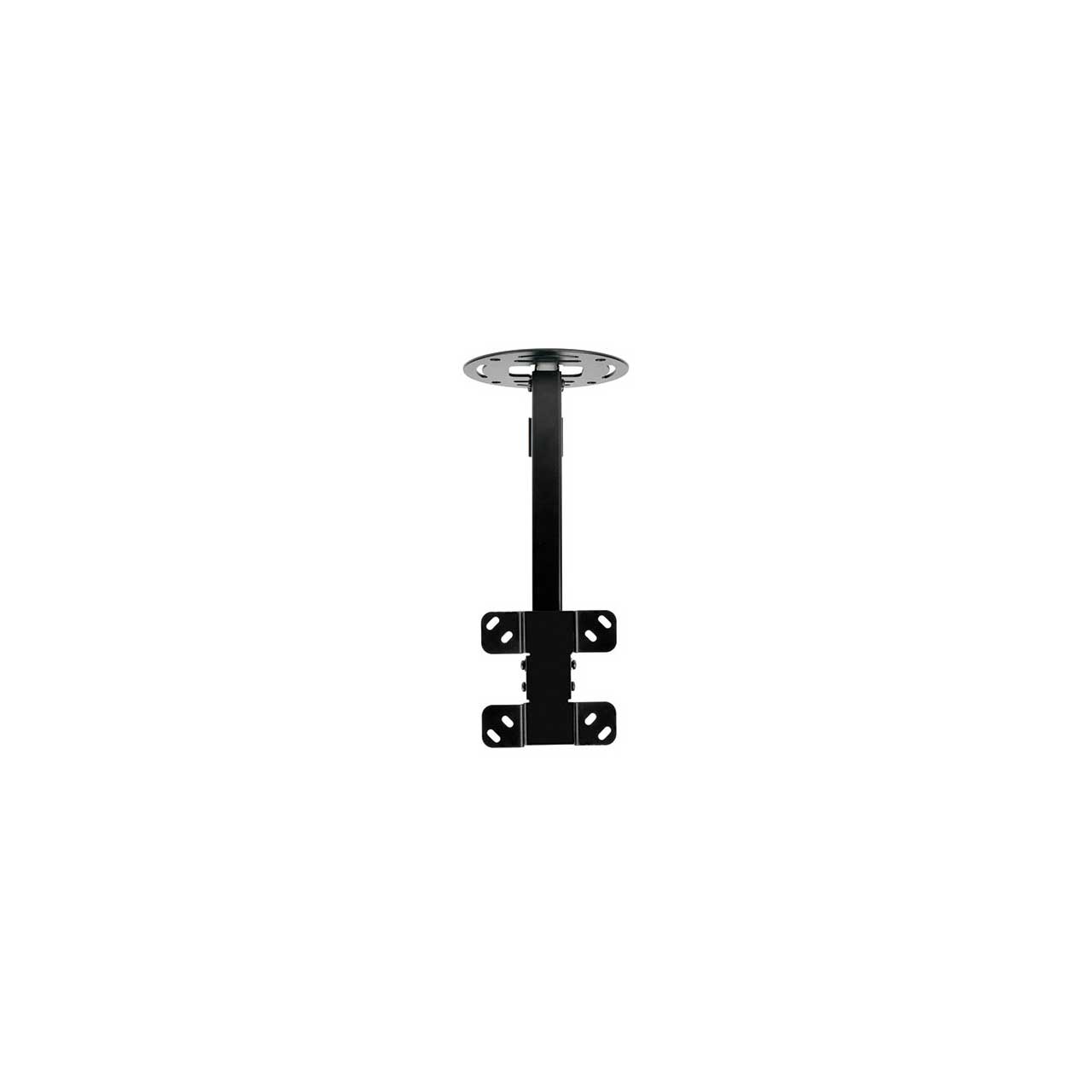

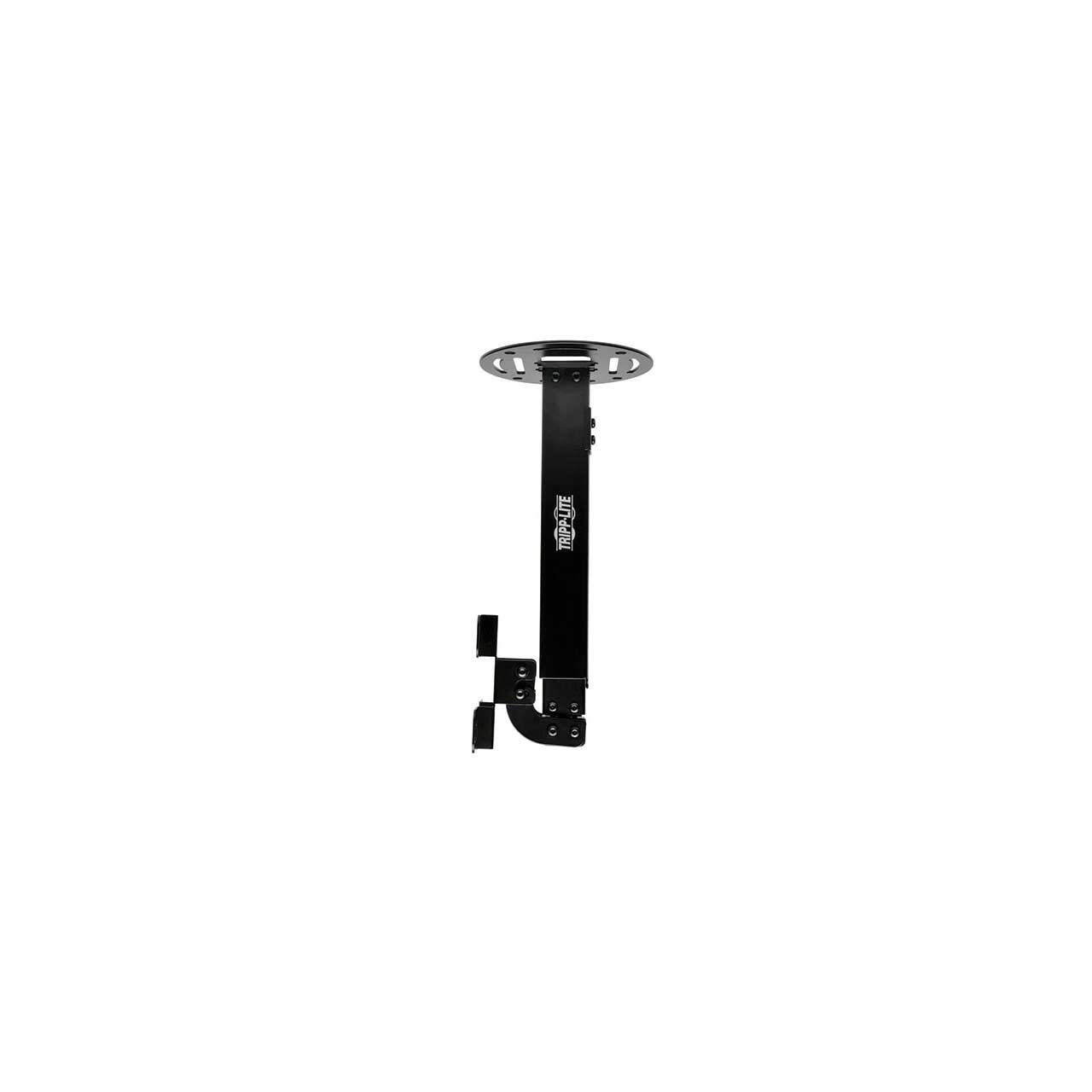

Tripp Lite DCTM Full Motion Ceiling Mount for 10 Inch to 37 Inch TVs and Monitors

ITEM #: TRL-DCTM MFG #: DCTM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$71.00

Our Price:

$53.56

Availability: In Stock
iAvailability Description Popup


DCTM - Overview

The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 10 to 37 inches. The DCTM adjusts with one easy touch to customize your viewing at any time. A 90° swivel and -30° tilt capability minimizes glare and provides comfortable viewing from multiple angles. The durable all-metal pole extends from 11 to 21 inches and supports up to 80 pounds. The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 100 x 200 mm and 200 x 200 mm.

  • Features:

    • Save Valuable Wall and Floor Space
    • Suspends flat-panel TV, monitor or other display from ceiling
    • Fits most flat-panel devices from 10 to 37 in.
    • Installation hardware included
    • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants Convenient One-Touch Adjustment
    • 90° swivel and -30° tilt capability provides comfortable viewing from multiple angles Durable Metal Construction
    • Supports up to 80 lb.
    • Pole extends from 11 to 21 in.
    • Scratch-resistant powder-coated finish blends with any décor VESA Compliance
    • Supports the following VESA mounting hole patterns: 75 x 75 mm, 100 x 100 mm, 100 x 200 mm and 200 x 200 mm

  • Specifications:

    • Mounting Location: Ceiling
    • Unit Dimensions (hwd / in.): 23 x 6.50 x 6.50
    • Unit Dimensions (hwd / cm): 58.42 x 16.51 x 16.51
    • Unit Weight (lbs.): 5.52
    • Unit Weight (kg): 2.5
    • Material of Construction: Steel
    • Color: Black
    • Screen Size Compatibility (in.): 13789
    • Screen Size Compatibility (cm): 25.4 - 93.98
    • VESA Pattern (mm): 75x75; 100x100; 100x200; 200x200
    • Motion: Full
    • Degrees of Motion: -30 degree tilt, 90 degree swivel
    • Min/Max Arm Extension (in.): 11 - 21"
    • Min/Max Arm Extension (cm): 27.94 - 53.34
    • Maximum Weight Capacity (lbs.): 80
    • Maximum Weight Capacity (kg): 36
    • Tools Necessary: Yes
    • Cord Management: No
    • Product Warranty Period (Worldwide): 5-year limited warranty

  • Item Includes:

    • Bracket on mounting pole

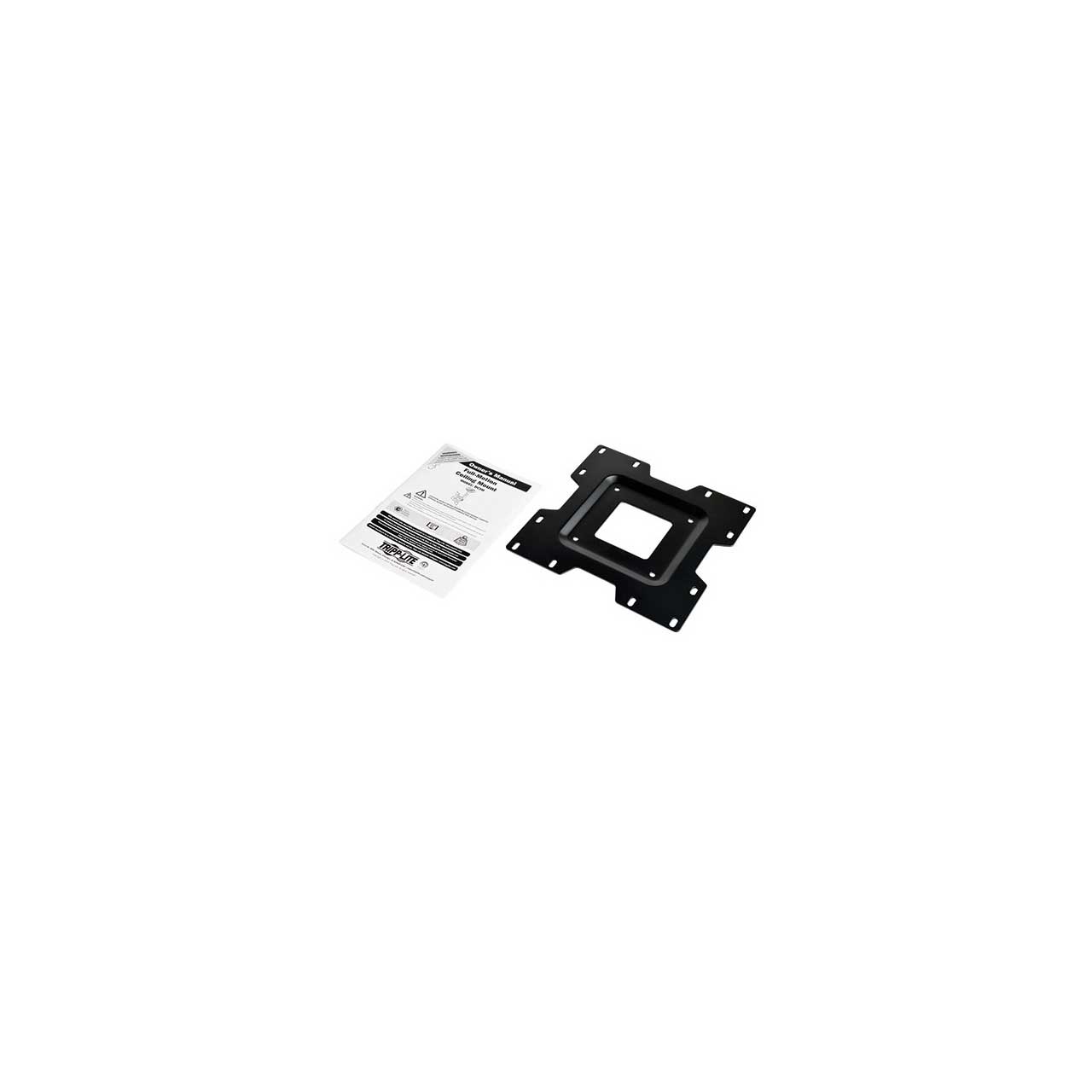

    • Mounting plate
    • (4) M4 x 12 mm screws
    • (4) M4 x 20 mm screws
    • (4) Screws
    • (4) Anchors
    • (4) 27 mm x 7.6 mm washers
    • (4) M6 x 12 mm screws
    • (4) M6 x 20 mm screws
    • (4) M5 x 12 mm screws
    • (4) M5 nuts
    • (4) 16 mm x 5.3 mm washers
    • (4) Big spacers
    • (4) M6 lock washers
    • (4) M4 lock washers
    • Hex key
    • Owner’s manual

  • Warranty:

    • 5 Year

  • GTIN:

    0037332223456
