DWF4585X - Overview

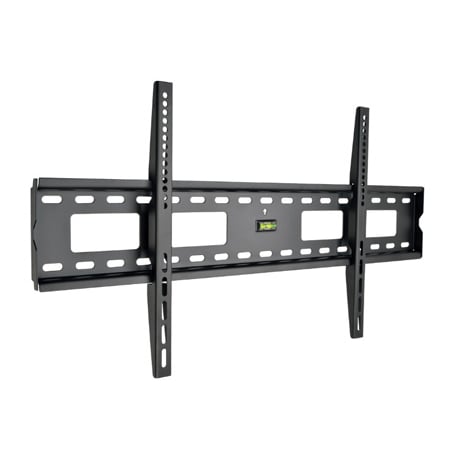

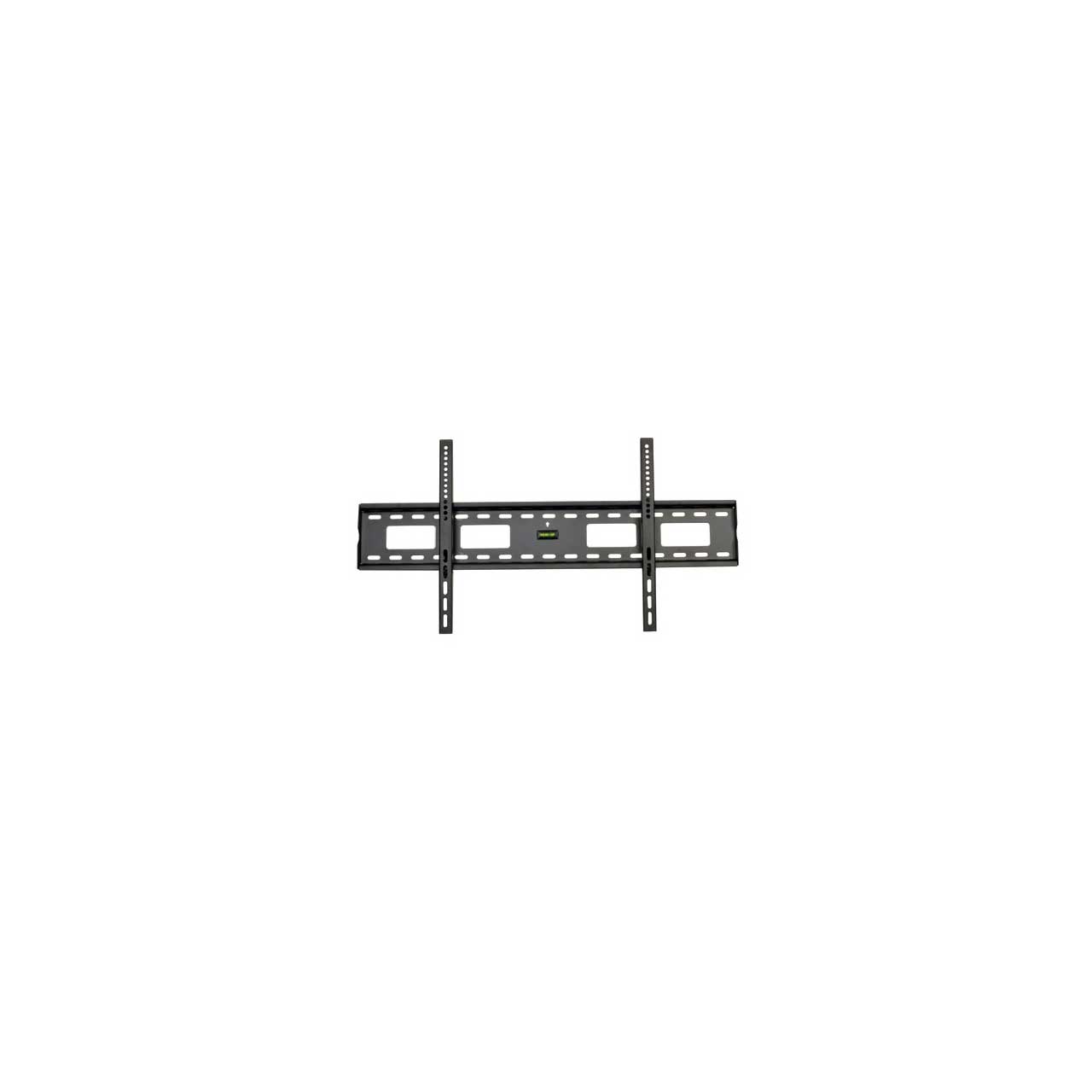

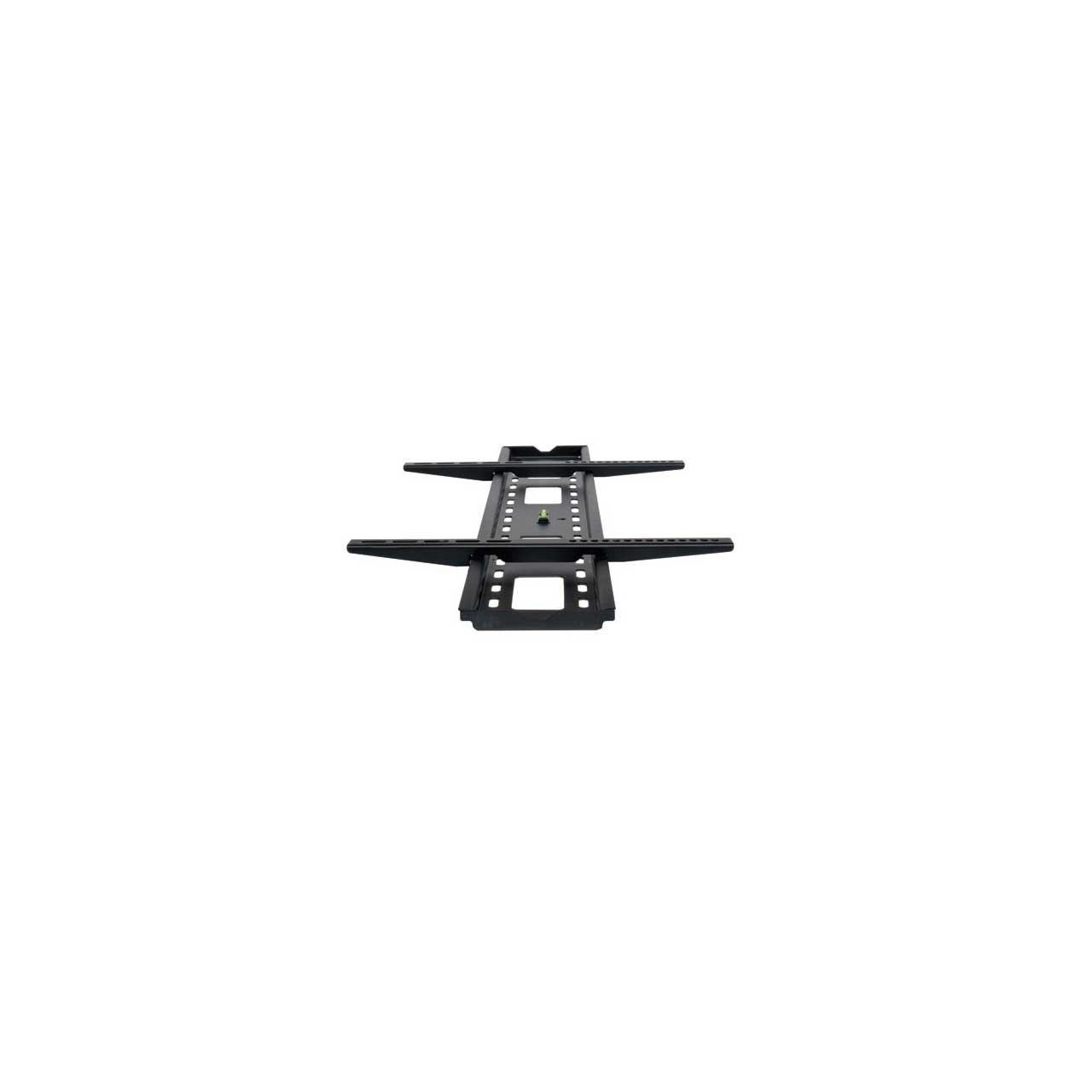

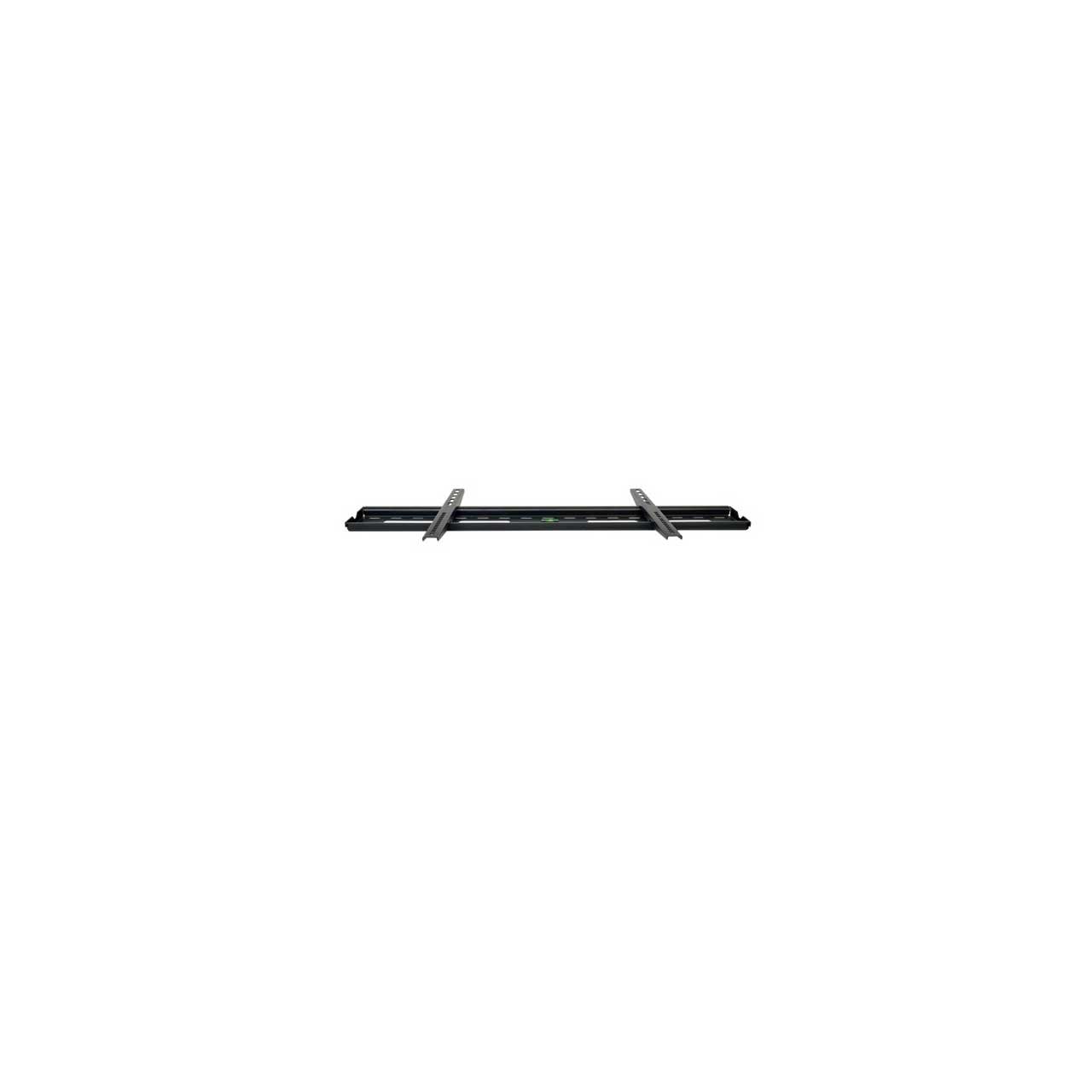

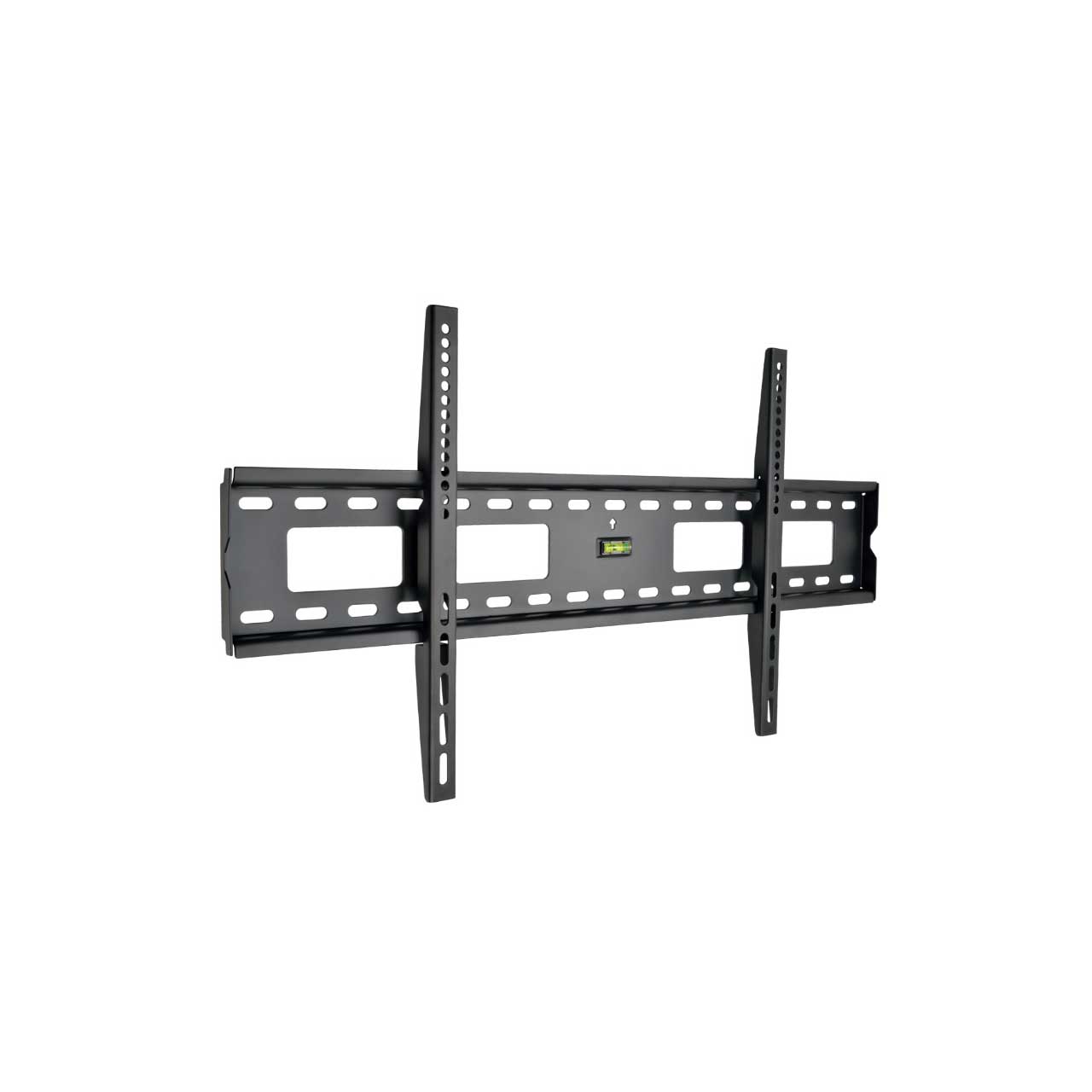

The VESA-compliant DWF4585X Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 pounds. Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

  • Features:

    • Mounts Your TV or Monitor to the Wall
    • Fits most flat-panel televisions, monitors and other displays from 45 to 85 inch
    • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
    • Mounts out of sight behind display for sleek, professional appearance
    • Mounting hardware included Durable Metal Construction
    • Supports up to 200 lb.
    • Open frame allows easy wall access
    • Adjustable mounting rails compensate for off-center wall studs
    • Built-in bubble level for accurate display leveling
    • Scratch-resistant powder-coated finish VESA Compliance
    • Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm

  • Specifications:

    • Mounting Location: Wall
    • Unit Dimensions (hwd / in.): 17.32 x 33.4 x 1.42
    • Unit Dimensions (hwd / cm): 43.99 x 84.84 x 3.61
    • Unit Weight (lbs.): 5.7
    • Unit Weight (kg): 2.59
    • Color: Black
    • Screen Size Compatibility (in.): 45 - 85
    • Screen Size Compatibility (cm): 114.3 - 215.9
    • VESA Pattern (mm): 200x200; 300x300; 400x200; 400x400; 600x400; 800x400
    • Motion: Fixed
    • Min/Max Arm Extension (in.): N/A
    • Min/Max Arm Extension (cm): N/A
    • Maximum Weight Capacity (lbs.): 200
    • Maximum Weight Capacity (kg): 91
    • Tools Necessary: Yes
    • Cord Management: No
    • Product Warranty Period (Worldwide): 5-year limited warranty

  • Item Includes:

    • Wall plate
    • (2) Adapter brackets
    • (4) M5 x 14 screws
    • (4) M6 x 14 screws
    • (4) M6 x 30 screws
    • (4) M8 x 20 screws
    • (4) M8 x 30 screws
    • (4) Washers
    • (8) Small spacers
    • (4) Big spacers
    • (6) Anchor bolts
    • (6) Concrete anchors
    • (6) D6 washers
    • Owner’s manual

  • Warranty:

    • 5 Year

  • GTIN:

    0037332186478
