Tripp Lite DWM1327SP Swivel/Tilt Wall Mount with Screen Adjustment for 13 Inch to 27 Inch TVs and Monitors

DWM1327SP - Overview

• Features:

  • Mounts Your TV or Monitor to the Wall
  • Fits most flat-panel televisions, monitors and other displays from 13 to 27 inch
  • Ideal for home, office, hotels, bars and restaurants
  • Full-motion swivel arm adjusts independently for angle and height
  • Mounting hardware included Convenient One-Touch Adjustment
  • 180° swivel, -15° to +15° tilt and -2° to +2° screen level adjustment capability provides comfortable viewing from multiple angles Durable Metal Construction
  • Supports up to 33 lb.
  • Soft rubber-feel finish with decorative covers blends with any décor
  • Fully assembled for immediate installation
  • Display cable attaches to mount to reduce clutter VESA Compliance
  • Supports the following VESA mounting hole patterns: 75 x 75 mm and 100 x 100 mm


• Specifications:

  • Mounting Location: Wall
  • Unit Weight (lbs.): 8.64
  • Unit Weight (kg): 3.92
  • Color: Black
  • Screen Size Compatibility (in.): 13 - 27
  • Screen Size Compatibility (cm): 33.02 - 68.58
  • VESA Pattern (mm): 75x75; 100x100
  • Motion: Full
  • Degrees of Motion: -15/+15 Tilt; 180 Swivel; -2/+2 Level Adjustment
  • Min/Max Arm Extension (in.): 2.16 - 22.85
  • Min/Max Arm Extension (cm): 5.49 - 58.04
  • Maximum Weight Capacity (lbs.): 33
  • Maximum Weight Capacity (kg): 15
  • Tools Necessary: Yes
  • Cord Management: No
  • Product Warranty Period (Worldwide): 5-year limited warranty

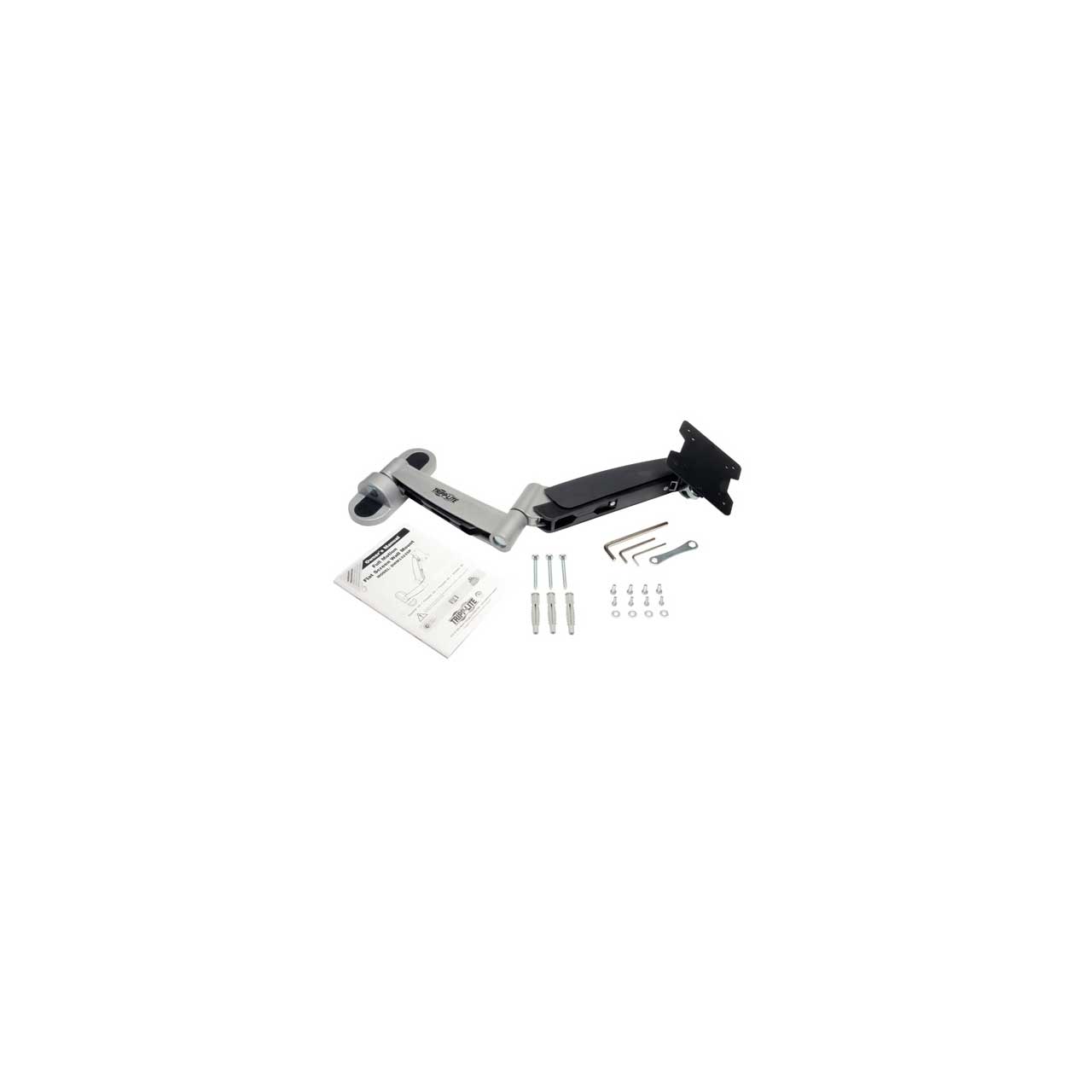

• Item Includes:

  • DWM1327SP Swivel/Tilt Wall Mount for 13" to 27" TVs and Monitors
  • (4) M4 screws
  • (4) M5 screws
  • (4) Washers
  • (3) Anchor bolts
  • (3) Concrete anchors
  • Wrench
  • Hex key, 4 mm
  • Hex key, 6 mm
  • Owner’s manual


• Warranty:

  • 5 Year


• GTIN:

  0037332183538
