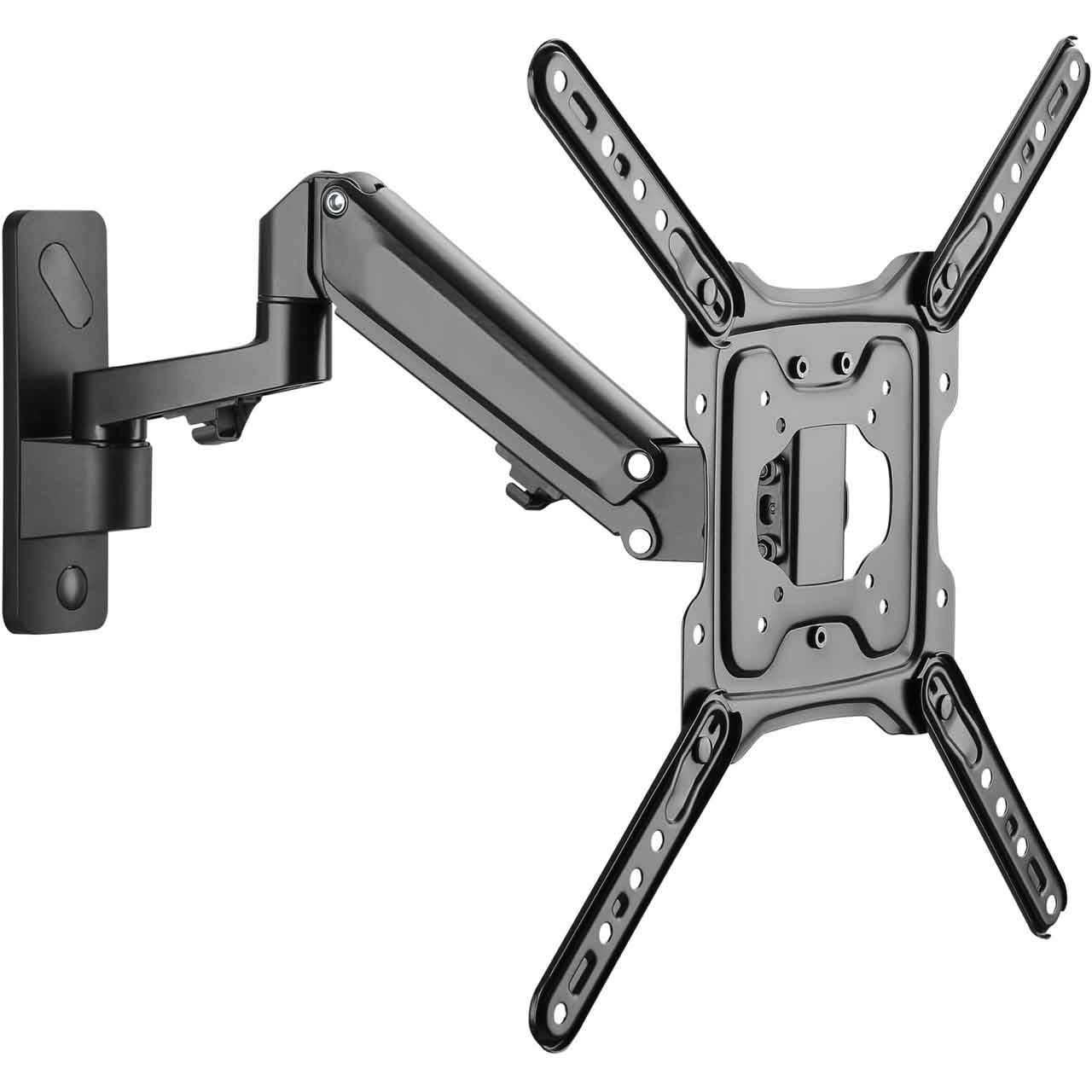

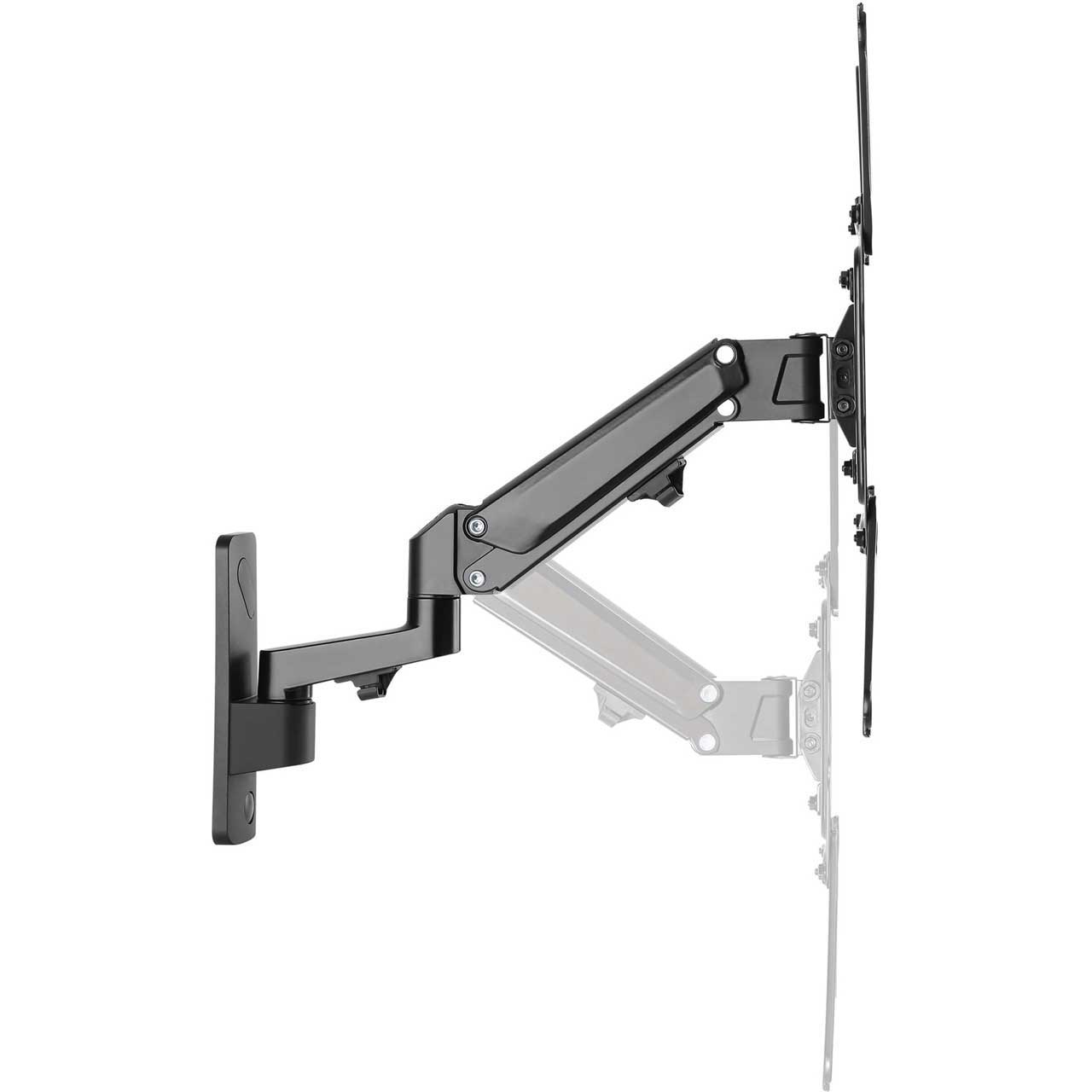

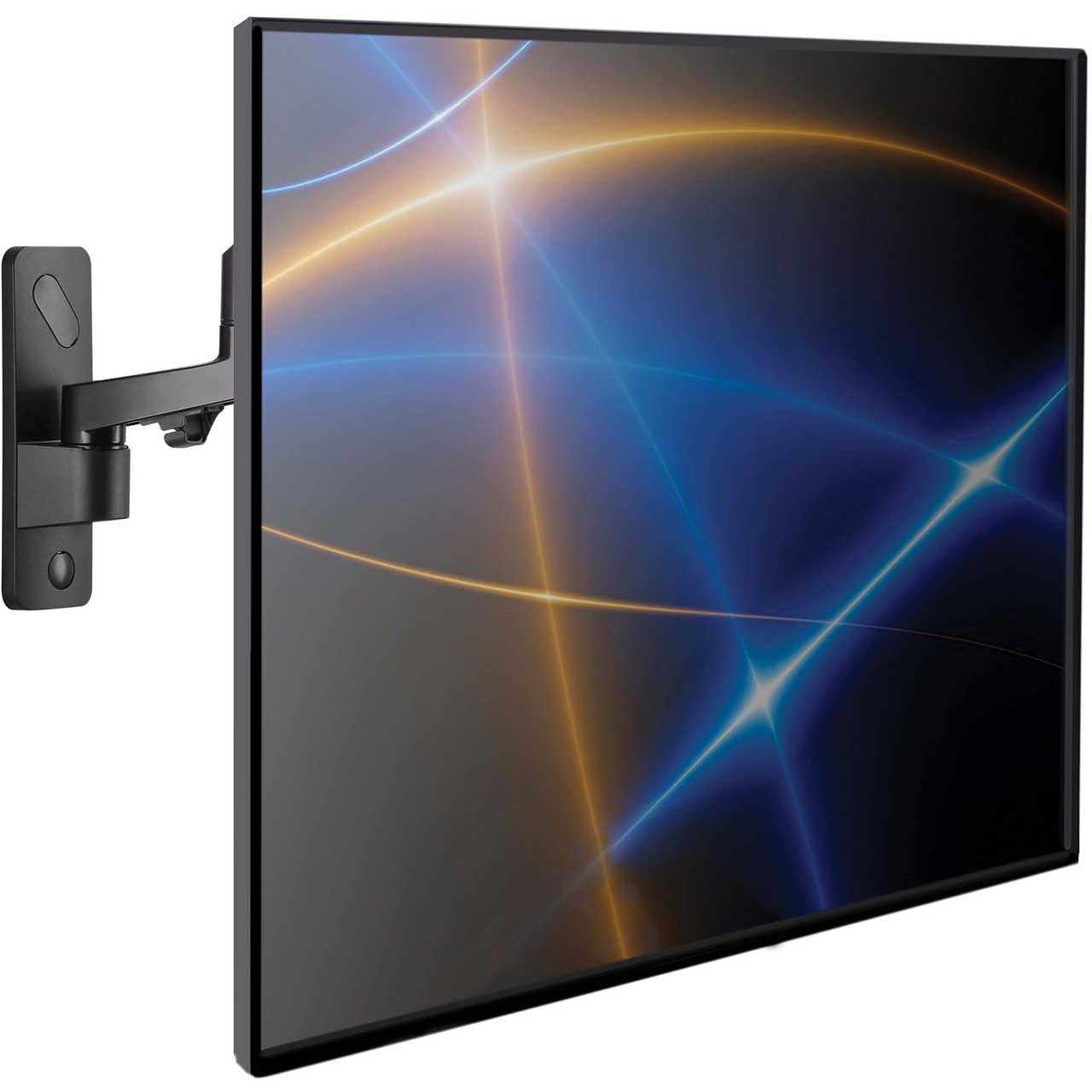

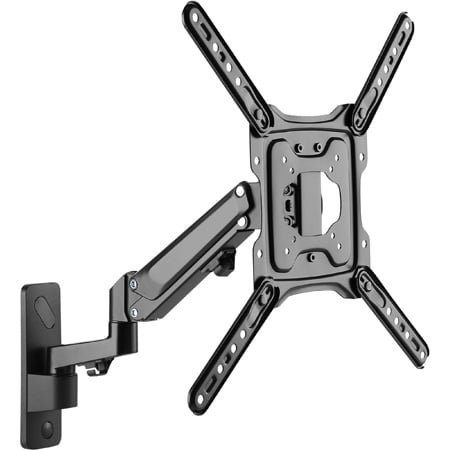

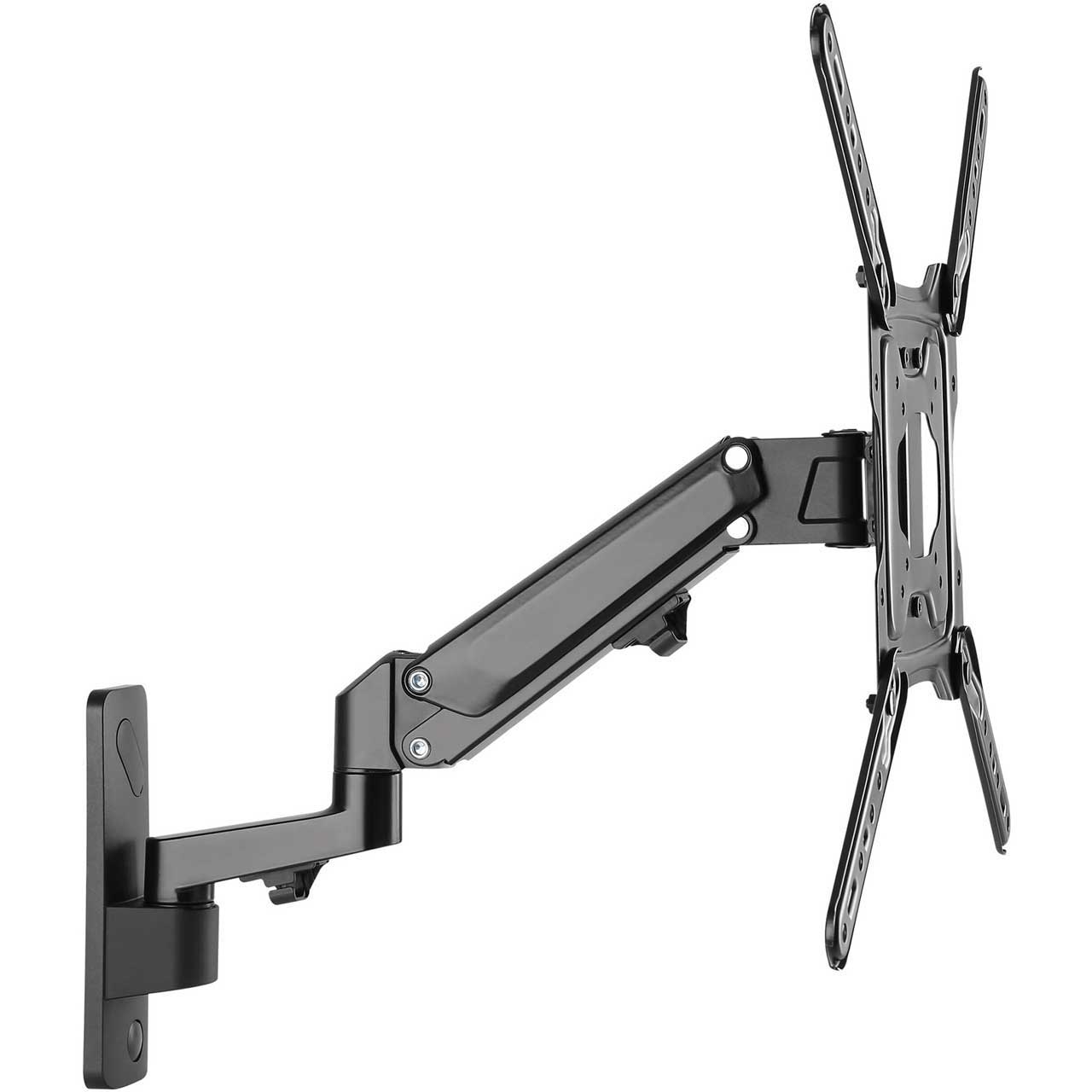

Tripp Lite DWM2355S TV Wall Mount Full-Motion Swivel Tilt Articulating Arm - 23-55 Inch

DWM2355S - Overview

• Features:

  • TV wall mount with articulating gas-spring arm adjusts easily with just a single touch
  • -15° to +5° tilt and -90° to +90° swivel helps you find the perfect angle to avoid glare
  • Durable steel construction blends into any décor and supports up to 51 lbs (23.1 kgs)
  • Display cables attach to arm to reduce clutter and keep cords organized
  • VESA compliance ensures compatibility with most popular mounting hole patterns


• Specifications:

  • General
  • Device Compatibility: Monitor/HDTV

    Physical
  • VESA Pattern (mm): 75x75; 100x100; 200x100; 200x200; 300x300; 400x200; 400x300; 400x400
  • Color: Black
  • Degrees of Motion: -15/+15 Tilt; 180 Swivel
  • Distance from Wall (in.): 12.7
  • Distance from Wall (cm): 32
  • Distance from Wall (mm): 323
  • Material of Construction: Steel
  • Maximum Screen Size (cm): 139.7
  • Maximum Screen Size (in.): 55
  • Maximum Weight Capacity (kg): 23
  • Maximum Weight Capacity (lbs.): 51
  • Min/Max Arm Extension (cm): 71.9 to 46.6
  • Min/Max Arm Extension (in.): 2.83 to 18.34"
  • Minimum Screen Size (in.): 23
  • Minimum Screen Size (cm): 58.4
  • Motion: Full
  • Mounting Location: Wall
  • Number of Displays: 1
  • Shipping Dimensions (hwd / cm): 43.94 x 34.80 x 8.38
  • Shipping Dimensions (hwd / in.): 17.30 x 13.70 x 3.30
  • Shipping Weight (kg): 4.04
  • Shipping Weight (lbs.): 8.90
  • Unit Dimensions (hwd / cm): 16.69 x 6.88 x 63.19
  • Unit Dimensions (hwd / in.): 6.57 x 2.71 x 24.88
  • Unit Weight (kg): 3.22
  • Unit Weight (lbs.): 7.1

    Features & Specifications
  • Tools Necessary: Yes

    Special Features
  • Cord Management: Yes
  • Security Lock: No


• Item Includes:

  • 1x Wall plate with articulating arm
  • 1x VESA plate
  • 4x VESA adapter brackets
  • 2x Wall plate end caps
  • 4x Nuts
  • 4x Bolts
  • 1x Wrench
  • 1x Hex key, 4 mm
  • 1x Hex key, 6 mm
  • 4x M5 x 14 screws
  • 4x M6 x 14 screws
  • 4x M6 x 30 screws
  • 4x M8 x 30 screws
  • 4x M8 x 50 screws
  • 4x D5 washers
  • 4x D8 washers
  • 8x Small spacers
  • 8x Large spacers
  • 3x Anchor bolts
  • 3x Concrete anchors
  • 3x Washers
  • 1x Owner’s manual


• Warranty:

  • 5 Year Limited


• GTIN:

  0037332258779
