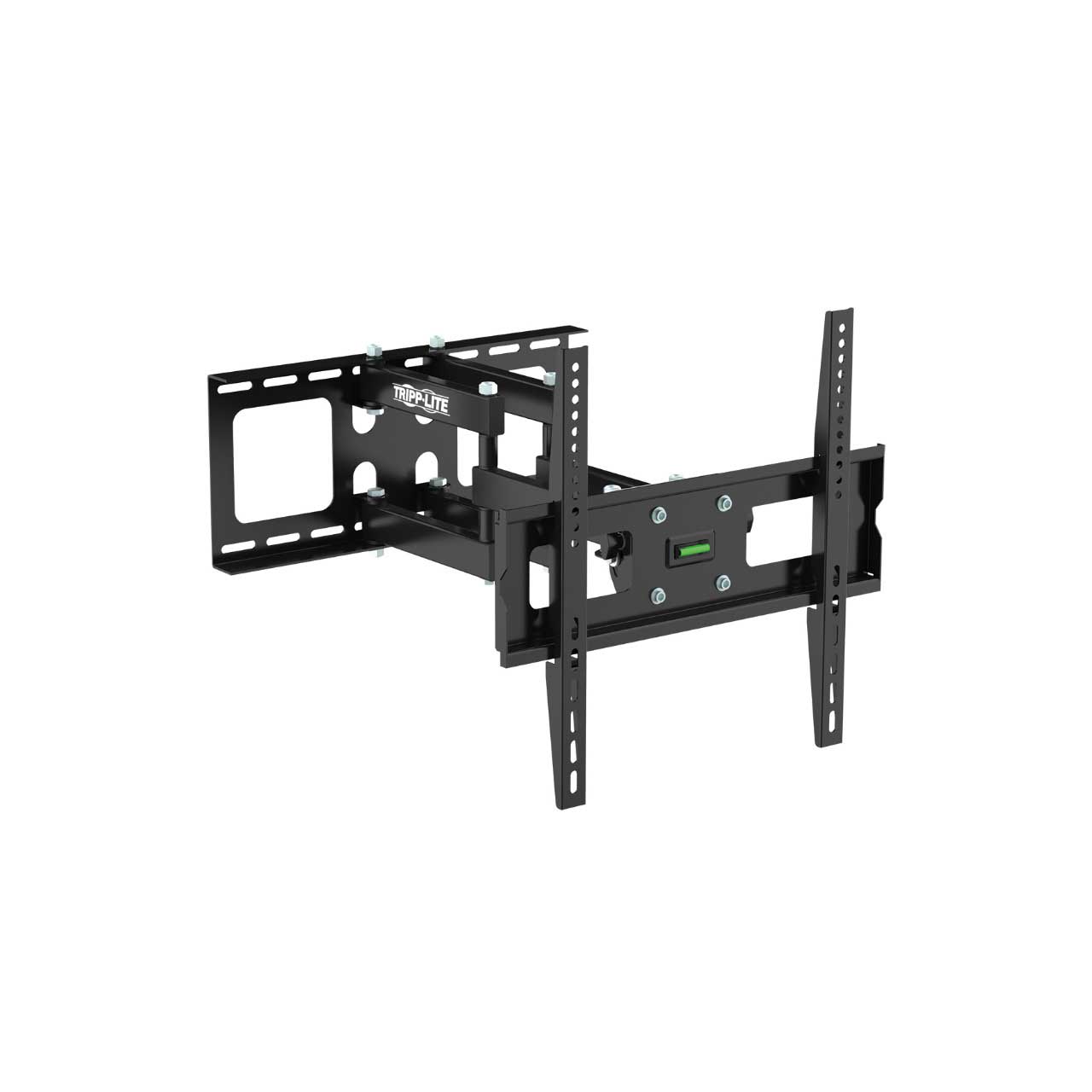

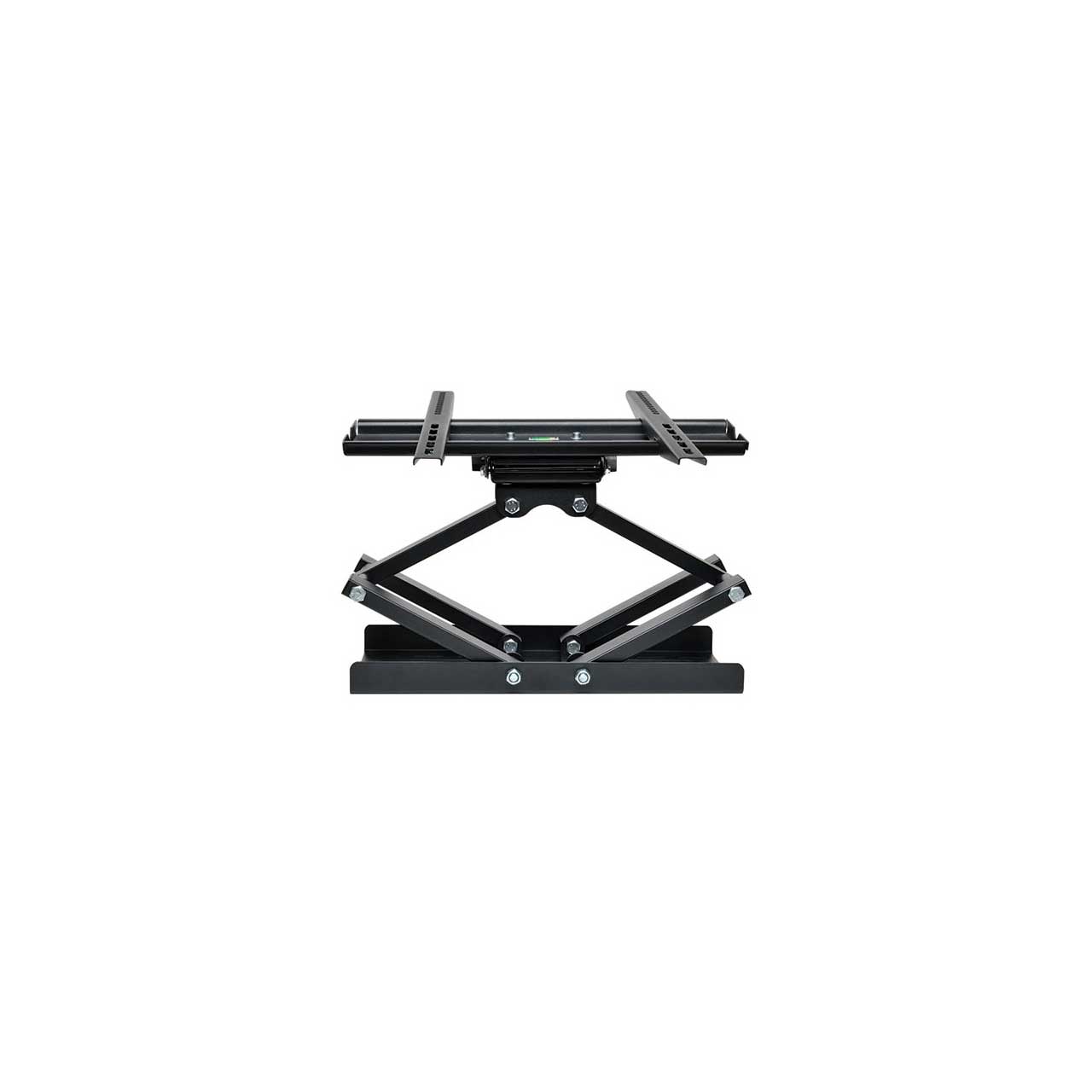

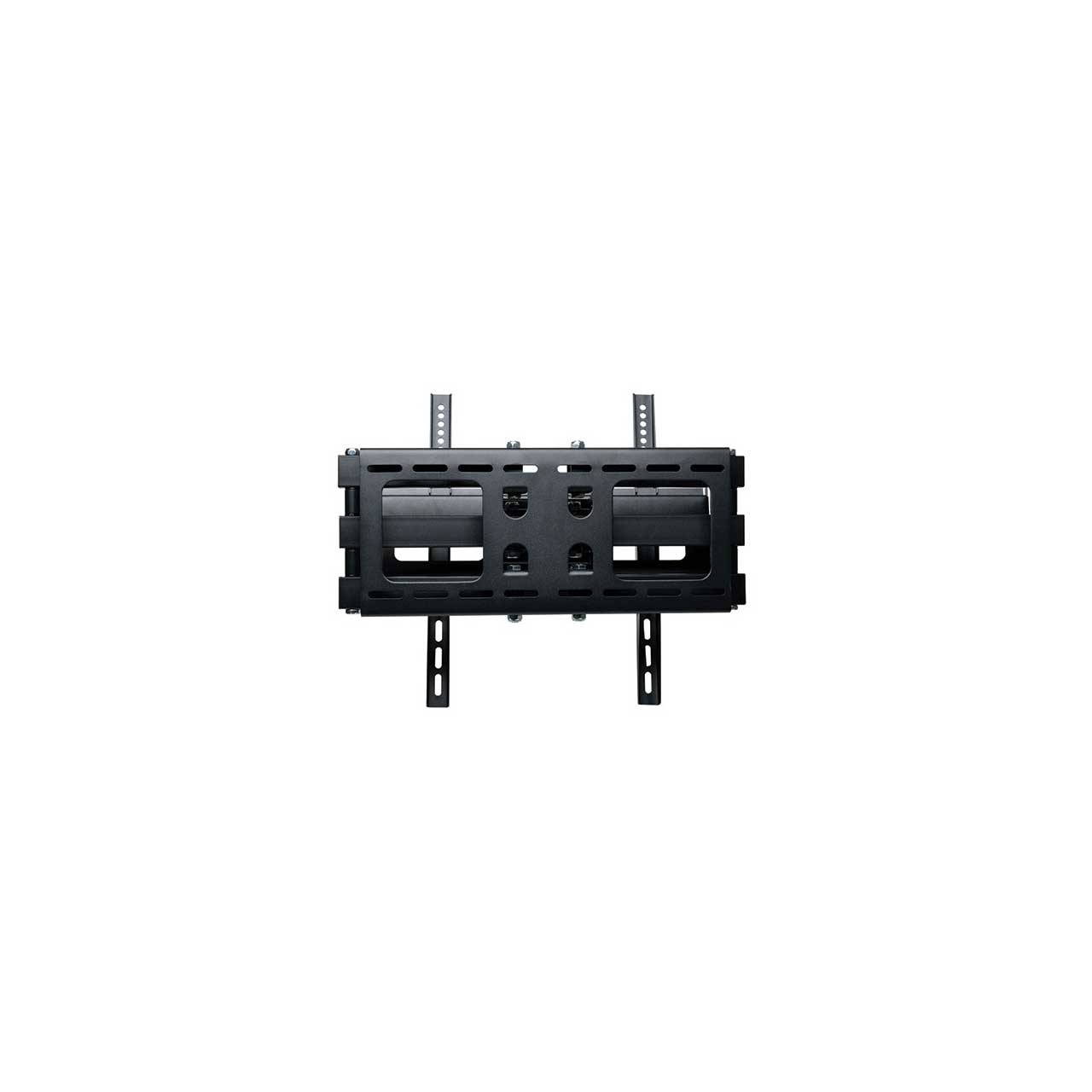

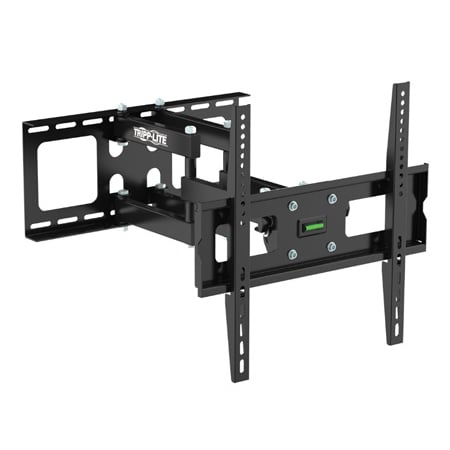

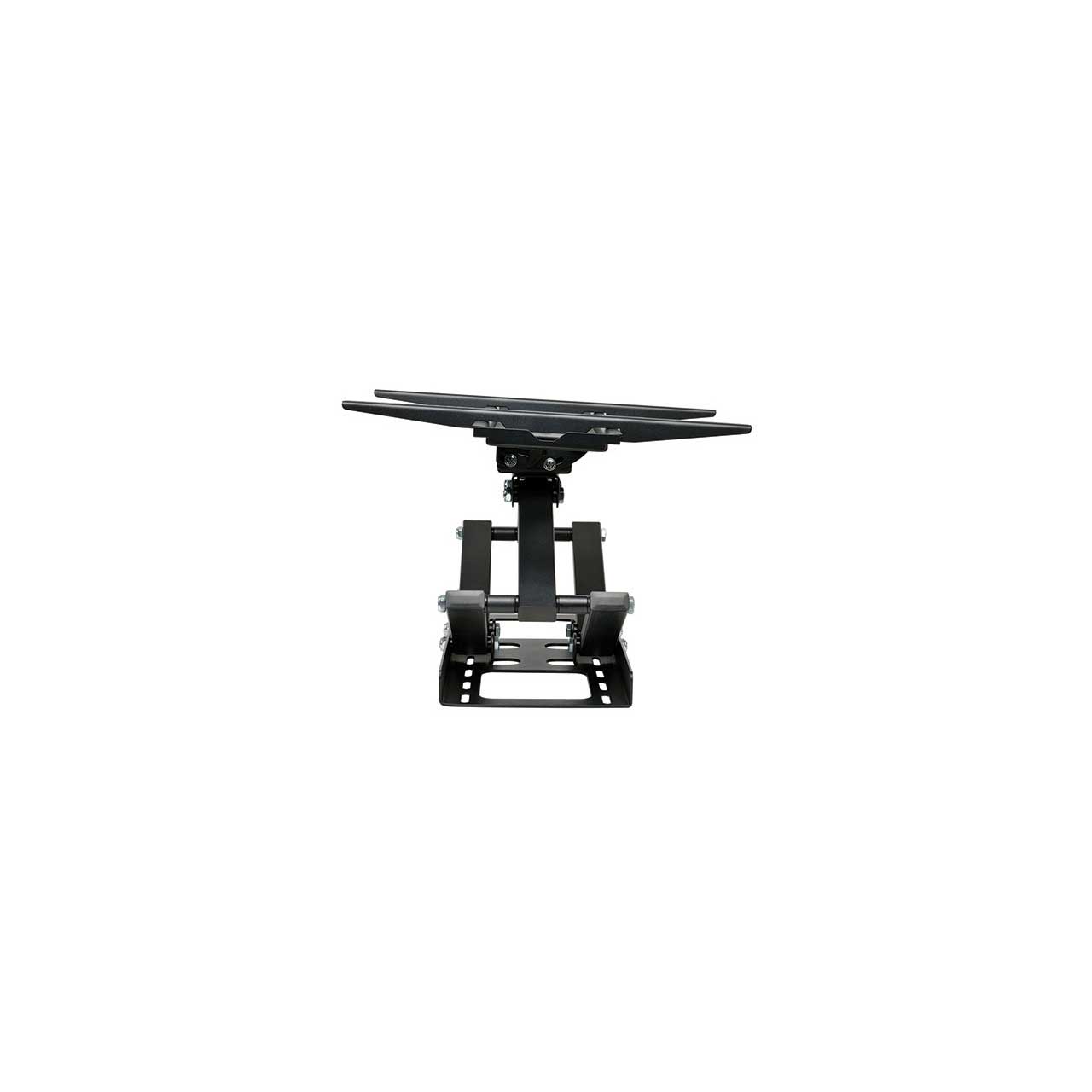

Tripp Lite DWM2655M Swivel/Tilt Wall Mount for 26 Inch to 55 Inch TVs and Monitors

DWM2655M - Overview

• Features:

  • Mounts Your TV or Monitor to the Wall
  • Fits most flat-panel televisions, monitors and other displays from 26 to 55 inch
  • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
  • Viewing angle adjusts to fit your environment and comfort level
  • Mounting hardware included Convenient One-Touch Adjustment
  • 120° swivel, -15° to +15° tilt and -5° to +5° screen level adjustment capability provides comfortable viewing from multiple angles Durable Metal Construction
  • Supports up to 110 lb.
  • Scratch-resistant powder-coated finish blends with any décor
  • Built-in bubble level allows accurate display leveling VESA Compliance
  • Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm and 400 x 400 mm


• Specifications:

  • Mounting Location: Wall
  • Unit Weight (lbs.): 18.45
  • Unit Weight (kg): 8.37
  • Color: Black
  • Screen Size Compatibility (in.): 26 - 55
  • Screen Size Compatibility (cm): 66.04 - 139.70
  • VESA Pattern (mm): 200x200; 400x200; 300x300; 400x400
  • Motion: Full
  • Degrees of Motion: -15/+15 Tilt, 120 Swivel, -5/+5 Level Adjustment
  • Min/Max Arm Extension (in.): 4.92 min to 20.27 max
  • Min/Max Arm Extension (cm): 12.5 min to 51.5 max
  • Maximum Weight Capacity (lbs.): 110
  • Maximum Weight Capacity (kg): 50
  • Tools Necessary: Yes
  • Cord Management: No
  • Product Warranty Period (Worldwide): 5-year limited warranty


• Item Includes:

  • DWM2655M Swivel/Tilt/Rotate Wall Mount for 26" to 55" TVs and Monitors
  • (4) M5 x 14 screws
  • (4) M6 x 14 screws
  • (4) M6 x 30 screws
  • (4) M8 x 20 screws
  • (4) M8 x 30 screws
  • (4) Washers
  • (8) Small spacers
  • (4) Big spacers
  • (6) Anchor bolts
  • (6) Concrete anchors
  • (6) D6 washers
  • Owner’s manual


• Warranty:

  • 5 Year


• GTIN:

  0037332183637
