Tripp Lite DWM3770X Swivel/Tilt Wall Mount for 37 Inch to 70 Inch TVs and Monitors

ITEM #: TRL-DWM3770X MFG #: DWM3770X

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$257.36

Our Price:

$197.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DWM3770X - Overview

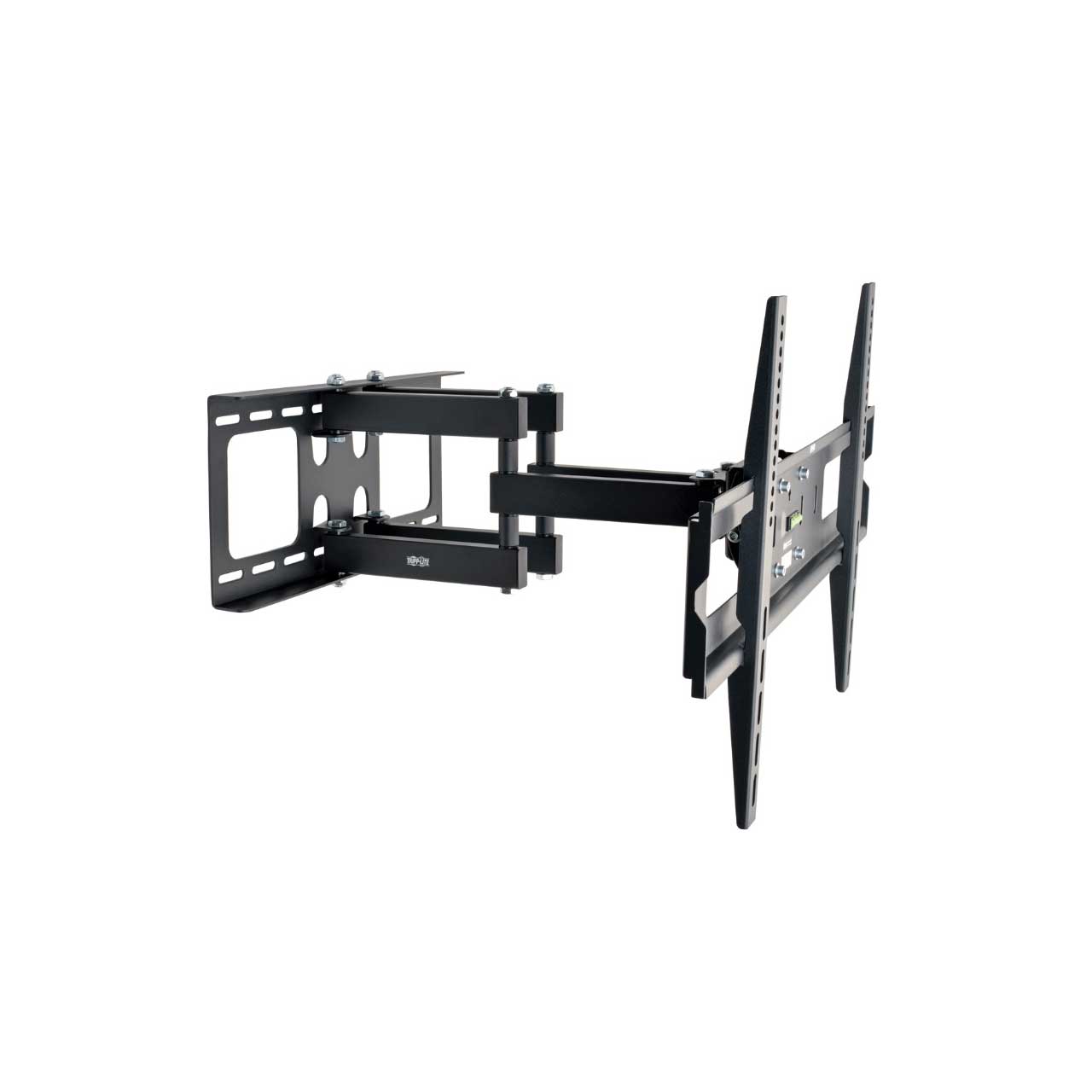

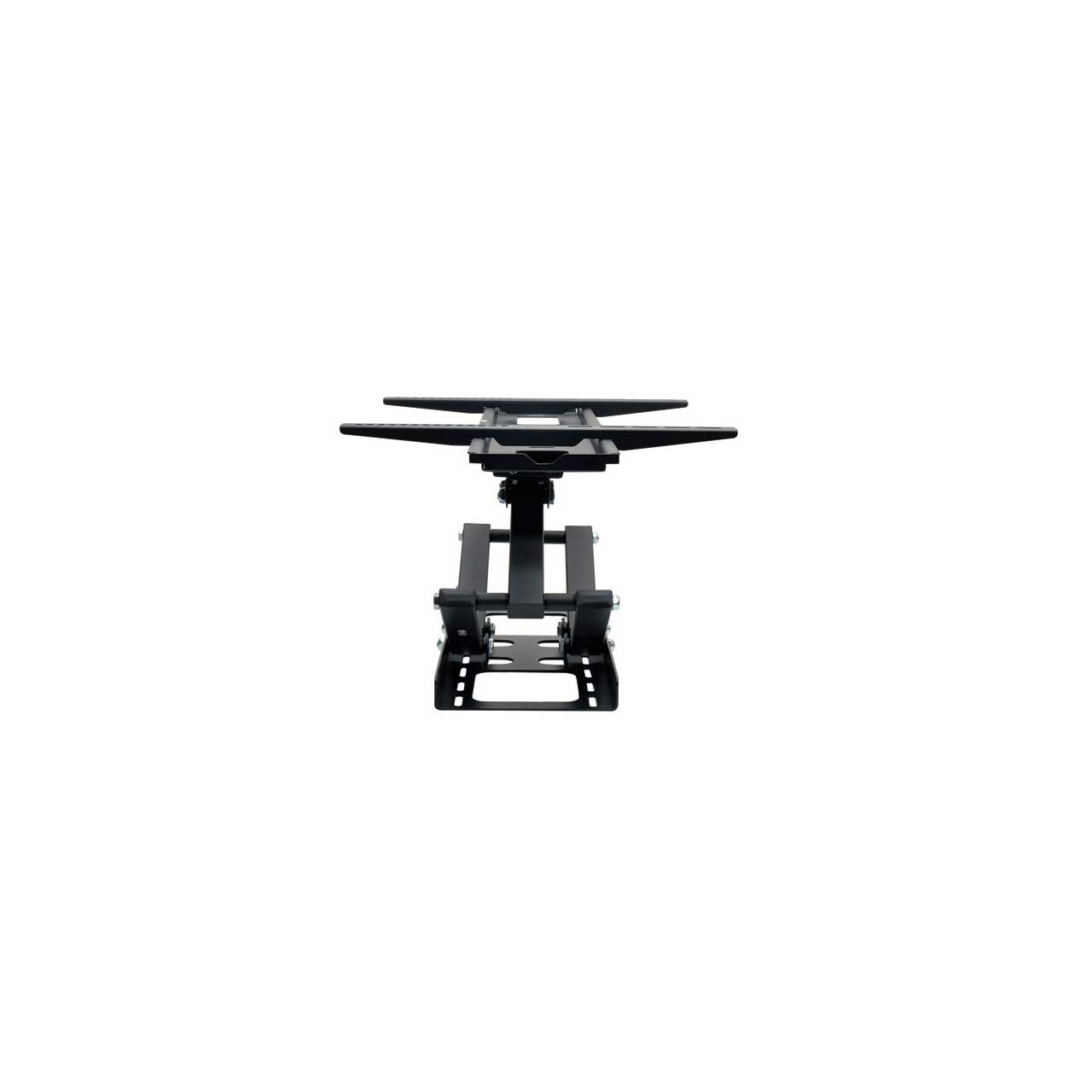

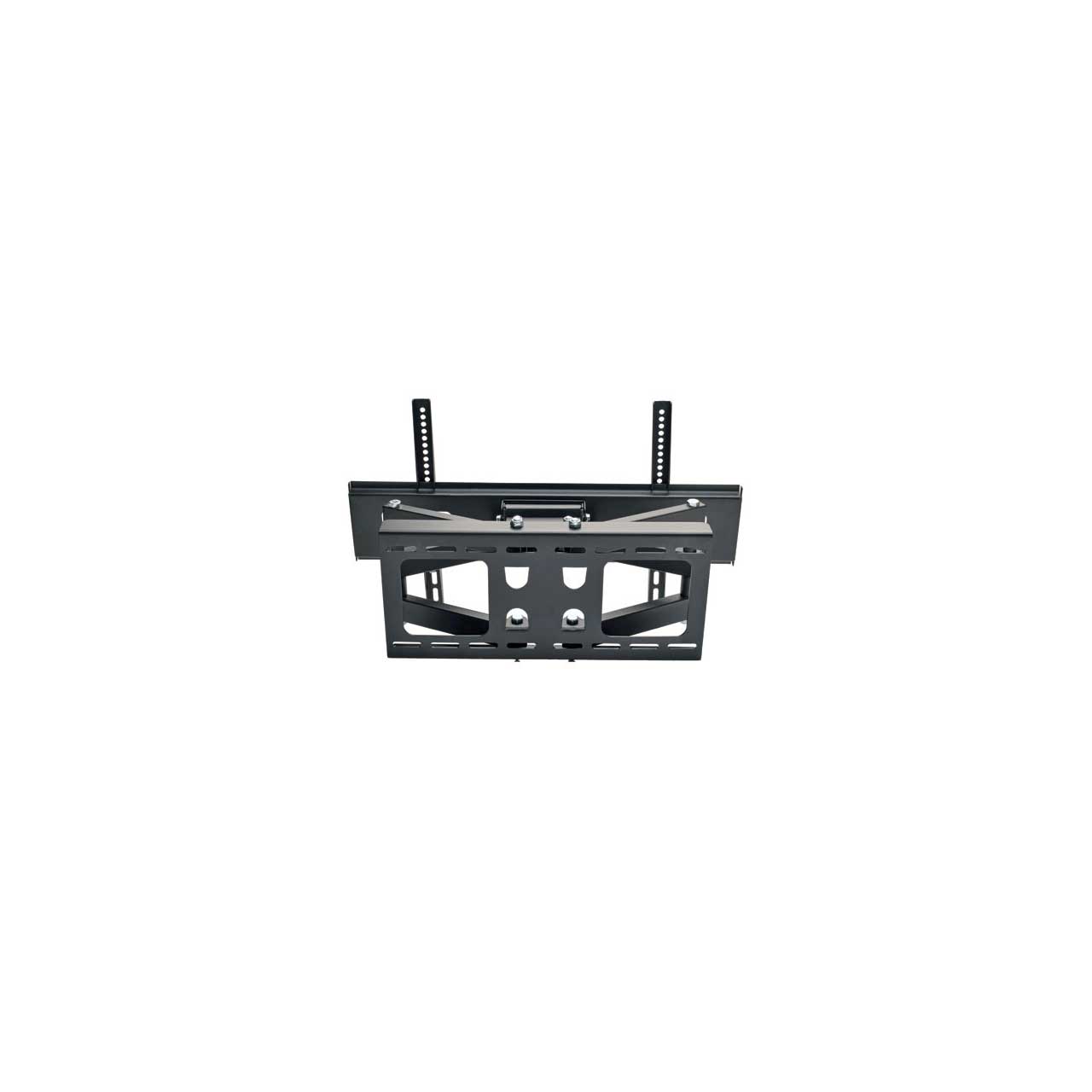

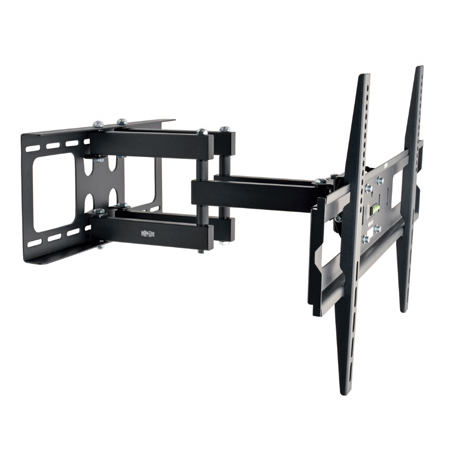

The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.

The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm.

  • Features:

    • Mounts Your TV or Monitor to the Wall
    • Fits most flat-panel televisions, monitors and other displays from 37 to 70 inch
    • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
    • Articulated arm with 6 pivots adjusts independently for angle
    • Mounting hardware included Convenient One-Touch Adjustment
    • 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles Durable Metal Construction
    • Supports up to 165 lb.
    • Scratch-resistant powder-coated finish blends with any décor
    • Built-in bubble level allows accurate display leveling VESA Compliance
    • Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm

  • Specifications:

    • Mounting Location: Wall
    • Unit Dimensions (hwd / in.): 17.32 x 23.62 x 20.62
    • Unit Dimensions (hwd / cm): 44.0 x 60.1 x 52.4
    • Unit Weight (lbs.): 17.38
    • Unit Weight (kg): 7.88
    • Color: Black
    • Screen Size Compatibility (in.): 37 - 70
    • Screen Size Compatibility (cm): 94.1 - 178.0
    • VESA Pattern (mm): 200x200; 300x300; 400x200; 400x400; 600x400
    • Motion: Full
    • Degrees of Motion: -15/+15 Tilt, 120 Swivel, -3/+3 Level Adjustment
    • Min/Max Arm Extension (in.): 4.57 min to 20.63 max
    • Min/Max Arm Extension (cm): 116 min to 524 max
    • Maximum Weight Capacity (lbs.): 165
    • Maximum Weight Capacity (kg): 75
    • Tools Necessary: Yes
    • Cord Management: No
    • Product Warranty Period (Worldwide): 5-year limited warranty

  • Item Includes:

    • Wall mount
    • Mounting template
    • (2) Adapter brackets
    • (4) M5 x 14 screws
    • (4) M6 x 14 screws
    • (4) M6 x 30 screws
    • (4) M8 x 20 screws
    • (4) M8 x 30 screws
    • (4) Washers
    • (8) Small spacers
    • (4) Big spacers
    • (6) Anchor bolts
    • (6) Concrete anchors
    • (6) D6 washers
    • Owner’s manual

  • Warranty:

    • 5 Year

  • GTIN:

    0037332187437
