OMNIVS1500 - Overview

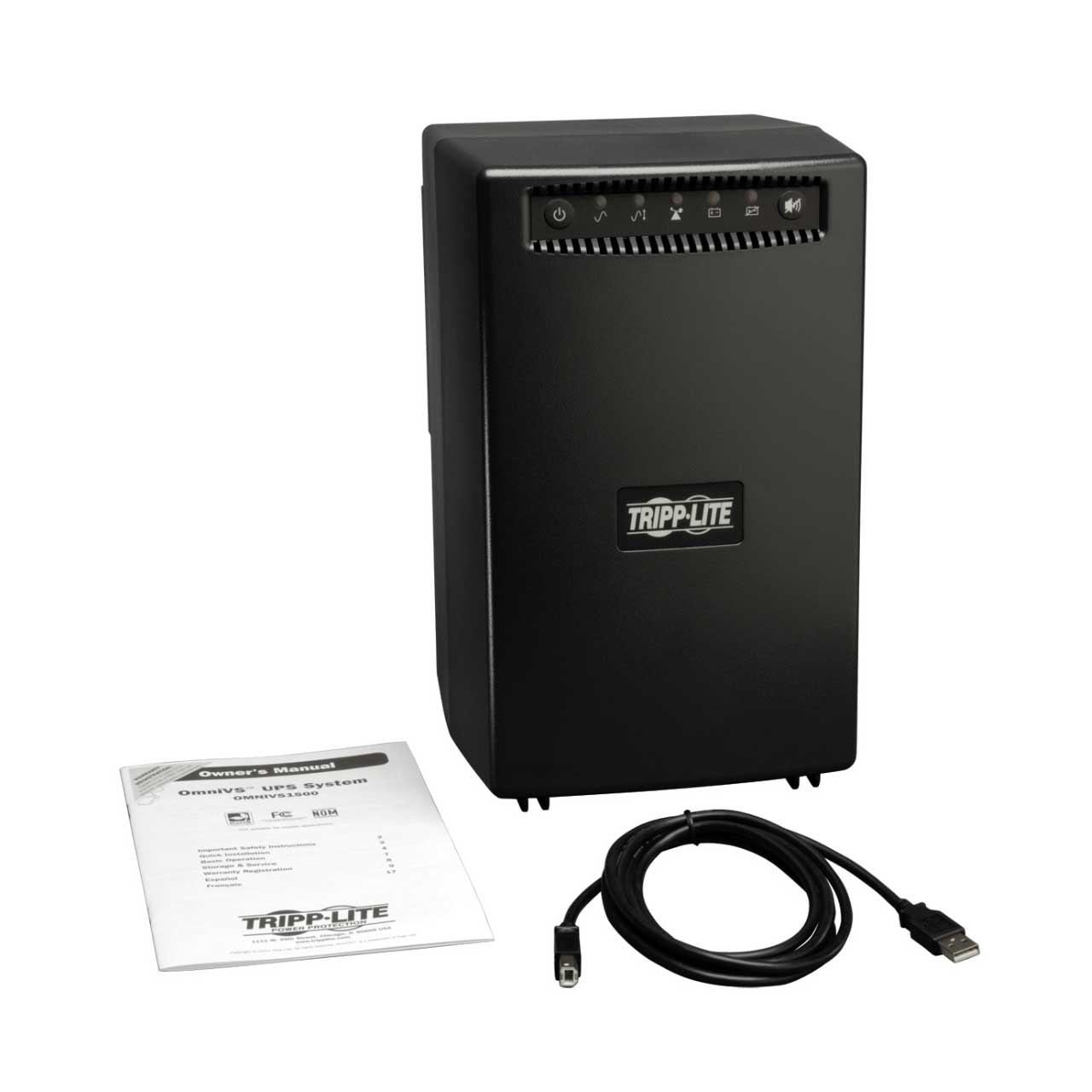

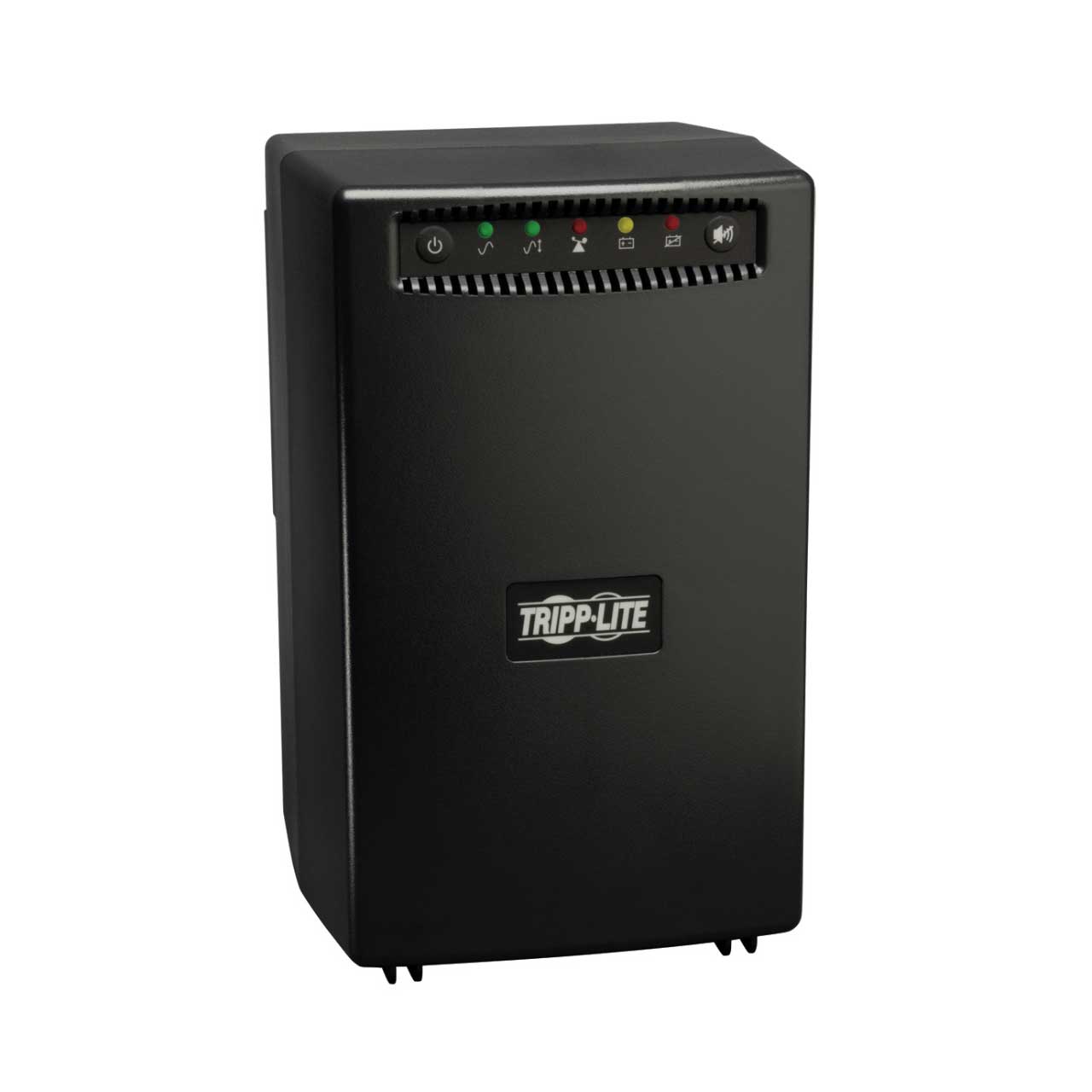

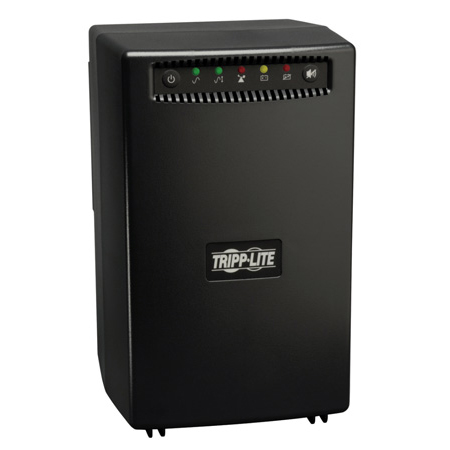

Tripp Lite's OMNIVS1500 line interactive UPS system offers voltage regulation, surge suppression and battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS batteries support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 5 battery supported outlets for computer, monitor and vital system peripherals, plus 3 additional surge suppression only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure (USB cable included). PowerAlert software available via free download. HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

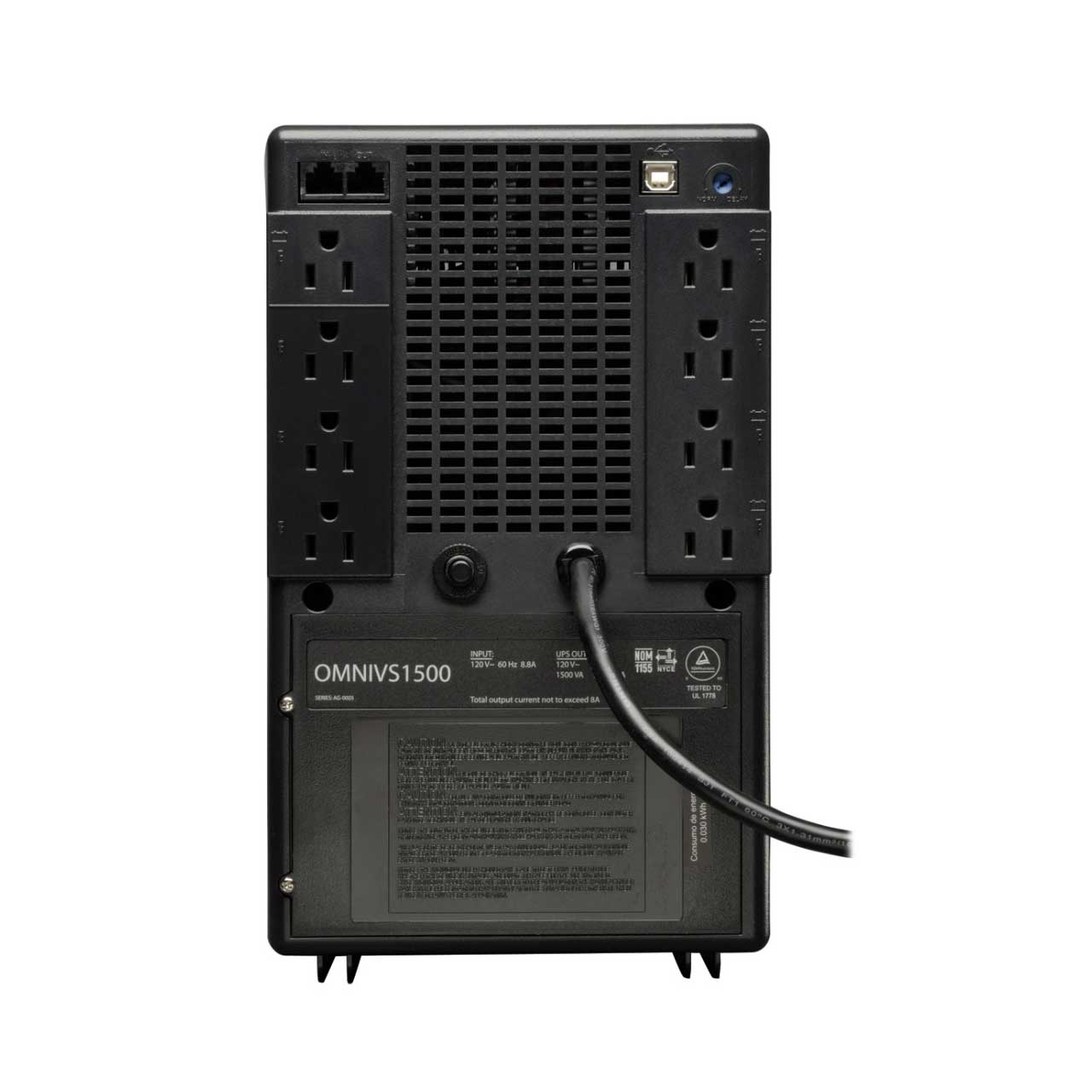

Built-in data line suppression offers protection for equipment with single line TEL/DSL or network Ethernet connection. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4 minutes battery runtime with a full load of 1500VA and 8.5 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel.

  • Features:

    • OMNIVS1500 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery suppor
    • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
    • Regulates brownouts as low as 75V and overvoltages to 147V back to usable 120V nominal levels without using battery power
    • 5 UPS battery supported outlets, plus 3 additional surge suppression only outlets
    • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure

  • Specifications:

    • Output Volt Amp Capacity (VA) 1500
    • Output kVA Capacity (kVA) 1.5
    • Output Watt Capacity (Watts) 940
    • Nominal Output Voltage(s) Supported 115V; 120V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) -18%, +8%
    • Output Voltage Regulation (Battery Mode) 115V (+/- 5%)
    • Output Receptacles (8) 5-15R
    • UPS Output Receptacles (Surge Suppression Only) 5 UPS outlets, 3 surge-only outlets
    • Output Circuit Breakers NULL
    • Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) PWM sine wave
    • Rated input current (Maximum Load) 12A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P
    • UPS Input Cord Length (ft.) 6
    • UPS Input Cord Length (m) 1.8
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase
    • Full Load Runtime (min.) 4 min. (940w)
    • Half Load Runtime (min.) 8.5 min. (470w)
    • DC System Voltage (VDC) 24
    • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90%
    • Internal UPS Replacement Battery Cartridge RBC24-SLT
    • Battery Access Battery access door
    • Battery Replacement Description Hot-swappable, user replaceable batteries
    • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
    • Overvoltage Correction Input voltages between 128 and 147 are reduced by 12%
    • Undervoltage Correction Input voltages between 93 and 107 are boosted by 14%
    • Severe Undervoltage Correction Input voltages between 75 and 92 are boosted by 30%
    • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
    • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Audible Alarm Audible alarm indicates power-failure and low-battery conditions
    • LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
    • UPS AC Suppression Joule Rating 510
    • UPS AC Suppression Response Time Instantaneous
    • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
    • EMI / RFI AC Noise Suppression Yes
    • Installation Form Factors Supported with Included Accessories Tower
    • Installation Form Factors Supported with Optional Accessories Wallmount (UPSWM - tower mounting kit)
    • Primary Form Factor Tower
    • UPS Power Module Dimensions (hwd, in.) 11.8 x 7.2 x 7.5
    • UPS Power Module Dimensions (hwd, cm) 29.8 x 18.4 x 19
    • UPS Power Module Weight (lbs.) 22.2
    • UPS Power Module Weight (kg) 10.1
    • UPS Shipping Dimensions (hwd / in.) 15.5 x 11 x 11.2
    • UPS Shipping Dimensions (hwd / cm) 39.4 x 27.9 x 28.6
    • Shipping Weight (lbs.) 23.4
    • Shipping Weight (kg) 10.6
    • Cooling Method NULL
    • UPS Housing Material Polycarbonate
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 109
    • Battery Mode BTU / Hr. (Full Load) NULL
    • AC Mode Efficiency Rating (100% Load) 0.97
    • Communications Interface USB (HID enabled)
    • PowerAlert Software Free download from www.tripplite.com
    • Communications Cable USB interface cable included
    • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Network UPS Tools Compatibile
    • Transfer Time 2-4 milliseconds
    • Low Voltage Transfer to Battery Power (Setpoint) 75
    • High Voltage Transfer to Battery Power (Setpoint) 147
    • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    • High Availability UPS Features hot-swap batteries
    • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
    • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $200,000 Ultimate Lifetime Insurance

  • Warranty:

    • 3-year limited warranty

  • GTIN:

    0037332126382
