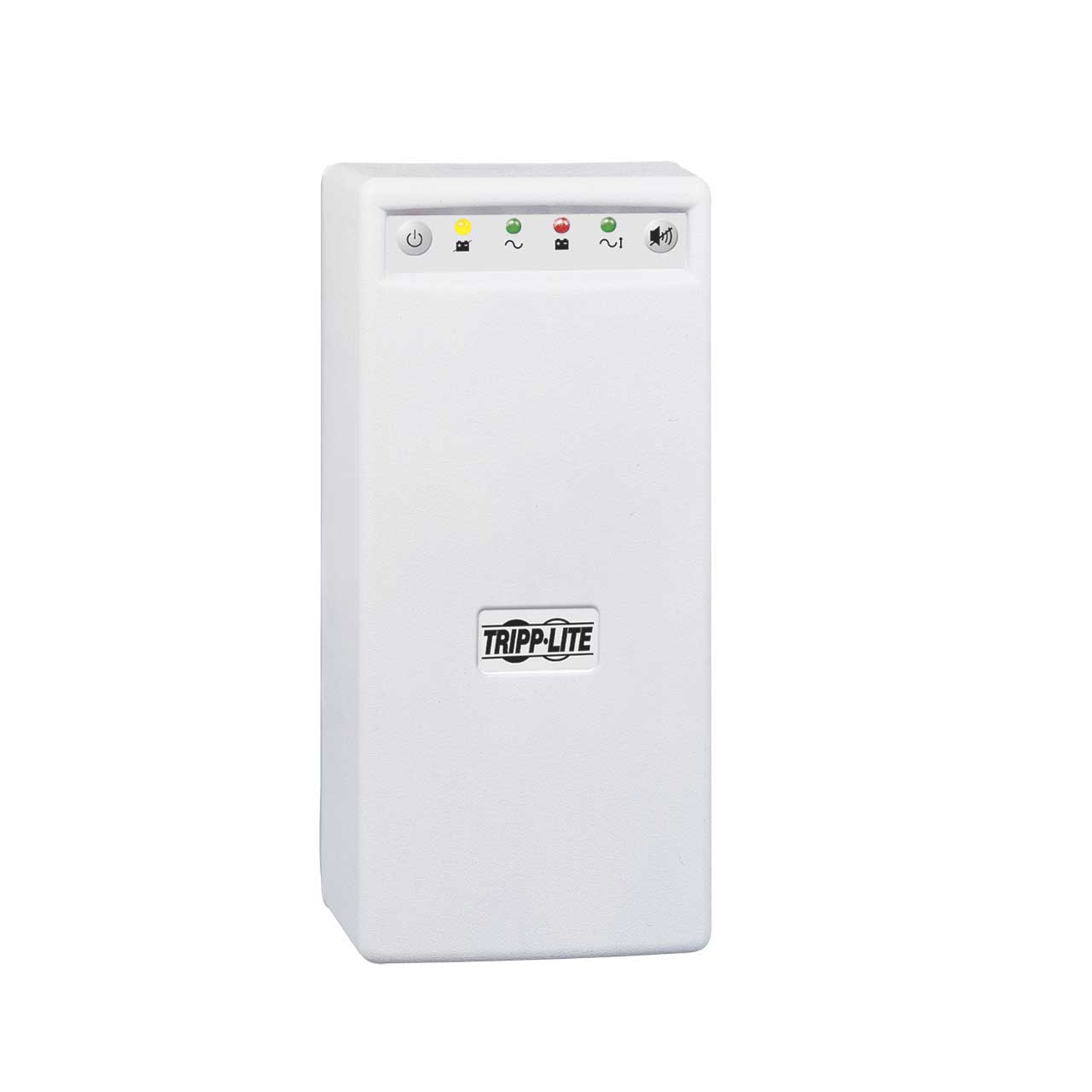

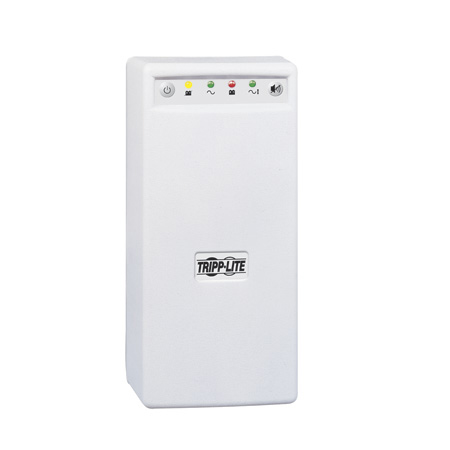

Tripp Lite OMNISMART350HG 350VA 225W UPS Hospital Medical Tower AVR 120V DB9 RJ11

OMNISMART350HG - Overview

• Features:

  • Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed electrical medical equipment is required
  • Line-interactive voltage regulation corrects brownouts as low as 83V without using battery power
  • Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
  • Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
  • Resistant to electrostatic discharge
  • Supports loads up to 330VA/225 watts
  • 46 minutes half load runtime (with 165VA load), 18 minutes full load runtime (with 330VA load)
  • 4 protected hospital-grade outlets; 6-ft. cord
  • 1-DB9 serial port for network interface
  • Complete surge protection, line isolation and EMI/RFI noise filtering
  • 2 phone line surge suppression for modems, fax machines and other phone accessories
  • Complete remote monitoring cabling included, PowerAlert UPS management software available via free download
  • 4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace
  • Battery replacement door and back panel grounding lug


• Specifications:

  • Product Group: UPS SYSTEMS
  • TAA Compliant: No
  • UPS Family: Hospital-Grade
  • UPS Type: Line-Interactive
  • Output Volt Amp Capacity (VA): 330
  • Output Watt Capacity (Watts): 225
  • Nominal Output Voltage(s) Supported: 120V
  • Frequency Compatibility: 60 Hz
  • Output Voltage Regulation (Line Mode): -18%, +8%
  • Output Voltage Regulation (Battery Mode): +/- 5%
  • Output Receptacles: (4) 5-15R
  • Output Receptacle Details: Hospital grade output receptacles
  • Output AC Waveform (AC Mode): Sine wave
  • Output AC Waveform (Battery Mode): PWM sine wave
  • Rated input current (Maximum Load): 2.3A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P-HG
  • Input Circuit Breakers: 3.5A
  • UPS Input Cord Length (ft.): 6
  • UPS Input Cord Length (m): 1.8
  • Recommended Electrical Service: 15A 120V
  • Input Phase: Single-Phase
  • Full Load Runtime (min.): 18 min. (225w)
  • Half Load Runtime (min.): 46 min. (115w)
  • DC System Voltage (VDC): 12
  • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
  • Internal UPS Replacement Battery Cartridge: RBC52 (quantity 2)
  • Battery Access: Battery access door
  • Battery Replacement Description: Hot-swappable, user replaceable batteries
  • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
  • Undervoltage Correction: Input voltages between 89 and 107 are boosted by 14%
  • LED Indicators: 4 LEDs indicate line power, battery power, overload and battery low/replace status
  • Audible Alarm: Audible alarm indicates power-failure and low-battery conditions
  • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
  • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
  • UPS AC Suppression Response Time: Instantaneous
  • UPS Dataline Suppression: 2 line TEL/DSL
  • EMI / RFI AC Noise Suppression: Yes
  • Output Isolation Transformer: Hospital grade load isolation transformer
  • Installation Form Factors Supported with Included Accessories: Tower
  • Installation Form Factors Supported with Optional Accessories: Wallmount (UPSWM - tower mounting kit)
  • Primary Form Factor: Tower
  • UPS Power Module Dimensions (hwd, in.): 10.8 x 5.2 x 7.2
  • UPS Power Module Dimensions (hwd, cm): 27.3 x 13.3 x 18.4
  • UPS Power Module Weight (lbs.): 25
  • UPS Power Module Weight (kg): 11.4
  • UPS Shipping Dimensions (hwd / in.): 14 x 8.5 x 11
  • UPS Shipping Dimensions (hwd / cm): 35.6 x 21.6 x 27.9
  • Shipping Weight (lbs.): 28
  • Shipping Weight (kg): 12.7
  • Cooling Method: NULL
  • UPS Housing Material: PVC
  • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode BTU / Hr. (Full Load): 48.8
  • Battery Mode BTU / Hr. (Full Load): 215.8
  • AC Mode Efficiency Rating (100% Load): 0.94
  • Communications Interface: DB9 Serial
  • PowerAlert Software: Free download from www.tripplite.com
  • Communications Cable: DB9 serial cable included
  • Transfer Time: 2-4 milliseconds
  • Low Voltage Transfer to Battery Power (Setpoint): 89
  • High Voltage Transfer to Battery Power (Setpoint): 139
  • Grounding Lug: Grounding lug
  • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
  • High Availability UPS Features: Hot swappable batteries
  • UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI); Tested to UL60601-1 (medical grade)
  • Product Warranty Period (Worldwide): 2-year limited warranty
  • UPS Applications: Hospital/Medical


• Item Includes:

  • OMNI SMART 350HG Hospital Grade UPS System
  • Serial cable for remote monitoring
  • Warranty information
  • Instruction manual


• GTIN:

  0037332098542
