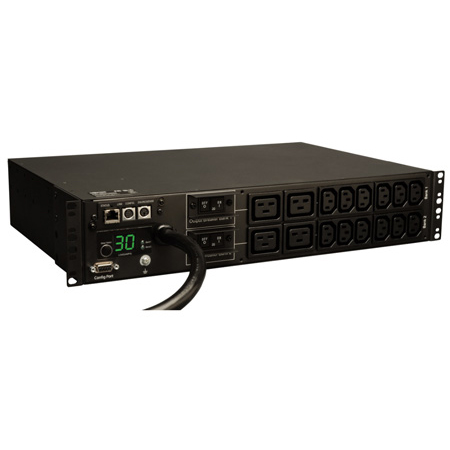

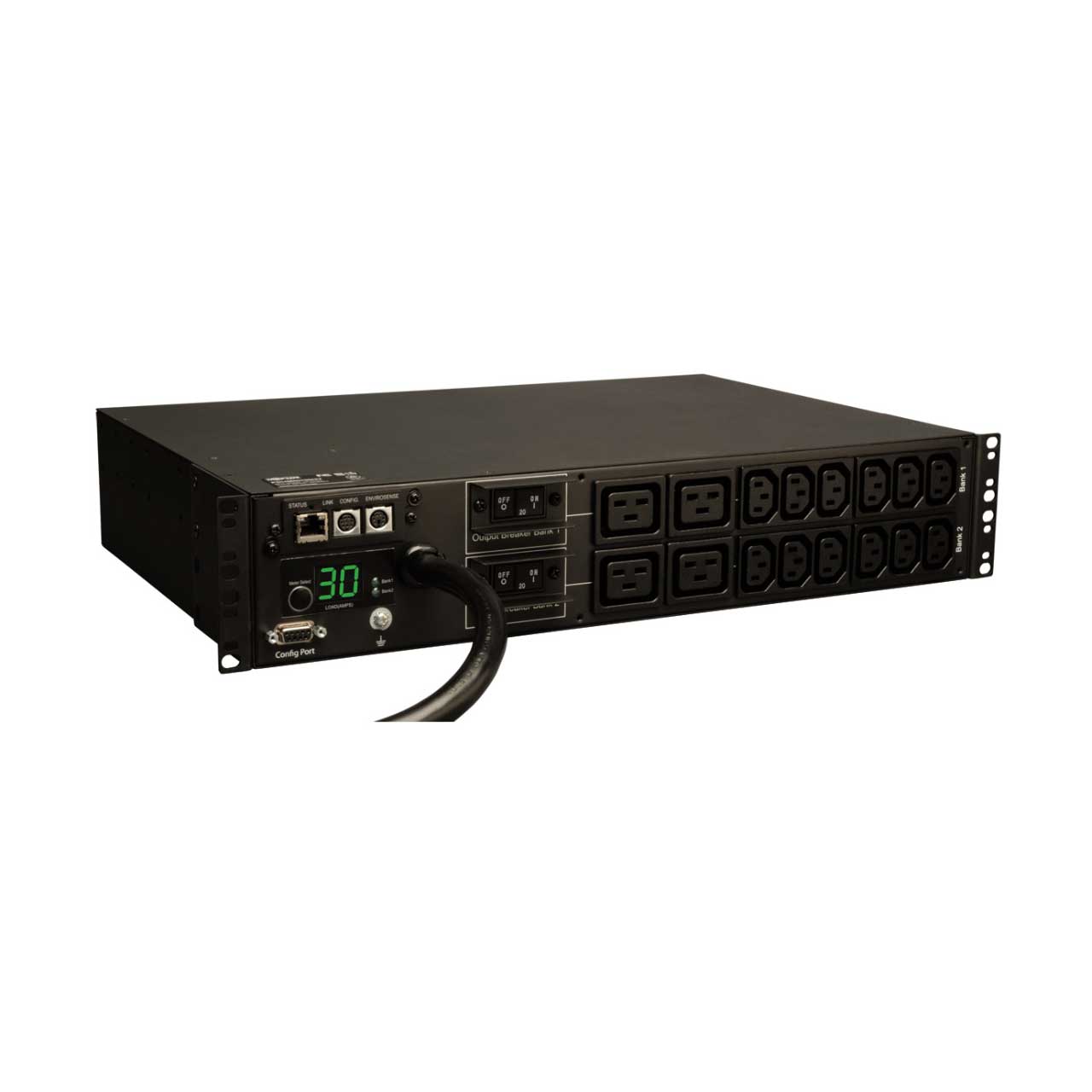

Tripp Lite PDUMNH30HV PDU Monitored 208V/240V 30A 12 C13; 4 C19 L6-30P Horizontal 2URM

PDUMNH30HV - Overview

• Features:

  • 30A single phase 208/240V Monitored Power Distribution Unit / PDU (agency derated to 24A continuous)
  • Attached NEMA L6-30P input with 10ft / 3m line cord
  • 2U horizontal rackmount format supports installation in 2 or 4 post equipment racks

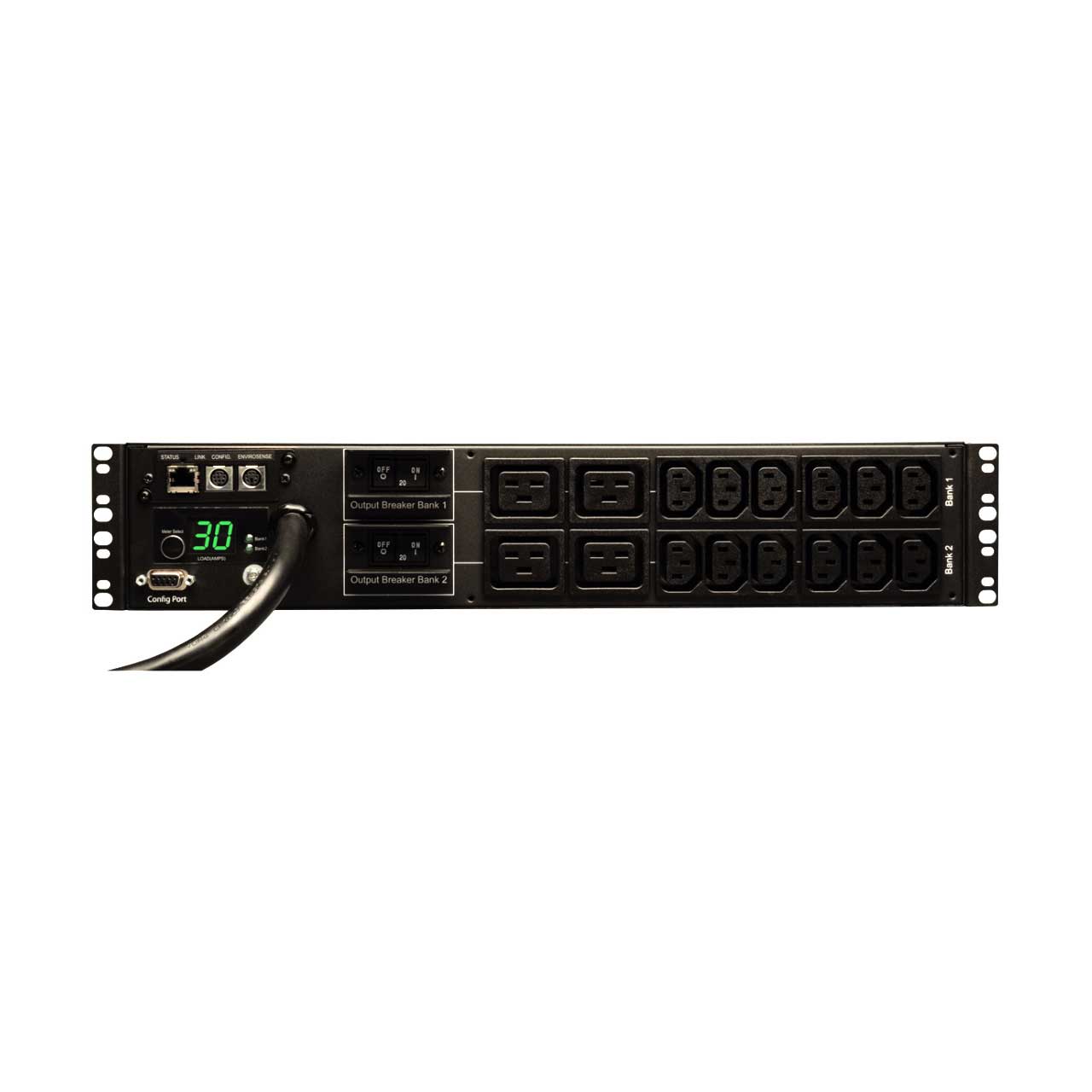

  • 16 outlets (12 C13, 4 C19)
  • Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)


• Specifications:

  • Style Rackmount
  • PDU Type Monitored
  • Output Capacity Details 5kW (208V input), 5.8kW (240V input), 4.8kW (200V input); 30A maximum (agency de-rated to 24A continuous)
  • Frequency Compatibility 50 / 60 Hz
  • Output Receptacles (12) C13; (4) C19
  • Output Nominal Voltage 200-240V nominal, single phase
  • Overload Protection Outlets are arranged in two banks of 8 (6 C13, 2 C19 per bank); Each bank is protected by a separate 20A circuit breaker
  • Outlet Type IEC-C13, IEC-C19
  • PDU Input Voltage 200; 208; 240
  • Recommended Electrical Service 30A 208/240V
  • Maximum Input Amps 30
  • Maximum Input Amps Details Agency de-rated to 24A continuous
  • PDU Plug Type NEMA L6-30P
  • Input Cord Length (ft.) 12
  • Input Cord Length (m) 3.65
  • Input Phase Single-Phase
  • Front Panel LCD Display Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1, Bank 2 and Banks 1&2 combined)
  • Front Panel LEDs Front panel LEDs indicat which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
  • Switches Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined
  • Shipping Dimensions (hwd / in.) 8 x 20.5 x 17
  • Shipping Dimensions (hwd / cm) 20.3 x 113 x 80.6
  • Shipping Weight (lbs.) 16.9
  • Shipping Weight (kg) 7.6
  • Unit Dimensions (hwd / in.) 3.5 x 17.5 x 12.5
  • Unit Dimensions (hwd / cm) 8.9 x 44.5 x 31.75
  • Unit Weight (lbs.) 13.7
  • Unit Weight (kg) 6.2
  • Material of Construction Metal
  • Form Factors Supported 2U rackmount
  • PDU Form Factor Horizontal (1U, 2U, etc)
  • Storage Temperature Range 5 to 122F (-15 to 50C)
  • Relative Humidity 5-95% non-condensing
  • Operating Elevation (ft.) 0-10,000
  • Operating Elevation (m) 0-3000
  • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems
  • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMNH30HVTAA
  • Certifications Tested to UL (USA), CSA (Canada), NOM (Mexico), Class A (emissions), RoHS compliant
  • Product Warranty Period (Worldwide) 2-year limited warranty


• GTIN:

  0037332159205
