Tripp Lite SM1500RMXL2UTAA 1500VA 1000W UPS Smart Rackmount AVR 120V USB DB9 2URM TAA GSA

ITEM #: TRL-SM1500RMXL2U MFG #: SM1500RMXL2UTAA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,456.00

Our Price:

$894.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SM1500RMXL2UTAA - Overview

Tripp Lite's SM1500RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

  • Features:

    • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
    • 1.5kVA / 1500VA / 1350 watt line interactive 2U rack / tower UPS, 0.9 power factor
    • 120V nominal output during brownouts to 83V and overvoltages to 145V
    • Interactive LCD offers detailed status and configuration options
    • Expandable runtime, Hot-swap Batteries, 95% efficiency, Sine wave
    • NEMA 5-15P input, 8 NEMA 5-15R outlets
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
    • Tripp Lite SM1500RMXL2UTAA line interactive 2U rack/tower UPS with 1500VA / 1.5kVA / 1350W capacity and extended runtime options
    • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

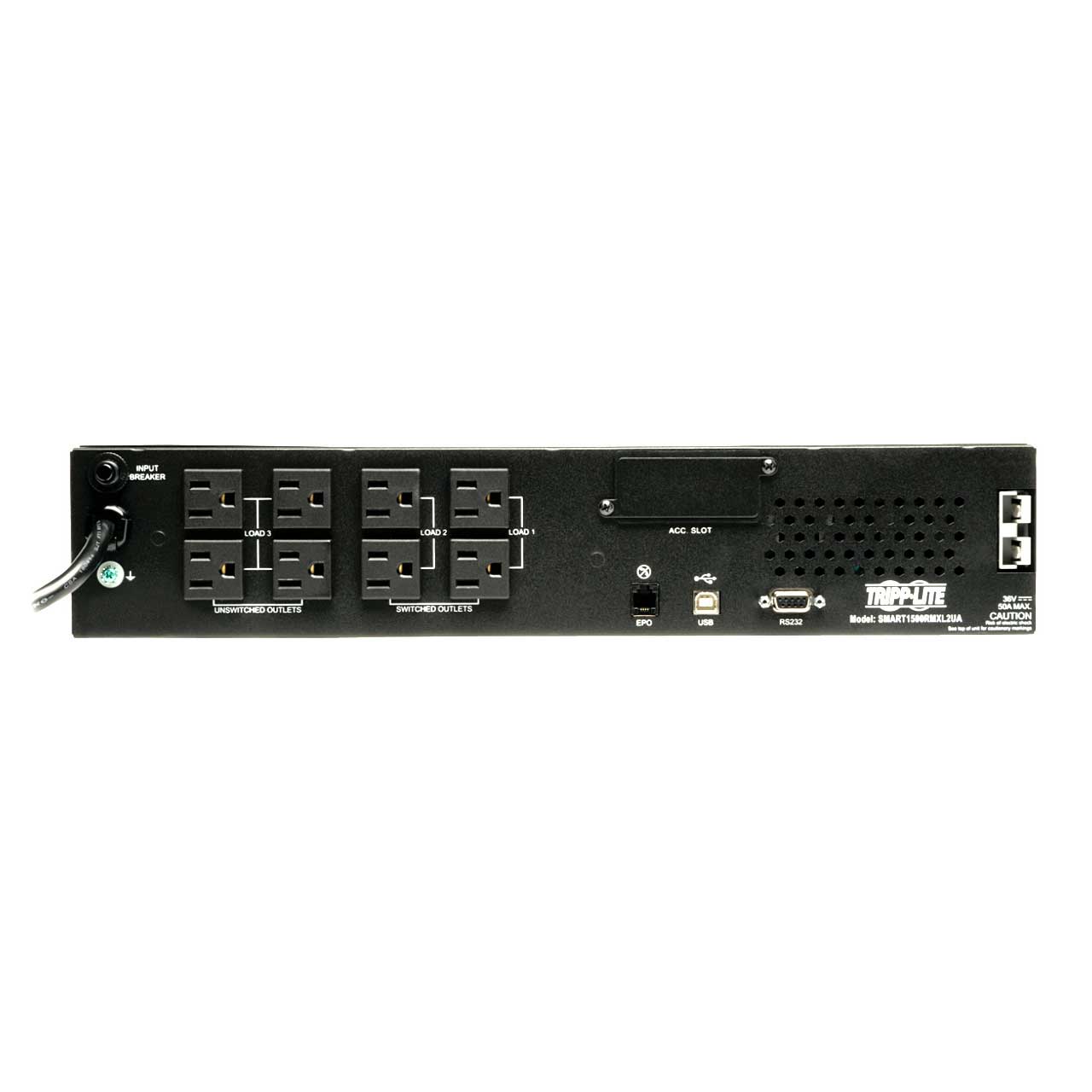

    • NEMA 5-15P input plug; 8 NEMA 5-15R output receptacles, Two independently switched output load banks
    • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
    • High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
    • Internal batteries offer 14 minutes at 50% load (675W) and 4.9 minutes at 100% load (1350W)
    • Extended runtime is available with optional BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible), Output is reduced to 1200 watts maximum with external battery packs
    • External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment

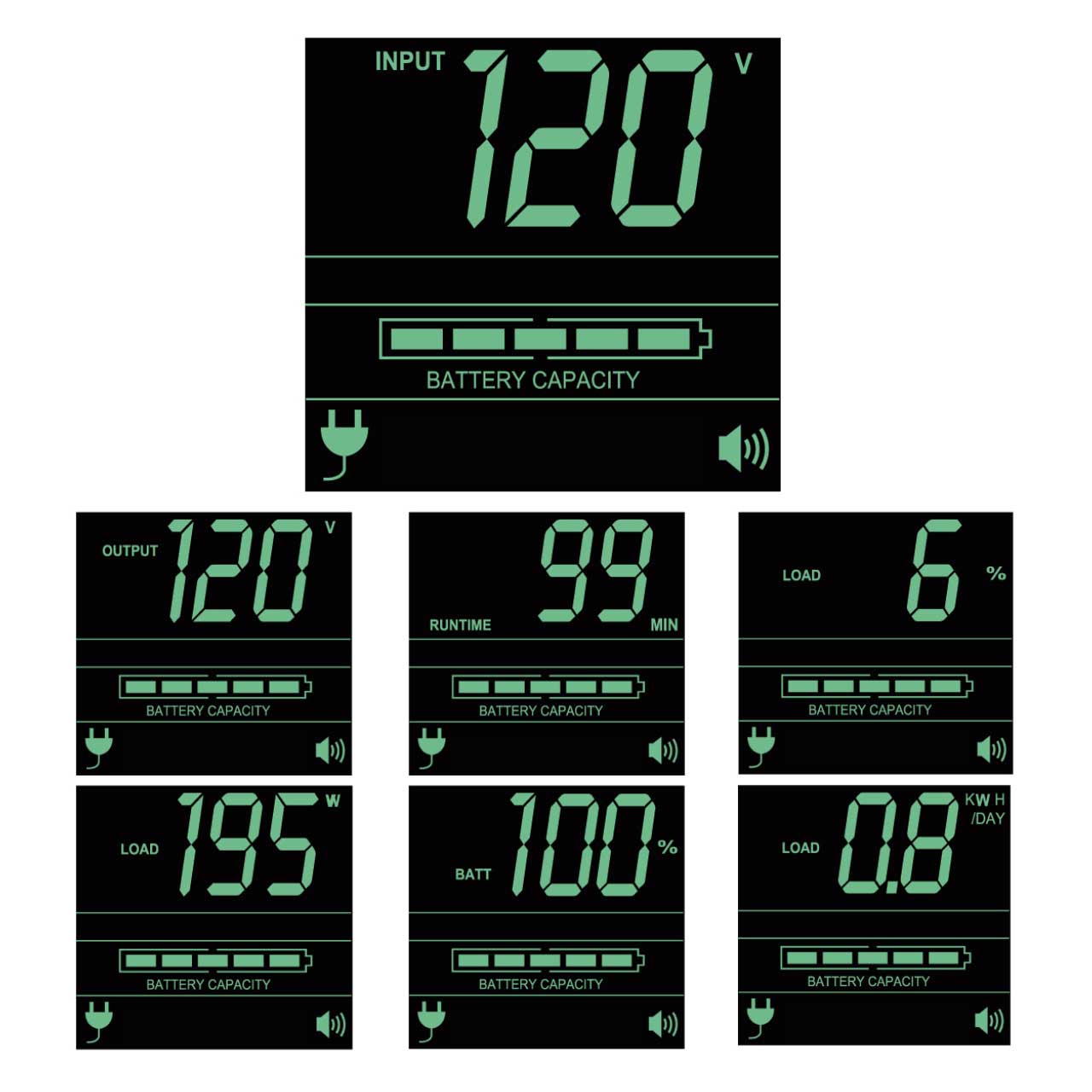

    • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
    • LCD interface also supports a number of advanced user setup and operating preferences

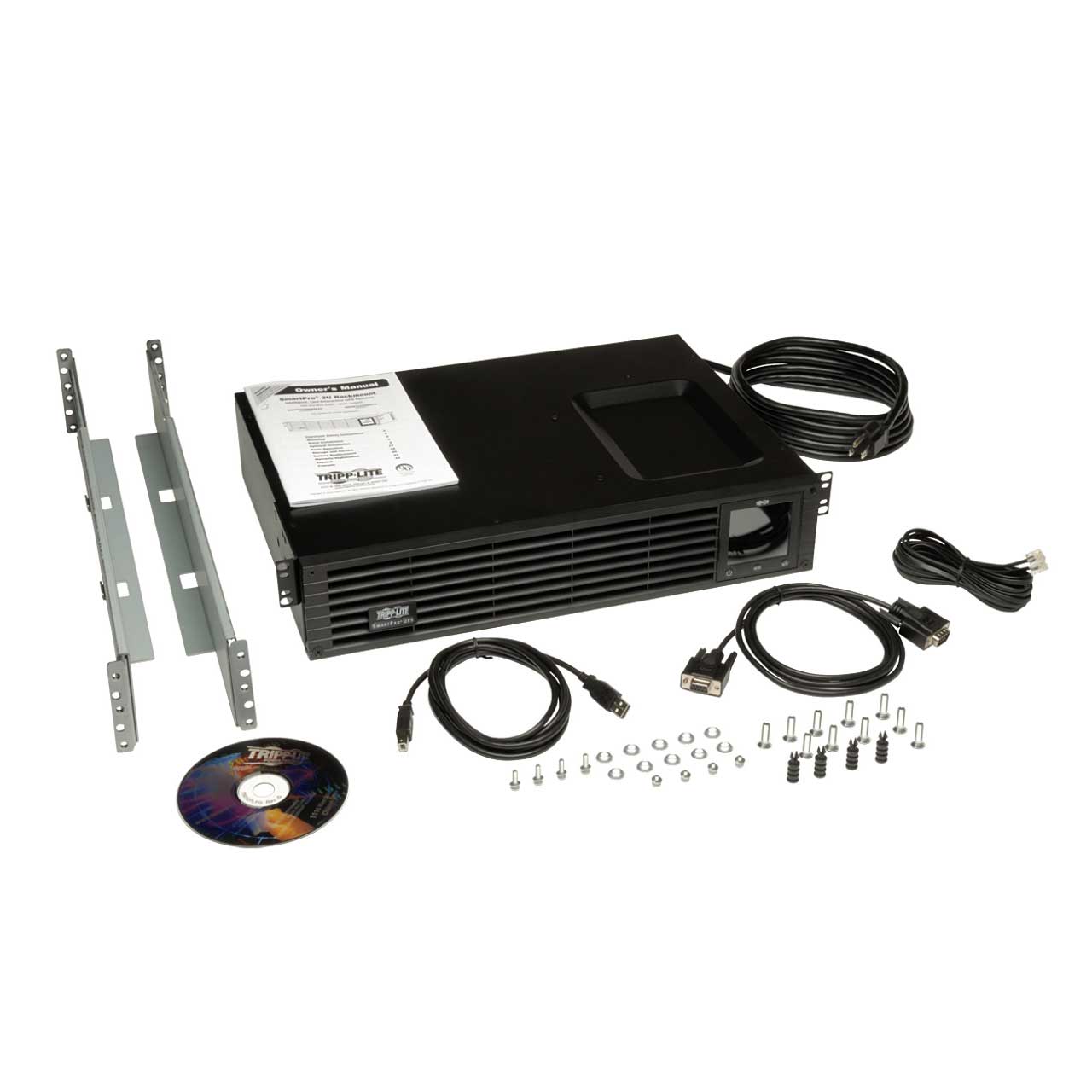

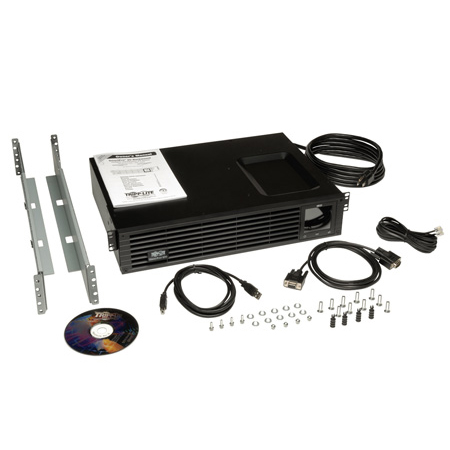

    • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
    • Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
    • HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

  • Specifications:

    • OUTPUT
    • Output Volt Amp Capacity (VA) 1500
    • Output kVA Capacity (kVA) 1.5
    • Output Watt Capacity (Watts) 1350
    • Output kW Capacity (kW) 1.35
    • Output Capacity Details Output derates to 1200 watts in all external battery configurations
    • Power Factor 0.9
    • Nominal Output Voltage(s) Supported 120V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) -14%, +6%
    • Output Voltage Regulation (Battery Mode) +/- 5%
    • Output Receptacles (8) 5-15R
    • Load Management Receptacles Two switchable two-outlet 5-15R load banks
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) Pure Sine wave
    • INPUT
    • Rated input current (Maximum Load) 12A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P
    • Input Circuit Breakers 15A
    • UPS Input Cord Length (ft.) 10
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase

  • GTIN:

    0037332152831
