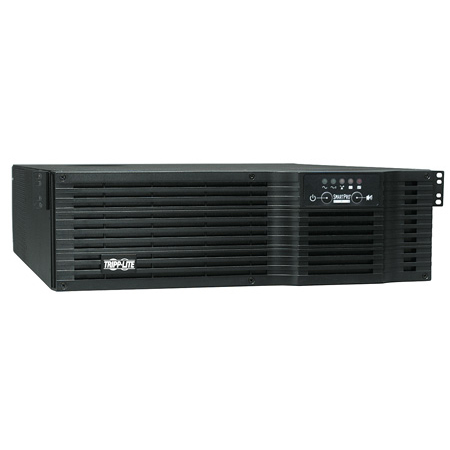

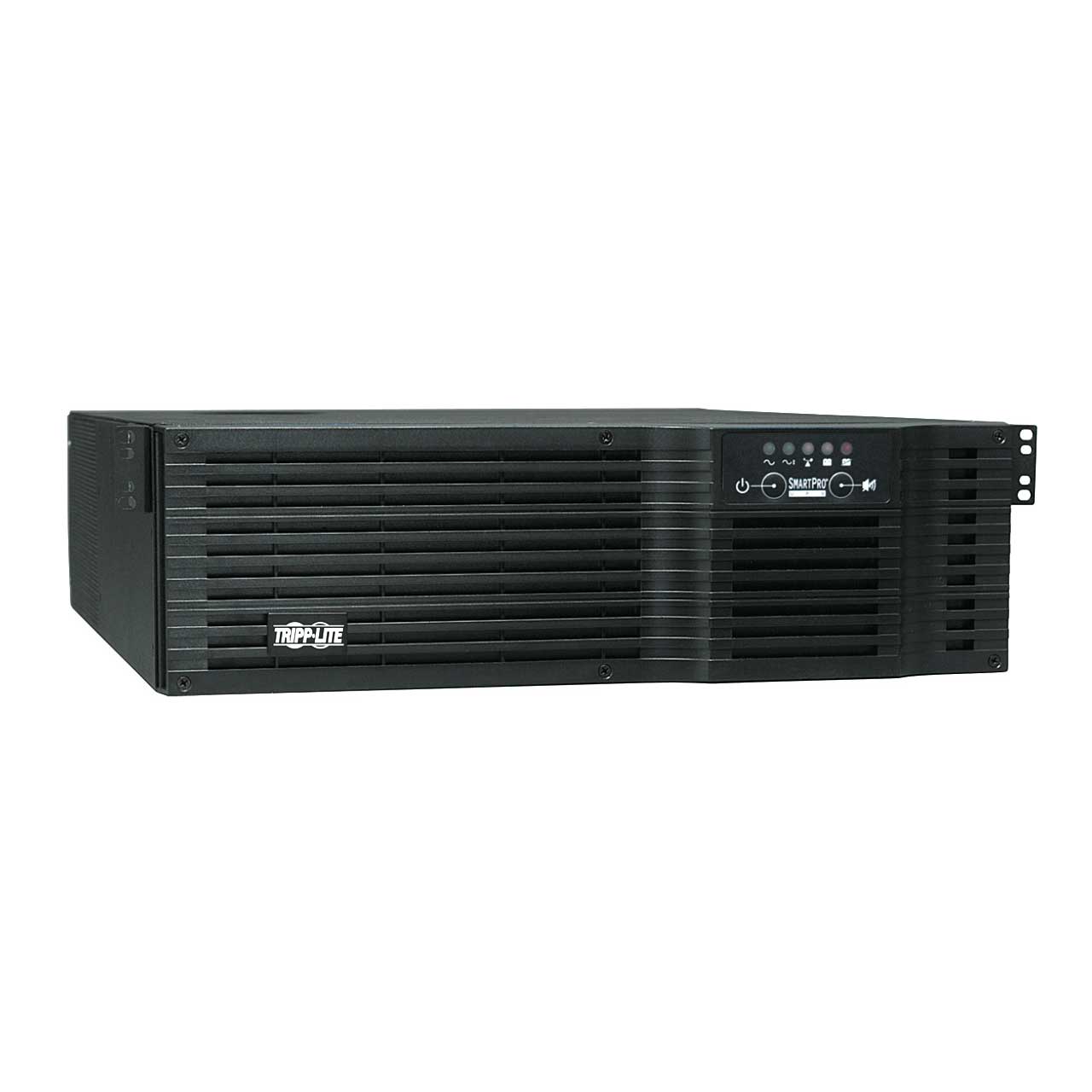

Tripp Lite SM2200RMDVTAA 2200VA 1920W UPS Smart Rackmount AVR 120V / 230V 3URM TAA GSA

ITEM #: TRL-SM2200RMDVTA MFG #: SM2200RMDVTAA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,870.00

Our Price:

$1,760.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SM2200RMDVTAA - Overview

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. Protects a variety of computer, networking and other sensitive equipment types from blackouts, voltage fluctuations and transient surges. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages to maintain regulated 120v output over an input range of 89 to 148V or 212 to 286V. Includes C20 power inlet with set of 4 international cord sets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode reduces energy cost and BTU emissions. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Installation accessories for rackmount and upright tower form factors included. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.

  • Features:

    • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
    • 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
    • Maintains 120V output with 120V or 230V input, Sine wave output
    • USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
    • 95% line-mode efficiency, 2 switched load banks

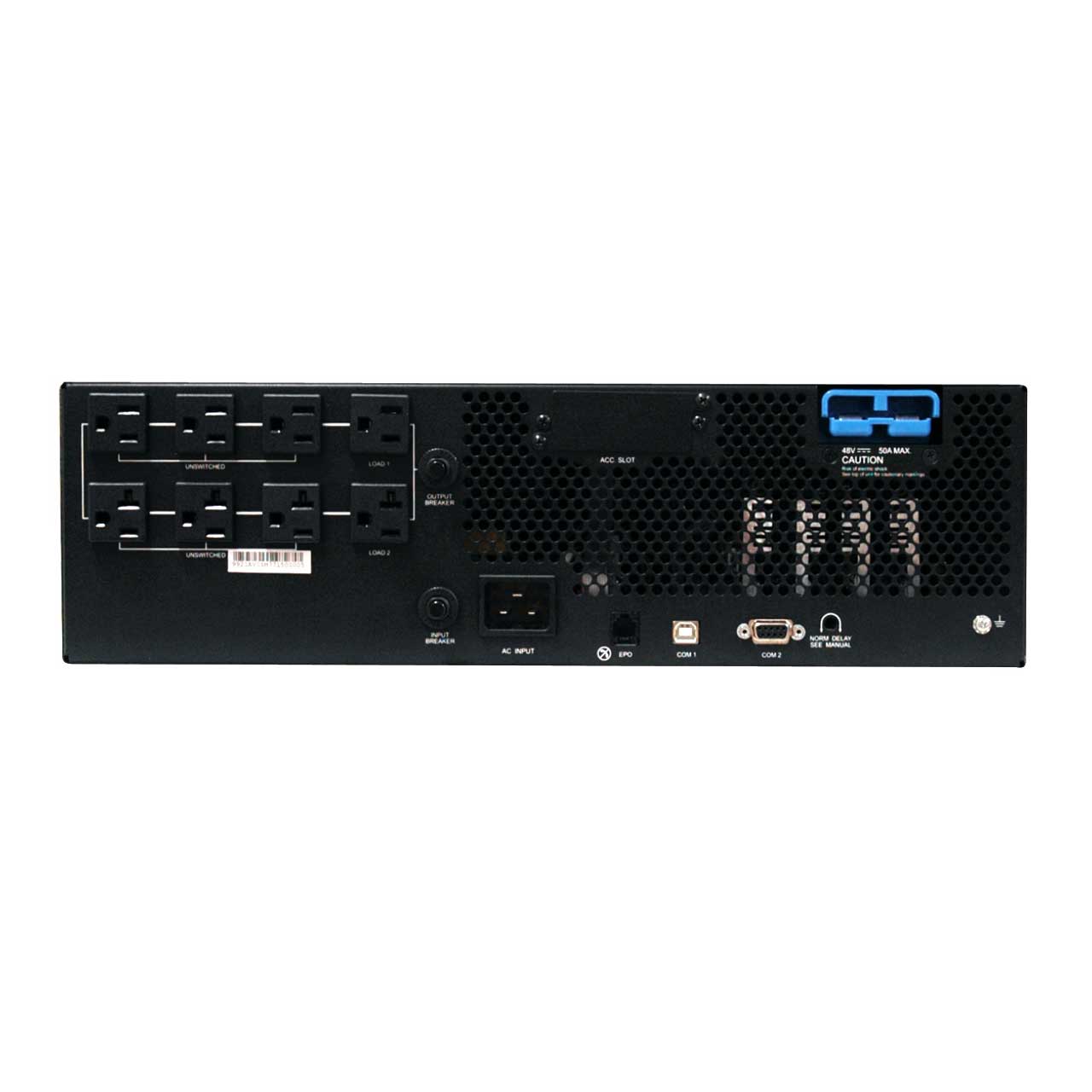

    • C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
    • SmartPro SM2200RMDVTAA dual-voltage line interactive UPS system maintains 120V nominal output with either 120V or 230V input power
    • Ideal for voice, data and networking applications requiring 120V output from worldwide power sources
    • Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage cut during overvoltages
    • Maintains continuous operation through blackouts, voltage fluctuations and surges
    • Corrects line voltage conditions between 89 to 148V or 212 to 286V to 120V nominal output
    • Standard internal battery set offers 30 minutes runtime at half load (960 watts) and 12 minutes at full load (1920 watts)
    • Extended runtime is available with optional BP48V24-2U / BP48V242UTAA (limit 1) OR BP48V60RT3U / BP48V60RT3UTAA (no limit)
    • Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Includes C20 power inlet with set of 4 international cord sets to support 5-20P, Schuko, CEE 7 / EU1-16P, British BS1363A and Italian CEI 23-16 plug types
    • Includes NEMA 5-15R and 5-15/20R output receptacles
    • Network-grade AC surge and noise suppression
    • Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot
    • HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces
    • Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface
    • Integrated 2-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs
    • 95% efficiency in line power mode reduces energy cost and BTU emissions

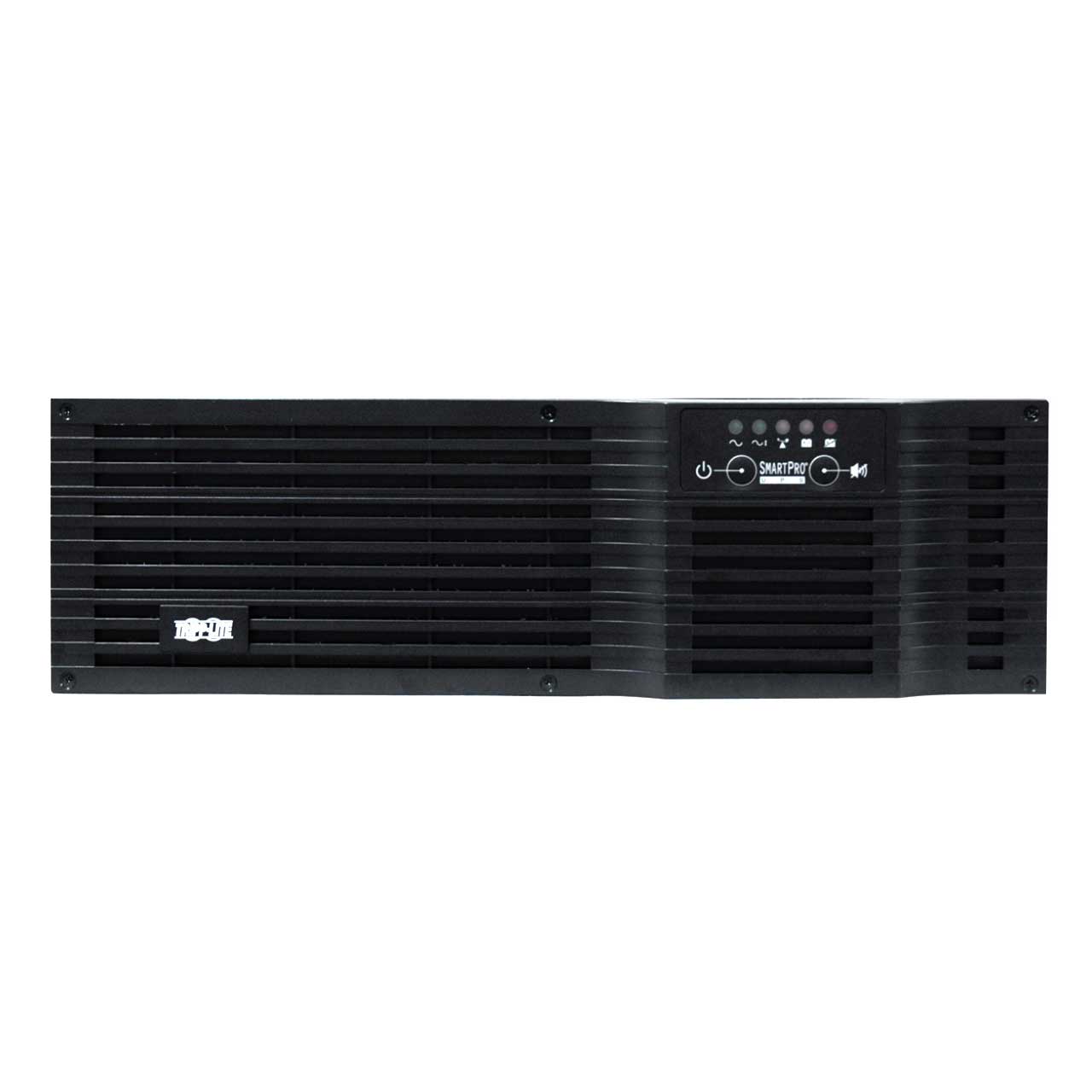

    • Utility power and voltage regulation LEDs

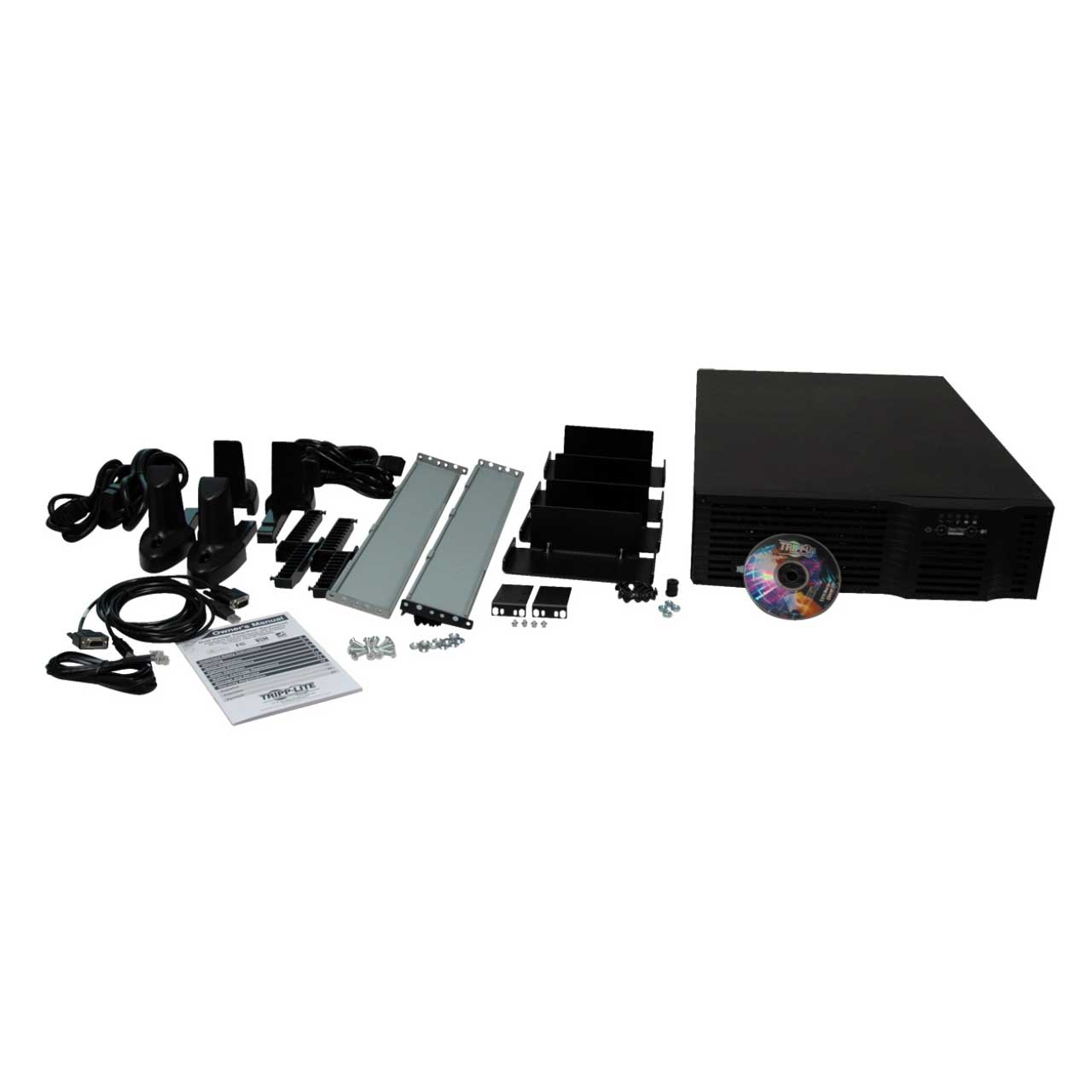

    • Installation accessories for rackmount and upright tower form factors included
    • Field-replaceable, hot-swappable internal batteries and external battery packs

  • Specifications:

    • OUTPUT
    • Output Volt Amp Capacity (VA) 2200
    • Output kVA Capacity (kVA) 2.2
    • Output Watt Capacity (Watts) 1920
    • Output kW Capacity (kW) 1.92
    • Nominal Output Voltage(s) Supported 120V
    • Frequency Compatibility 50 / 60 Hz
    • Frequency Compatibility Details Auto-sensing
    • Output Voltage Regulation (Battery Mode) +/- 5%
    • Output Receptacles (4) 5-15R; (4) 5-15/20R
    • Load Management Receptacles Two switchable single-outlet 5-15R load banks
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) Pure Sine wave
    • INPUT
    • Rated input current (Maximum Load) 16A (120V), 10A (230V)
    • Nominal Input Voltage(s) Supported 120V AC; 230V AC
    • UPS Input Connection Type 5-20P; C20 inlet
    • UPS Input Connection Description C20 inlet and 5 compatible plugsets (5-20P, Schuko CEE7, EU1-16P, British BS1363, Italian CEI 23-16)
    • Input Circuit Breakers 20A
    • UPS Input Cord Length (ft.) 6
    • Input Phase Single-Phase

  • GTIN:

    0037332156310
