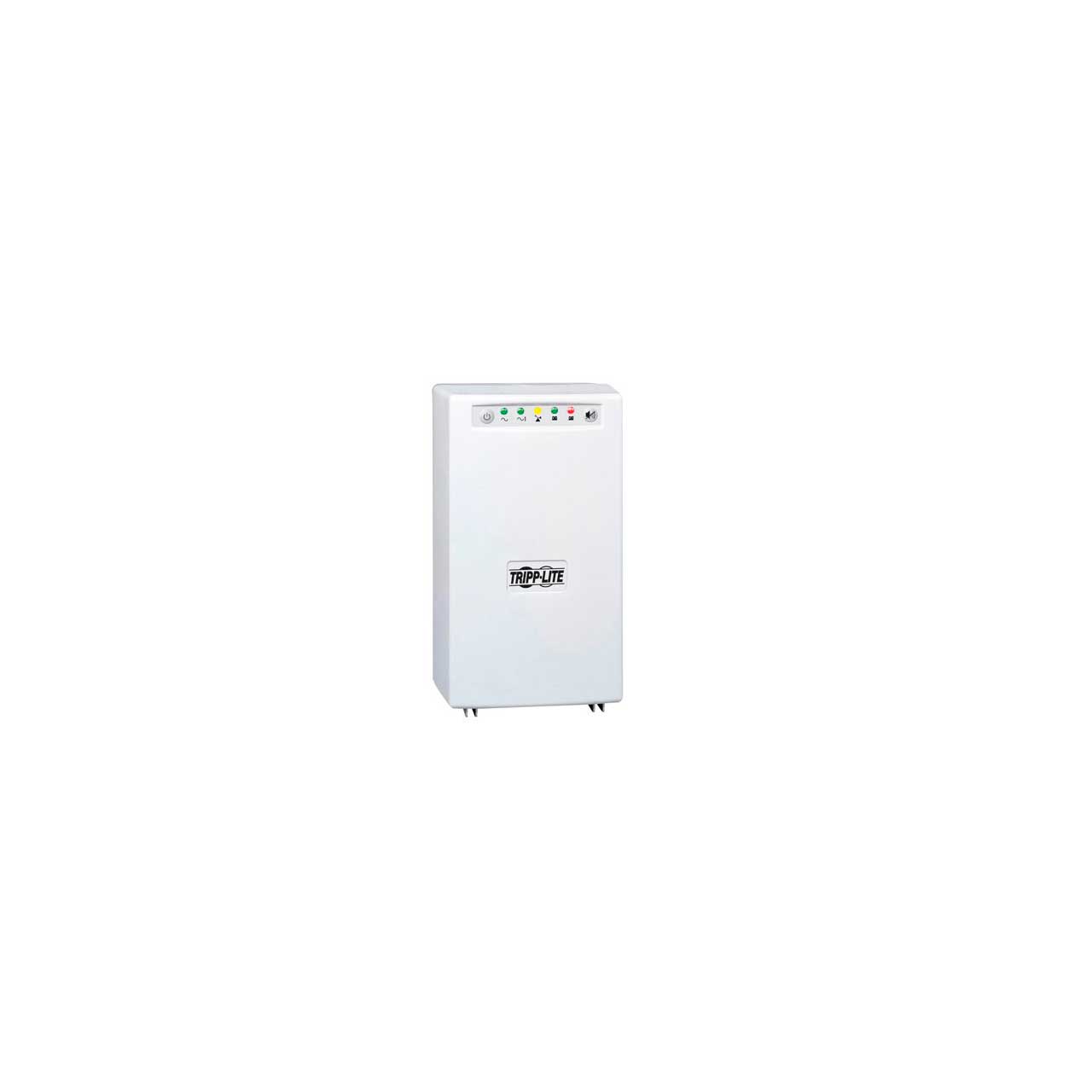

Tripp Lite SMART700HG 700VA 450W UPS Smart Tower AVR Hospital Medical 120V USB DB9

SMART700HG - Overview

• Features:

  • Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed medical electrical equipment is required
  • Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
  • Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power
  • Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
  • Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment
  • Resistant to electrostatic discharge
  • Supports loads up to 700VA/450 watts
  • 42 minutes half load runtime (with 350VA load), 18 minutes full load runtime (with 700VA load)
  • 4 protected hospital-grade outlets; 6-ft. cord
  • RS-232 and USB monitoring ports for remote monitoring and unattended shutdown
  • PowerAlert unattended shutdown software available via free download from www.tripplite.com (cabling included)
  • Complete surge protection, line isolation and EMI/RFI noise filtering

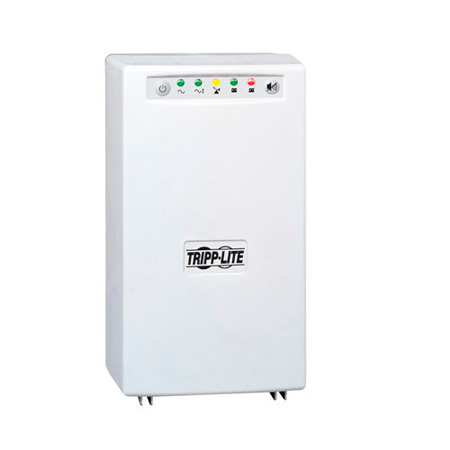

  • 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace

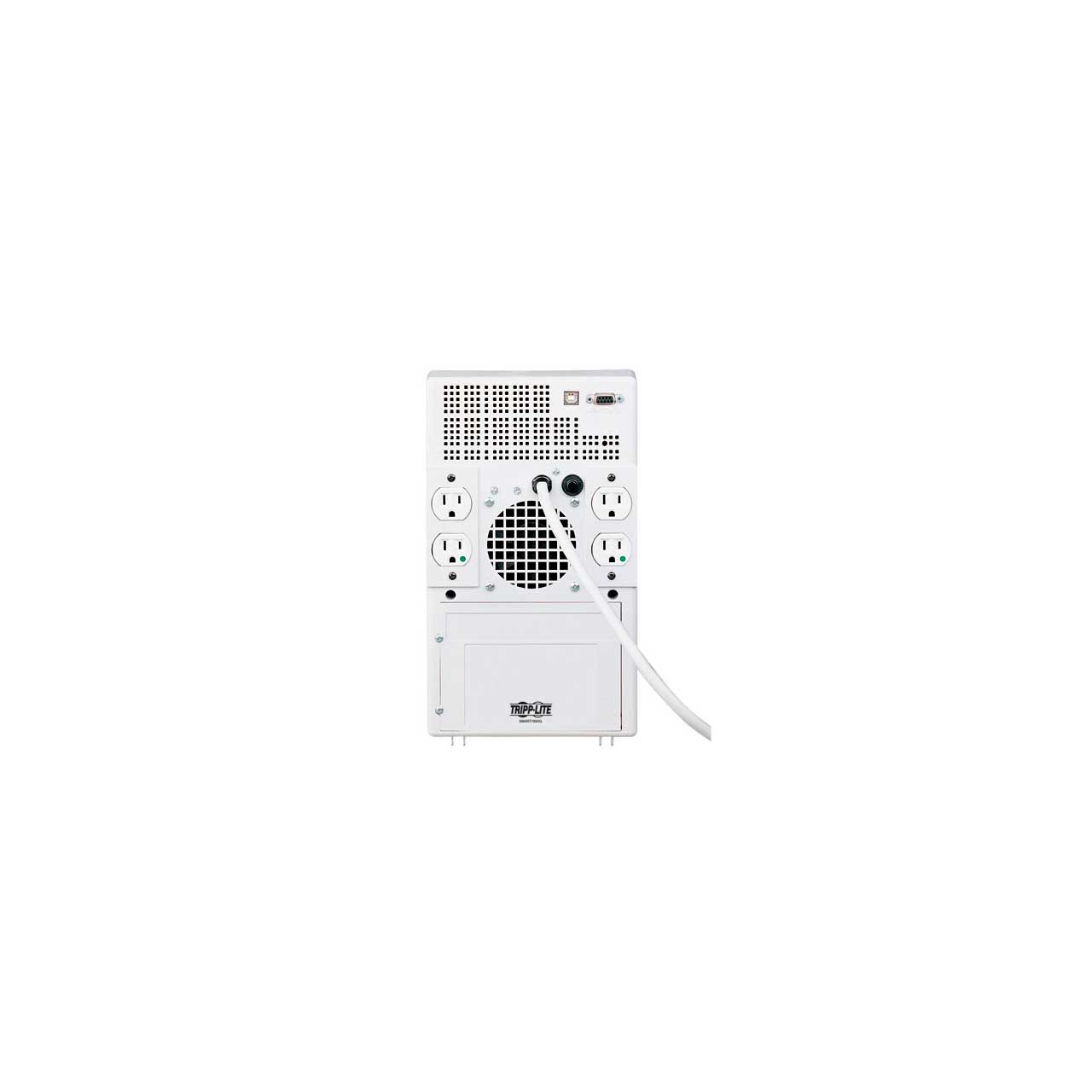

  • Battery replacement door and back panel grounding lug


• Specifications:

  • OUTPUT
  • Output Volt Amp Capacity (VA): 700
  • Output Watt Capacity (Watts): 450
  • Power Factor: 0.6
  • Nominal Output Voltage(s) Supported: 115V; 120V
  • Frequency Compatibility: 60 Hz
  • Output Voltage Regulation (Line Mode): -18%, +8%
  • Output Voltage Regulation (Battery Mode): 115V (+/- 5%)
  • Output Receptacles: (4) 5-15R
  • Output Receptacle Details: Hospital grade
  • Output AC Waveform (AC Mode): Sine wave
  • Output AC Waveform (Battery Mode): PWM sine wave


  • INPUT
  • Rated input current (Maximum Load): 5.5A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P-HG
  • Input Circuit Breakers: 10A
  • UPS Input Cord Length (ft.) 6
  • Recommended Electrical Service: 15A 120V
  • Input Cord Length (ft.) 6
  • Input Phase: Single-Phase


  • BATTERY
  • Full Load Runtime (min.): 18 min. (450w)
  • Half Load Runtime (min.): 42 min. (225w)
  • DC System Voltage (VDC): 36
  • Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90%
  • Internal UPS Replacement Battery Cartridge: RBC53
  • Battery Replacement Description: Hot-swappable, user replaceable batteries


  • VOLTAGE REGULATION
  • Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
  • Overvoltage Correction: Input voltages between 126 and 143 are reduced by 9%
  • Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%
  • Severe Undervoltage Correction: Input voltages between 81 and 95 are boosted by 21%


  • LEDS ALARMS & SWITCHES
  • 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
  • Audible alarm indicates power-failure, overload and low-battery conditions
  • Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status


  • SURGE / NOISE SUPPRESSION
  • UPS AC Suppression Joule Rating: 480
  • UPS AC Suppression Response Time: Instantaneous
  • EMI / RFI AC Noise Suppression: Yes
  • AC Suppression Joule Rating: 480
  • AC Suppression Response Time: Instantaneous


  • ISOLATION
  • Hospital grade load isolation transformer
  • Leakage Current Equal to 100 microamps


  • ENVIRONMENTAL
  • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode BTU / Hr. (Full Load): 97.7
  • Battery Mode BTU / Hr. (Full Load): 189.1
  • AC Mode Efficiency Rating (100% Load): 94%


  • COMMUNICATIONS
  • Communications Interface: USB; DB9 Serial
  • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
  • PowerAlert Software Included
  • Communications Cable: USB and DB9 serial cabling included


  • SPECIAL FEATURES
  • Grounding lug
  • Cold Start (Startup in Battery Mode During a Power Failure)
  • Hot swappable batteries
  • Greater than 95% efficiency - GREEN UPS


  • CERTIFICATIONS
  • Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)


• Item Includes:

  • SMART 700HG Medical Grade UPS System
  • One USB and One DB9 monitoring cable
  • Warranty information
  • Instruction manual


• Warranty:

  • 2-year limited warranty


• GTIN:

  0037332095107
